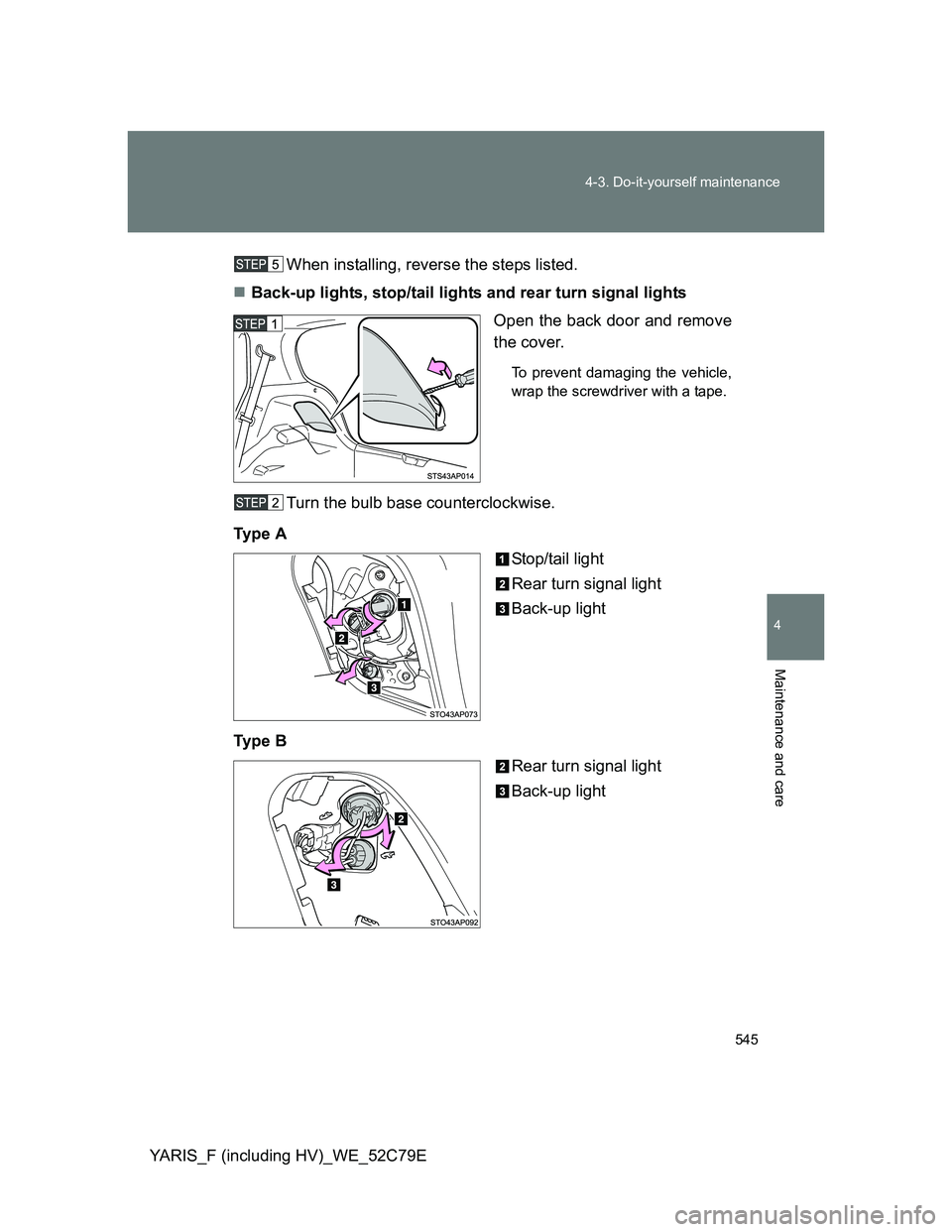

Back-up lights, stop/tail lights and rear turn signal lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Turn the bulb base counterclockwise.
Ty p e A
Stop/tail light
Rear turn signal light
Back-up light
Ty p e B
Rear turn signal light
Back-up light
Page 546 of 704
546 4-3. Do-it-yourself maintenance

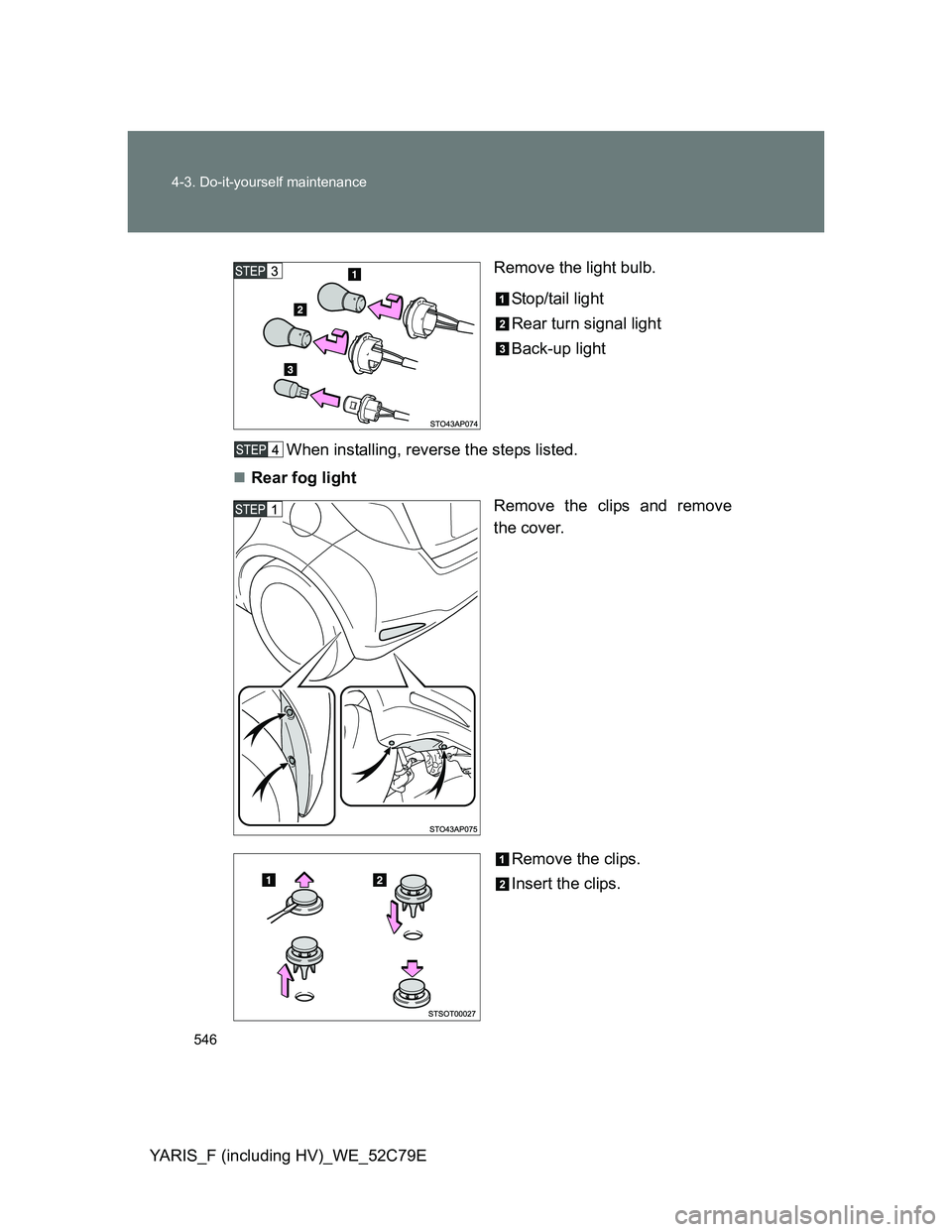

YARIS_F (including HV)_WE_52C79ERemove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light
When installing, reverse the steps listed.
Rear fog light
Remove the clips and remove
the cover.
Remove the clips.
Insert the clips.
Page 547 of 704
547 4-3. Do-it-yourself maintenance
4
Maintenance and care

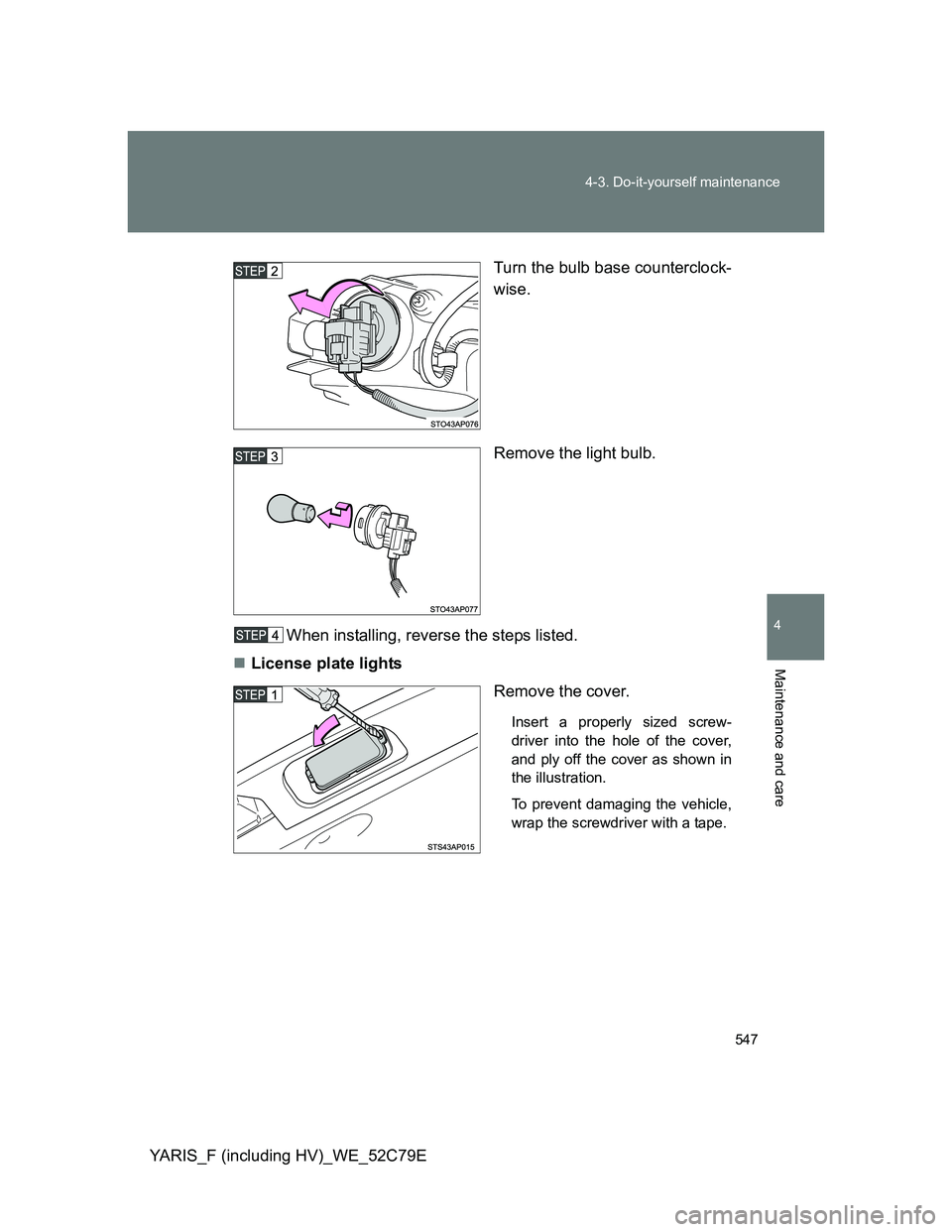

YARIS_F (including HV)_WE_52C79ETurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
License plate lights
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Page 548 of 704
548 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79ERemove the light bulb.
When installing, reverse the steps listed.
Replacing the following lights
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Front position lights and daytime running lights (LED type)
Stop/tail lights (LED type)
High mounted stoplight

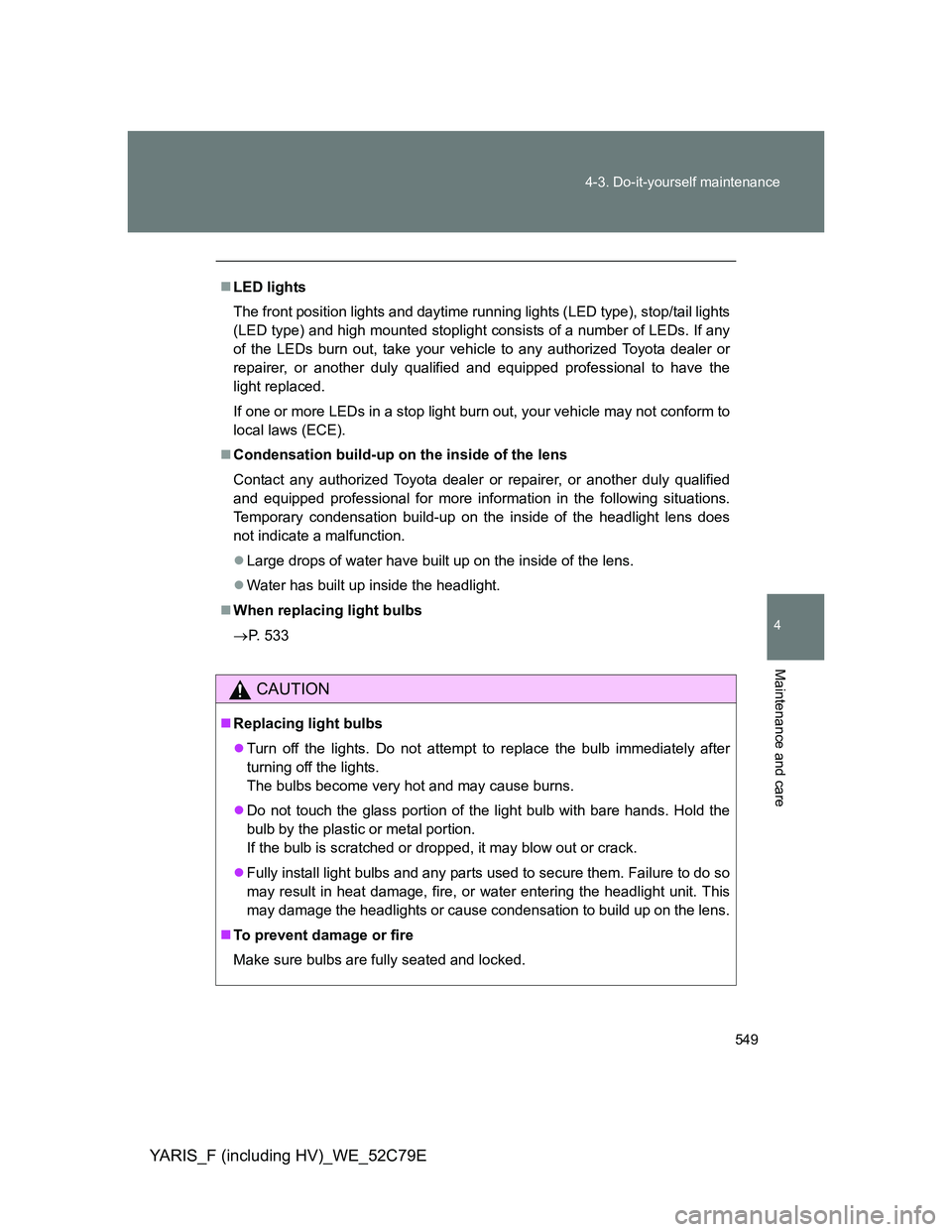

Page 549 of 704

549 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E
LED lights
The front position lights and daytime running lights (LED type), stop/tail lights
(LED type) and high mounted stoplight consists of a number of LEDs. If any
of the LEDs burn out, take your vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional to have the
light replaced.
If one or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 533
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
Page 550 of 704
550 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E
Page 551 of 704

5When trouble arises
551
YARIS_F (including HV)_WE_52C79E
5-1. Essential information
Emergency flashers .......... 552
If your vehicle needs to
be towed ......................... 553
If you think something is
wrong .............................. 563
Fuel pump shut off system
(except hybrid vehicle
[gasoline engine only]).... 564
5-2. Steps to take in an
emergency
If a warning light turns on
or a warning buzzer
sounds... ........................ 565
If you have a flat tire
(vehicles with
a spare tire) .................... 582
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit).......... 594
If the engine will not start
(except hybrid vehicle).... 611
If the hybrid system will not
start (hybrid vehicle) ....... 614
If the shift lever cannot be
shifted from P (vehicles
with a hybrid transmission
or a Multidrive) ................ 616
If the shift lever cannot be
shifted (vehicles with
a multi-mode manual
transmission) .................. 617If you lose your keys ......... 618
If the electronic key does
not operate properly ....... 619
If the vehicle battery is
discharged
(except hybrid vehicle).... 624
If the vehicle’s 12-volt
battery is discharged
(hybrid vehicle) ............... 631
If your vehicle overheats
(except hybrid vehicle).... 635
If your vehicle overheats
(hybrid vehicle) ............... 639
If you run out of fuel and
the engine stalls
(diesel engine only) ........ 644
If the vehicle becomes
stuck ............................... 647
If your vehicle has to
be stopped in
an emergency ................. 650
Page 552 of 704
552
YARIS_F (including HV)_WE_52C79E
5-1. Essential information

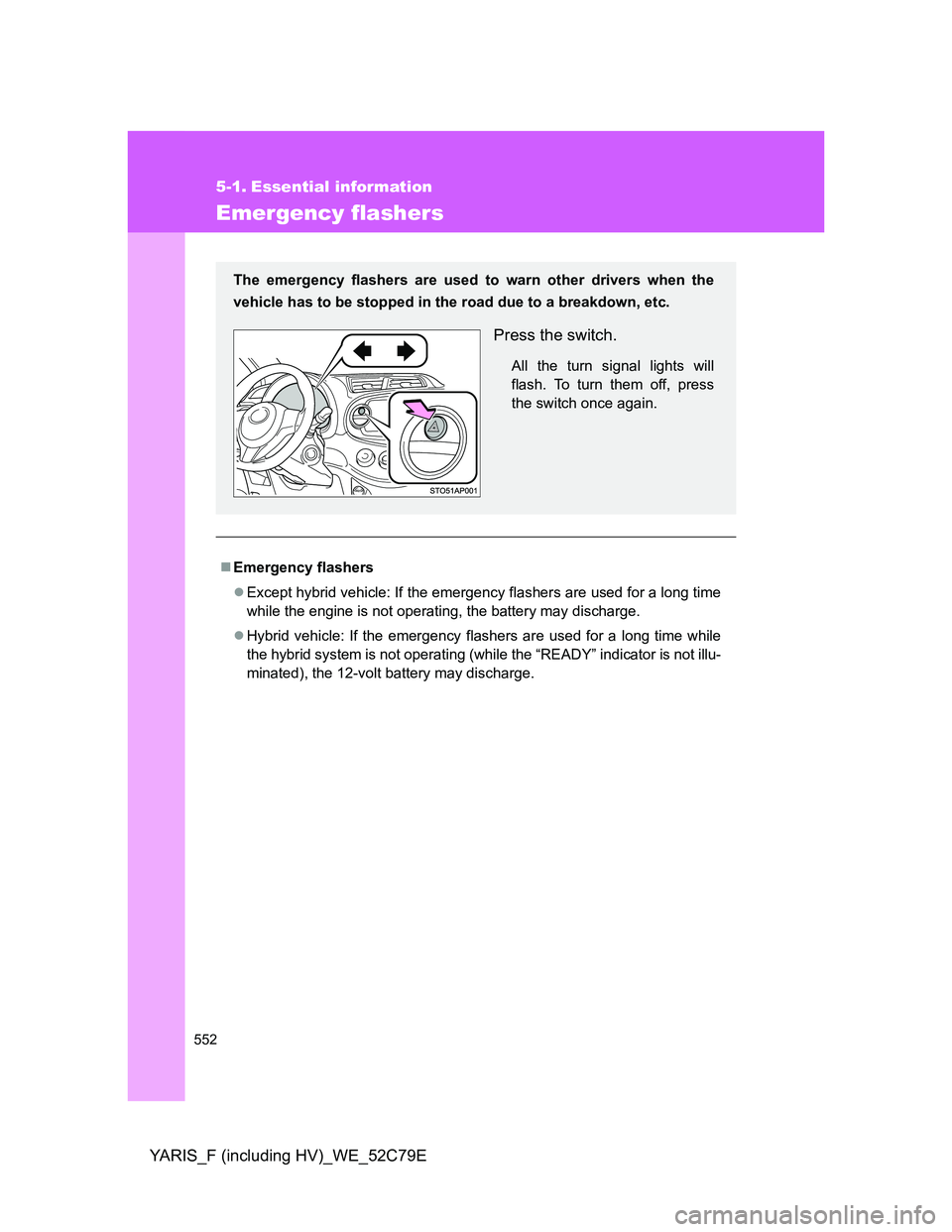

Emergency flashers
