2012 Peugeot 508 RXH Owner's Manual - RHD (UK, Australia)

.
295

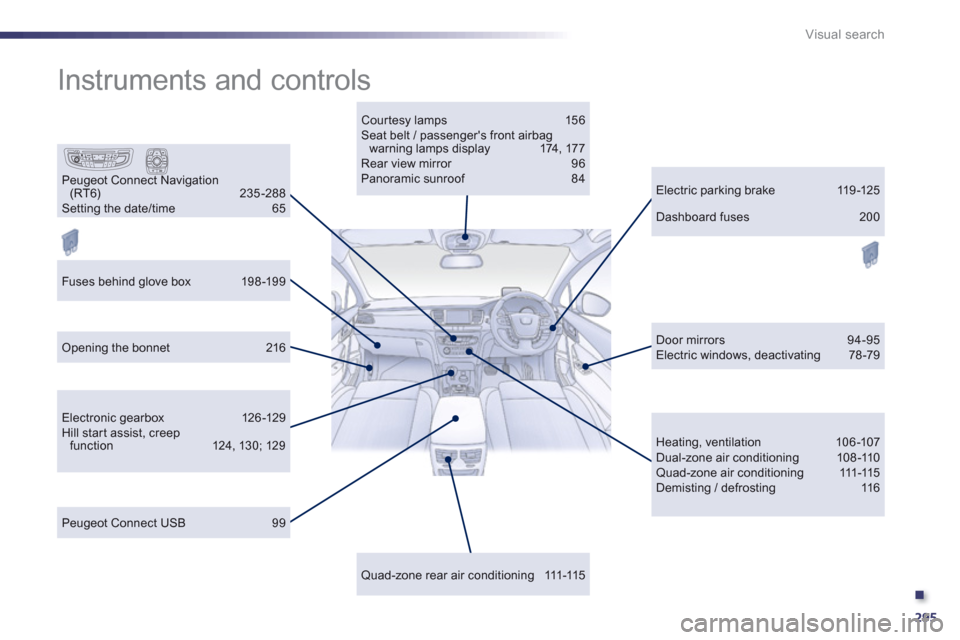

Visual search
Instruments and controls
Courtesy lamps 156 Seat belt / passenger's front airbagwarning lamps display 174, 17 7 Rear view mirror 96 Panoramic sunroof 84
Fuses behind glove box 198 -199
Heating, ventilation 10 6 -107 Dual-zone air conditioning 108-11 0 Quad-zone air conditioning 111 -115 Demisting / defrosting 116

Peugeot Connect USB 99
Electric parking brake 11 9-125
Electronic gear box 126 -129 Hill star t assist, creep function 124, 130; 129
Dashboard fuses 200

Quad-zone rear air conditioning 111 -115
Peugeot Connect Navigation(RT6) 235-288Setting the date/time 65
Opening the bonnet 216 Door mirrors 94-95 Electric windows, deactivating 78-79

296

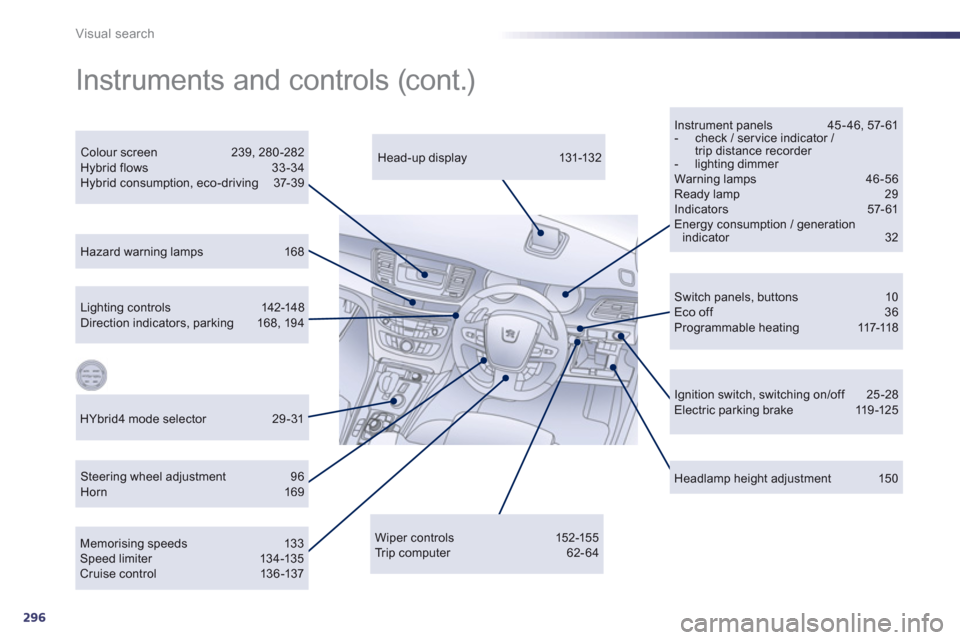

Visual search

Hazard warning lamps 168
Ignition switch, switching on/off 25 -28 Electric parking brake 119 -125
Instrument panels 45 - 46, 57- 61 - check / ser vice indicator / trip distance recorder - lighting dimmer Warning lamps 46-56 Ready lamp 29 Indicators 57-61 Energy consumption / generation indicator 32



Lighting c ontrols 142-148
Direction indicators, parking 168, 194
Headlamp height adjustment 150

Head-up display 131-132
Colour screen 239, 280-282
Hybrid flows 33 -34
Hybrid consumption, eco-driving 37-39

Instruments and controls (cont.)
Wiper c ontrols 152-155 Tr i p c o m p u t e r 6 2 - 6 4
Switch panels, buttons 10 Eco off 36 Programmable heating 117-11 8


Steering wheel adjustment 96
Horn 169
Memorising speeds 13 3 Speed limiter 134-135 Cruise control 136-137
HYbrid4 mode selector 29-31

.
297

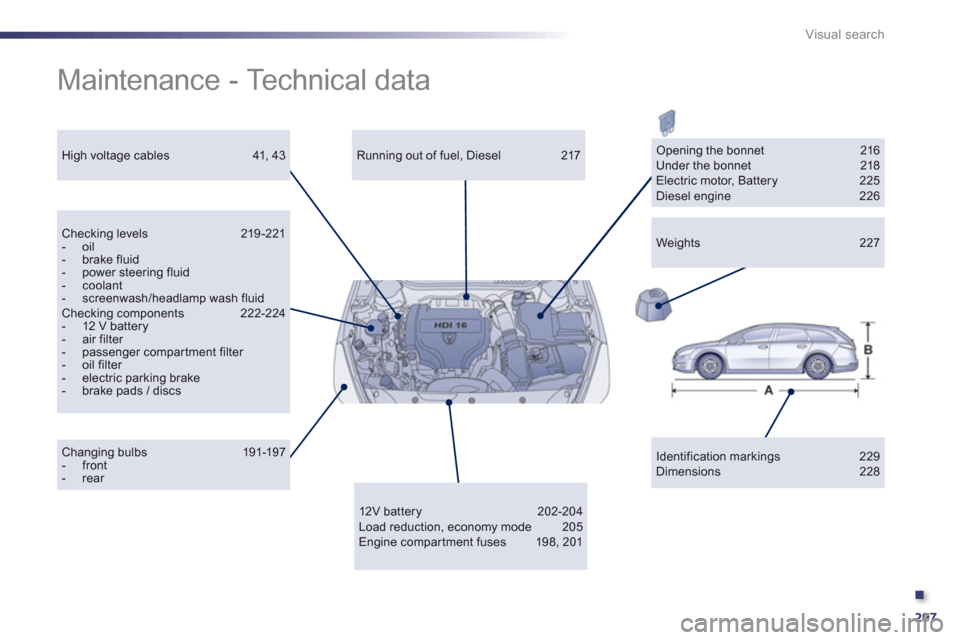

Visual search
Maintenance - Technical data
Identification markings 229 Dimensions 228


Running out of fuel, Diesel 217
Checking levels 219-221- oil - brake fluid - power steering fluid - coolant- screenwash/headlamp wash fluid Checking components 222-224- 12 V battery - air filter - passenger compartment filter - oil filter - electric parking brake- brake pads / discs

Changing bulbs 191-197- front- rear


Opening the bonnet 216 Under the bonnet 218 Electric motor, Battery 225 Diesel engine 226


12V bat tery 202-204
Load reduction, economy mode 205
Engine compar tment fuses 198, 201
Weights 227
High voltage cables 41, 43

02-12
This handbook describes all of theequipment available in the whole range. This document is an integral part of your
vehicle. It should be passed on to the new
user in the event of sale or transfer. Reproduction or translation o
f all or part of
this handbook is prohibited without written
authorisation
from Automobiles PEUGEOT.
Printed in the E
U Y
our vehicle will be fitted with some of thisequipment described in this document,
depending on its trim level, version and the specification for the country in which it is sold. Automobiles PEUGEOT declares, by
application of the provisions of the European
regulation (Directive 2000/53) relating
to End of Life Vehicles, that it achieves
the ob
jectives set by this regulation and
that recycled materials are used in the manufacture of the products that it sells. The descri
ptions and illustrations are given without any obligation. Automobiles
PEUGEOT reserves the right to modify the
technical specifications, equipment and accessories without having to update thecurrent handbook.

Anglais
For an
y work on your vehicle, use a qualified workshop that has the technical information,competence and equipment required, which
a PEUGEOT dealer is able to provide.

Anglais
AN. 12RXH.0031www.peugeot.com
