2012 Peugeot 508 RXH Owner's Manual - RHD (UK, Australia)

2
79
Access

Reinitialisation of
t
he electric windows

Always remove the key from the ignitionwhen leaving the vehicle, even for ashort time. In the event of contact during operation
of the windows, you must reverse themovement of the window. To do this, press the switch concerned.When operating the passenger electric window switches, the driver must ensure that no one is preventing correctclosing of the windows. The driver must ensure that thepassengers use the electric windowscorrectly.Be aware of children when operating the windows.
Followin
g reconnection of the battery, thesafety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least
one second after reaching this position,
window closed.

80
Access

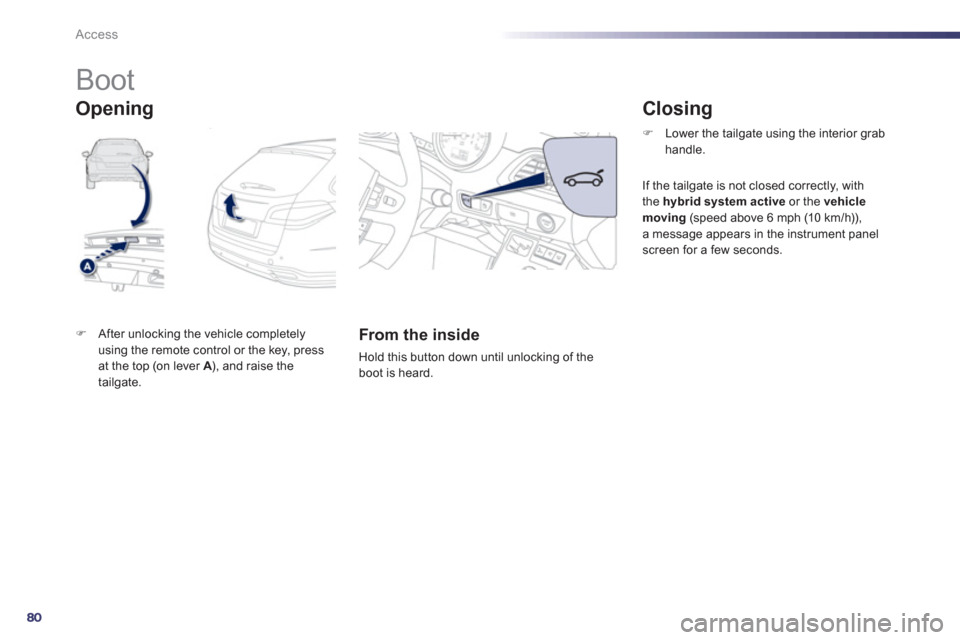

Boot
)After unlocking the vehicle completely using the remote control or the key, pressat the top (on lever A), and raise the Atailgate.



From the inside

Hold this button down until unlocking of the boot is heard.

)Lower the tailgate using the interior grabhandle.
Opening


If the tailgate is not closed correctly, with
the hybrid system active
or the vehicle moving
(speed above 6 mph (10 km/h)),
a message appears in the instrument panel screen for a few seconds.


Closing

2
81
Access

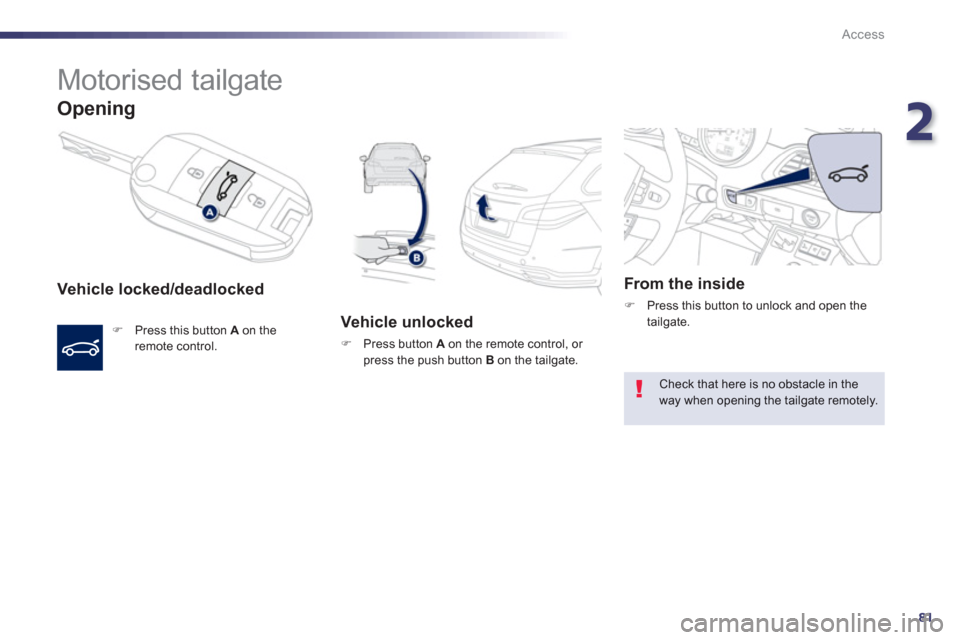

Motorised tailgate
Opening

Vehicle locked/deadlocked
)
Press this button Aon the
remote control.

Vehicle unlocked
)
Press button A
on the remote control, or
press the push button Bon the tailgate.

From the inside
)
Press this button to unlock and open the
tailgate.
Check that here is no obstacle in theway when opening the tailgate remotely.

82
Access

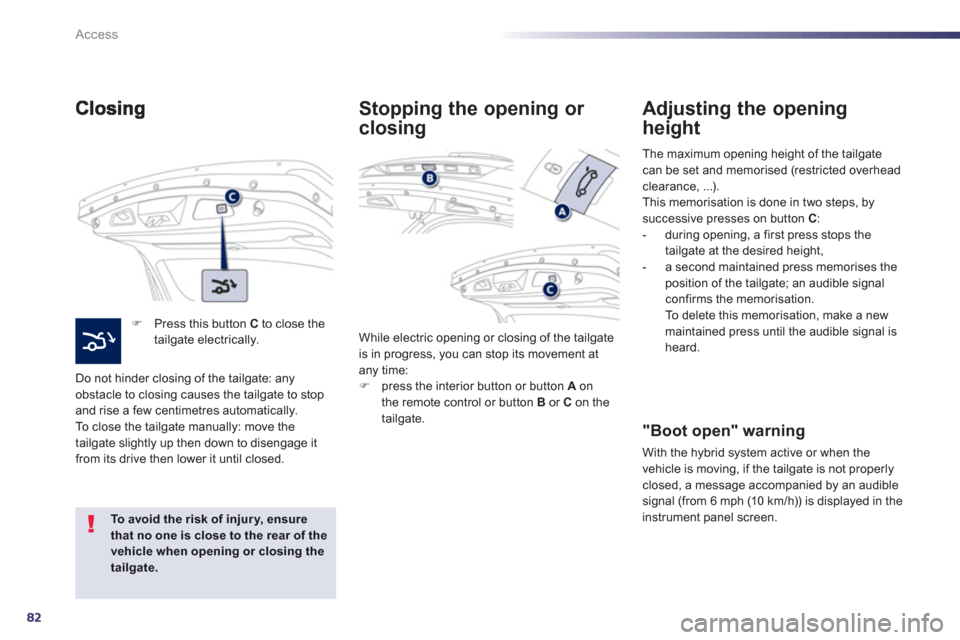

) Press this button C
to close thetailgate electrically.
Do not hinder closin
g of the tailgate: any
obstacle to closing causes the tailgate to stopand rise a few centimetres automatically.To close the tailgate manually: move the
tailgate slightly up then down to disengage itfrom its drive then lower it until closed.
To avoid the risk of injury, ensure
that no one is close to the rear of thevehicle when opening or closing the tailgate.

While electric opening or closing of the tailgate
is in progress, you can stop its movement at
an
y time: ) press the interior button or button A
on
the remote control or button Bor C on thetailgate.


Stopping the opening or
closing
Ad
justing the opening
height
"Boot open" warning

With the hybrid system active or when the
vehicle is moving, if the tailgate is not properly closed, a message accompanied by an audiblesignal (from 6 mph (10 km/h)) is displayed in the instrument panel screen.
The maximum openin
g height of the tailgate
can be set and memorised (restricted overheadclearance, ...).
This memorisation is done in two steps, bysuccessive presses on button C
:


- durin
g opening, a first press stops the
tailgate at the desired height,

- a second maintained press memorises theposition of the tailgate; an audible signal confirms the memorisation.
To delete this memorisation, make a new
maintained press until the audible signal isheard.

2
83
Access

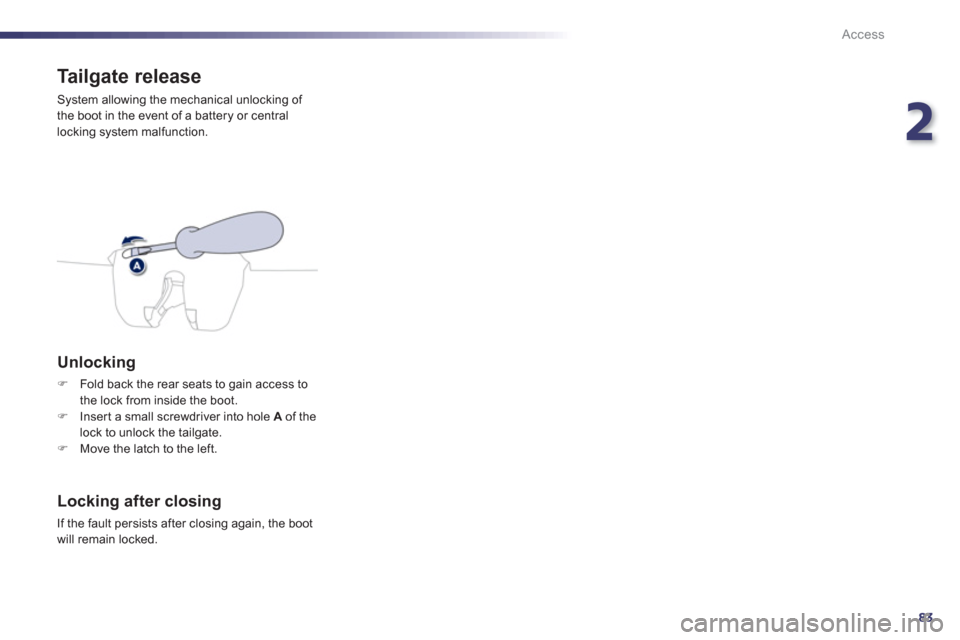

Tailgate release
System allowing the mechanical unlocking of
the boot in the event of a battery or central
locking system malfunction.
Unlocking
)Fold back the rear seats to gain access to
the lock from inside the boot.)Insert a small screwdriver into hole Aof the
lock to unlock the tailgate. )Move the latch to the left.



Locking after closing

If the fault persists after closing again, the boot
will r
emain locked.

84
Access

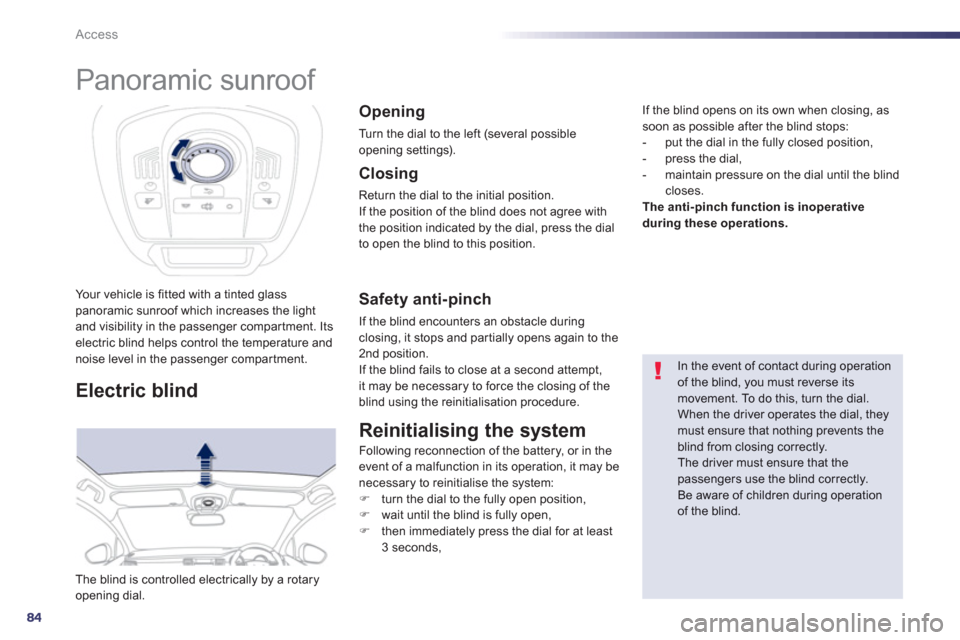

Panoramic sunroof
Your vehicle is fitted with a tinted glass panoramic sunroof which increases the lightand visibility in the passenger compartment. Itselectric blind helps control the temperature andnoise level in the passenger compartment.
Electric blind
The blind is controlled electrically by a rotaryopening dial.


Opening

Turn the dial to the left (several possible
opening settings).


In the event of contact during operationof the blind, you must reverse its movement. To do this, turn the dial.
When the driver operates the dial, theymust ensure that nothing prevents theblind from closing correctly. The driver must ensure that the passengers use the blind correctly.
Be aware of children during operationof the blind.


Closing

Return the dial to the initial position.
If the position of the blind does not agree with
t
he position indicated by the dial, press the dialto open the blind to this position.


Safety anti-pinch

If the blind encounters an obstacle duringclosing, it stops and par tially opens again to the 2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the blind using the reinitialisation procedure.

Reinitialising the system


Following reconnection of the battery, or in the event of a malfunction in its operation, it may be
necessary to reinitialise the system:
) turn the dial to the fully open position, )
wait until the blind is fully open,)
then immediately press the dial for at least
3 seconds,

If the blind opens on its own when closing, as soon as possible after the blind stops:


- put the dial in the fully closed position,

- press the dial,

- ma
intain pressure on the dial until the blindcloses. The anti-pinch function is inoperative
during these operations.

2
85
Access

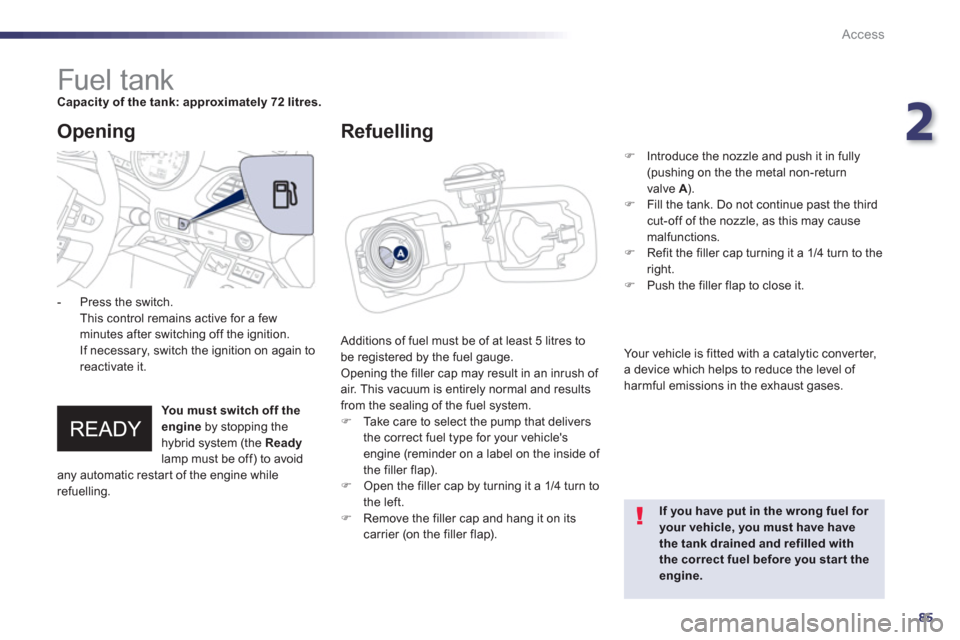

Fuel tank Capacity of the tank: approximately 72 litres.

Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.) Take care to select the pump that delivers
the correct fuel t
ype for your vehicle'sengine (reminder on a label on the inside of
the filler flap).) Open the filler cap by turning it a 1/4 turn to
the left. ) Remove the filler cap and hang it on its carrier (on the filler flap).


Opening
If you have put in the wrong fuel for your vehicle, you must have havethe tank drained and refilled with the correct fuel before you start theengine.



- Press the switch.
This control remains active for a fewminutes after switching off the ignition.If necessary, switch the ignition on again to reactivate it.

Refuelling
)
Introduce the nozzle and push it in fully(pushing on the the metal non-return
valve A). A) Fill the tank. Do not continue past the thirdcut-off of the nozzle, as this may cause malfunctions. )
Refit the filler cap turning it a 1/4 turn to the
right. ) Push the filler flap to close it.

Your vehicle is
fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
You must switch off theengine by stopping the
hybrid system (the Readylamp must be off) to avoid
any automatic restar t of the engine while
refuelling.

86
Access

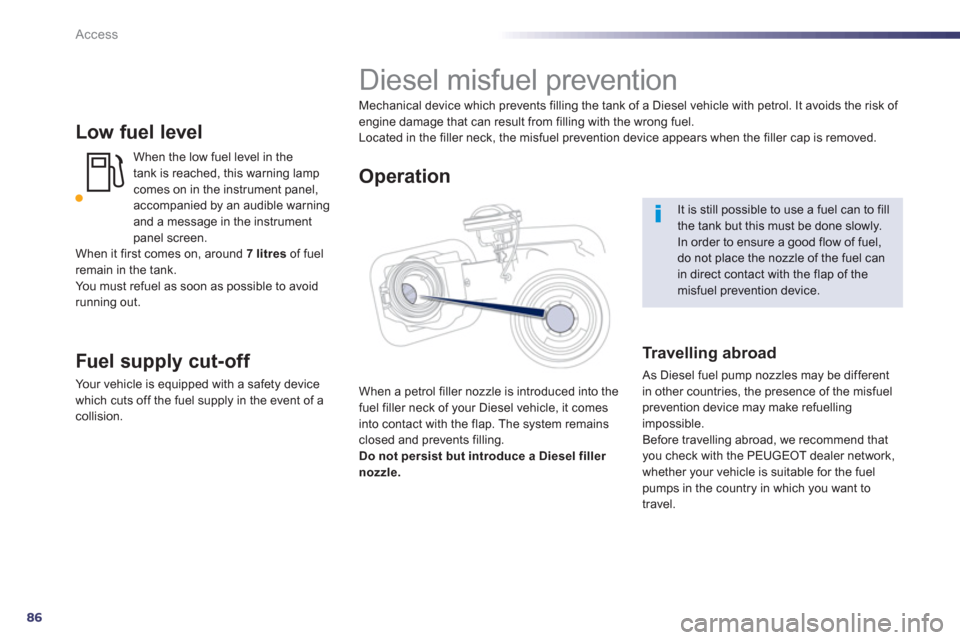

Low fuel level

When the low fuel level in the
tank is reached, this warning lamp comes on in the instrument panel,
accompanied by an audible warning
and a message in the instrument
panel screen.
When it first comes on, around 7 litresof fuelremain in the tank.
You must refuel as soon as possible to avoid
running out.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a collision.


It is still possible to use a fuel can to fill
the tank but this must be done slowly. In order to ensure a good flow of fuel, do not place the nozzle of the fuel canin direct contact with the flap of themisfuel prevention device.


Diesel misfuel prevention

Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a petrol
filler nozzle is introduced into the fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling. Do not persist but introduce a Diesel filler
nozzle.

Operation



Tr a v e l l i ng abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel prevention device may make refuellingimpossible.
Before travelling abroad, we recommend that you check with the PEUGEOT dealer network,
whether your vehicle is suitable for the fuelpumps in the country in which you want to
travel.
