2012 Peugeot 508 RXH Owner's Manual - RHD (UK, Australia)

1
63
Instruments and controls

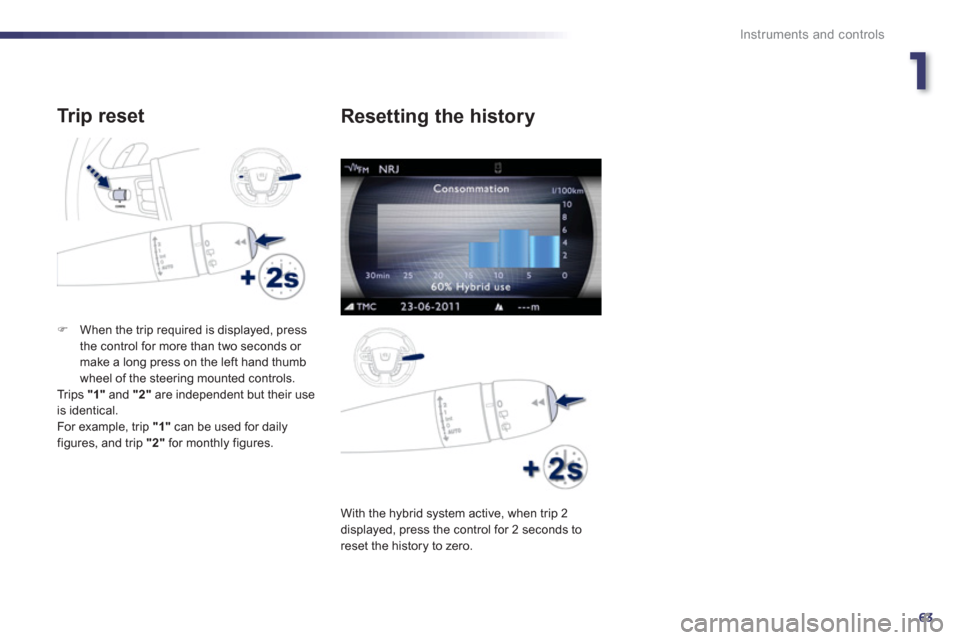

Tr ip reset
)When the trip required is displayed, press
the control for more than two seconds or make a long press on the left hand thumb
wheel of the steering mounted controls.
Trips "1"
and "2"are independent but their useis identical.
For example, trip "1"
can be used for daily figures, and trip "2"
for monthly figures.

With the h
ybrid system active, when trip 2
displayed, press the control for 2 seconds to reset the history to zero.
Resetting the history

64
Instruments and controls
If dashes are displayed continuously while driving in place of the digits,contact a PEUGEOT dealer or aqualified workshop.
This function is only displayed from 20 mph (30 km/h).

This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.

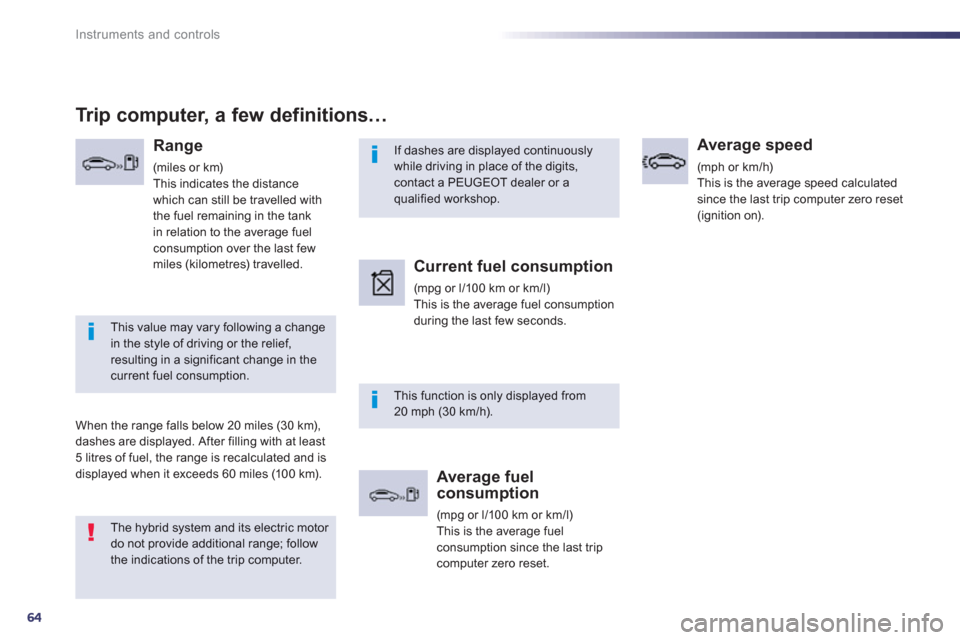

Trip computer, a few definitions…

Range
(miles or km)
This indicates the distancewhich can still be travelled with
the fuel remaining in the tank
in relation to the average fuelconsumption over the last few
miles (kilometres) travelled.
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuelconsumption
(mpg or l/100 km or km/l)This is the average fuel
consumption since the last tripcomputer zero reset.

Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).

The hybrid system and its electric motor
do not provide additional range; followthe indications of the trip computer.

1
65
Instruments and controls

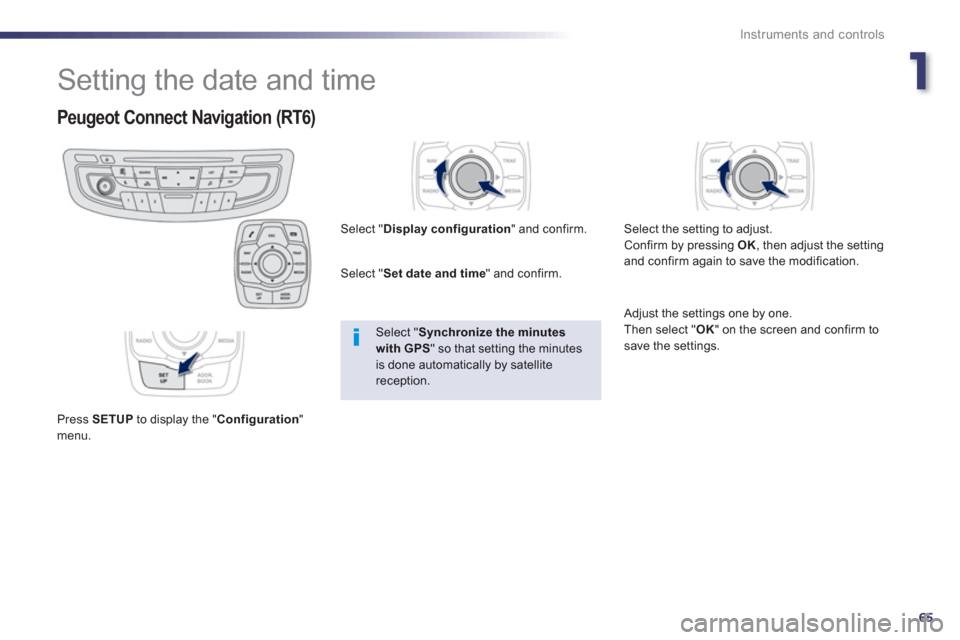

Setting the date and time
Peugeot Connect Navigation (RT6)


Press SETUPto display the "Configuration
"menu. Select "
Display configuration
" and confirm.
Select " Set date and time" and confirm.
Select "Synchronize the minutes with GPS
" so that setting the minutes is done automatically by satellite reception.
Select the settin
g to adjust.
Confirm by pressing OK, then adjust the settingand confirm again to save the modification.

Adjust the settings one by one.
Then select "OK
" on the screen and confirm tosave the settings.

66
Access
also used to locate and start the vehicle, as well as providing protection against theft.




















Remote control key
Unfolding the key
)First press this button to unfold the key.




Folding the key
)
First press this button to fold the key.
If you do not press the button when folding
the key, there is a risk of damage to the
mechanism.

2
67
Access
Unlocking the vehicle
Complete unlockin
g
Using the key
) Turn the key to the front of the vehicle tounlock the vehicle.
)
Press the open padlock to unlock
the vehicle.
Using the remote control
Holding this button down opens the windows automatically.

Using the electronic key
)
With the electronic key on your person and
in the defined zone, pass your hand behind
the door handle to unlock the vehicle, thenpull on the handle to open the door.
Your passengers can also open their doors
with the exception of the boot, as soon as
the electronic key is in the defined zone around the vehicle.



Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds. According to version, the door mirrors unfold at the same time.
















"Keyless Entry and Starting" system


System that allows the opening, closingand star ting of the vehicle while keeping theelectronic key on your person. It can also be used as a remote control.

68
Access









Selective unlocking
)To unlock the driver's door onlypress the open padlock once.

Using the remote control

This is set via the instrument panel
screen configuration menu.
Complete unlocking is activated by default.
Using the electronic key
)To unlock only the driver's door with theelectronic key on your person, pass your hand behind the driver's door handle thenpull the handle to open the door.
)To unlock the vehicle completely, pass your hand behind one of the passenger door handles, on the side of the vehicle where
the electronic key is located, then pull the door handle.



Each unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds. According to version, the door mirrors unfold at the same time as the first unlocking action.
)
To unlock the other doors and the boot,
press the open padlock again

Accumulations (water, dust, grime,
salt...) on the inner surface if the door handle may affect detection.
If cleaning the inner sur face of the door handle using a cloth does not resolve the problem, contact a PEUGEOTdealer or a qualified workshop. A sudden splash of water (stream of water, high pressure jet washer, …) may be identified by the system as the desireto open the vehicle.

2
69
Access
Unlocking the boot

Using the remote control
)
Press this button to unlock thevehicle and open the boot.



Using the electronic key
)With the electronic key in the defined zone,
lift lever 1 to unlock the vehicle and open
the boot.
Boot only function activated
This is set in the instrument panelconfiguration menu.
This function is deactivated b
y default. ) use of the remote control or the electronickey then unlocks and/or opens only the boot.
Don't forget to lock your boot afterwards.

70
Access
As a safety measure (children on board),never leave the vehicle without taking your key, even for a shor t period. Guard against theft when the electronic key is in the defined zone with the vehicle unlocked.

Locking is confirmed by fixedlighting of the direction indicators for approximately two seconds.
According to version, the door mirrors fold at the same time.

It is not possible to lock the vehicle if an electronic key is left inside the vehicleor if the ignition is on.


If one of the doors or the boot is stillopen or if an electronic key has been left inside the vehicle, the central
locking does not take place.
When the vehicle is locked, if it isunlocked inadver tently, it will relock automatically after about thir ty seconds unless a door is opened.
The folding and unfolding of the door mirrors by the remote control can be deactivated by a PEUGEOT dealer.
Locking the vehicle
Normal lockin
g
Using the key
)Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Using the remote control
)Press the closed padlock to lockthe vehicle completely.



Using the electronic key
)
With the electronic key in the defined zone,
press with a finger on the door handle (at
the markings) to lock the vehicle. ) From the boot, with the electronic key in
the defined zone, press a button to lock the
vehicle.

Maintaining the locking action (remotecontrol or manual key) automaticallycloses the windows and sunroof.
