2012 Peugeot 508 RXH Owner's Manual - RHD (UK, Australia)

8
199
Practical information

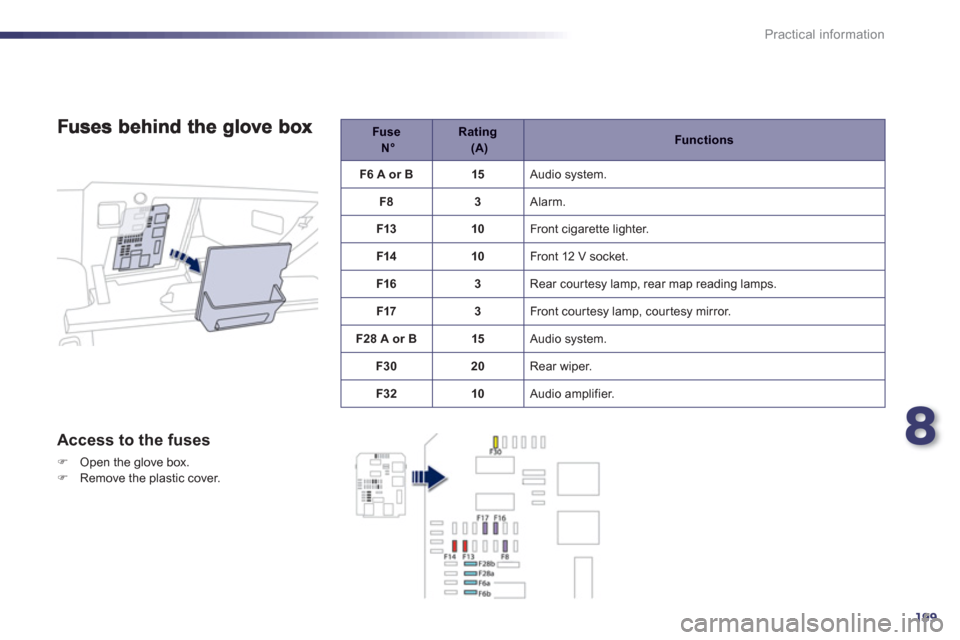

Access to the fuses
)Open the glove box. )Remove the plastic cover.
Fuse N°

Rating (A)

Functions
F6 A or B 15
Audio s
ystem.
F
83 Alarm.
F1
310 Front cigarette lighter.
F1410
Front 12 V socket.
F1
63 Rear courtesy lamp, rear map reading lamps.
F17
3 Front cour tesy lamp, cour tesy mirror.
F2
8 A or B15 Audio system.
F3
020 Rear wiper.
F32 10
Audio amplifier.

200
Practical information

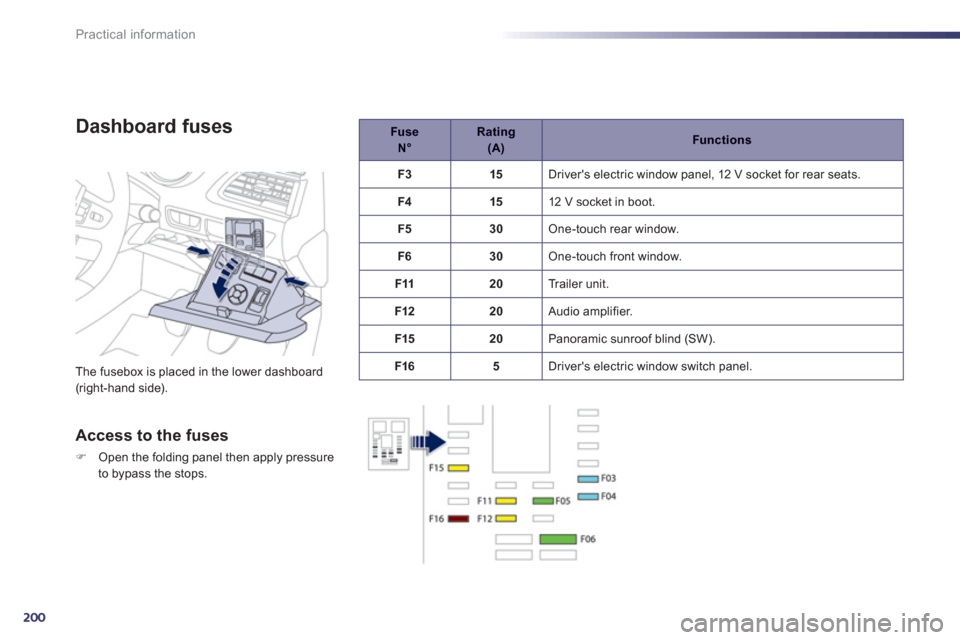

Dashboard fuses
The fusebox is placed in the lower dashboard (right-hand side).
Access to the fuses
)Open the folding panel then apply pressure
to bypass the stops.
Fuse N°Rating (A)Functions
F
315 Driver's electric window panel, 12 V socket for rear seats.
F
415 12 V socket in boot.
F530 One-touch rear window.
F
630 One-touch front window.
F1
120
Trailer unit.
F12 20
Audio am
plifier.
F1
520
Panoramic sunroof blind (SW).
F1
65 Driver's electric window switch panel.

8
201
Practical information

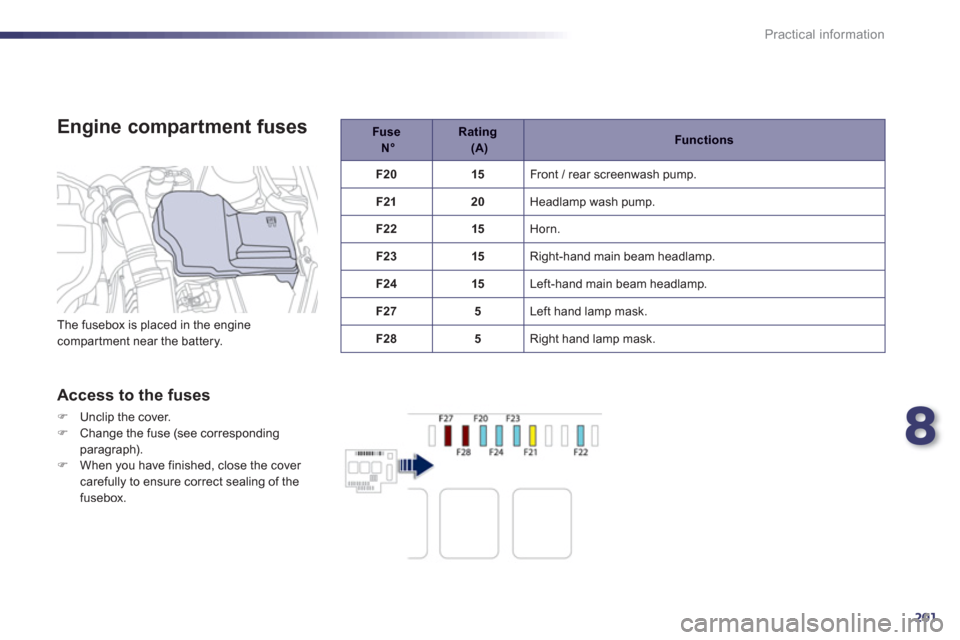

Engine compartment fusesFuse N°

Rating (A)

Functions
F20 15
Front / rear screenwash pump.
F2
120 Headlamp wash pump.
F2215 Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F27 5
Le
ft hand lamp mask.
F2
85 Right hand lamp mask. The fusebox is placed in the engine compartment near the battery.


Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph).)When you have finished, close the cover carefully to ensure correct sealing of thefusebox.

202
Practical information




12 V battery
The presence of this label indicatesthe use of a 12 V lead-acid battery withspecial technology and specification, for which the involvement of a PEUGEOT dealer or qualified workshop is requiredwhen replacing or disconnecting thebattery.
Failure to observe this recommendation may cause premature wear of thebattery.
The battery is located under the bonnet.
To gain access to it:
)
open the bonnet using the interior releaselever, then the exterior safety catch, )
remove the plastic cover on the (+)
terminal,) if necessary, unclip the fusebox to remove
the battery.







Access to the battery
Before doing any work on your vehicle,switch off the ignition ( Ready
lamp off)to avoid any risk of injury resulting fromautomatic operation of the engine. Y
our vehicle is fitted with a conventional 12 V
battery, located under the bonnet, in addition
to the high voltage battery used by the hybrid system.
In cer tain conditions, if the 12 V battery is
too discharged to activate the hybrid system, recharging from another conventional 12 V
battery is possible.
Do not carry out this recharge if the Readylamp is on. Procedure for star tin
g the engine using another battery or charging a discharged battery.
)Raise the locking tab Dfully to release the cable terminal clamp E.



Disconnecting the (+) cable

Reconnectin
g the (+) cable
)Position the open clamp Eof the cable on
the positive post (+) of the battery. )Press ver tically on the clamp E
to position
it correctly on the battery. )Lock the clamp by spreading the positioning lug and then lowering the tab D.
Do not apply excessive force on thetab as locking will not be possible if the clamp is not positioned correctly; star tthe procedure again.

8
203
Practical information

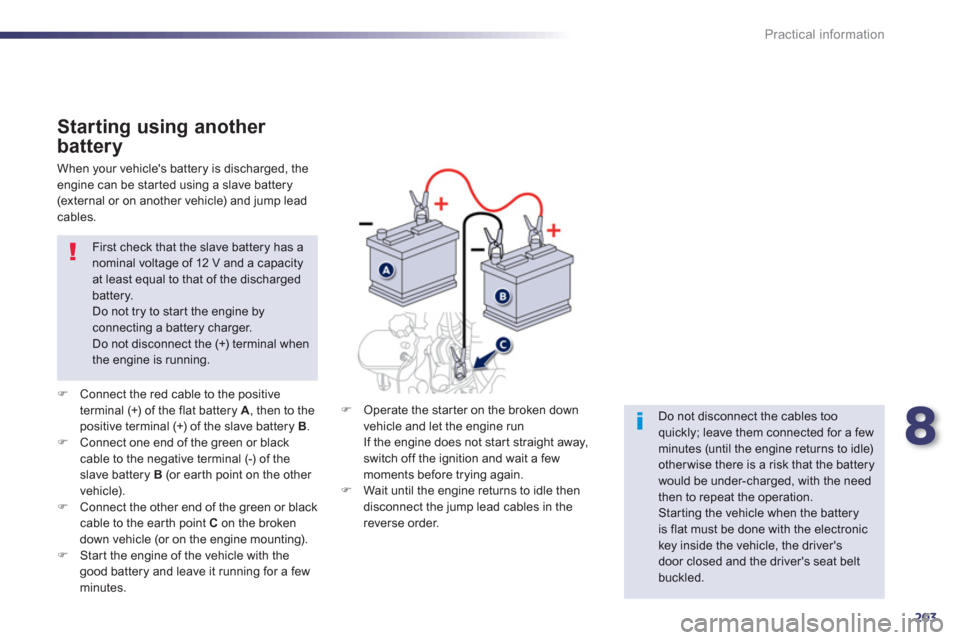

Starting using another
battery
)Connect the red cable to the positive
terminal (+) of the flat battery A , then to the positive terminal (+) of the slave battery B .)Connect one end of the green or blackcable to the negative terminal (-) of the slave battery B
(or ear th point on the other
vehicle).)Connect the other end of the green or black cable to the ear th point Con the broken
down vehicle
(or on the engine mounting).)Star t the engine of the vehicle with the good battery and leave it running for a few minutes.

First check that the slave battery has a nominal voltage of 12 V and a capacityat least equal to that of the discharged battery. Do not try to star t the engine byconnecting a battery charger.
Do not disconnect the (+) terminal when the engine is running. When
your vehicle's battery is discharged, the engine can be star ted using a slave battery(external or on another vehicle) and jump leadcables.
)
Operate the star ter on the broken down
vehicle and let the engine run
If the engine does not star t straight away, switch off the ignition and wait a few
moments before trying again.) Wait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
Do not disconnect the cables too quickly; leave them connected for a fewminutes (until the engine returns to idle) other wise there is a risk that the battery would be under-charged, with the need then to repeat the operation.
Starting the vehicle when the battery is flat must be done with the electronic key inside the vehicle, the driver's door closed and the driver's seat belt buckled.

204
Practical information

Following reconnection of the battery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting topermit initialisation of the electronic systems. However, if problems remain following this
operation, contact a PEUGEOT dealer or a qualified workshop.
Referring to the corresponding section, you must yourself reinitialise (depending on
version):


- the remote control ke
y,

- the electric blind(s),- ...







Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.

Close the windows and the doors before
disconnecting the battery.
Do not reverse the polarity and use onlya 12 V charger.Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first.

Do not push the vehicle to star t theengine.
It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.
The batteries contain harmfulsubstances such as sulphuric acid and lead. They must be disposed of in accordance with regulations and mustnot, in any circumstances, be discardedwith household waste. Ta k e used remote control batteries and vehicle batteries to a special collection point.
Do not attempt to charge the highvoltage battery.

After refitting the battery, the Stop & Start system will only be active after several hours depending on the climaticconditions and the state of charge of the battery (up to about 8 hours).
Charging the battery using
a battery charger
)Disconnect the battery from the vehicle. )Follow the instructions for use provided by
the manufacturer of the charger.)Connect the battery starting with thenegative terminal (-).)Check that the terminals and connectors are clean. If they are covered with sulphate (whitish or greenish deposit), remove themand clean them.

8
205
Practical information

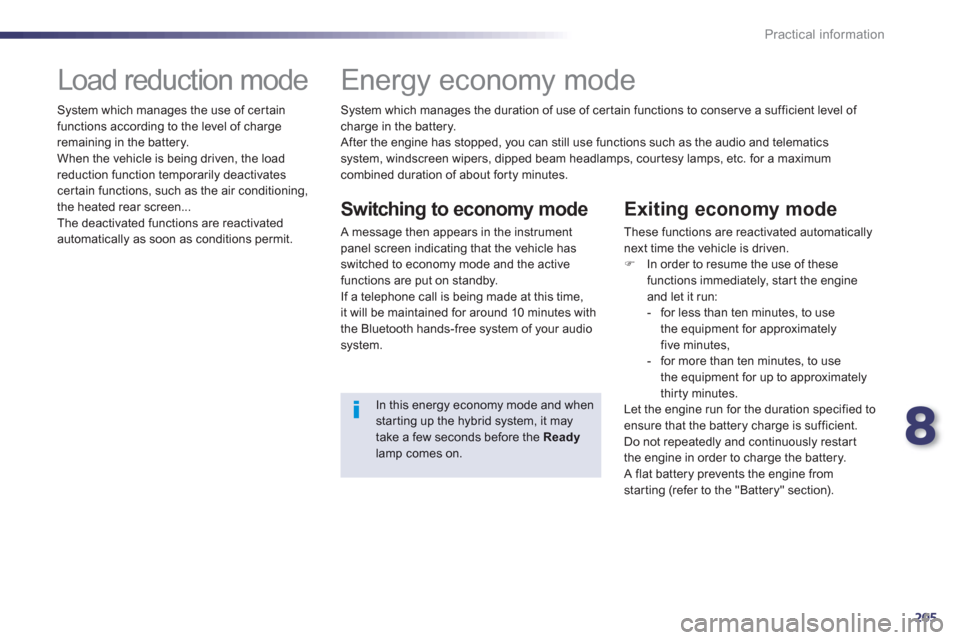

Load reduction mode

System which manages the use of cer tain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit. S
ystem which manages the duration of use of cer tain functions to conser ve a sufficient level of charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system, windscreen wipers, dipped beam headlamps, cour tesy lamps, etc. for a maximum combined duration of about forty minutes.






Energy economy mode
Switching to economy mode

A message then appears in the instrument panel screen indicating that the vehicle has
switched to economy mode and the active functions are put on standby.
If a telephone call is being made at this time,it will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.


Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.) In order to resume the use of thesefunctions immediately, star t the engine and let it run:
- for less than ten minutes, to use
the equipment for approximatelyfive minutes,
- for more than ten minutes, to use
the equipment for up to approximatel
y
thirty minutes.

Let the engine run for the duration specified toensure that the battery charge is sufficient.
Do not repeatedly and continuously restar t
the engine in order to charge the battery.

A flat battery prevents the engine from starting (refer to the "Battery" section).
In this energy economy mode and whenstarting up the hybrid system, it maytake a few seconds before the Readylamp comes on.

206
Practical information

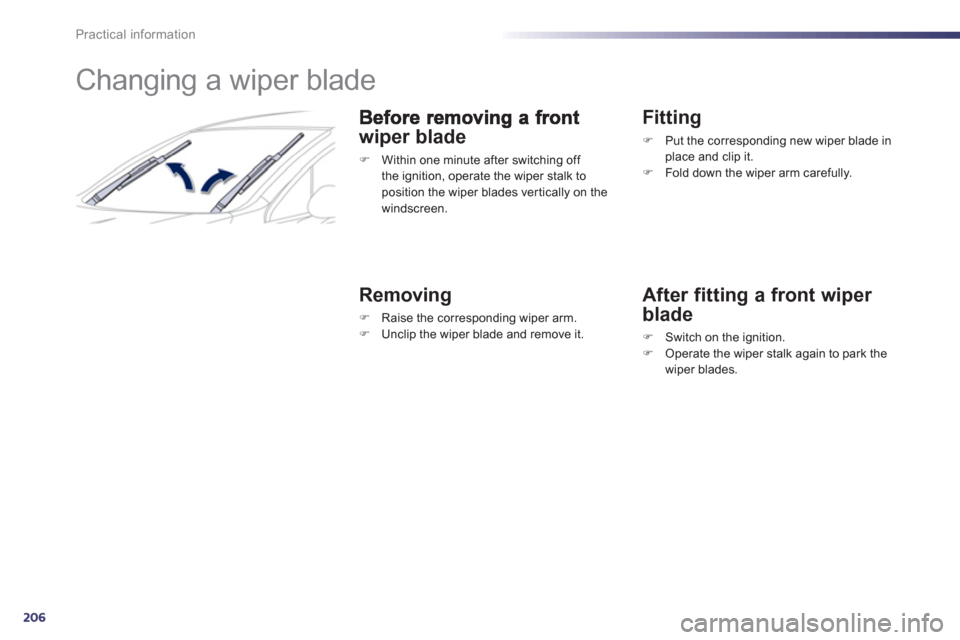

Changing a wiper blade
wiper blade
)
Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.


Removing
)
Raise the corresponding wiper arm. )
Unclip the wiper blade and remove it.



Fitting
)Put the corresponding new wiper blade inplace and clip it.
)Fold down the wiper arm carefully.



After fitting a front wiper
blade
)Switch on the ignition.)Operate the wiper stalk again to park the
wiper blades.
