Comfort

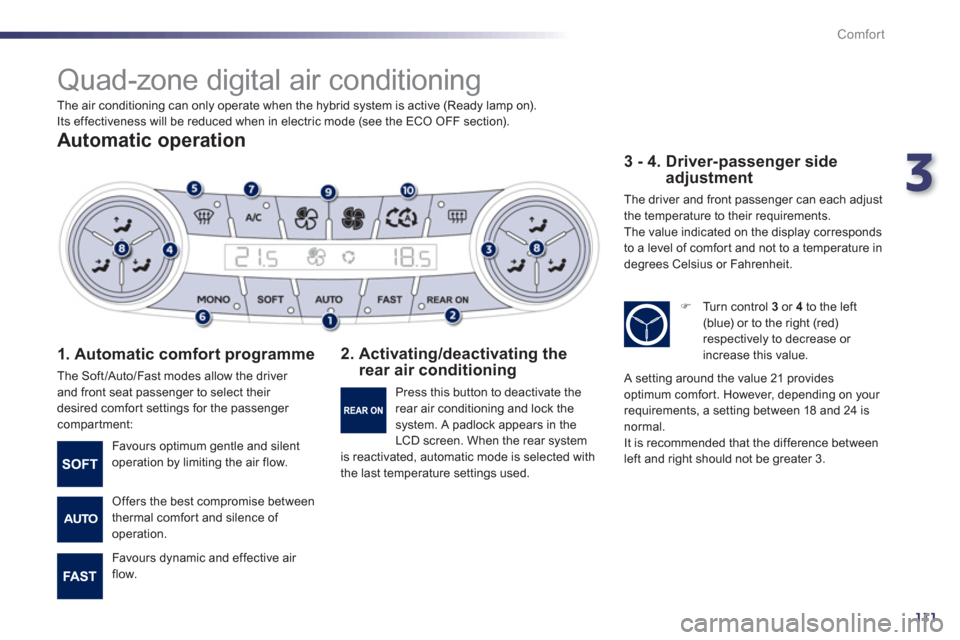

Quad-zone digital air conditioning


Automatic operation


1. Automatic comfort programme

The Soft/Auto/Fast modes allow the driver
and front seat passenger to select their
desired comfort settings for the passenger compartment:
2. Activating/deactivating the rear air conditioning


3 - 4. Driver-passenger side adjustment

The driver and front passenger can each adjust
the temperature to their requirements.

The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
degrees Celsius or Fahrenheit.
Favours optimum gentle and silent
operation by limiting the air flow.
Offers the best compromise between
thermal comfort and silence of
operation.
Favours d
ynamic and effective air
flow. Pr
ess this button to deactivate the
rear air conditioning and lock thesystem. A padlock appears in the
LCD screen. When the rear system is reactivated, automatic mode is selected with
the last temperature settings used.
)
Turn control 3or 4to the left (blue) or to the right (red)respectively to decrease or
increase this value.

A setting around the value 21 providesoptimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
It is recommended that the difference between
left and right should not be greater 3. The air conditionin
g can only operate when the hybrid system is active (Ready lamp on).
Its effectiveness will be reduced when in electric mode (see the ECO OFF section).

112
Comfort

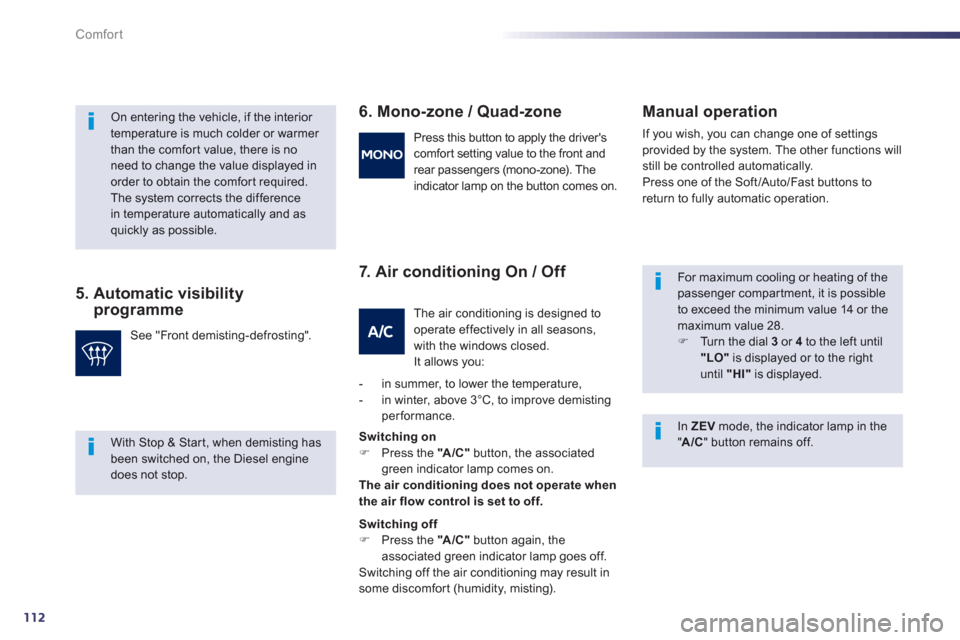

5. Automatic visibilityprogramme


6. Mono-zone / Quad-zone

7. Air conditionin
g On / Off
Manual o
peration

If you wish, you can change one of settings provided by the system. The other functions will
still be controlled automatically.
Press one of the Soft/Auto/Fast buttons toreturn to fully automatic operation.

On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is no
need to change the value displayed in order to obtain the comfort required.The system corrects the differencein temperature automatically and as quickly as possible.

See "Front demisting-defrosting". Press this button to appl
y the driver'scomfort setting value to the front and
rear passen
gers (mono-zone). The
indicator lamp on the button comes on.
The air conditioning is designed to
operate e
ffectively in all seasons,
with the windows closed.
It allows you:


- in summer, to lower the tem
perature,

- in winter, above 3°C, to improve demistingperformance.
Switchin
g on) Press the "A/C"button, the associated green indicator lamp comes on. The air conditioning does not operate when
the air flow control is set to off.
Switching off) Press the "A/C"button again, the
associated green indicator lamp goes off.
Switching off the air conditioning may result in
some discomfort
(humidity, misting).

For maximum cooling or heating of thepassenger compar tment, it is possibleto exceed the minimum value 14 or themaximum value 28. )
Turn the dial 3or 4
to the left until"LO"is displayed or to the right until "HI"
is displayed.

With Stop & Star t, when demisting hasbeen switched on, the Diesel engine does not stop.
InZEVmode, the indicator lamp in the "A/C
" button remains off.

3
113
Comfort
) Press this "full fan"button to
increase the air flow.)Press the corresponding button for:
Windscreen and side windows.
Centre and side vents.
Footwells.
To s u i t
your requirements, you cancombine two distribution buttons or select the three distribution modes
simultaneously.
)
Press "empty fan"button to reduce the air flow.

)
Press this "empty fan"
air
flow button until the fan symbol
disappears and "--"
appears.
Automatic air intake modeIt is activated by default with automatic comfort regulation.

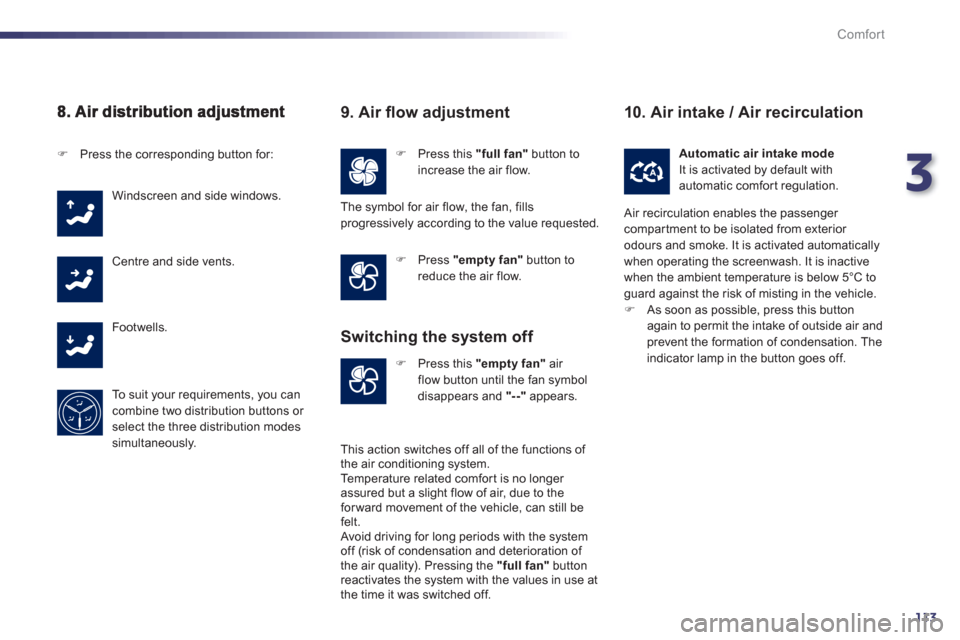

9. Air fl ow adjustment
The symbol for air flow, the fan, fills progressively according to the value requested.
Switching the system off
This action switches off all of the functions of
the air conditioning system.
Temperature related comfor t is no longer assured but a slight flow of air, due to thefor ward movement of the vehicle, can still befelt.
Avoid driving for long periods with the system
off (risk of condensation and deterioration of
the air quality). Pressing the "full fan"
buttonreactivates the system with the values in use at
the time it was switched off.


10. Air intake / Air recirculation
Air recirculation enables the passenger compar tment to be isolated from exterior odours and smoke. It is activated automatically
when operating the screenwash. It is inactive
when the ambient temperature is below 5°C to
guard against the risk of misting in the vehicle. ) As soon as possible, press this button
again to permit the intake of outside air and prevent the formation of condensation. The
indicator lamp in the button goes off.

114
Comfort

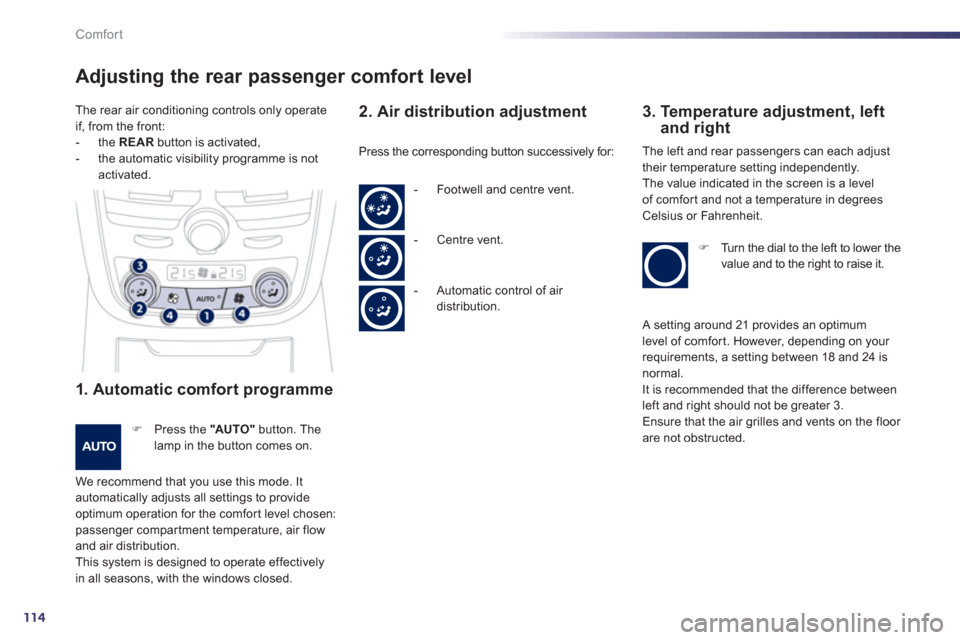

Adjusting the rear passenger comfort level
1. Automatic comfort programme
) Press the "AUTO"
button. The lamp in the button comes on.
We recommend that you use this mode. It automatically adjusts all settings to provide
optimum operation for the comfor t level chosen: passenger compar tment temperature, air flowand air distribution.
This system is designed to operate effectivelyin all seasons, with the windows closed.

2. Air distribution adjustment
3. Temperature adjustment, leftand right

Press the corresponding button successively for: The left and rear passengers can each adjust
their temperature setting independently.
Th
e value indicated in the screen is a level
of comfor t and not a temperature in degreesCelsius or Fahrenheit.
) Turn the dial to the left to lower the
value and to the right to raise it. - F
ootwell and centre vent.
-
Centre vent.
- A
utomatic control of air distribution. The rear air conditionin
g controls only operate
if, from the front:
- th
e REARbutton is activated,- the automatic visibility programme is notactivated.

A setting around 21 provides an optimum
level of comfor t. However, depending on your
requirements, a setting between 18 and 24 isnormal.
It is recommended that the difference between
left and right should not be greater 3.
Ensure that the air grilles and vents on the floor are not obstructed.

3
115
Comfort

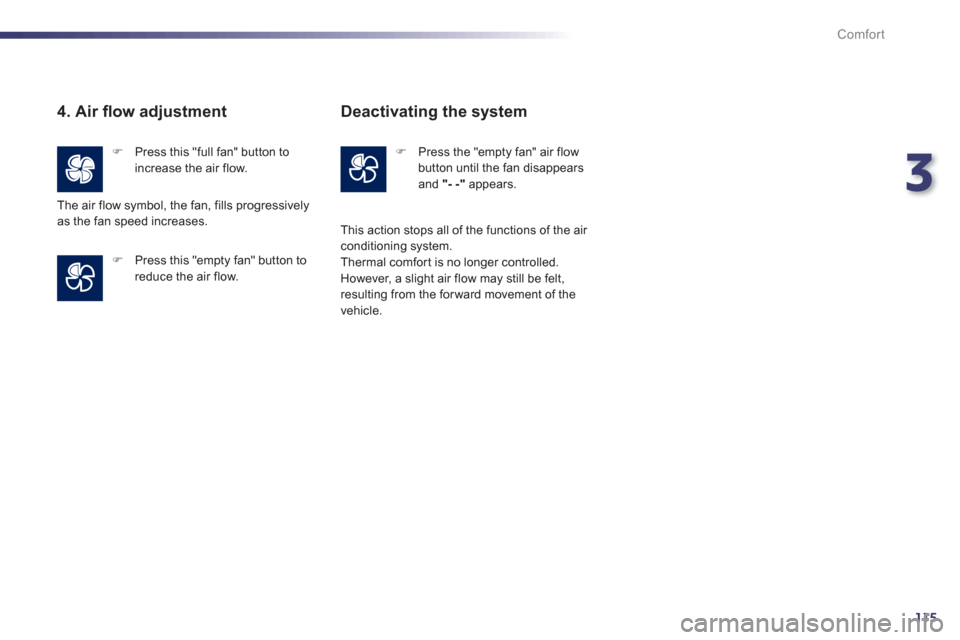

4. Air fl ow adjustment
)
Press this "full fan" button toincrease the air flow.
)
Press this "empty fan" button to
reduce the air flow. The air flow s
ymbol, the fan, fills progressivelyas the fan speed increases.
Deactivating the system
)
Press the "empty fan" air flow
button until the fan disappears and "--" appears.
This action sto
ps all of the functions of the air conditioning system.
Thermal comfor t is no longer controlled.However, a slight air flow may still be felt,resulting from the for ward movement of the
vehicle.

116
Comfort
) Switch off the demist/defrost of the rear screen and door mirrors as
soon as it is no longer needed as lower current consumption results in reduced fuel consumption.

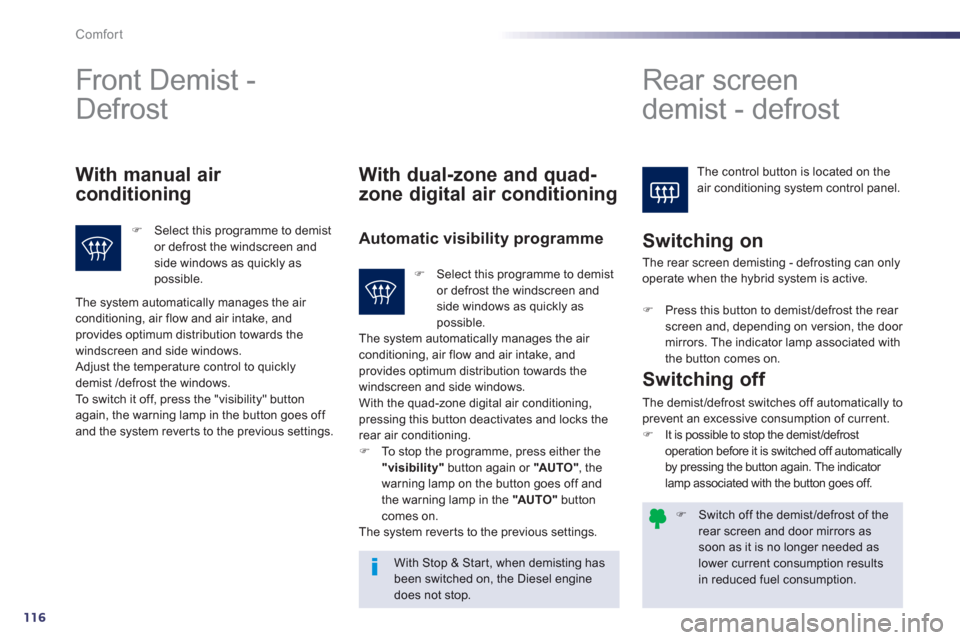

Front Demist -
Defrost






Rear screen
demist - defrost
The control button is located on theair conditioning system control panel. With manual air
conditioning
) Select this programme to demistor defrost the windscreen and side windows as quickly aspossible.
With dual-zone and quad-
zone di
gital air conditioning
Automatic visibility programme

Switching on
With Stop & Star t, when demisting has been switched on, the Diesel enginedoes not stop.


Switching off

The demist /defrost switches off automatically toprevent an excessive consumption of current.
)It is possible to stop the demist/defrost
operation before it is switched off automaticallyby pressing the button again. The indicator lamp associated with the button goes off.

The system automatically manages the air conditioning, air flow and air intake, and provides optimum distribution towards the
windscreen and side windows.
Adjust the temperature control to quickly
demist /defrost the windows.
To switch it off, press the "visibility" button again, the warning lamp in the button goes off and the system rever ts to the previous settings.
)Select this programme to demist or defrost the windscreen andside windows as quickly as possible.
The system automatically manages the air conditioning, air flow and air intake, and
provides optimum distribution towards the
win
dscreen and side windows.
With the quad-zone digital air conditioning,
pressing this button deactivates and locks the
rear air conditioning. ) To stop the programme, press either the "visibility"button again or "AU TO "
, the
warning lamp on the button goes off and
the warning lamp in the "AU TO "buttoncomes on.
The system rever ts to the previous settings.
The rear screen demistin
g - defrosting can onlyoperate when the hybrid system is active.
)Press this button to demist/defrost the rear screen and, depending on version, the door mirrors. The indicator lamp associated with
the button comes on.

3
117
Comfort
Programmable heating
mode

This is an additional and separate system
which heats the engine hot water circuit
to improve defrosting and to preheat thepassenger compartment.
This indicator lam
p comes ononlywhen if the system is programmed inprogrammable heating mode. With the i
gnition on, press the left hand
steering mounted thumb wheel for access to
the main menu.
Programming

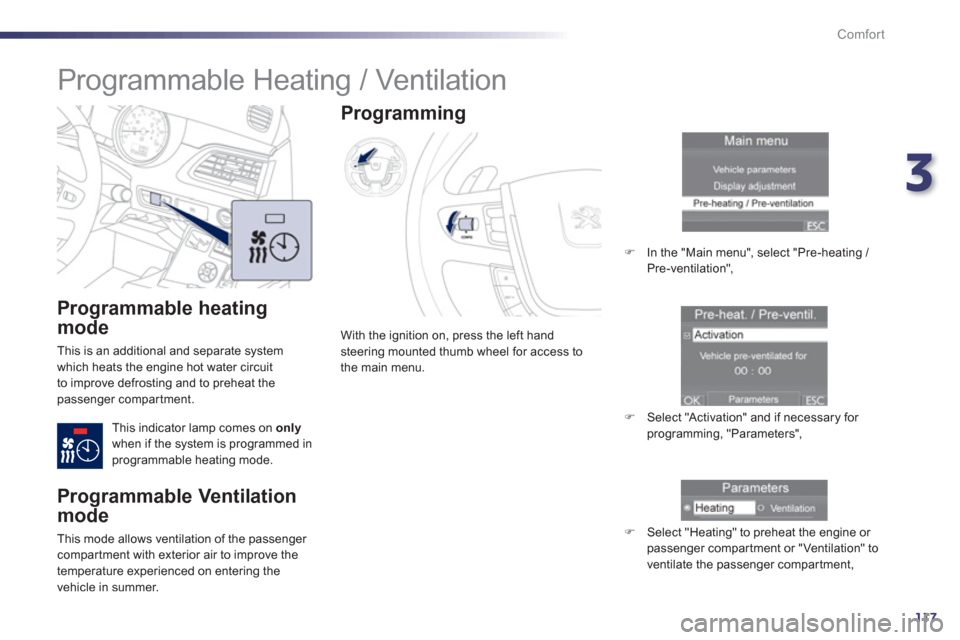

) In the "Main menu", select "Pre-heating /
Pre-ventilation",
) Select "Activation" and if necessary for programming, "Parameters",
)
Select "Heating" to preheat the engine or passenger compar tment or "Ventilation" to
ventilate the passenger compartment,








Programmable Heating / Ventilation


Programmable Ventilation
mode

This mode allows ventilation of the passenger compartment with exterior air to improve the
temperature experienced on entering the
vehicle in summer.

118
Comfort

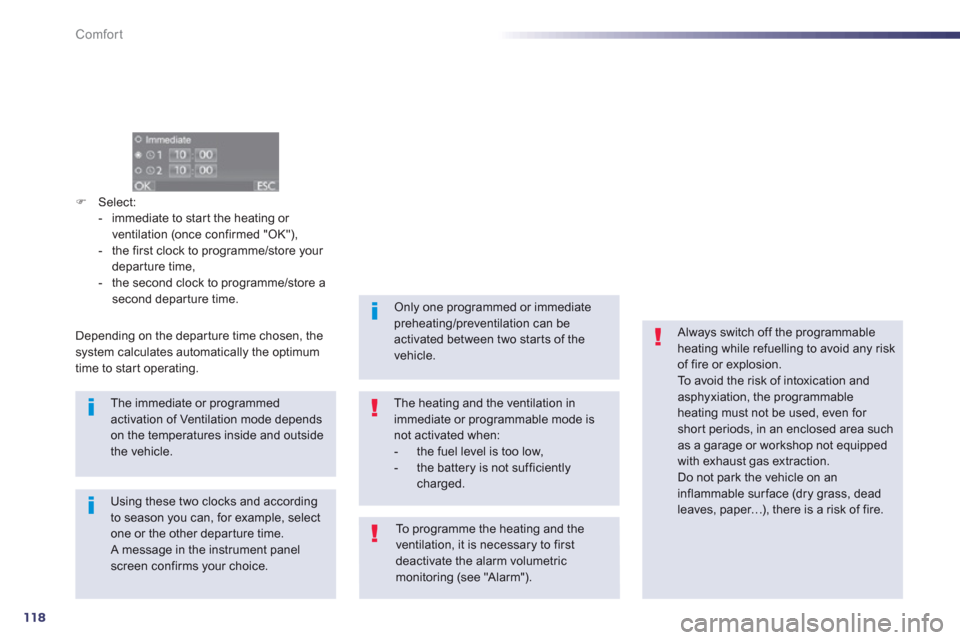

)Select:
- immediate to star t the heating or
ventilation
(once confirmed "OK"),
- the first clock to programme/store your departure time,
- the second clock to programme/store a
second depar ture time.



The immediate or programmedactivation of Ventilation mode depends on the temperatures inside and outsidethe vehicle.
Depending on the departure time chosen, the system calculates automatically the optimum
time to star t operating.
Using these two clocks and according to season you can, for example, select one or the other depar ture time. A message in the instrument panel screen confirms your choice.
Only one programmed or immediatepreheating/preventilation can beactivated between two starts of thevehicle.
The heating and the ventilation inimmediate or programmable mode isnot activated when: - the fuel level is too low,- the battery is not sufficientlycharged.
To p r ogramme the heating and the
ventilation, it is necessary to firstdeactivate the alarm volumetricmonitoring (see "Alarm").


Always switch off the programmableheating while refuelling to avoid any riskof fire or explosion.
To avoid the risk of intoxication andasphyxiation, the programmable heating must not be used, even for short periods, in an enclosed area such as a garage or workshop not equipped with exhaust gas extraction.
Do not park the vehicle on an inflammable sur face (dry grass, dead leaves, paper…), there is a risk of fire.
