Driving
) Press 1, the speed limiter mode is
activated but remains paused.
You do not have to switch the speed limiter
on in order to set the speed.
) Set the speed value by pressingbutton 2or 3(e.g.: 55 mph (90 km/h)).


Programming


Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
any effect unless you press the pedal firmlypast the ypoint of resistance.e The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the
programmed speed.

Off / Return to normal
driving
)
Press 5, the speed limiter is deactivated.


On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
The use of mats not approved byPEUGEOT may adversely affect the normal operation of the accelerator pedal and impede the operation of thespeed limiter.
Mats approved by PEUGEOT have a third fixing in the area of the pedals to avoid any risk of interference with thepedals.
In the event o
f a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a qualified workshop.


Operating fault

You can then change the programmed speed using buttons 2
and 3
:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press. )Switch the speed limiter on by pressing button 4 . )Suspend the speed limiter by pressing button 4: the screen confirms the suspension with "Pause".)Switch the speed limiter back on by pressing button 4
again.

136
Driving

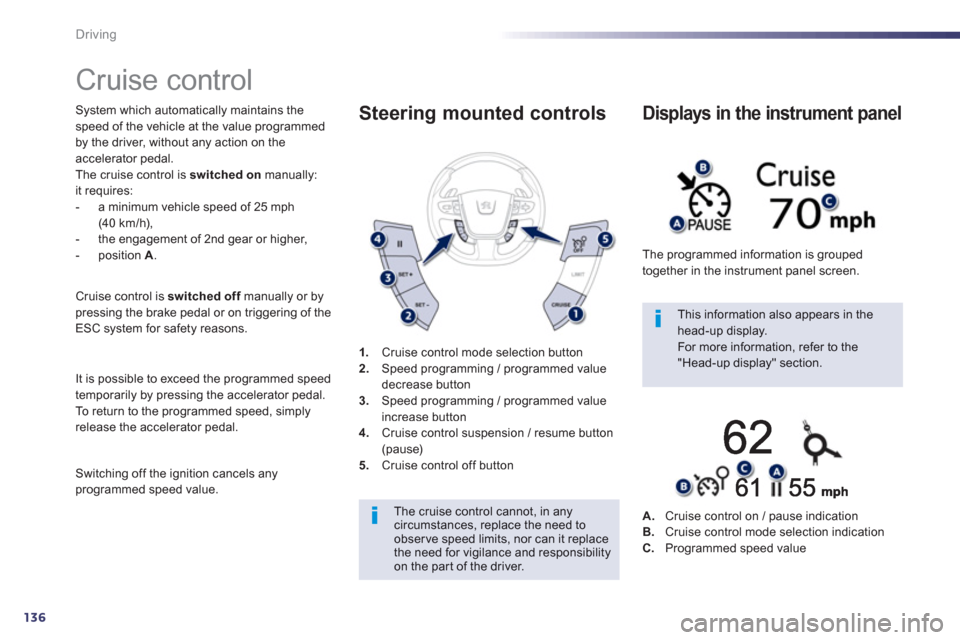

Cruise control
System which automatically maintains thespeed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal. The cruise control is switched on
manually: it requires:
- a minimum vehicle speed of 25 mph(40 km/h),
- the engagement of 2nd gear or higher,
- position A
.
Cruise control is switched off
manually or by fpressing the brake pedal or on triggering of theESC system for safety reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the pro
grammed speed, simply release the accelerator pedal.
Switching off the ignition cancels any programmed speed value. 1
.Cruise control mode selection button
2. Speed programming / programmed value decrease button 3.
Speed programming / programmed value
increase button 4.Cruise control suspension / resume button (pause)5.Cruise control off button


Steering mounted controls
The cruise control cannot, in anycircumstances, replace the need to observe speed limits, nor can it replace the need for vigilance and responsibilityon the par t of the driver.
This information also appears in the head-up display.
For more information, refer to the "Head-up display" section. The pro
grammed information is grouped
together in the instrument panel screen.

Displays in the instrument panel
A.Cruise control on / pause indicationB.Cruise control mode selection indication
C.Programmed speed value

4
137
Driving

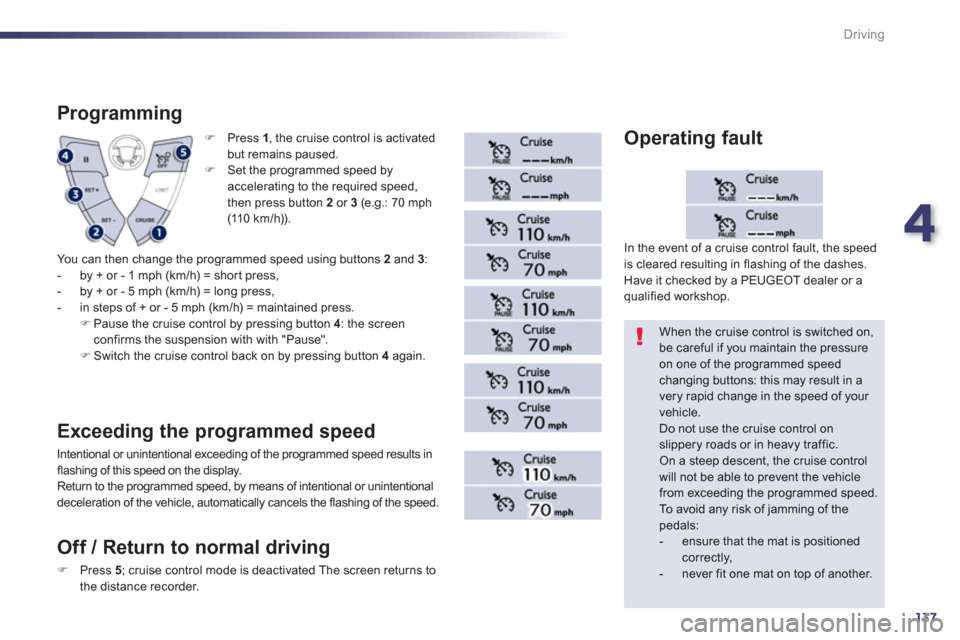

) Press 1, the cruise control is activated but remains paused.
)
Set the programmed speed by
accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m / h)).

Programming

You can then change the programmed speed using buttons 2
and 3
:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press. )Pause the cruise control by pressing button 4
: the screenconfirms the suspension with with "Pause".)Switch the cruise control back on by pressing button 4again.


Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed speed results in flashing of this speed on the display.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
When the cruise control is switched on,be careful if you maintain the pressure on one of the programmed speedchanging buttons: this may result in avery rapid change in the speed of your vehicle.
Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.
In the event o
f a cruise control fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a qualified workshop.


Operating fault

Off / Return to normal drivin
g
)Press 5 ; cruise control mode is deactivated The screen returns to
the distance recorder.

138
Driving
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensorslocated in the bumper.Certain types of obstacle (stake, roadworks cone, etc.) detected initially will no longer be detected at the end of the manoeuvre due to
the presence of blind spots.






Parking sensors


This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
The s
ystem is switched on by engaging reversegear. This is accompanied by an audible signal.
The system is switched off when you exit reverse gear.


Rear parking sensors


Audible assistance

The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches the
obstacle.
The sound emitted by the speaker (right or left) indicates the side on which the obstacle is located.
When the distance between the vehicle andthe obstacle becomes less than approximatelythirty centimetres, the audible signal becomes continuous.



Visual assistance
This supplements the audible signal bydisplaying bars in the multifunction screen
which move progressively nearer to the vehicle.
When the obstacle is near, the "Danger"symbol is also displayed in the screen.

4
139
Driving
In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear isengaged, an audible signal (long beep)indicates that the sensors may be dirty.
When the vehicle is moving at a speed below 6 mph (10 km/h), cer tain soundsources (motorcycle, lorry, pneumatic
drill, etc.) may trigger the audible signals of the parking sensor system.
In th
e event of a malfunction
of the system, when reversegear is engaged this warning
lamp is displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal (short beep).
Contact a PEUGEOT dealer or a qualified
wor
kshop.

Operating fault

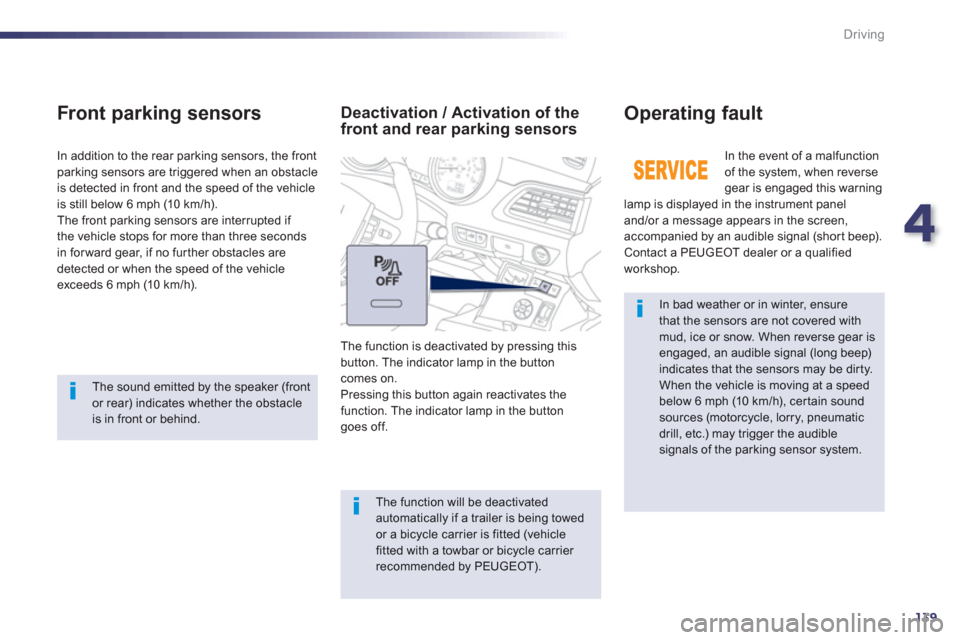

In addition to the rear parking sensors, the front
parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph
(10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in
forward gear, if no fur ther obstacles are
detected or when the speed of the vehicle exceeds 6 mph (10 km/h).
Front par king sensors
The function will be deactivated automatically if a trailer is being towedor a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by PEUGEOT).

Deactivation / Activation of thefront and rear parking sensors
The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.
Pressing this button again reactivates thefunction. The indicator lamp in the buttongoes off.



The sound emitted by the speaker (frontor rear) indicates whether the obstacle is in front or behind.

140
Driving

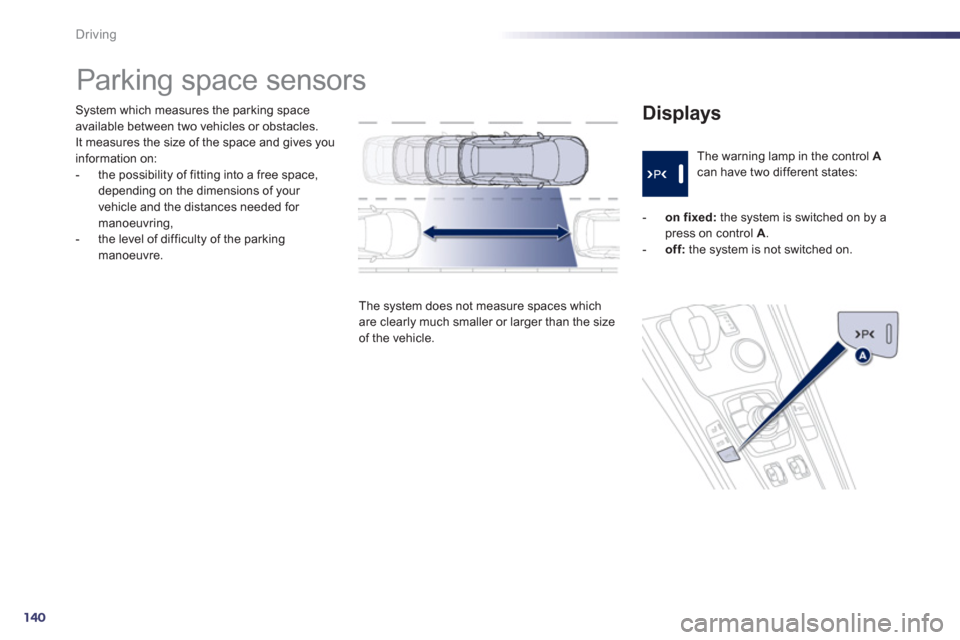

System which measures the parking spaceavailable between two vehicles or obstacles.
It measures the size of the space and gives you
information on:
- the possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances needed for manoeuvring,
- the level of difficulty of the parkingmanoeuvre.

The system does not measure spaces whichare clearly much smaller or larger than the size of the vehicle.
The warning lamp in the control A
can have two different states:

Displays


-
on fixed:
the system is switched on by a press on control A.

- off:the system is not switched on.






Parking space sensors

4
141
Driving

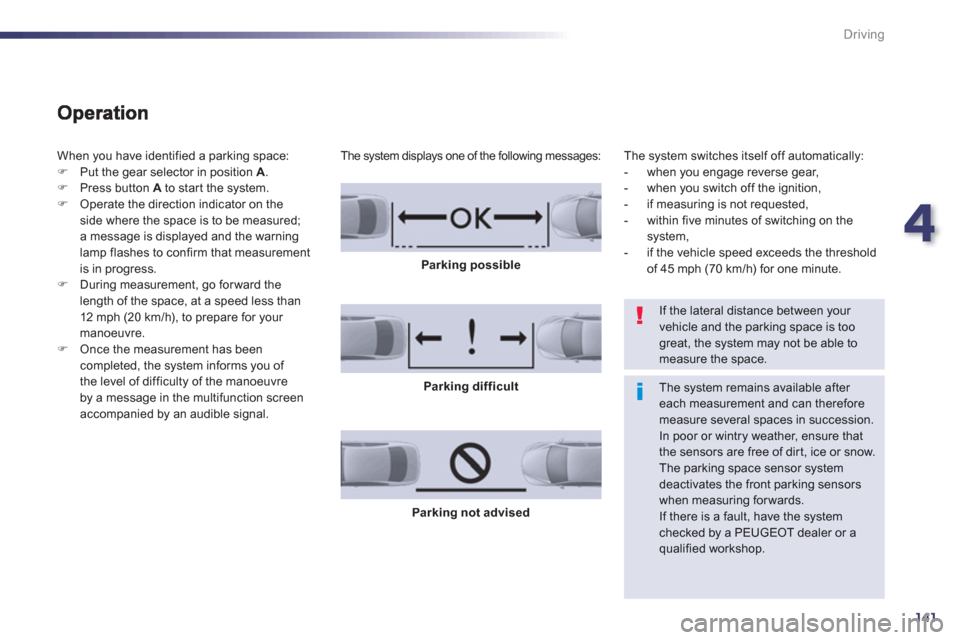

When you have identified a parking space:
)Put the gear selector in position A
. )Press button Ato star t the system. )Operate the direction indicator on theside where the space is to be measured; a message is displayed and the warning
lamp flashes to confirm that measurement
is in progress. )During measurement, go for ward the
length of the space, at a speed less than
12 mph (20 km/h), to prepare for your manoeuvre.)Once the measurement has beencompleted, the system informs you of
the level of difficulty of the manoeuvre
by a message in the multifunction screen accompanied by an audible signal.
The system displays one of the following messages:
Parking possible
Parking difficult
Parking not advised


If the lateral distance between your vehicle and the parking space is toogreat, the system may not be able to measure the space.


The system remains available after each measurement and can therefore measure several spaces in succession. In poor or wintry weather, ensure thatthe sensors are free of dir t, ice or snow. The parking space sensor systemdeactivates the front parking sensorswhen measuring forwards.
If there is a fault, have the system checked by a PEUGEOT dealer or a qualified workshop.
The s
ystem switches itself off automatically:


- when you engage reverse gear,

- when
you switch off the ignition,

- if measuring is not requested,

- within five minutes of switching on thesystem,

- if the vehicle speed exceeds the threshold
o
f 45 mph (70 km/h) for one minute.

142
Visibility

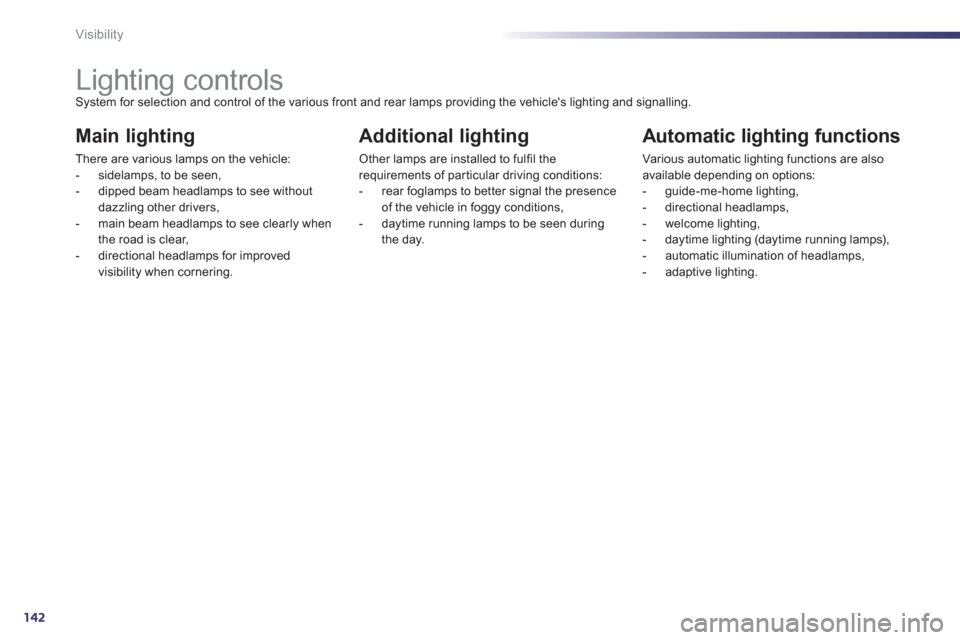

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.
Main lighting
There are various lamps on the vehicle:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzlin
g other drivers,
- main beam headlamps to see clearly when
the road is clear,
- directional headlamps for improved
visibility when cornering.



Additional lighting
Other lamps are installed to fulfil the requirements of particular driving conditions:


- rear foglamps to better signal the presence of the vehicle in foggy conditions,

- daytime running lamps to be seen duringthe day.



Automatic lighting functions

Various automatic lighting functions are also
available depending on options:


- guide-me-home lighting,

- directional headlamps,

- welcome li
ghting,

- daytime lighting (daytime running lamps),

- automatic illumination of headlamps,

- adaptive lighting.
