2011 TOYOTA LAND CRUISER Owners Manual

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)
■

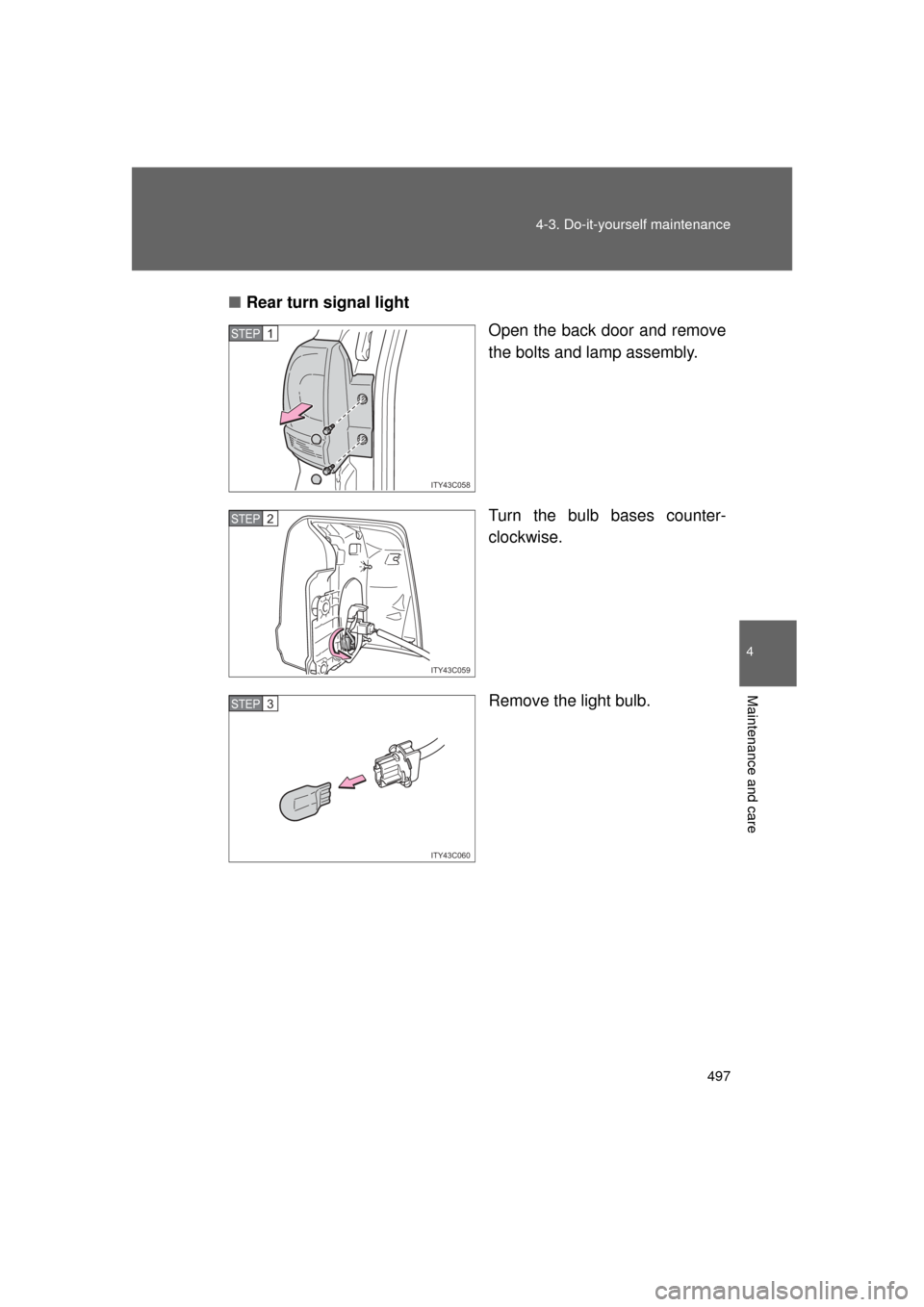

Rear turn signal light
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
ITY43C058
STEP1
ITY43C059
STEP2
ITY43C060
STEP3

498 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)■

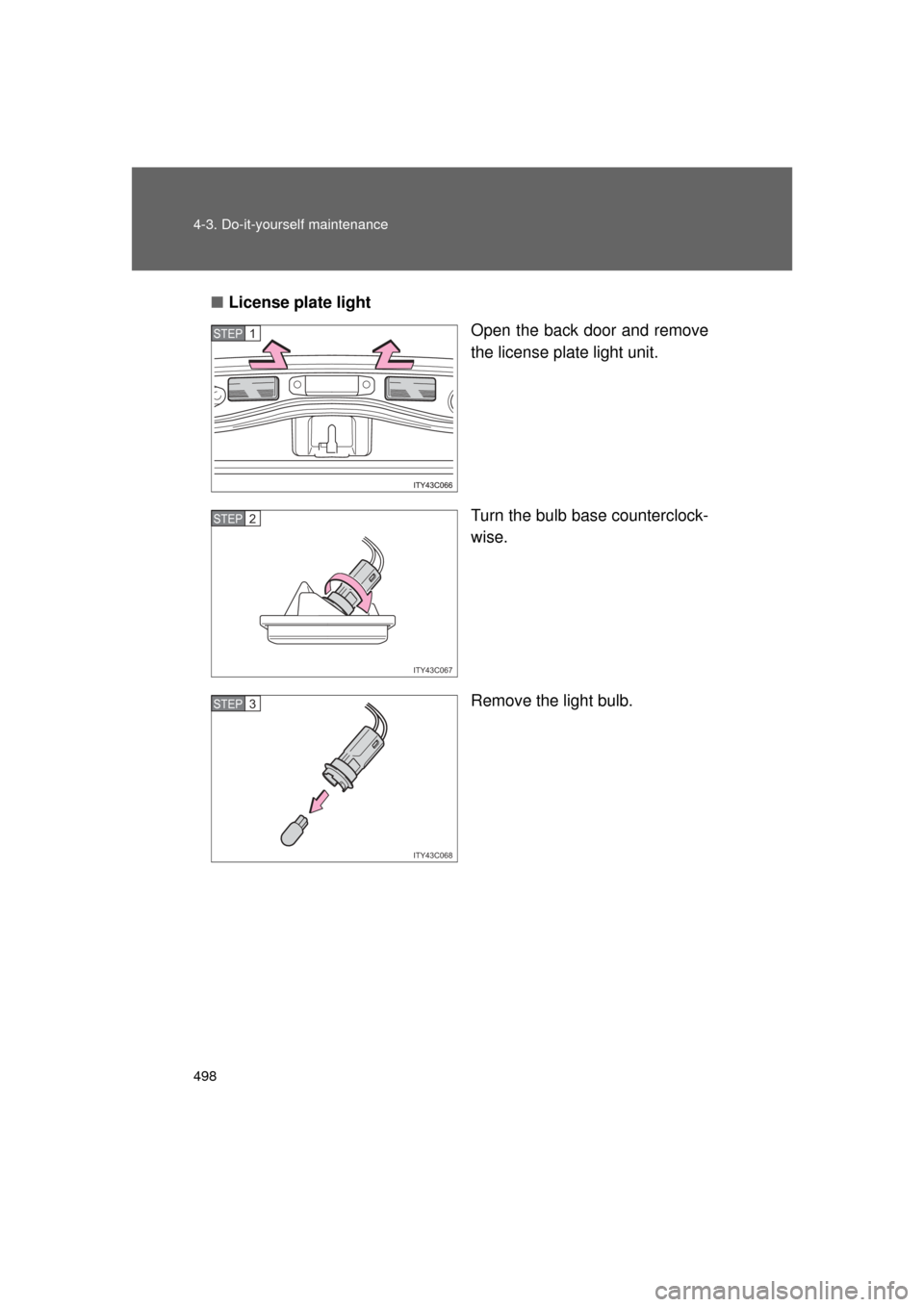

License plate light
Open the back door and remove
the license plate light unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
ITY43C067
STEP2
ITY43C068
STEP3

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)
■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Stop/tail lights
● Tail lights
● High mounted stoplight
● Rear side marker lights
■Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED lights
The stop/tail, tail, rear side marker lights and high mounted stoplight consist
of a number of LEDs. If any LEDs burn out, take your vehicle to your Toyota
dealer to have the light replaced.

500 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)
CAUTION
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

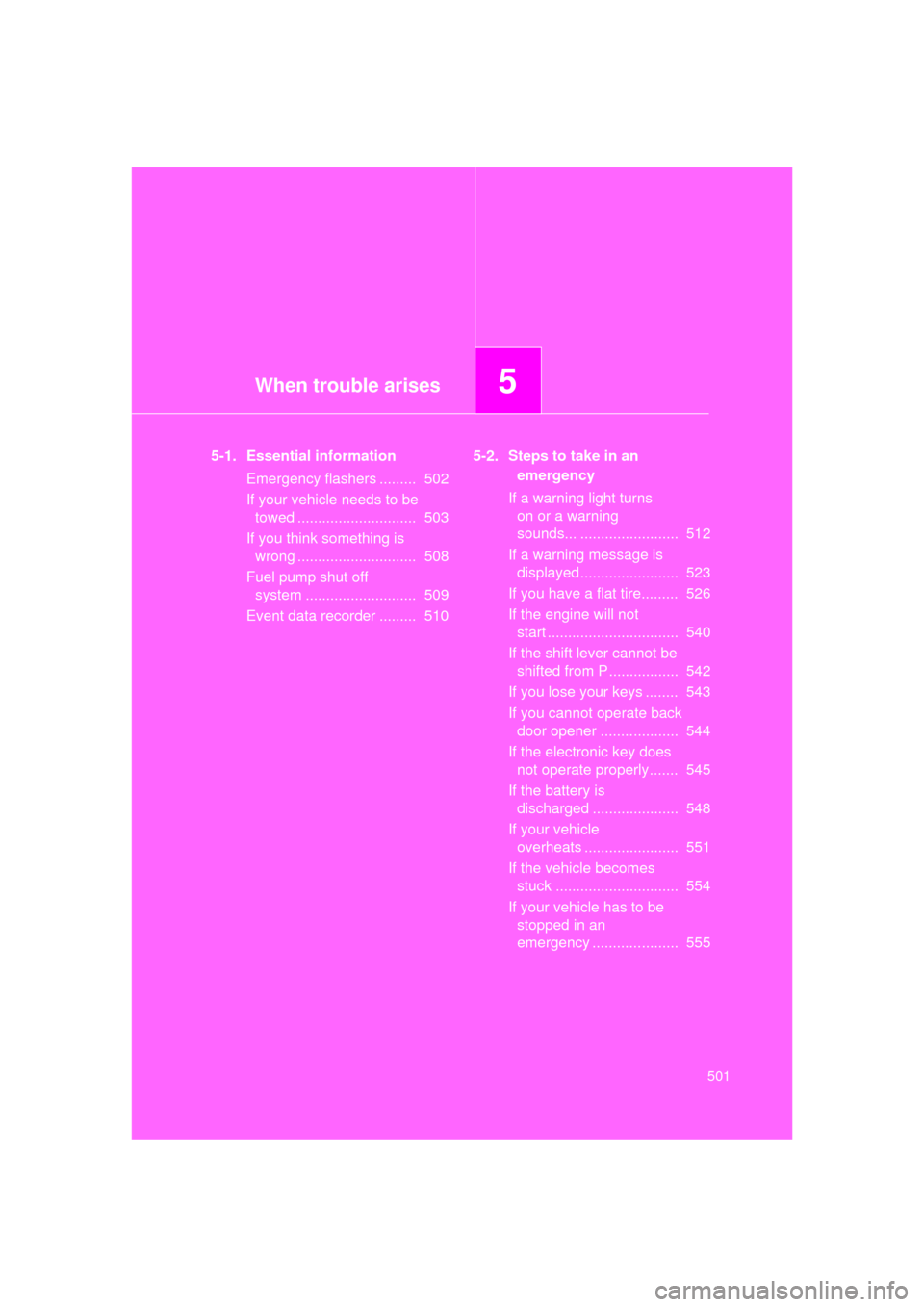

When trouble arises5
501
L/C200_U (OM60F74U)
5-1. Essential informationEmergency flashers ......... 502
If your vehicle needs to be towed ............................. 503
If you think something is wrong ............................. 508
Fuel pump shut off system ........................... 509
Event data recorder ......... 510 5-2. Steps to take in an
emergency
If a warning light turns on or a warning
sounds... ........................ 512
If a warning message is displayed ........................ 523
If you have a flat tire......... 526
If the engine will not start ................................ 540
If the shift lever cannot be shifted from P ................. 542
If you lose your keys ........ 543
If you cannot operate back door opener ................... 544
If the electronic key does not operate properly....... 545
If the battery is discharged ..................... 548
If your vehicle overheats ....................... 551
If the vehicle becomes stuck .............................. 554
If your vehicle has to be stopped in an
emergency ..................... 555

502
L/C200_U (OM60F74U)
5-1. Essential information

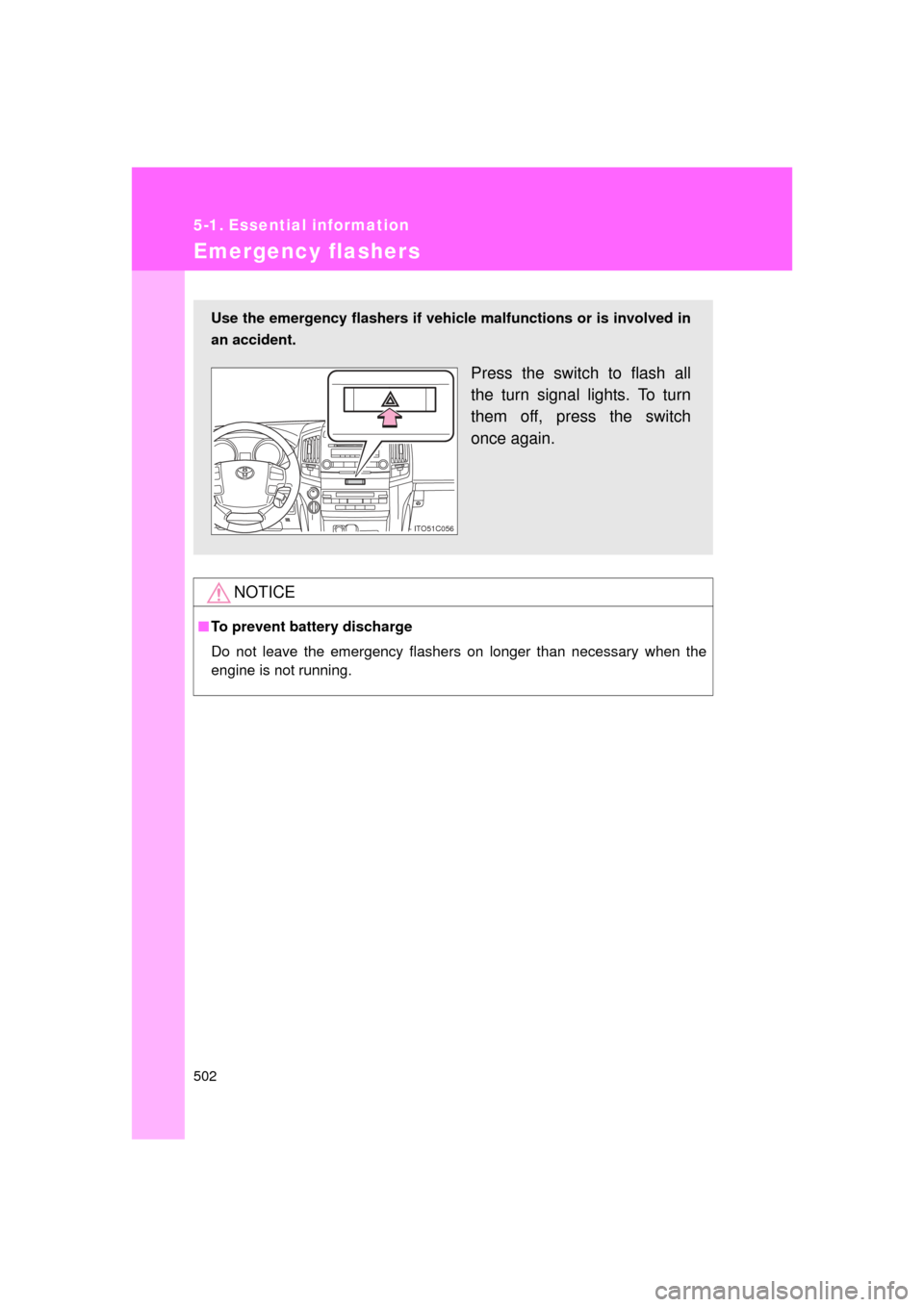

Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if vehicle malfunctions or is involved in
an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
ITO51C056

5
When trouble arises
503
5-1. Essential information
L/C200_U (OM60F74U)

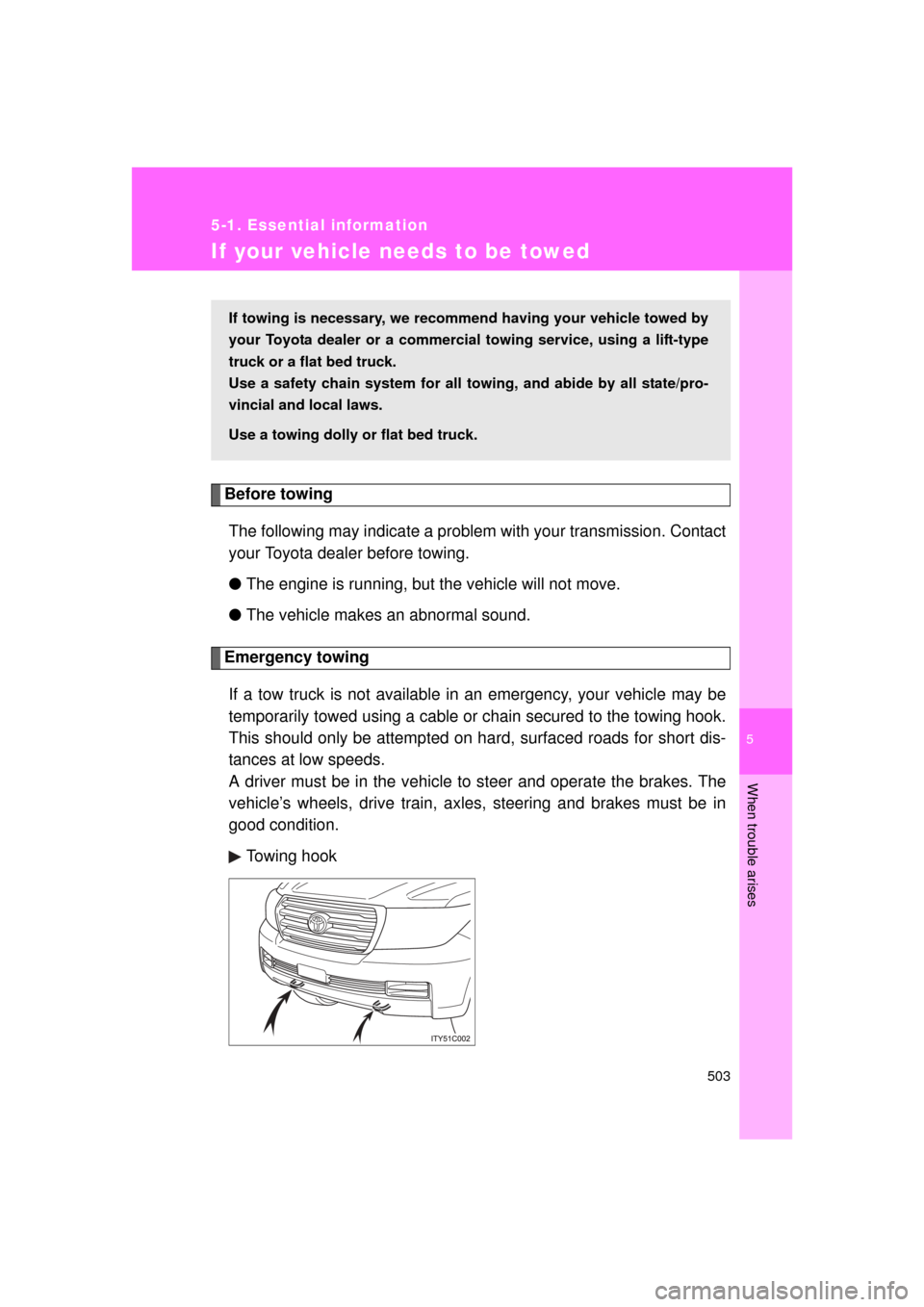

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using a cable or chain secured to the towing hook.
This should only be attempted on ha rd, surfaced roads for short dis-
tances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing hook
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
Use a towing dolly or flat bed truck.

504 5-1. Essential information
L/C200_U (OM60F74U)
■Emergency towing procedure
The engine must be in ACCESSORY mode (engine off) or IGNI-
TION ON mode (engine running).
Put the four-wheel drive control swit ch in “H4”. (The center differen-
tial is unlocked.)
Put the shift lever in “N”.
Release the parking brake.
CAUTION
■ While towing
● Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing hook and the cable or chain. Always be
cautious of the surroundings and other vehicles while towing.
● If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
■To prevent causing serious dama ge to the transmission
● Never tow this vehicle with the wheels on the ground.
● Use only the front emergency towing hooks or towing eyelets (depending
on vehicles) when towing your vehicle.
STEP1
STEP2
STEP3
STEP4
