Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( P. 567)
■ Remove the engine compartment cover
P. 441
■ Front bulb locations
ITY43C074
Front side marker light
Parking light
Front fog light
Headlight high beam
and daytime
running light
Front turn signal light
Headlight low beam

490 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)
Replacing light bulbs■ Headlight low beam
Turn the bulb base counterclock-
wise.

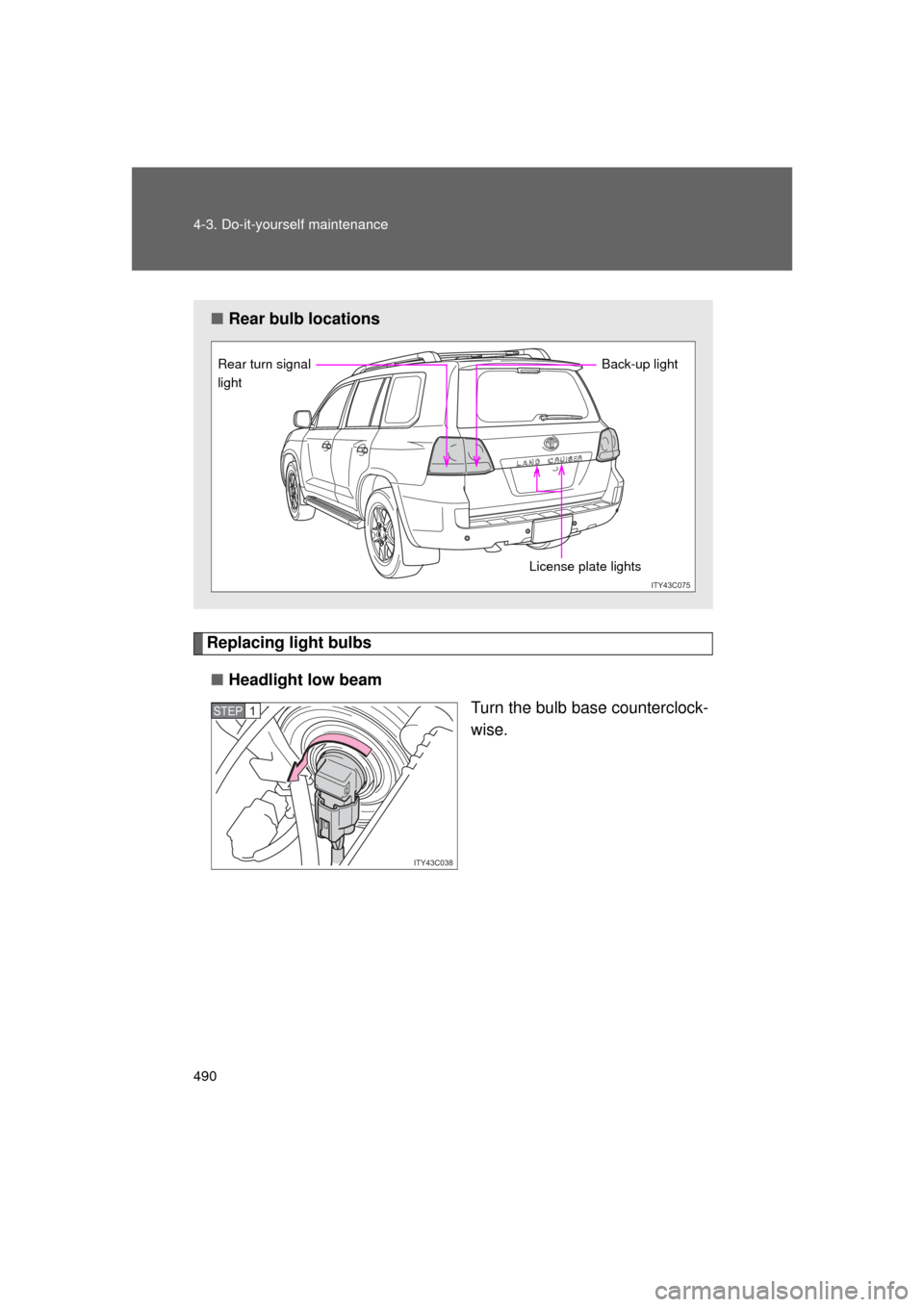

■Rear bulb locations
ITY43C075
License plate lights
Rear turn signal
light
Back-up light
ITY43C038
STEP1

491
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)
Unplug the connector while
depressing the lock release.
■ Headlight high beam and daytime running light
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
ITY43C039
STEP2
ITY43C040
STEP1
ITY43C041
STEP2

492 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)■
Front fog light
Remove the fender liner bolts,
loose the fender liner nut and
remove the fender liner.
Fender liner nut
Fender liner bolts
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
STEP1
ITY43C042
STEP2
ITY43C043
STEP3

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)
■
Parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43C048
STEP1
ITY43C049
STEP2

494 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)■
Front turn signal light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.

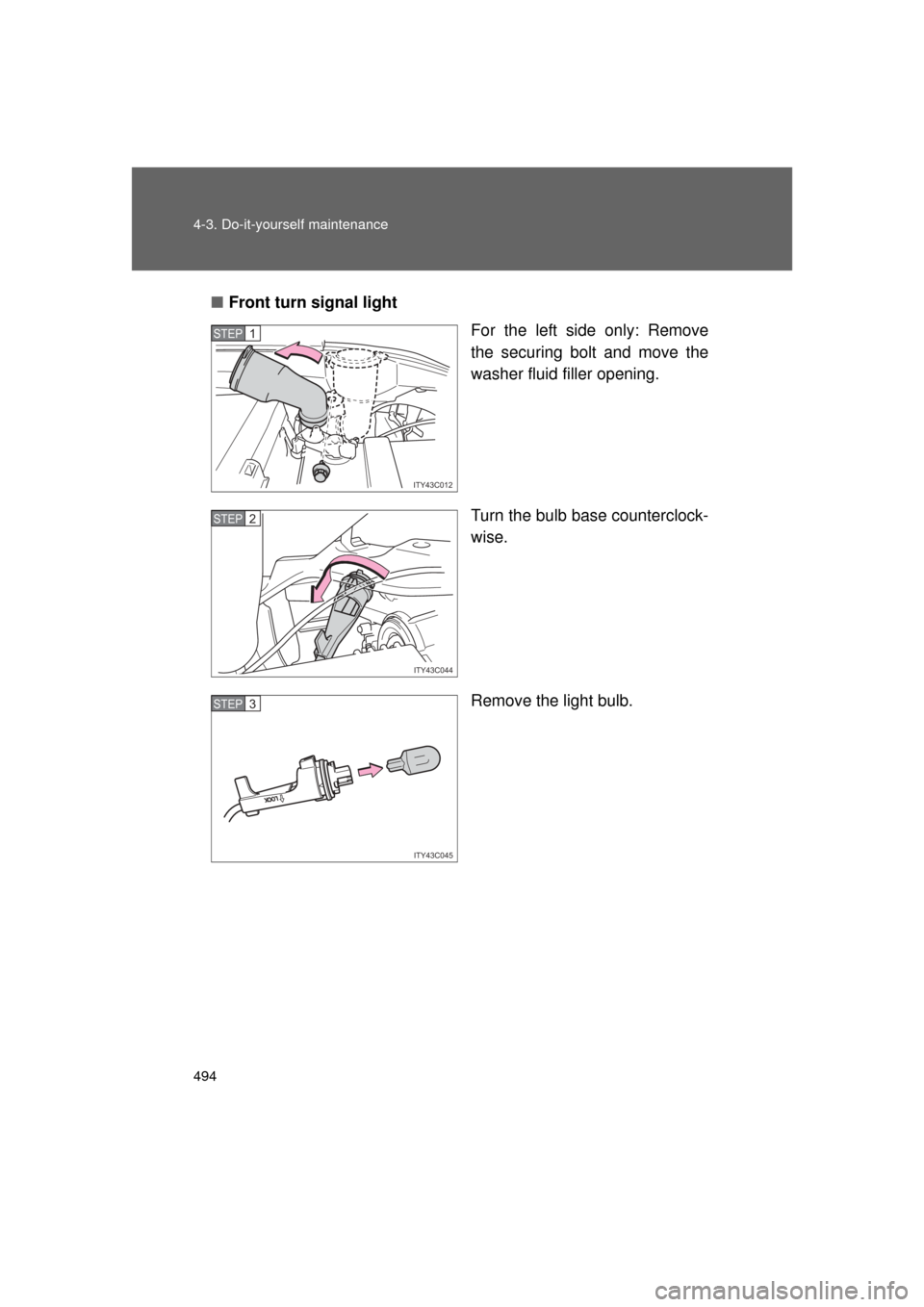

ITY43C012
STEP1
ITY43C044
STEP2
ITY43C045
STEP3

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)
■
Front side marker light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43C012
STEP1
ITY43C050
STEP2
ITY43C051
STEP3

496 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)■
Back-up light
Open the back door and remove
the nuts and lamp assembly.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
ITY43C052
STEP1
ITY43C053
STEP2
ITY43C054
STEP3
