2011 TOYOTA LAND CRUISER Owners Manual

41
1
1-2. Opening, closing and locking the doors
Before driving
L/C200_U (OM60F74U)

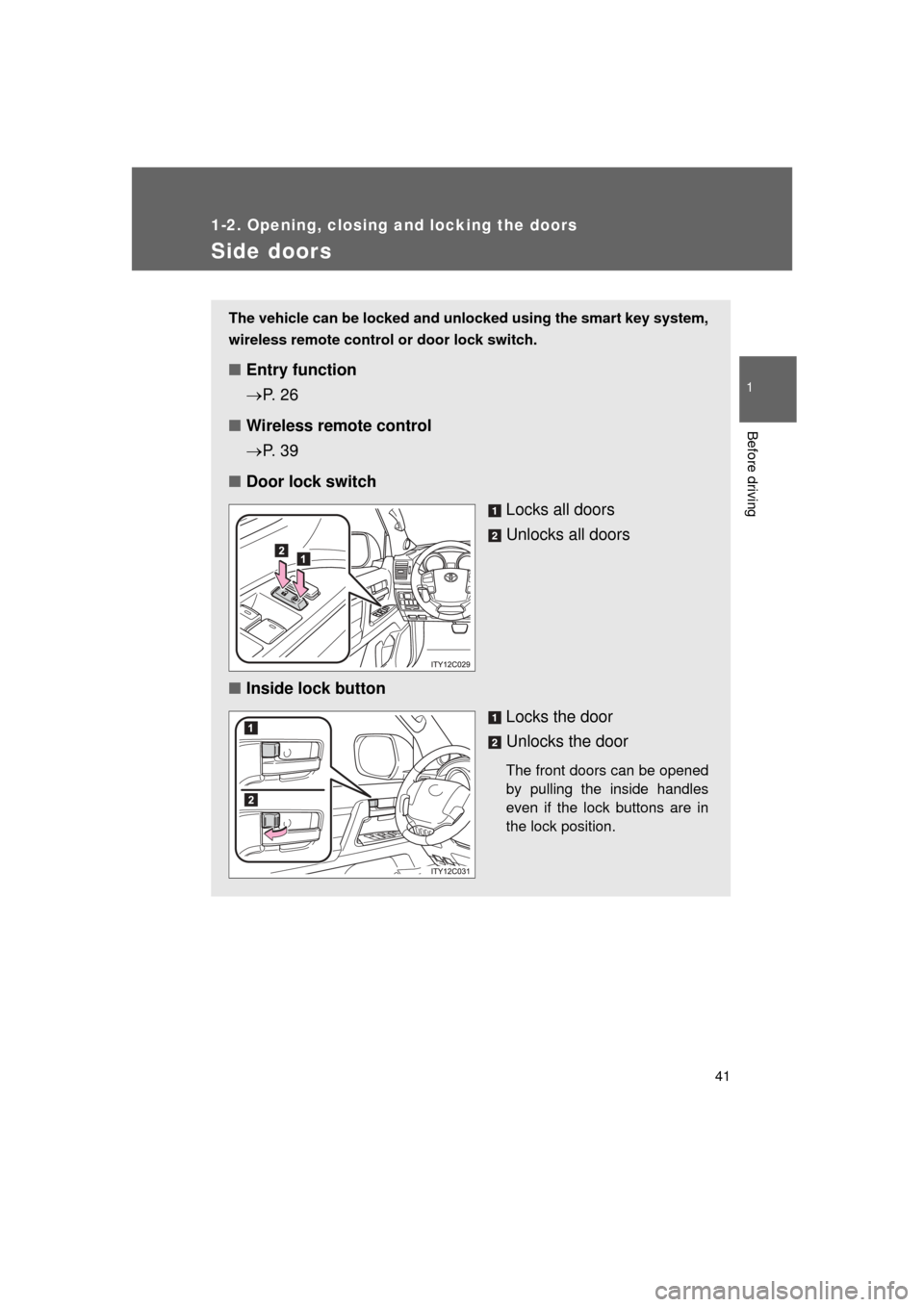

Side doors
The vehicle can be locked and unlocked using the smart key system,
wireless remote control or door lock switch.
■ Entry function
P. 2 6
■ Wireless remote control
P. 3 9
■ Door lock switch
Locks all doors
Unlocks all doors
■ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

42 1-2. Opening, closing and locking the doors
L/C200_U (OM60F74U)
Locking the driver’s door from the outside without a keyMove the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Press down rear door
switches to lock the rear doors.
STEP1
STEP2
ITY12C032

43
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60F74U)
Automatic door locking and unlocking systems
The following functions can be set or canceled:
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Close all the doors and switch the “ENGINE START STOP”
switch IGNITION ON mode. (Perform step 2 within 20 sec-
onds.)
Shift the shift lever to “P” or “N”,
press and hold the driver’s door
lock switch (
or ) for
5 seconds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to can-
cel the function.
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking function Shifting the shift lever to “P” unlocks all
doors.
Speed linked door lock-
ing function All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.
STEP1
STEP2

44 1-2. Opening, closing and locking the doors
L/C200_U (OM60F74U)When the setting or canceling operation is complete, all doors are
locked and then unlocked.
FunctionShift lever
positionDriver’s door lock switch position
Shift position linked door lock-
ing function “P”
Shift position linked door
unlocking function
Speed linked door locking func-
tion “N”
Driver’s door linked door unlock-
ing function
■ Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked.
Depending on the force of the impact or the type of accident, however, the
system may not operate.
■ Using the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(P. 545)
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 583)

45
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60F74U)
CAUTION
■
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful of the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seat.

46
1-2. Opening, closing and locking the doors
L/C200_U (OM60F74U)

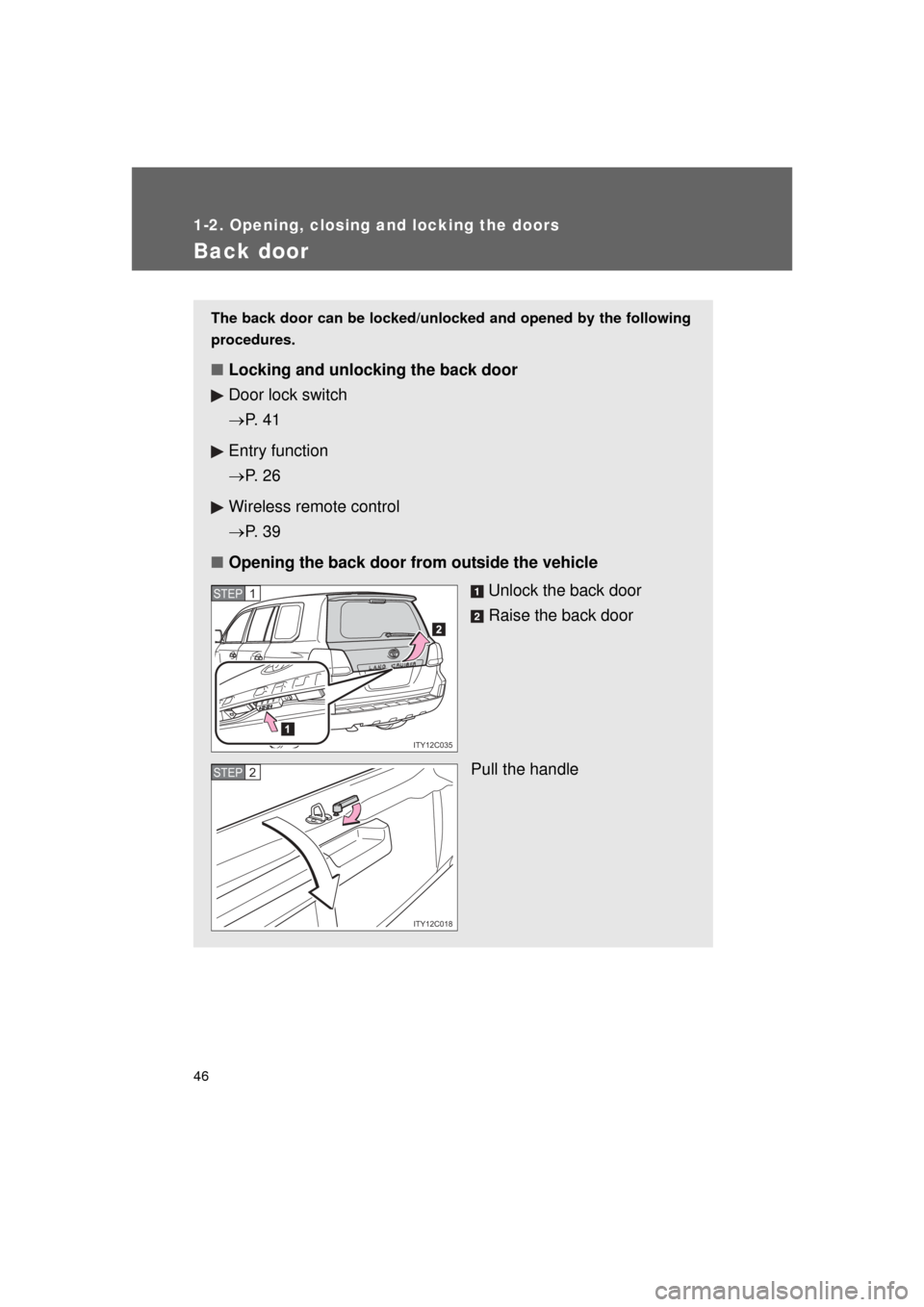

Back door
The back door can be locked/unlocked and opened by the following
procedures.
■ Locking and unlocking the back door
Door lock switch
P. 4 1
Entry function
 P. 2 6
Wireless remote control
 P. 3 9
■ Opening the back door from outside the vehicle
Unlock the back door
Raise the back door
Pull the handle
ITY12C035
STEP1
ITY12C018
STEP2

47
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60F74U)
Rear step bumper
The rear step bumper is for rear
end protection and easier step-
up loading.
■When closing the back door
● Make sure that the lower side of the back door is closed before closing
the upper side of the back door.
■ If the back door opener is inoperative
 P. 544
●Lower the back door using the back
door handle, and make sure to push the
back door down from the outside to
close it.
ITY12C041

48 1-2. Opening, closing and locking the doors
L/C200_U (OM60F74U)
CAUTION
■While driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
