2011 TOYOTA LAND CRUISER Owners Manual

5
When trouble arises
529
5-2. Steps to take in an emergency
L/C200_U (OM60F74U)
Taking out the spare tire

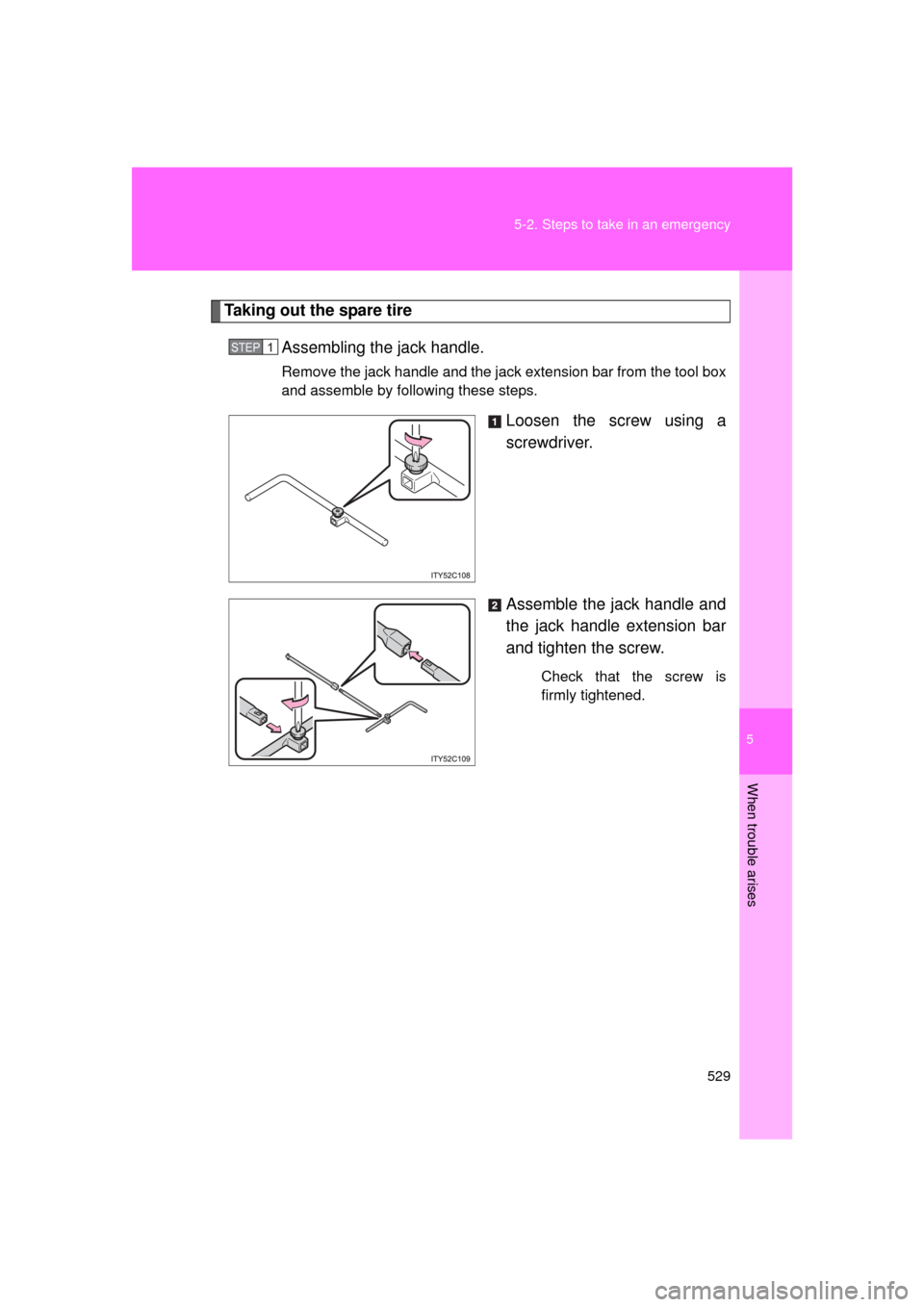

Assembling the jack handle.
Remove the jack handle and the jack extension bar from the tool box
and assemble by following these steps.
Loosen the screw using a
screwdriver.
Assemble the jack handle and
the jack handle extension bar
and tighten the screw.
Check that the screw is
firmly tightened.
STEP1

530 5-2. Steps to take in an emergency

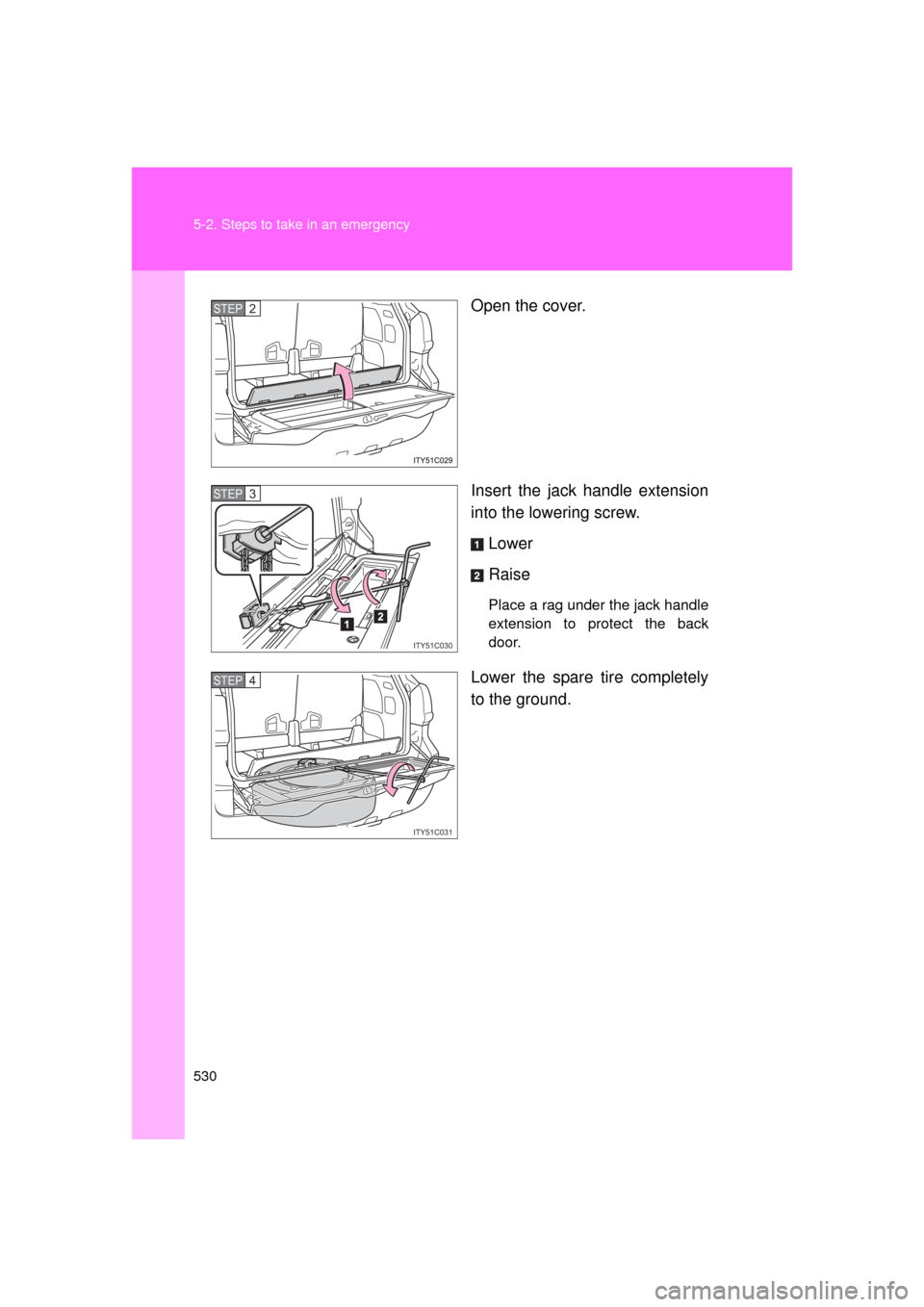

L/C200_U (OM60F74U)Open the cover.
Insert the jack handle extension
into the lowering screw.
Lower
Raise
Place a rag under the jack handle
extension to protect the back
door.
Lower the spare tire completely
to the ground.
STEP2
ITY51C030
STEP3
ITY51C031
STEP4

5
When trouble arises
531
5-2. Steps to take in an emergency
L/C200_U (OM60F74U)

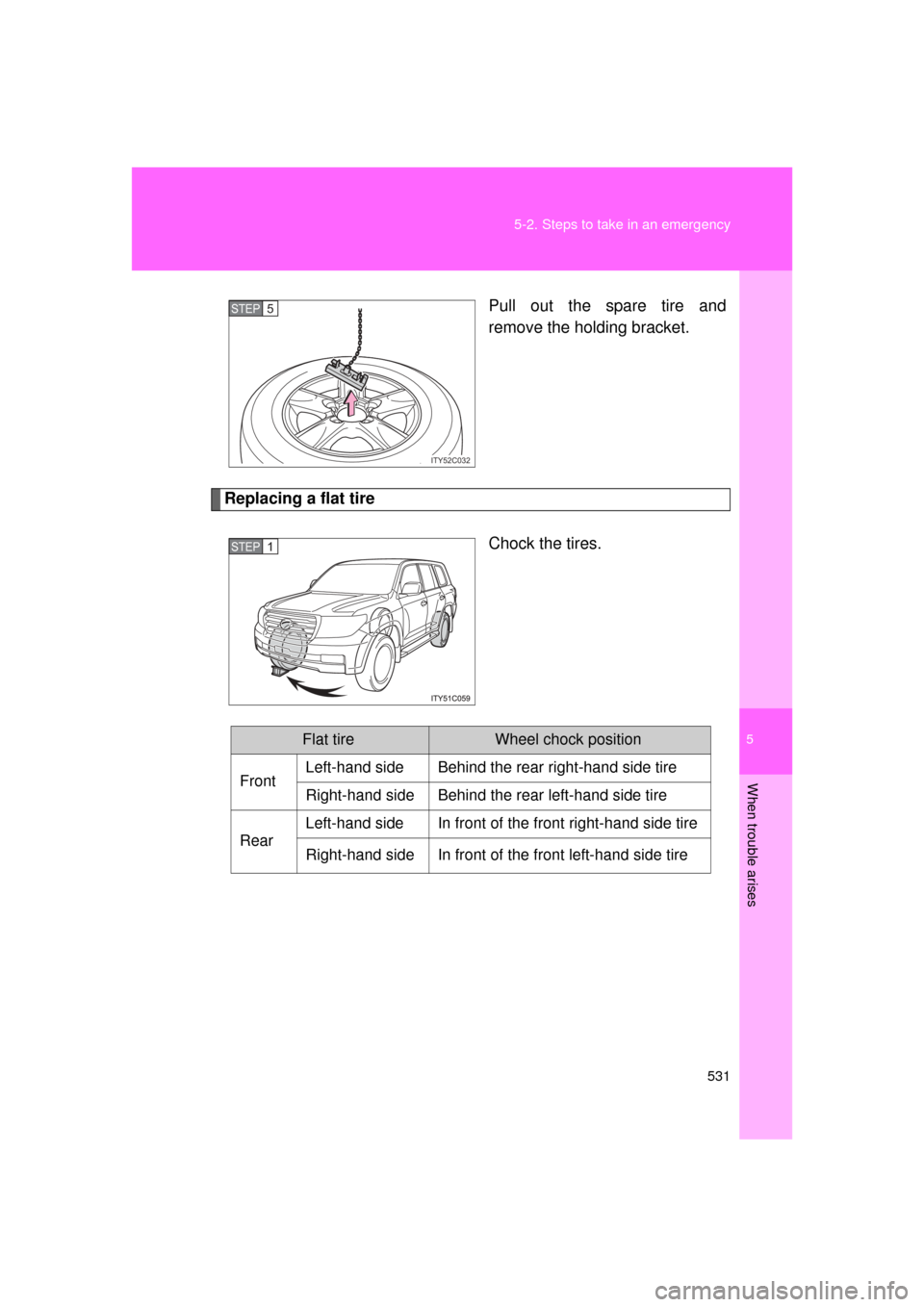

Pull out the spare tire and
remove the holding bracket.
Replacing a flat tire
Chock the tires.
ITY52C032
STEP5
STEP1
Flat tireWheel chock position
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

532 5-2. Steps to take in an emergency

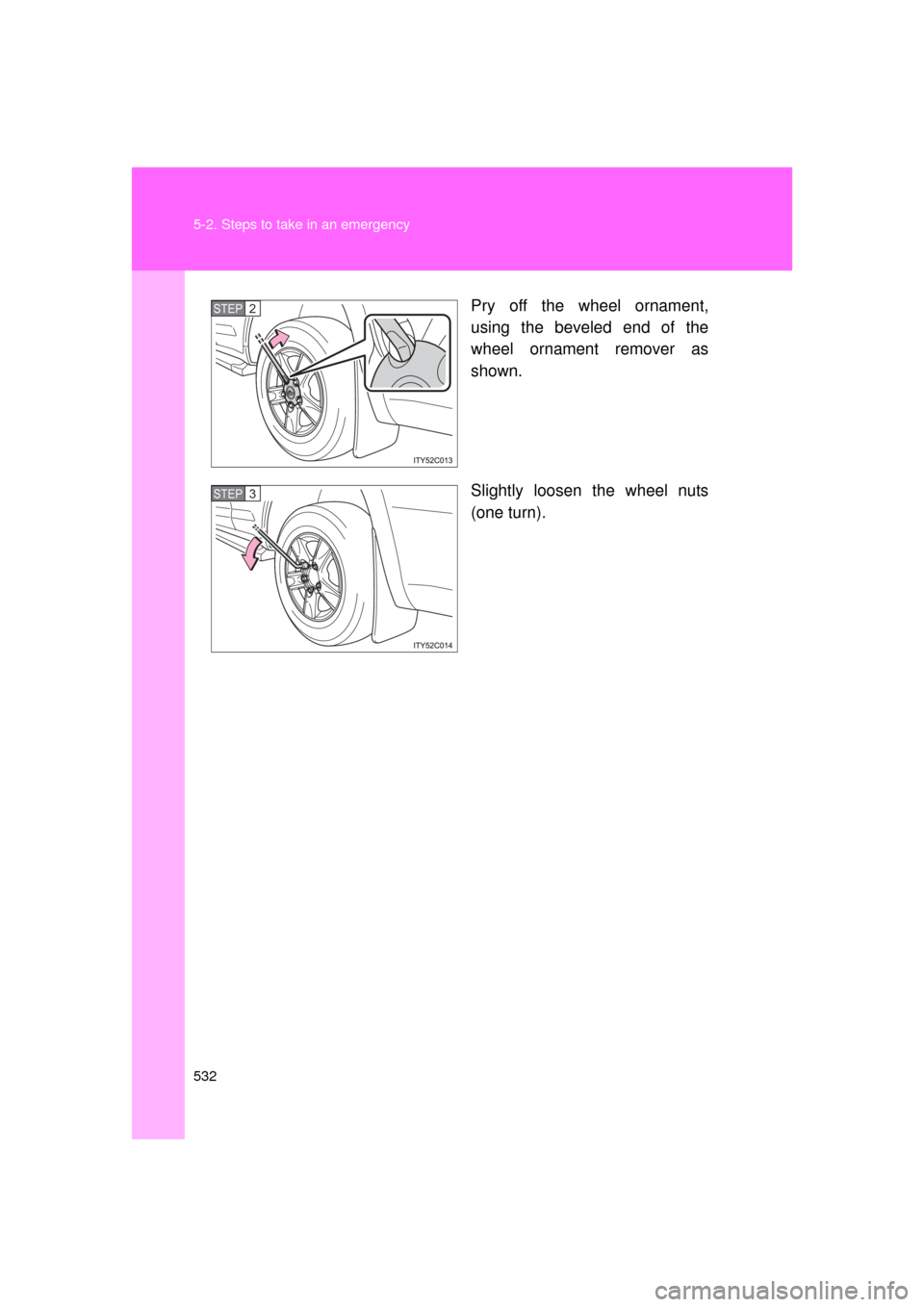

L/C200_U (OM60F74U)Pry off the wheel ornament,
using the beveled end of the
wheel ornament remover as
shown.
Slightly loosen the wheel nuts
(one turn).
STEP2
STEP3

5
When trouble arises
533
5-2. Steps to take in an emergency
L/C200_U (OM60F74U)

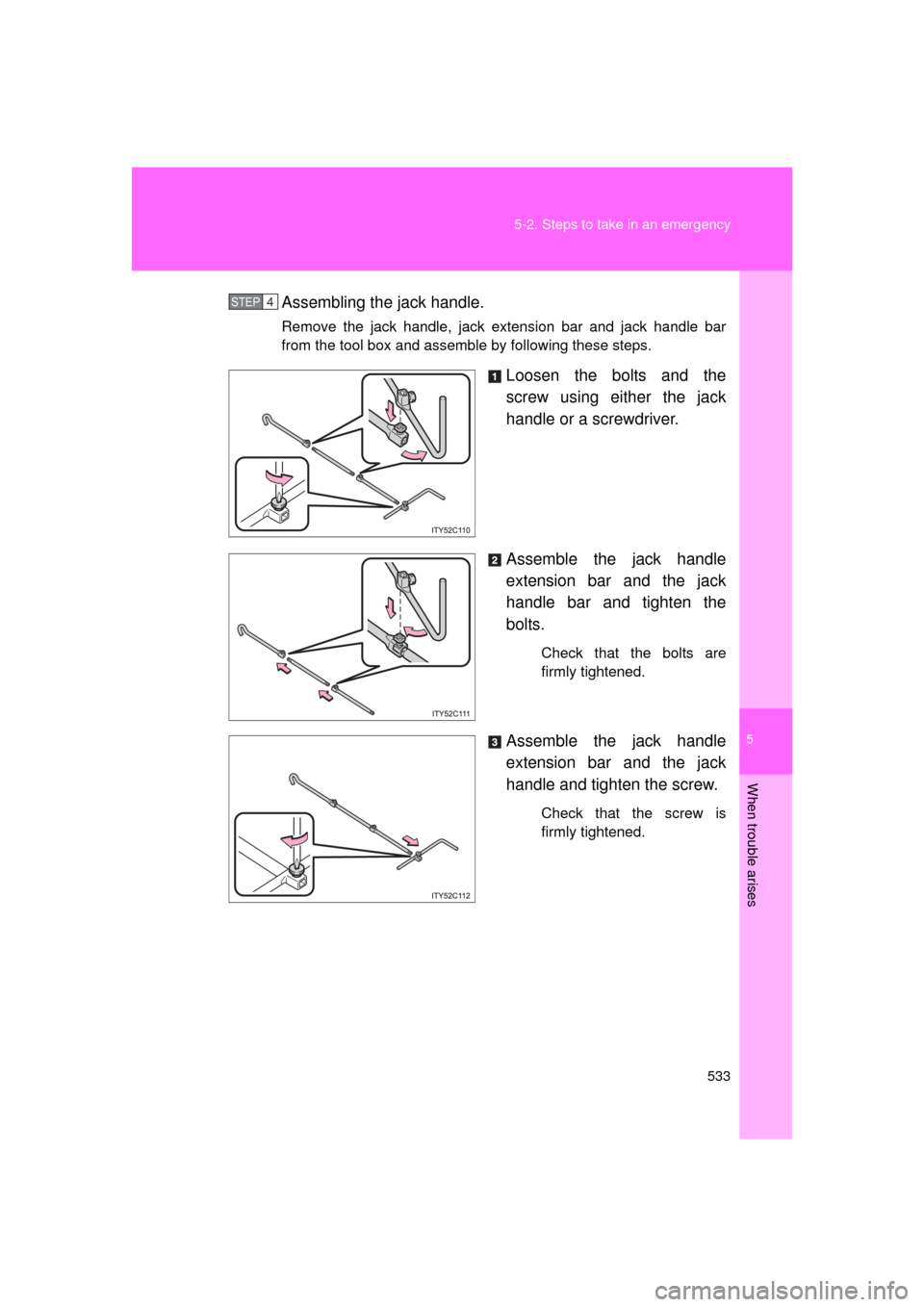

Assembling the jack handle.
Remove the jack handle, jack extension bar and jack handle bar
from the tool box and assemble by following these steps.
Loosen the bolts and the
screw using either the jack
handle or a screwdriver.
Assemble the jack handle
extension bar and the jack
handle bar and tighten the
bolts.
Check that the bolts are
firmly tightened.
Assemble the jack handle
extension bar and the jack
handle and tighten the screw.
Check that the screw is
firmly tightened.
STEP4

534 5-2. Steps to take in an emergency

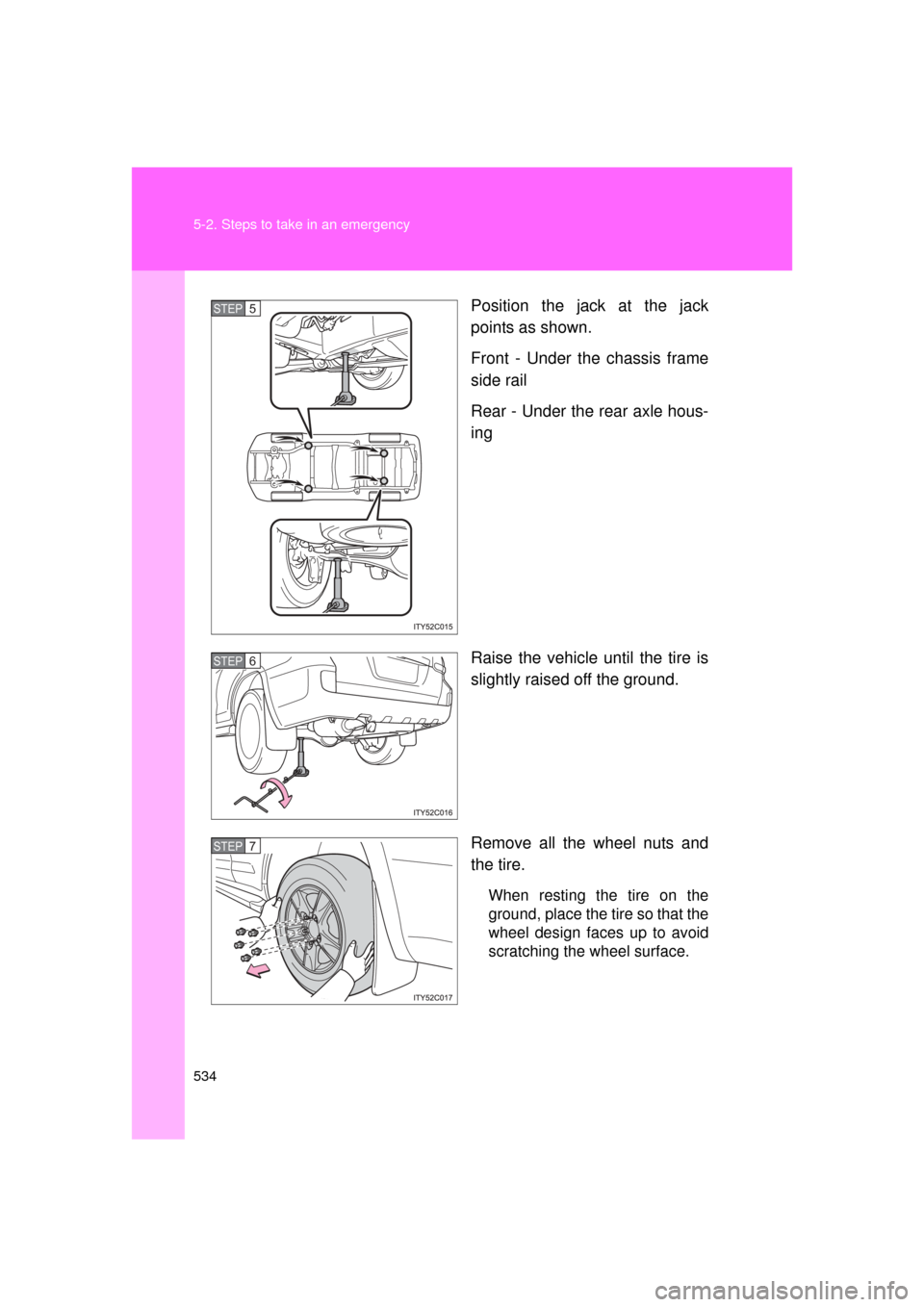

L/C200_U (OM60F74U)Position the jack at the jack
points as shown.
Front - Under the chassis frame
side rail
Rear - Under the rear axle hous-
ing
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP5
STEP6
STEP7

5
When trouble arises
535
5-2. Steps to take in an emergency
L/C200_U (OM60F74U)

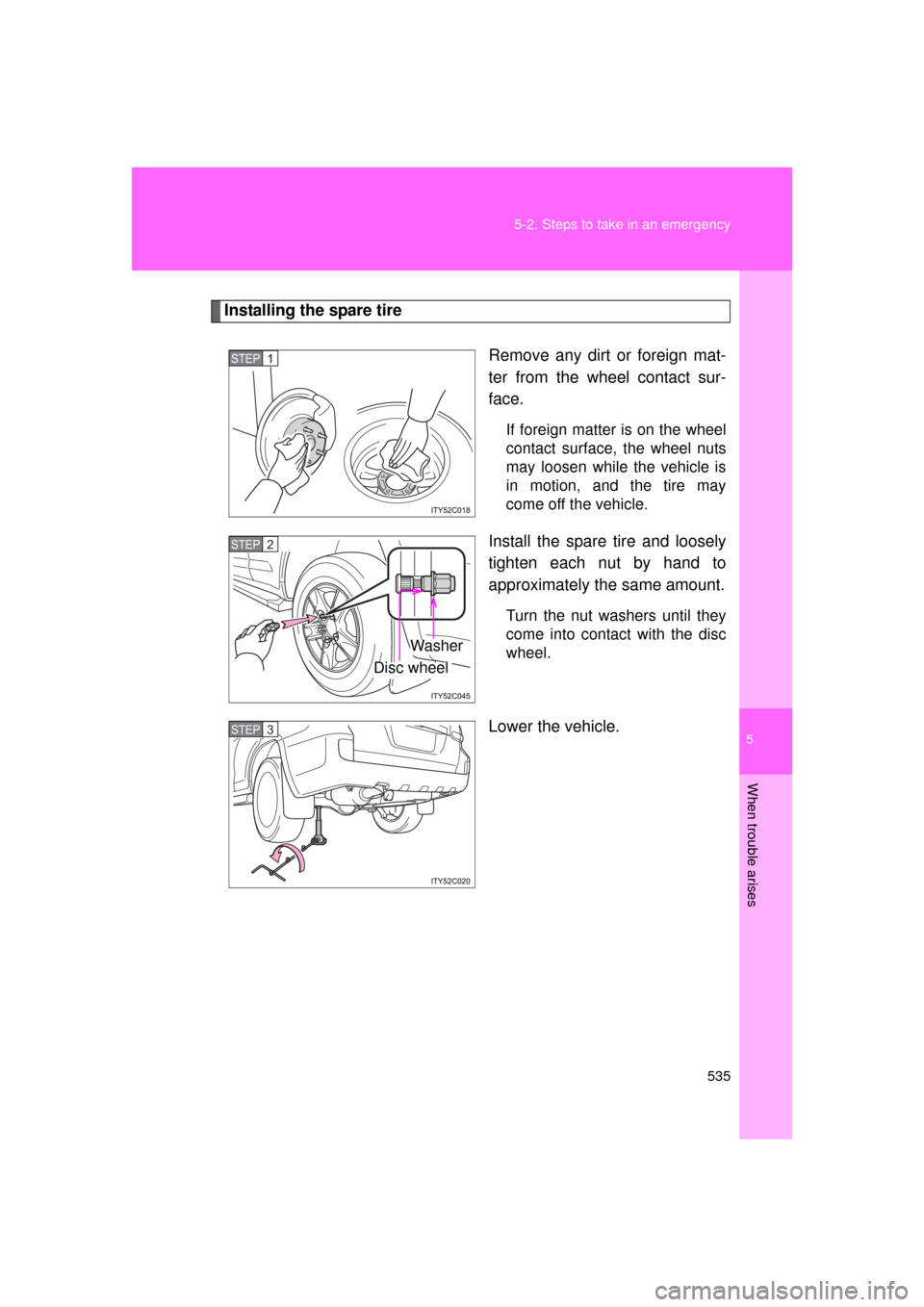

Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Turn the nut washers until they
come into contact with the disc
wheel.
Lower the vehicle.
STEP1
STEP2
Washer
Disc wheel
STEP3

536 5-2. Steps to take in an emergency

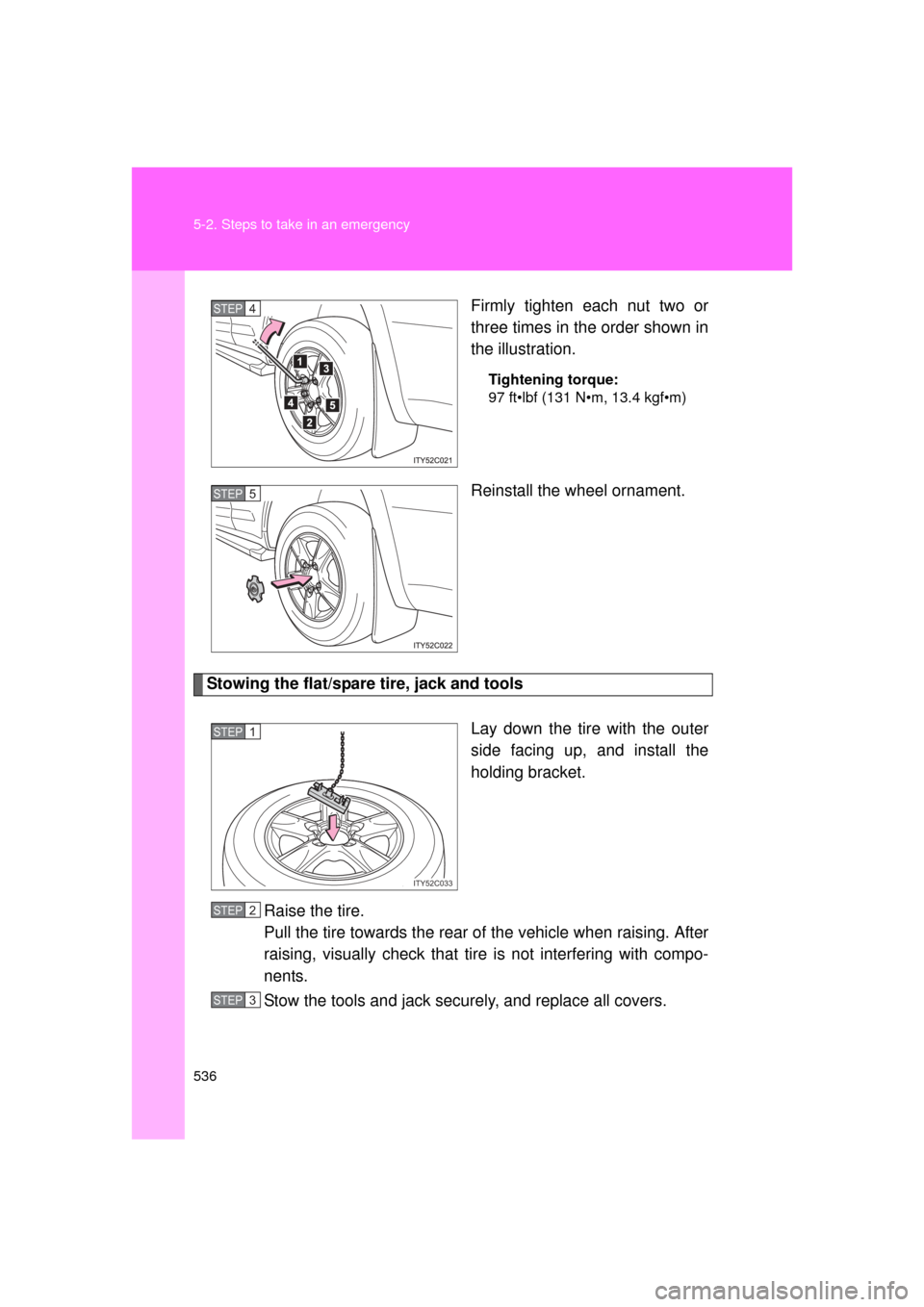

L/C200_U (OM60F74U)Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
97 ft•lbf (131 N•m, 13.4 kgf•m)
Reinstall the wheel ornament.
Stowing the flat/spare tire, jack and tools
Lay down the tire with the outer
side facing up, and install the
holding bracket.
Raise the tire.
Pull the tire towards the rear of the vehicle when raising. After
raising, visually check that tire is not interfering with compo-
nents.
Stow the tools and jack securely, and replace all covers.
STEP4
STEP5
ITY52C033
STEP1
STEP2
STEP3
