2011 TOYOTA LAND CRUISER Owners Manual

377
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
L/C200_U (OM60F74U)
Deleting the registered data
Select “Delete Entry” using a voice command or .
Pattern A Select the data to be deleted by either of the following meth-
ods, and select “Confirm” us ing a voice command or :
a. Press the talk switch, and say the name of the desired phone number.
b. Press the talk switch, say “List Names”. When the name of the desired phone number is read aloud, press the talk
switch.
Pattern B
Select the data to be deleted using .
STEP1
STEP2
STEP2

378 3-4. Using the hands-free system (for cellular phone)
L/C200_U (OM60F74U)
Deleting speed dialsSelect “Delete Speed Dial (Del Spd Dial)” using a voice com-
mand or .
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” using a voice command or
.
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2

379
3
Interior features
L/C200_U (OM60F74U)
3-5. Using the interior lights

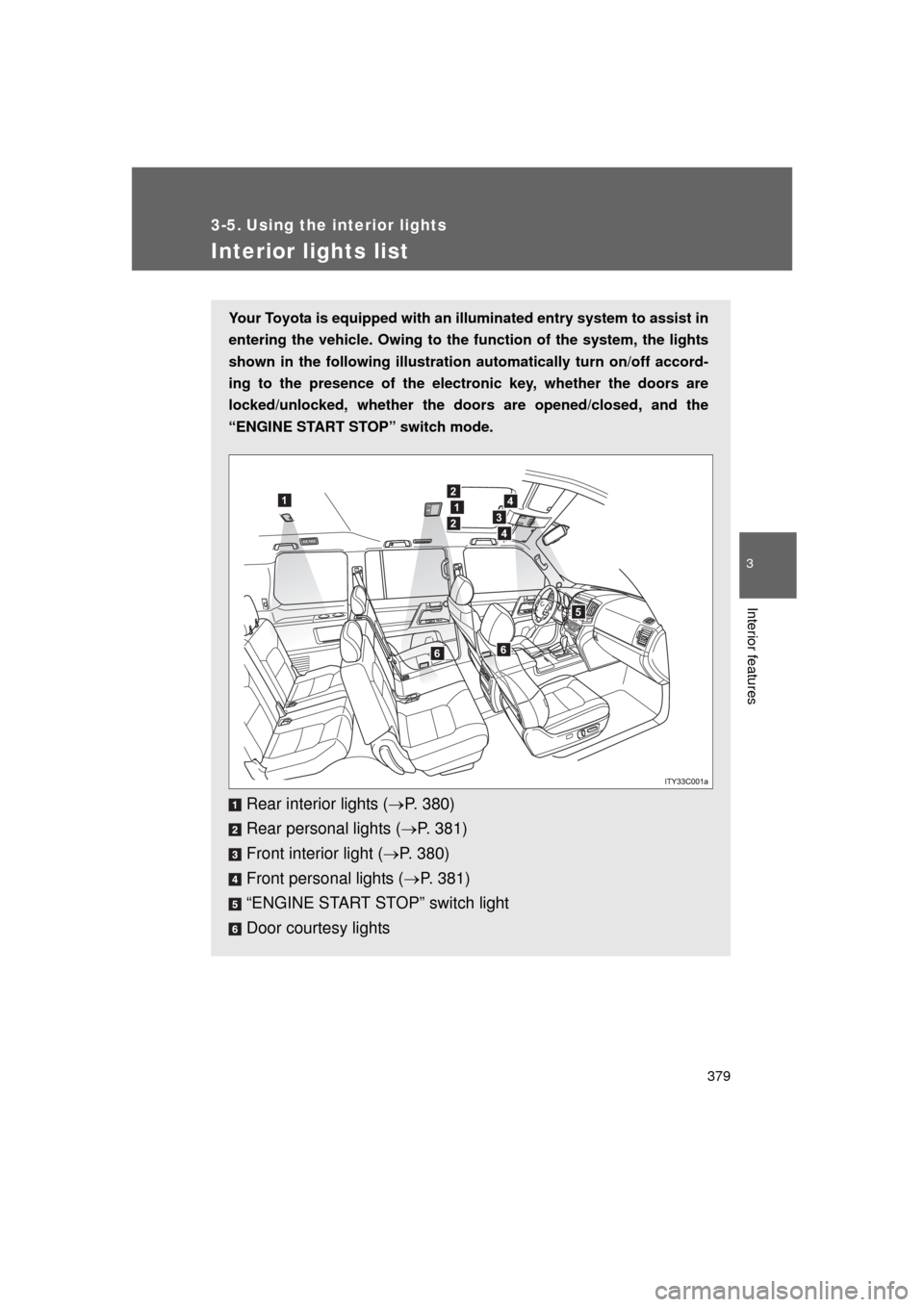

Interior lights list
Your Toyota is equipped with an illuminated entry system to assist in
entering the vehicle. Owing to the function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to the presence of the electr onic key, whether the doors are
locked/unlocked, whether the door s are opened/closed, and the
“ENGINE START STOP” switch mode.
Rear interior lights ( P. 380)
Rear personal lights ( P. 381)
Front interior light ( P. 380)
Front personal lights ( P. 381)
“ENGINE START STOP” switch light
Door courtesy lights
12
1
2
4
3
4
5
66

380 3-5. Using the interior lights
L/C200_U (OM60F74U)
Interior lightsFront Door position on/off
On/off
Rear Door position
On
■To prevent the battery from being discharged
If the interior lights and “ENGINE START STOP” switch light remain on when
the door is not fully closed and the interior light switch is in the door position,
the lights will go off automatically after 20 minutes.
■ Customization
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
P. 583)
ITY33C008
Interior lights

381
3-5. Using the interior lights
3
Interior features
L/C200_U (OM60F74U)
Personal lights
Front On/off
Rear (type A) On/off
Rear (type B) On/off
ITY33C014
Personal lights

382
L/C200_U (OM60F74U)
3-6. Using the storage features

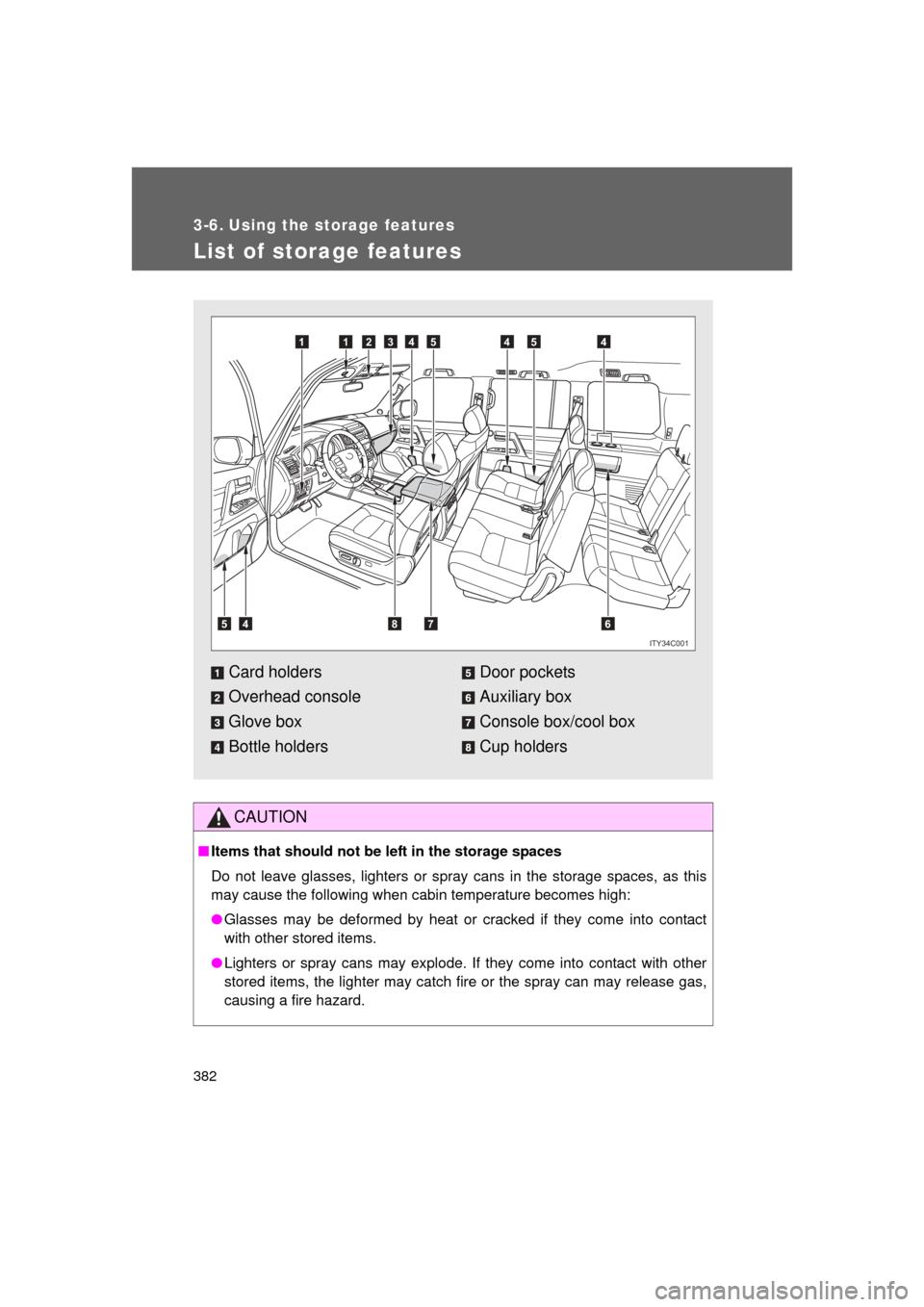

List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Card holders
Overhead console
Glove box
Bottle holdersDoor pockets
Auxiliary box
Console box/cool box
Cup holders
411234545
67845
ITY34C001

383
3-6. Using the
storage features
3
Interior features
L/C200_U (OM60F74U)
Glove box
Open (push button)
Lock with the mechanical key
Unlock with the mechanical
key
ITY34C003
■Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Glove box

384 3-6. Using the storage features
L/C200_U (OM60F74U)
Console boxYour vehicle is equipped with either a lower console box or cool box.
For vehicles with the cool box, refer to page 390.
Upper console box Press the tab to open.
Lower console box (if equipped) Lift the lever to open.
Remove the tray.
ITY34C005
ITY34C006
STEP1
ITY34C033
STEP2
Console box
