2011 TOYOTA LAND CRUISER Owners Manual

289
3-2. Using the audio system
3
Interior features
L/C200_U (OM60F74U)
■
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
■ If CDs are left inside the CD pla yer or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.

290 3-2. Using the audio system
L/C200_U (OM60F74U)
NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual
Disc.
Doing so may damage the player and/or the CD insert/eject function.
● CDs that have a diameter that is not 4.7
in. (12 cm).
● Low-quality and deformed CDs.
● CDs with a transparent or translucent
recording area.
● CDs that have tape, stickers or CD-R
labels attached to them, or that have
the label peeled off.

291
3-2. Using the audio system
3
Interior features
L/C200_U (OM60F74U)
NOTICE
■
Player precautions
Failure to follow the precautions below may result in damage to the CDs or
the player itself.
● Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the player.
●Do not insert more than one CD at a
time.

292
3-2. Using the audio system
L/C200_U (OM60F74U)

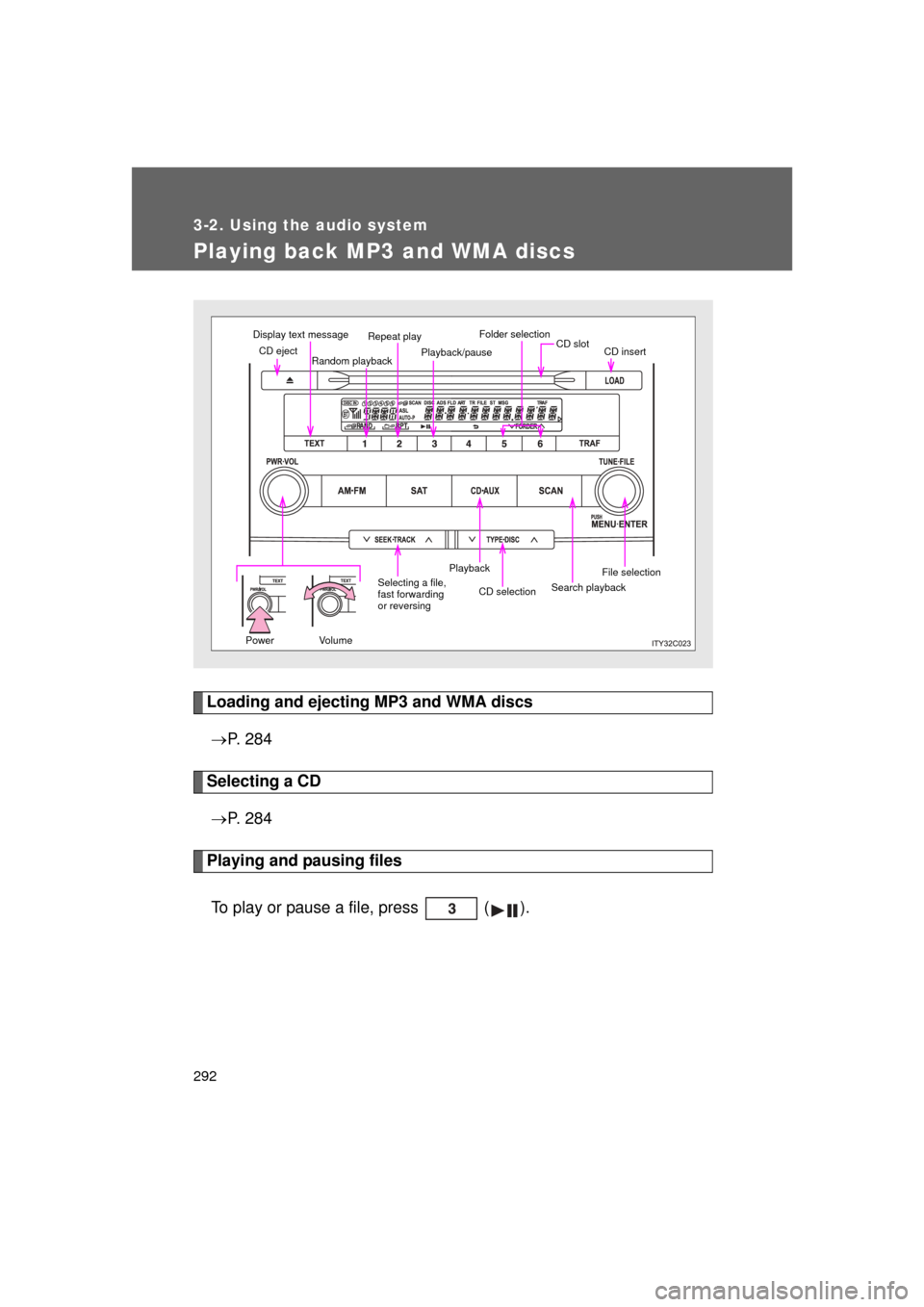

Playing back MP3 and WMA discs
Loading and ejecting MP3 and WMA discs P. 2 8 4
Selecting a CD
 P. 2 8 4
Playing and pausing files
To play or pause a file, press ( ).

Power Volume
CD eject Random playback Repeat play
Folder selection
CD insert
File selection
Display text message
CD selection
Playback
Selecting a file,
fast forwarding
or reversing CD slot
Search playback
Playback/pause

293
3-2. Using the audio system
3
Interior features
L/C200_U (OM60F74U)
Selecting and scanning a folder
■ Selecting folders one at a time
Press ( ) or ( ) to select the desired folder.
To return to the first folder, press and hold ( ) until you hear a
beep.
■ Selecting the desired folder by cueing the first file of each
folder
Press and hold until you hear a beep.
When the desired folder is reached, press the switch once again.
Selecting and scanning a file
■ Selecting one file at a time
Turn the dial or press “ ” or “ ” on to
select the desired file.
■ Selecting the desired file by cueing the files in the folder
Press .
When the desired file is reached, press once again.
Fast forwarding and reversing files
Press and hold “
” or “ ” on .

294 3-2. Using the audio system
L/C200_U (OM60F74U)
Random playback■ To play files from a partic ular folder in random order
Press (RAND).
■ To play all of the files on a disc in random order
Press and hold (RAND) until you hear a beep.
Repeating a file or a folder
■ Repeating a file
Press (RPT).
■ Repeating a folder
Press and hold (RPT) until you hear a beep.
Switching the display
Press .
Each time the switch is pressed, the display changes in the order of
Folder no./File no./Elapsed time Folder name File name Album title
(MP3 only) Track title Artist name.

295
3-2. Using the audio system
3
Interior features
L/C200_U (OM60F74U)
■
Display
 P. 288
■ Canceling random, repeat and scan playback
Press
(RAND), (RPT) or again.
■ Error messages
“ERROR”: This indicates a trouble either in the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.
“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
■ If CDs are left inside the CD pla yer or in the ejected position for
extended periods
CDs may be damaged and may not play properly.

296 3-2. Using the audio system
L/C200_U (OM60F74U)
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■ MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media
® Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
• MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
* Compatible with VBR
• Compatible channel modes: stereo, joint stereo, dual channel and monaural
● WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies 32, 44.1, 48 (kHz)
• Compatible bit rates Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
* Only compatible with 2-channel playback
