2011 TOYOTA LAND CRUISER Owners Manual

265
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60F74U)
■Air conditioning odors
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic
mode.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. A/C Auto switch operation) can be changed.
(Customizable features P. 583)
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking
your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

266
3-1. Using the air conditioning system and defogger
L/C200_U (OM60F74U)
Rear air conditioning system
Using the automatic modePress .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “ ” to decrease the
temperature on .
The temperature for the right-hand and left-hand rear seats can be
set separately.
Airflow and outlets are automatical ly adjusted according to the tem-
perature setting.
Left side temperature control Left side temperature setting display Fan speed display Airflow display
Right side temperature setting displayRight side temperature control
Off
Changes
the air
outlets used
Fan speed
Automatic mode
STEP1
STEP2

267
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60F74U)
Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “ ” to decrease the tem-
perature on .
The temperature for the right-hand and left-hand rear seats can be
set separately.
■ Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
■Changing the air outlets
Press .
The air outlets switch each time the button is pressed.

268 3-1. Using the air conditioning system and defogger
L/C200_U (OM60F74U) Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
ITY31C020
ITY31C021
ITY31C022

269
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60F74U)
Adjusting the position and opening and closing the air outlets
Rear center outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Roof side outlets Direct air flow to the left or
right, up or down.
Turn the knob fully to the back
of the vehicle to close the
vent.
ITY31C035
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

270
3-1. Using the air conditioning system and defogger
L/C200_U (OM60F74U)

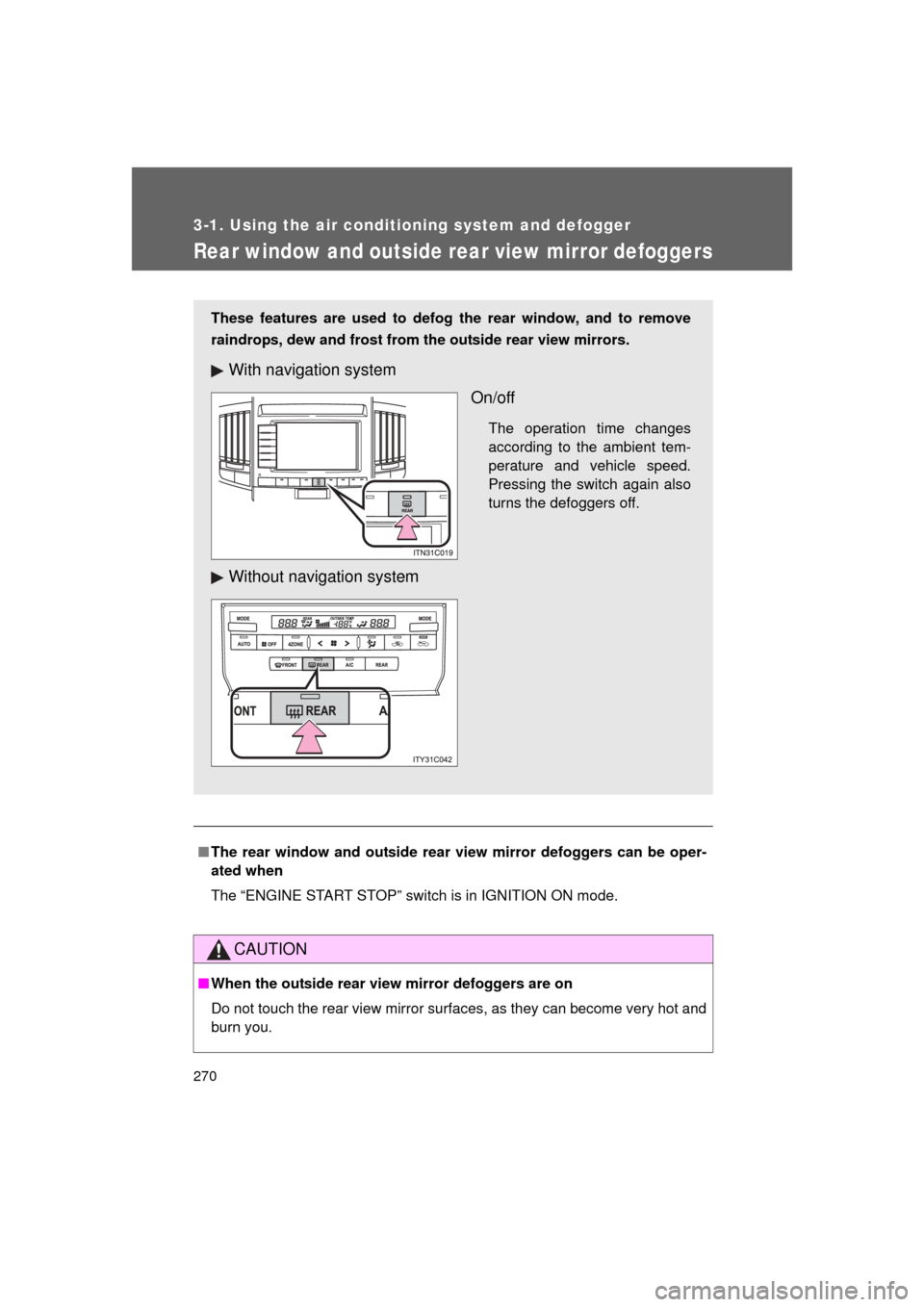

Rear window and outside rear view mirror defoggers
■The rear window and outside rear vi ew mirror defoggers can be oper-
ated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■ When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
These features are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.
With navigation system
On/off
The operation time changes
according to the ambient tem-
perature and vehicle speed.
Pressing the switch again also
turns the defoggers off.
Without navigation system

271
3-1. Using the air conditioning system and defogger
3
Interior features
L/C200_U (OM60F74U)

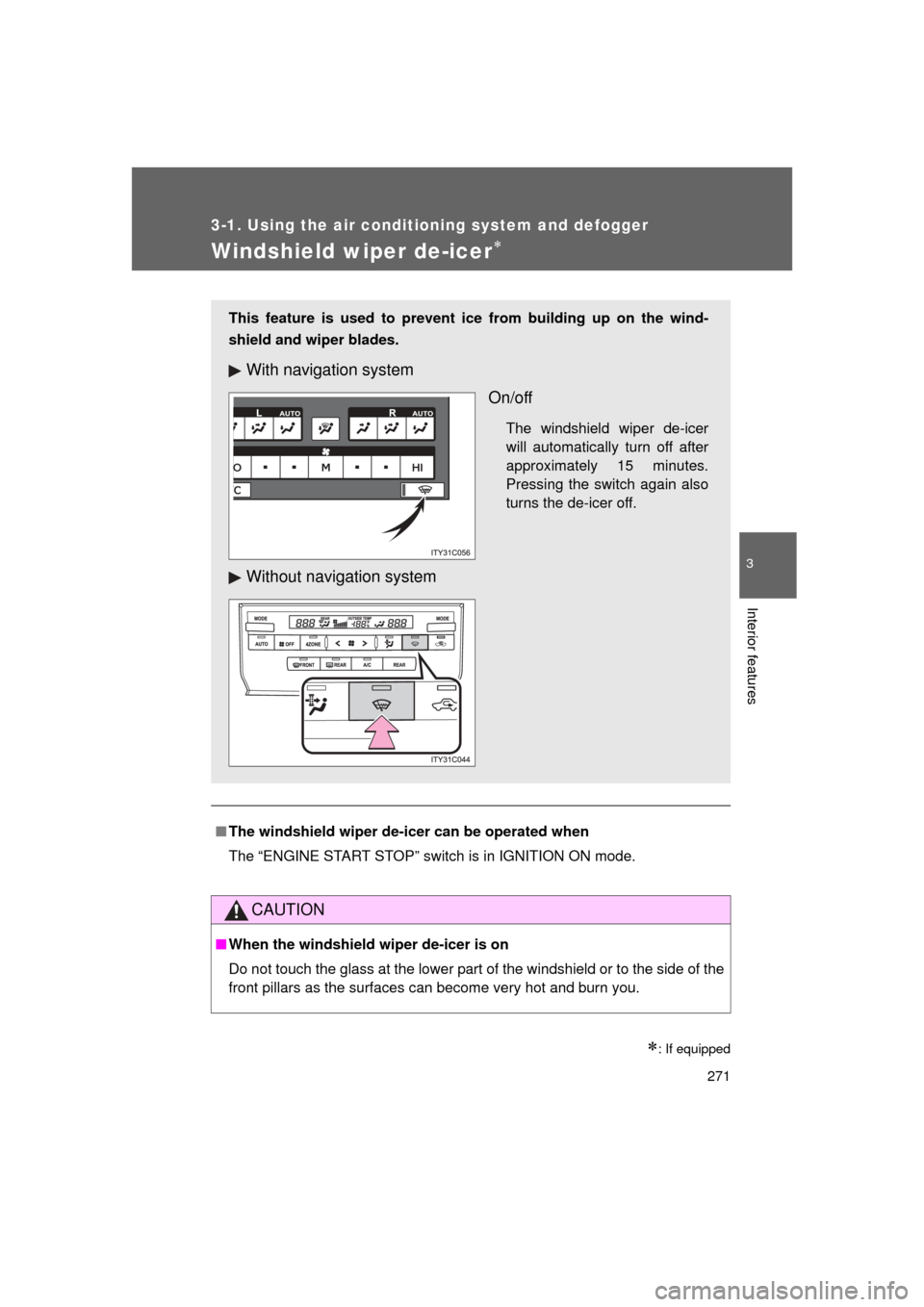

Windshield wiper de-icer
: If equipped
■The windshield wiper de-icer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or to the side of the
front pillars as the surfaces can become very hot and burn you.
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
With navigation system
On/off
The windshield wiper de-icer
will automatically turn off after
approximately 15 minutes.
Pressing the switch again also
turns the de-icer off.
Without navigation system

272
L/C200_U (OM60F74U)
3-2. Using the audio system

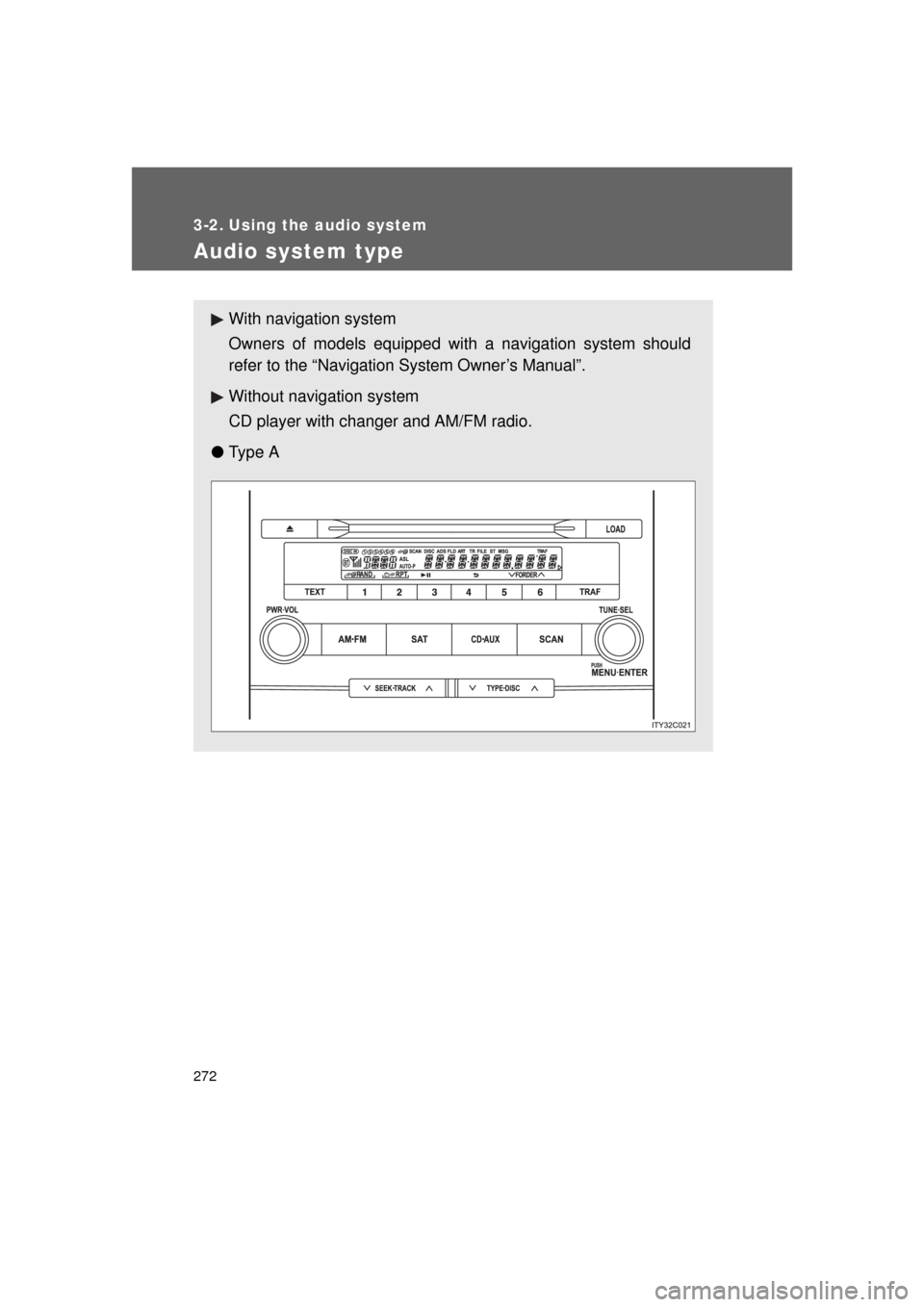

Audio system type
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
CD player with changer and AM/FM radio.
● Ty p e A
