2011 TOYOTA LAND CRUISER Owners Manual

137
1-7. Safety information
1
Before driving
L/C200_U (OM60F74U)
■
Booster seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 53)
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in th e child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 70)
STEP1
STEP2
STEP3

138 1-7. Safety information
L/C200_U (OM60F74U)
Removing a child restraint system installed with a seat beltPress the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecure the child restraint system using a seat belt or LATCH
anchors, and do the following.
Outside
Adjust the head restraint to the
upmost position.
Center Lower the head restraint to the
lowest position.
STEP1
ITY17C055
STEP1
ITY17C099

139
1-7. Safety information
1
Before driving
L/C200_U (OM60F74U)
Open the anchor bracket cover, latch the hook onto the
anchor bracket and tighten
the top tether strap.
Outside
Make sure the top tether strap is
securely latched.
Center
Outside only: Adjust the head
restraint to the downmost posi-
tion.
STEP2
ITY17C058
STEP3

140 1-7. Safety information
L/C200_U (OM60F74U)
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225.
Child restraint systems conforming to FMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode: ( P. 73)
ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.

141
1-7. Safety information
1
Before driving
L/C200_U (OM60F74U)
CAUTION
■
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
● When using the LATCH anchors for a child restraint system, move the seat
as far as possible and adjust the seatback as upright as possible, with \
the
seatback close to the child restraint system.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Child restraint system installed on the
third seat should not contact the second
seatbacks.
● Only put a forward facing or booster
child seat on the front seat when
unavoidable. When installing a forward
facing or booster child restraint on the
front passenger seat, move the seat as
far back as possible even if the AIR
BAG OFF indicator light illuminates.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

142 1-7. Safety information
L/C200_U (OM60F74U)
CAUTION
■When installing a child restraint system
● Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
● Push and pull the child restraint system from side to side and forward to be
sure it is secure.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sud-
den stop, sudden swerve or accident.
■ To correctly attach a child r estraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of a sudden stop, sudden swerve or accident.

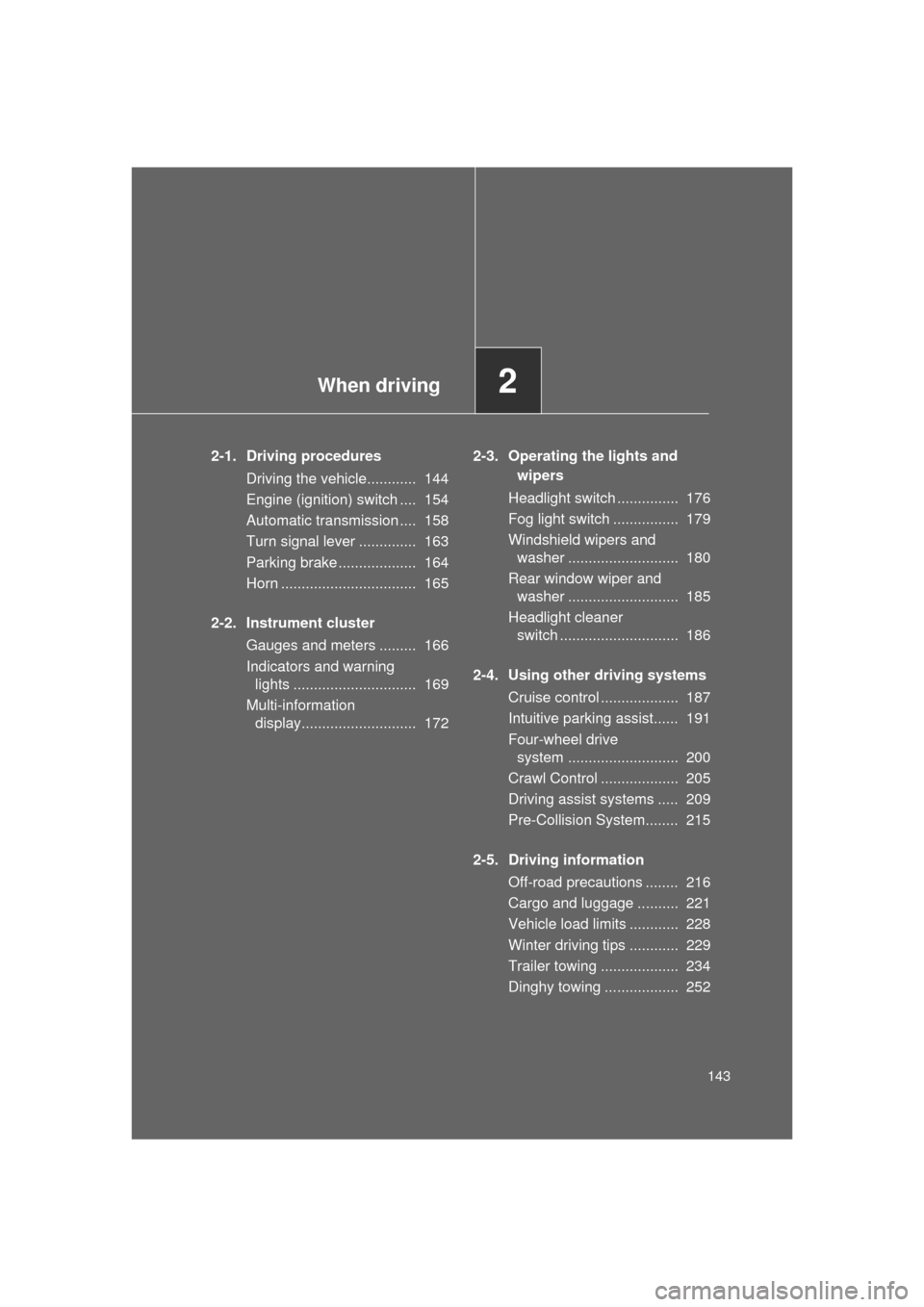

When driving2
143
L/C200_U (OM60F74U)
2-1. Driving proceduresDriving the vehicle............ 144
Engine (ignition) switch .... 154
Automatic transmission .... 158
Turn signal lever .............. 163
Parking brake ................... 164
Horn ................................. 165
2-2. Instrument cluster Gauges and meters ......... 166
Indicators and warning lights .............................. 169
Multi-information display............................ 172 2-3. Operating the lights and
wipers
Headlight switch ............... 176
Fog light switch ................ 179
Windshield wipers and washer ........................... 180
Rear window wiper and washer ........................... 185
Headlight cleaner switch ............................. 186
2-4. Using other driving systems Cruise control ................... 187
Intuitive parking assist...... 191
Four-wheel drive system ........................... 200
Crawl Control ................... 205
Driving assist systems ..... 209
Pre-Collision System........ 215
2-5. Driving information Off-road precautions ........ 216
Cargo and luggage .......... 221
Vehicle load limits ............ 228
Winter driving tips ............ 229
Trailer towing ................... 234
Dinghy towing .................. 252

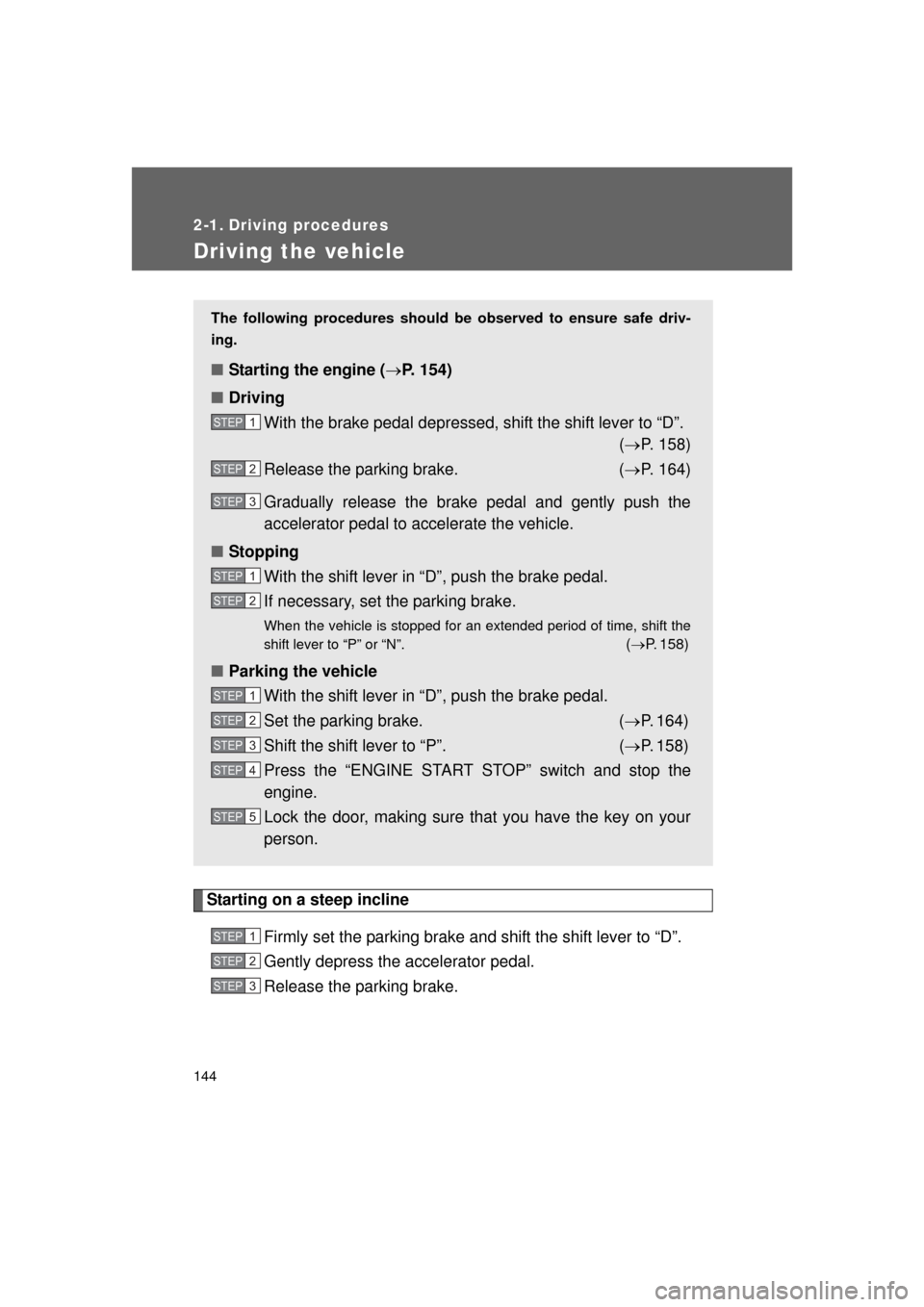

144
L/C200_U (OM60F74U)
2-1. Driving procedures
Driving the vehicle
Starting on a steep inclineFirmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driv-
ing.
■ Starting the engine ( P. 154)
■ Driving
With the brake pedal depressed, shift the shift lever to “D”. ( P. 158)
Release the parking brake. ( P. 164)
Gradually release the brake pedal and gently push the
accelerator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in “D”, push the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the
shift lever to “P” or “N”.
(P. 158)
■ Parking the vehicle
With the shift lever in “D”, push the brake pedal.
Set the parking brake. ( P. 164)
Shift the shift lever to “P”. ( P. 158)
Press the “ENGINE START STOP” switch and stop the
engine.
Lock the door, making sure that you have the key on your
person.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
