41 1-1. Hybrid system
1
Before driving
UK_AURIS_HV_EE
NOTICE
Hybrid battery air vent
Do not put foreign objects over the air vent. The hybrid battery (traction
battery) may overheat and be damaged.
Clean the air vent regularly to prevent the hybrid battery (traction battery)
from overheating.
Do not wet or allow foreign substances to enter the air vent as this may
cause a short circuit and damage the hybrid battery (traction battery).
Do not load a large amount of water such as an aquarium into the vehicle.
If water spills over the hybrid battery (traction battery), the battery may be
damaged.
When the rear seat belts are in use, make sure to pass them through the
guides (P. 81). Otherwise, the rear seat belts may cover the hybrid bat-
tery air vents.

42
UK_AURIS_HV_EE
1-2. Key information
Keys
Using the mechanical key
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (P. 472)
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry &
start system (if equipped)
(P. 44)
• Operating the push button
start (if equipped) (P. 59)
• Operating the wireless
remote control function
(P. 70)
Mechanical keys
Key number plate

43 1-2. Key information
1
Before driving
UK_AURIS_HV_EE
Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, using
the key number plate. (P. 471)
When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc, ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
NOTICE
To prevent key damage
Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Do not disassemble the electronic key.

44
UK_AURIS_HV_EE
1-3. Opening, closing and locking the doors
Smart entr y & start system
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (P. 4 5 )
Locks and unlocks the back door (P. 45)
Starts the hybrid system (P. 173)
Electronic key
Electronic keyElectronic key

: If equipped

45 1-3. Opening, closing and locking the doors
1
Before driving
UK_AURIS_HV_EE
Unlocking and locking the doors
Front door handles
Grip the handle to unlock the
doors.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for
3 seconds after the door is
locked.
Press the lock button to lock the
doors.
Back door handle
Press the button to unlock the
doors.
The door cannot be unlocked for
3 seconds after the door is
locked.

46 1-3. Opening, closing and locking the doors
UK_AURIS_HV_EEPress the button to lock the
doors.
Antenna location and effective range
Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna inside the luggage
compartment
Antenna outside the luggage
compartment

47 1-3. Opening, closing and locking the doors
1
Before driving
UK_AURIS_HV_EEEffective range (areas within which the electronic key is
detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
either of the outside front
door handles and back door.
(Only the doors detecting the
key can be operated.)
When starting the hybrid
system or changing
“POWER” switch modes
The system can be operated
when the electronic key is
inside the vehicle.

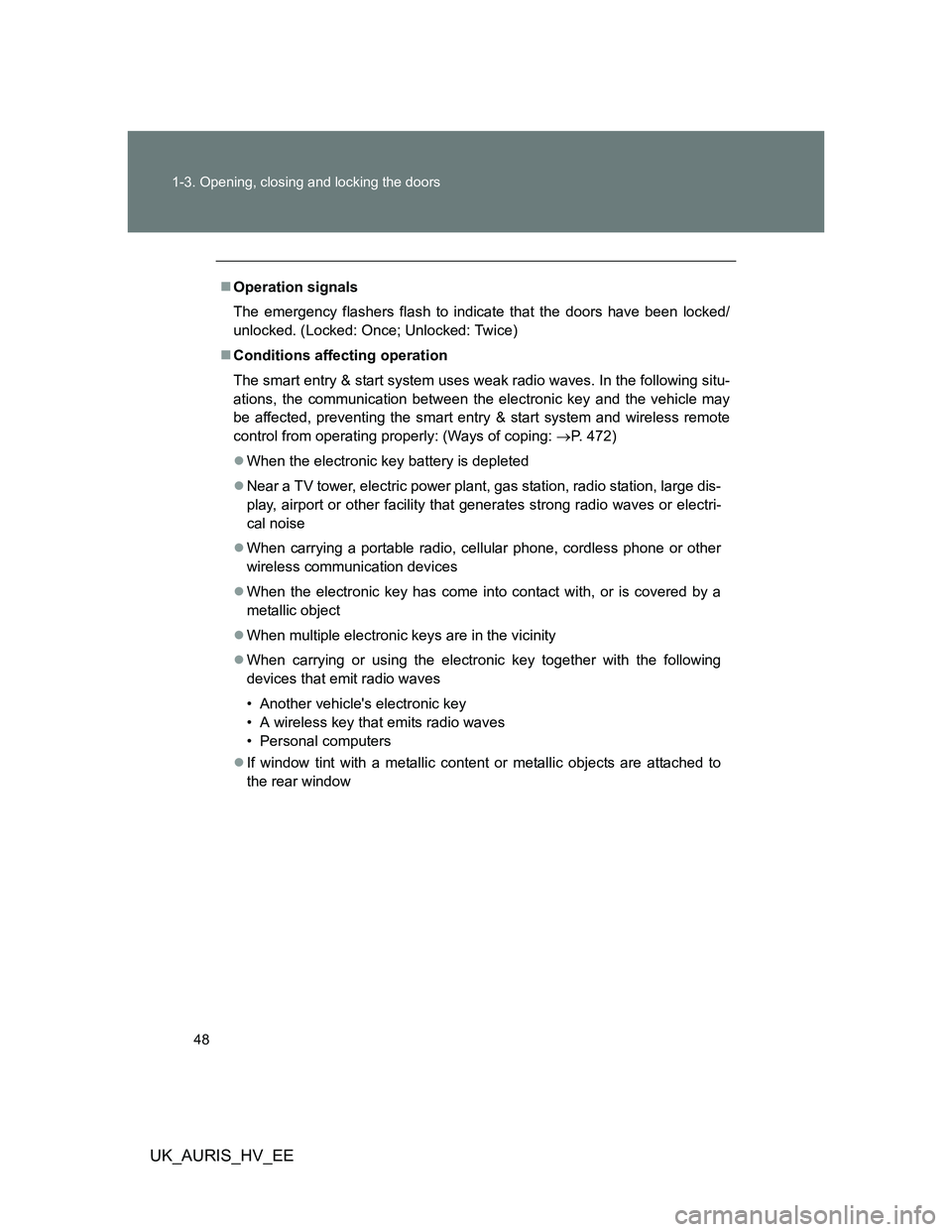

48 1-3. Opening, closing and locking the doors
UK_AURIS_HV_EE
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situ-
ations, the communication between the electronic key and the vehicle may
be affected, preventing the smart entry & start system and wireless remote
control from operating properly: (Ways of coping: P. 472)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key has come into contact with, or is covered by a
metallic object
When multiple electronic keys are in the vicinity
When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle's electronic key
• A wireless key that emits radio waves
• Personal computers
If window tint with a metallic content or metallic objects are attached to
the rear window
