2011 TOYOTA AURIS Owners Manual (in English)

113 1-7. Theft deterrent system
1
Before driving
UK_AURIS_HV_EE
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

114
1-7. Theft deterrent system
UK_AURIS_HV_EE
Alarm
: If equipped
The system sounds the alarm and flashes the lights when forcible
entry is detected.
Triggering of the alarm
The alarm is triggered in the following situations when the alarm
is set:
A locked door is unlocked or opened in any way other than
using the wireless remote control or entry function. The doors
will lock again automatically.
The hood is opened.
The intrusion sensor detects something moving inside the
vehicle. (An intruder gets in the vehicle.)
The back door window is tapped or broken.
The 12-volt battery is reconnected.
Setting the alarm system
Close the doors and hood,
and lock all the doors using
the entry function or wireless
remote control. The system
will be set automatically after
30 seconds.
The indicator light changes
from being on to flashing when
the system is set.

115 1-7. Theft deterrent system
1
Before driving
UK_AURIS_HV_EE
Intrusion sensor
The intrusion sensor detects an intruder or movement in the vehicle.
The intrusion sensor can be canceled using the cancel switch.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
Canceling the intrusion sensor
Turn the “POWER” switch off
and press the intrusion sensor
“OFF” switch.
A message will be shown on the
multi-information display in the
instrument cluster. Pressing the
switch again will re-enable the
intrusion sensor.
To set the alarm with the intrusion sensor disabled, the alarm must be
set within 5 minutes after canceling the sensor.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm:
Unlock the doors using the entry function or wireless remote
control.
Start the hybrid system. (The alarm will be deactivated or
stopped after a few seconds.)

116 1-7. Theft deterrent system
UK_AURIS_HV_EE
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
Nobody is in the vehicle.
The windows and moon roof (if equipped) are closed before the alarm is
set.
No valuables or other personal items are left in the vehicle.
Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
The doors are unlocked using the
mechanical key.
A person inside the vehicle opens a
door or the hood.
The 12-volt battery is recharged or
replaced when the vehicle is locked.

117 1-7. Theft deterrent system
1
Before driving
UK_AURIS_HV_EE
Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to pre-
vent intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing
the 12-volt battery.
Canceling and automatic re-enabling of the intrusion sensor
The alarm will still be set even when the intrusion sensor is canceled.
After the intrusion sensor is canceled, turning the “POWER” switch to ON
mode or unlocking the doors using the wireless remote control door lock
function will re-enable the intrusion sensor.
The intrusion sensor will automatically be re-enabled if the alarm system
is not set within 5 minutes after the intrusion sensor is canceled.
The intrusion sensor will automatically be re-enabled when the alarm
system is deactivated.
(To cancel the intrusion sensor again, press the intrusion sensor “OFF”
switch.)
Intrusion sensor considerations
The sensor may trigger the alarm in the following situations.
Persons or pets are in the vehicle.

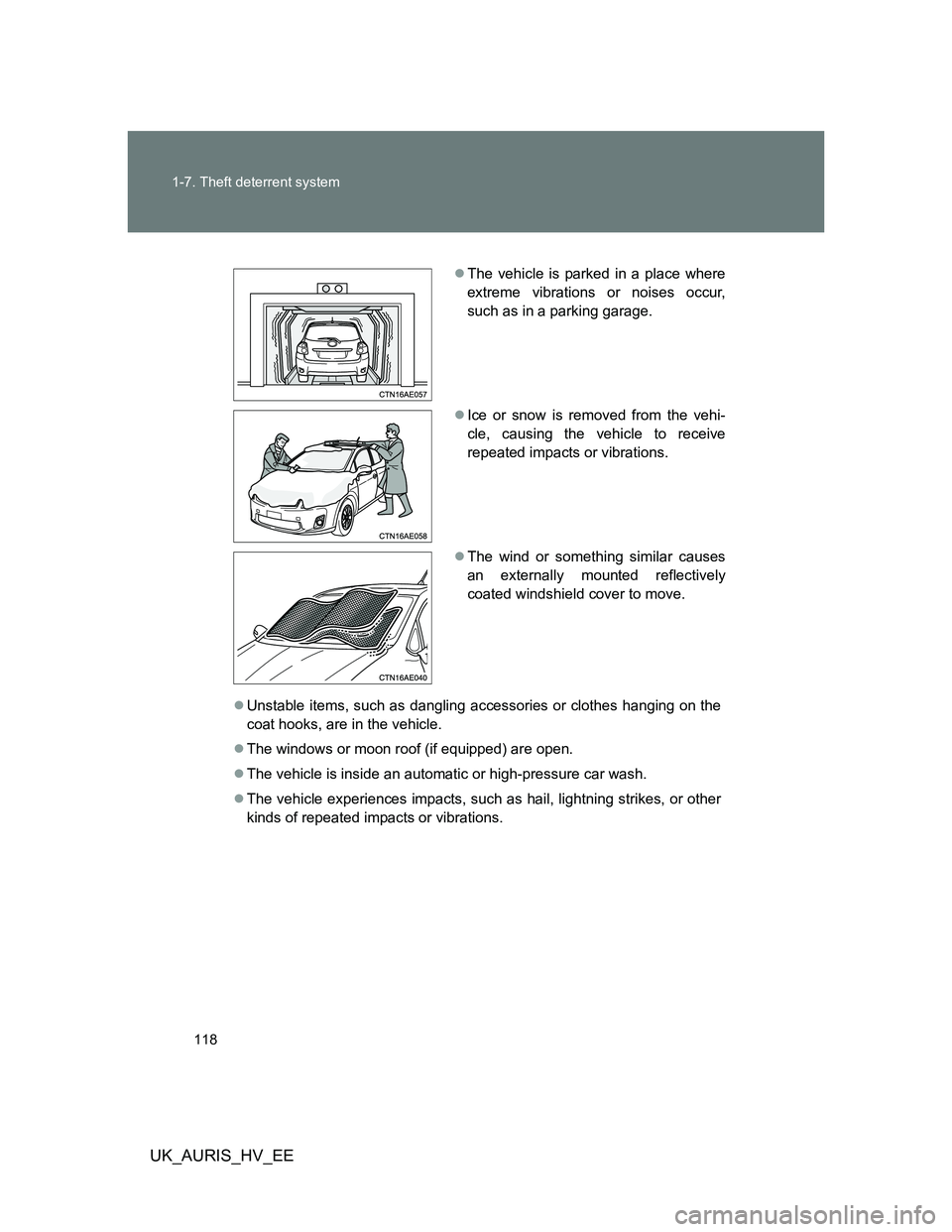

118 1-7. Theft deterrent system
UK_AURIS_HV_EE
Unstable items, such as dangling accessories or clothes hanging on the
coat hooks, are in the vehicle.
The windows or moon roof (if equipped) are open.
The vehicle is inside an automatic or high-pressure car wash.
The vehicle experiences impacts, such as hail, lightning strikes, or other
kinds of repeated impacts or vibrations.
The vehicle is parked in a place where
extreme vibrations or noises occur,
such as in a parking garage.
Ice or snow is removed from the vehi-
cle, causing the vehicle to receive
repeated impacts or vibrations.
The wind or something similar causes
an externally mounted reflectively
coated windshield cover to move.

119 1-7. Theft deterrent system
1
Before driving
UK_AURIS_HV_EE
Certification for the alarm
No member states requires any restrictions of use for the equipment.
The latest “DECLARATION of CONFORMITY” (DoC) is available at the
address stated in the DoC.

120 1-7. Theft deterrent system
UK_AURIS_HV_EE

K gZklhysby ^hdmf_gl FUJITSU TEN LIMITED ^_deZjbjZ, q_ FTL458 _ \
kt]eZkb_ k hkgh\gbl_ babkd\Zgby b kthl\_lgbl_ ihklZgh\e_gby gZ >bj_dlb\Z
1999/5/?K.>Ì
FUJITSU TEN LIMITED tímto prohlašuje, že tento FTL458 je ve shod
 se základními
požadavky a dalšími p
íslušnými ustanoveními sm
rnice 1999/5/ES.>Ì
Undertegnede FUJITSU TEN LIMITED erklærer herved, at følgende udstyr FTL458
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.>Ì
Hiermit erklärt FUJITSU TEN LIMITED, dass sich das Gerät FTL458 in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.>Ì
Käesolevaga kinnitab FUJITSU TEN LIMITED seadme FTL458 vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele
sätetele.>Ì
Hereby, FUJITSU TEN LIMITED, declares that this FTL458 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.>Ì
Por medio de la presente FUJITSU TEN LIMITED declara que el FTL458 cumple con
los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de
la Directiva 1999/5/CE.>Ì

ü
