2011 PEUGEOT 207 Owners Manual

9PRACTICAL INFORMATION
143

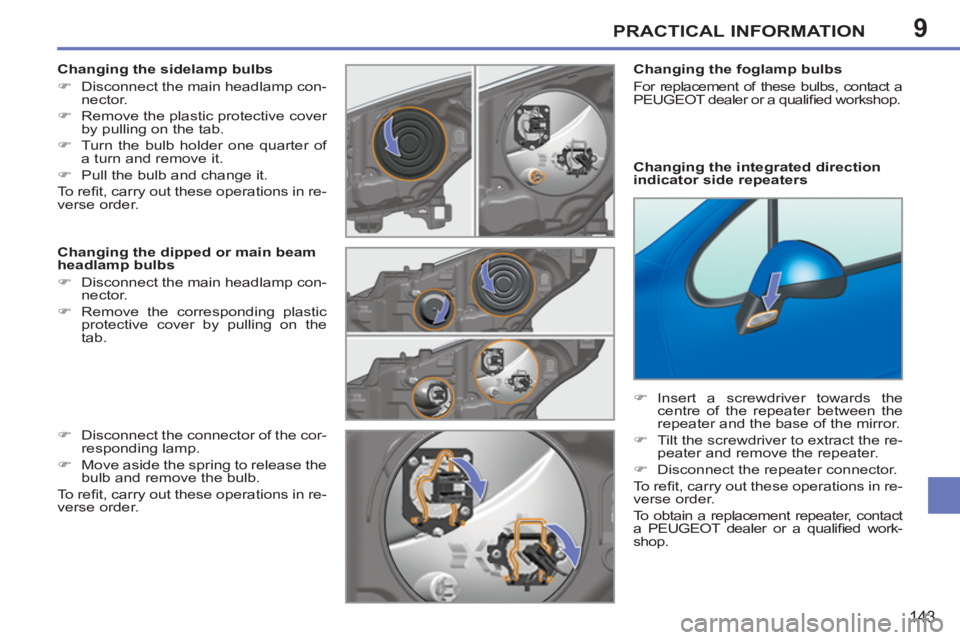

Changing the sidelamp bulbs


)
Disconnect the main headlamp con-
nector.

)
Remove the plastic protective cover
by pulling on the tab.

)
Turn the bulb holder one quarter of
a turn and remove it.

)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.

Changing the dipped or main beam
headlamp bulbs


)
Disconnect the main headlamp con-
nector.

)
Remove the corresponding plastic
protective cover by pulling on the
tab.

)
Disconnect the connector of the cor-
responding lamp.

)
Move aside the spring to release the
bulb and remove the bulb.
To r efi t, carry out these operations in re-
verse order.
Changing the foglamp bulbs
For replacement of these bulbs, contact a
PEUGEOT dealer or a qualifi ed workshop.

Changing the integrated direction
indicator side repeaters


)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

)
Tilt the screwdriver to extract the re-
peater and remove the repeater.

)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
To obtain a replacement repeater, contact
a PEUGEOT dealer or a qualifi ed work-
shop.

9
i
PRACTICAL INFORMATION
144

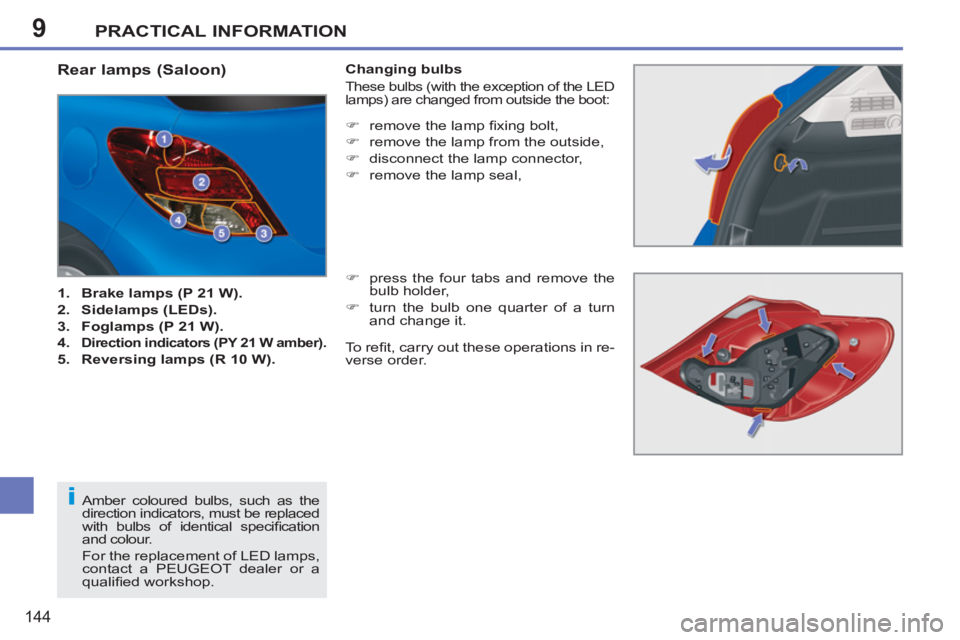

Rear lamps (Saloon)



1.
Brake lamps (P 21 W).


2.
Sidelamps (LEDs).


3.
Foglamps (P 21 W).


4.

Direction indicators (PY 21 W amber).


5.
Reversing lamps (R 10 W).


Changing bulbs

These bulbs (with the exception of the LED
lamps) are changed from outside the boot:


)
remove the lamp fi xing bolt,

)
remove the lamp from the outside,

)
disconnect the lamp connector,

)
remove the lamp seal,

)
press the four tabs and remove the
bulb holder,

)
turn the bulb one quarter of a turn
and change it.


Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifi cation
and colour.
For the replacement of LED lamps,
contact a PEUGEOT dealer or a
qualifi ed workshop.
To r efi t, carry out these operations in re-
verse order.

9
!
PRACTICAL INFORMATION
145

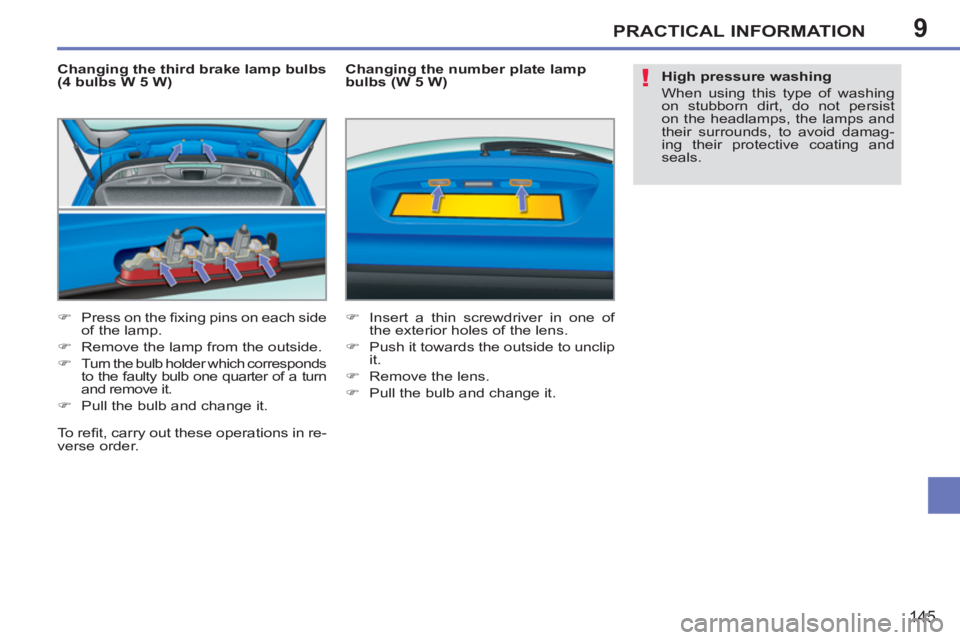

Changing the third brake lamp bulbs
(4 bulbs W 5 W)


)
Press on the fi xing pins on each side
of the lamp.

)
Remove the lamp from the outside.

)
Turn the bulb holder which corresponds
to the faulty bulb one quarter of a turn
and remove it.

)
Pull the bulb and change it.


Changing the number plate lamp
bulbs (W 5 W)


)
Insert a thin screwdriver in one of
the exterior holes of the lens.

)
Push it towards the outside to unclip
it.

)
Remove the lens.

)
Pull the bulb and change it.


To r efi t, carry out these operations in re-
verse order.
High pressure washing

When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damag-
ing their protective coating and
seals.

9
i
PRACTICAL INFORMATION
146

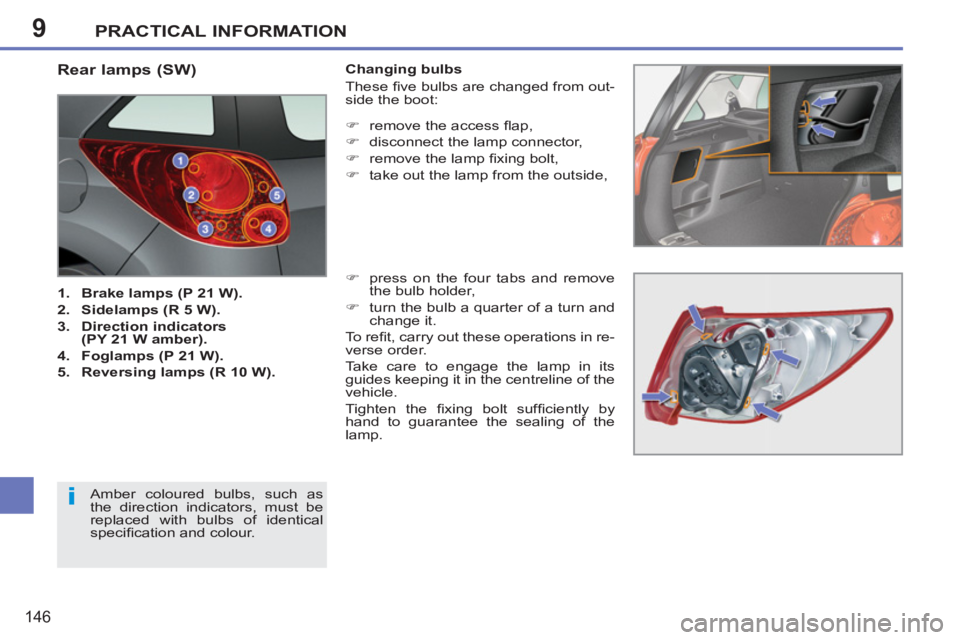

Rear lamps (SW)



1.
Brake

lamps

(P 21 W).


2.
Sidelamps

(R 5 W).


3.
Direction indicators
(PY 21 W amber).


4.
Foglamps

(P 21 W).


5.
Reversing

lamps

(R 10 W).


Changing bulbs
These fi ve bulbs are changed from out-
side the boot:


)
remove the access fl ap,

)
disconnect the lamp connector,

)
remove the lamp fi xing bolt,

)
take out the lamp from the outside,

)
press on the four tabs and remove
the bulb holder,

)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
Take care to engage the lamp in its
guides keeping it in the centreline of the
vehicle.
Tighten the fi xing bolt suffi ciently by
hand to guarantee the sealing of the
lamp.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.

9
!
PRACTICAL INFORMATION
147

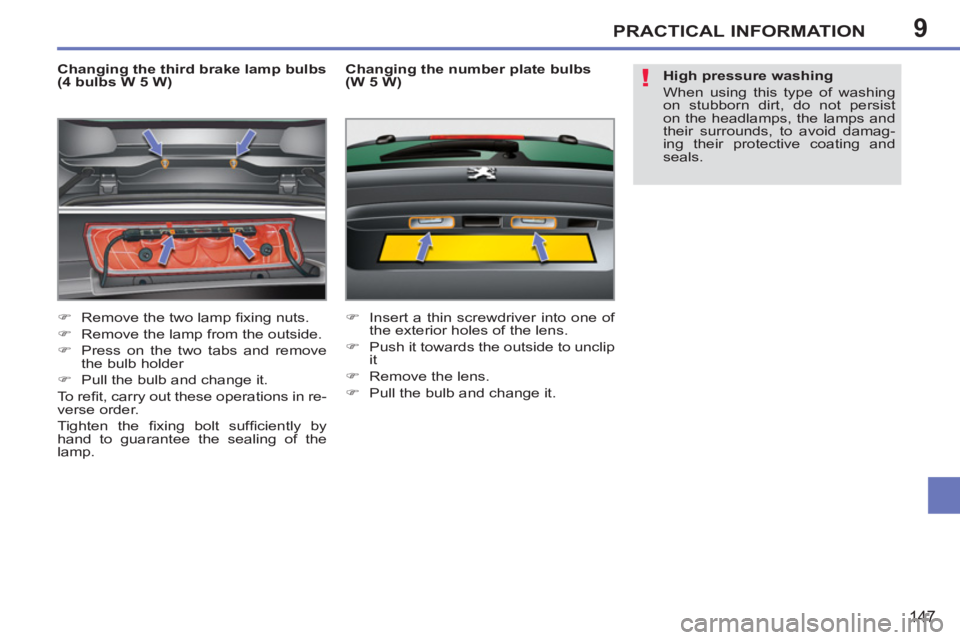

Changing the third brake lamp bulbs
(4 bulbs W 5 W)


)
Remove the two lamp fi xing nuts.

)
Remove the lamp from the outside.

)
Press on the two tabs and remove
the bulb holder

)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Tighten the fi xing bolt suffi ciently by
hand to guarantee the sealing of the
lamp.
Changing the number plate bulbs
(W 5 W)


)
Insert a thin screwdriver into one of
the exterior holes of the lens.

)
Push it towards the outside to unclip
it

)
Remove the lens.

)
Pull the bulb and change it.

High pressure washing

When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damag-
ing their protective coating and
seals.

9
!
i
PRACTICAL INFORMATION
148
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance
with its instructions, particularly
when the combined consumption
of all additional equipment con-
nected exceeds 10 milliamperes.
Installation of electrical acces-
sories

Your vehicle's electrical circuit is
designed to operate with the stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer or a qualifi ed workshop.
CHANGING A FUSE

Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.

Access to the tools

The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to them:


)
unclip the cover pulling at the top,

)
remove the cover completely,

)
remove the tweezer.



Replacing a fuse

Before replacing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the faulty fuse by examining
the condition of its fi lament.


)
Use the special tweezer to extract
the fuse from its housing.

)
Always replace the failed fuse with a
fuse of the same rating.

)
Check that the number marked on
the box and the rating marked on
the top correspond to the tables
which follow.
Good

Failed

9PRACTICAL INFORMATION
149

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).

Access to the fuses


)
refer to the "Access to the tools"
paragraph.

Fuse tables


Fuse N°



Rating



Functions




G39



20 A

Not used.


G40



20 A

Driver and passenger heated seats.


Fuse N°



Rating



Functions




F1



15 A

Rear wiper.


F2



-

Not used.


F3



5 A

Airbags and pre-tensioners control unit.


F4



10 A

Clutch pedal switch, diagnostic socket,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, particle emission fi lter
pump (Diesel).


F5



30 A

Electric windows, rear one-touch electric windows,
panoramic sunroof (SW).


F6



30 A

Front one-touch electric windows, folding mirrors
supply.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
sun visor lighting, glove box lighting.

9PRACTICAL INFORMATION
150


Fuse N°



Rating



Functions




F8



20 A

Audio equipment, audio/telephone, multifunction
screen, clock, steering wheel controls, trailer
fusebox.


F9



30 A

Front 12 V socket, rear 12 V socket (SW).


F10



15 A

Not used.


F11



15 A

Diagnostic socket, low current ignition switch,
automatic gearbox control unit.


F12



15 A

Rain/sunshine sensor, amplifi er, trailer fusebox,
driving school module.


F13



5 A

Engine fusebox, ABS relay, dual-function brake
switch.


F14



15 A

Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, Bluetooth
system, rear parking sensors control unit, airbags.


F15



30 A

Locking.


F17



40 A

Heated rear screen and door mirrors.


SH



-

PARC shunt.
