2011 PEUGEOT 207 Owners Manual

2COMFORT
63

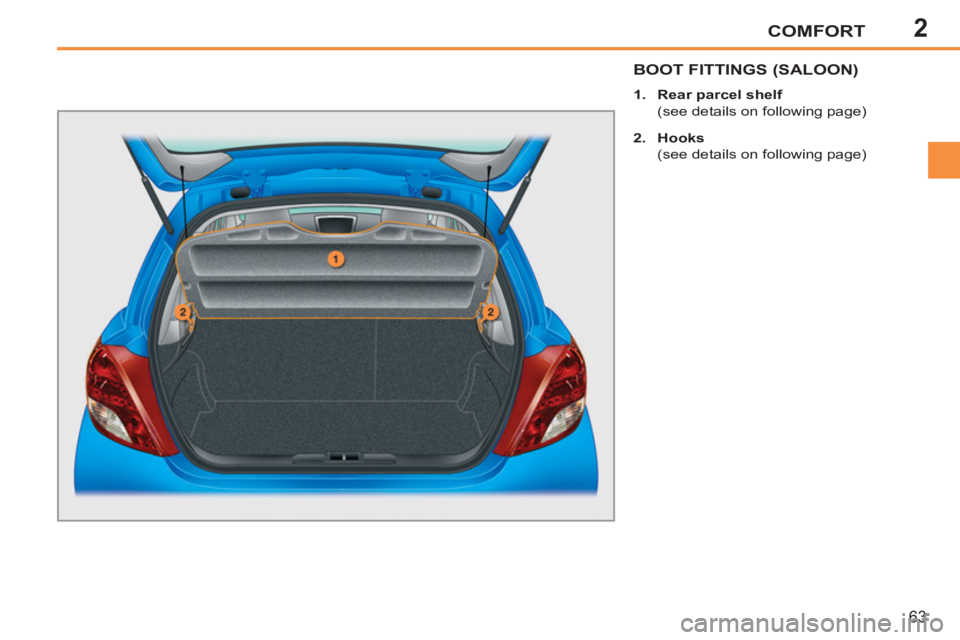

BOOT FITTINGS (SALOON)


1.
Rear parcel shelf


(see details on following page)

2.
Hooks


(see details on following page)

2
i
COMFORT
64

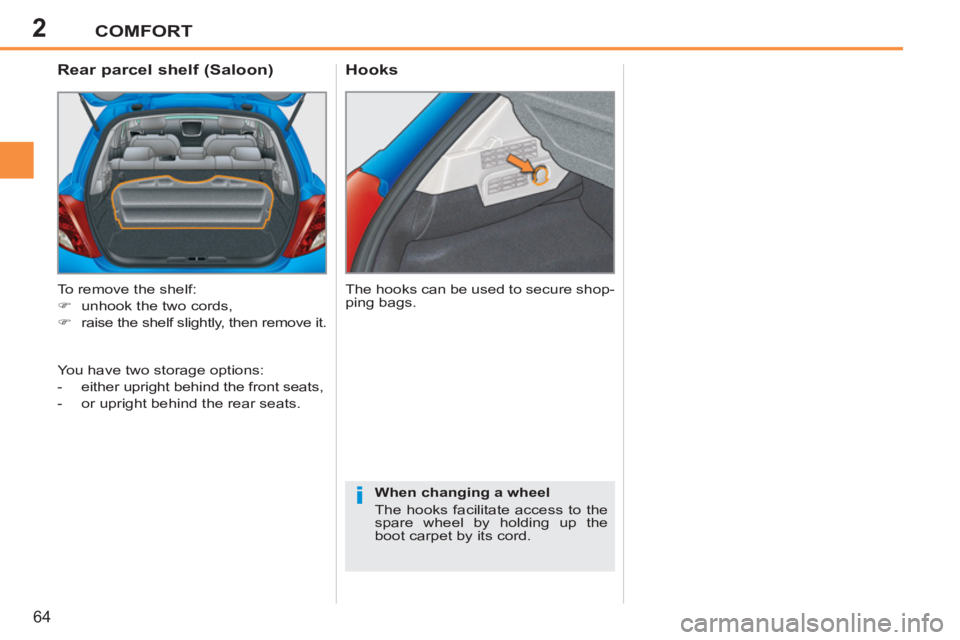

Hooks






Rear parcel shelf (Saloon)

To remove the shelf:


)
unhook the two cords,

)
raise the shelf slightly, then remove it. The hooks can be used to secure shop-
ping bags.

When changing a wheel
The hooks facilitate access to the
spare wheel by holding up the
boot carpet by its cord.
You have two storage options:


- either upright behind the front seats,

- or upright behind the rear seats.

2COMFORT
65

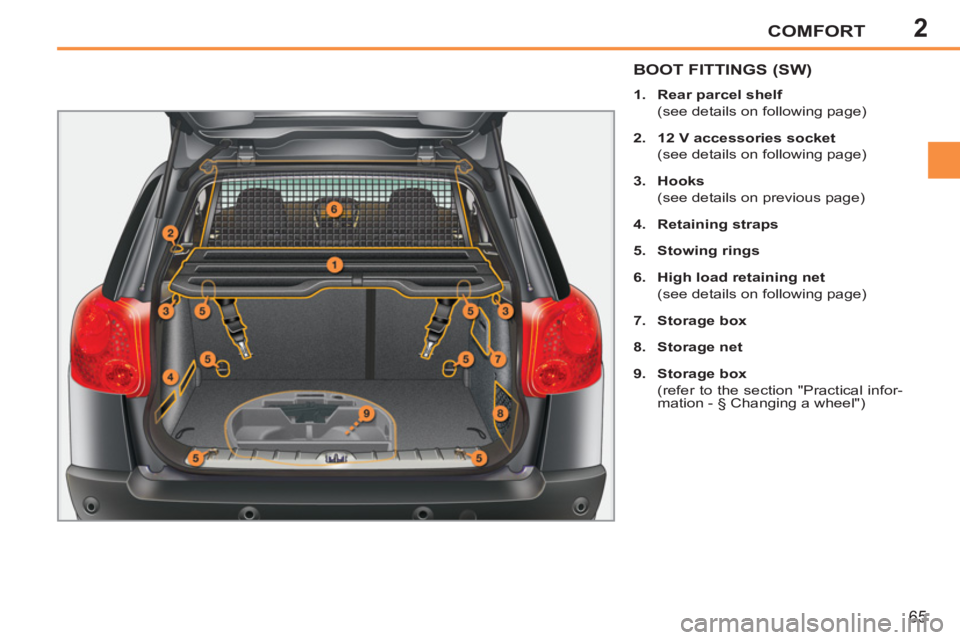

BOOT FITTINGS (SW)


1.
Rear parcel shelf


(see details on following page)

2.
12 V accessories socket


(see details on following page)

3.
Hooks


(see details on previous page)

4.
Retaining straps


5.
Stowing rings


6.
High load retaining net


(see details on following page)

7.
Storage box


8.
Storage net


9.
Storage box


(refer to the section "Practical infor-
mation - § Changing a wheel")

2
i
COMFORT
66

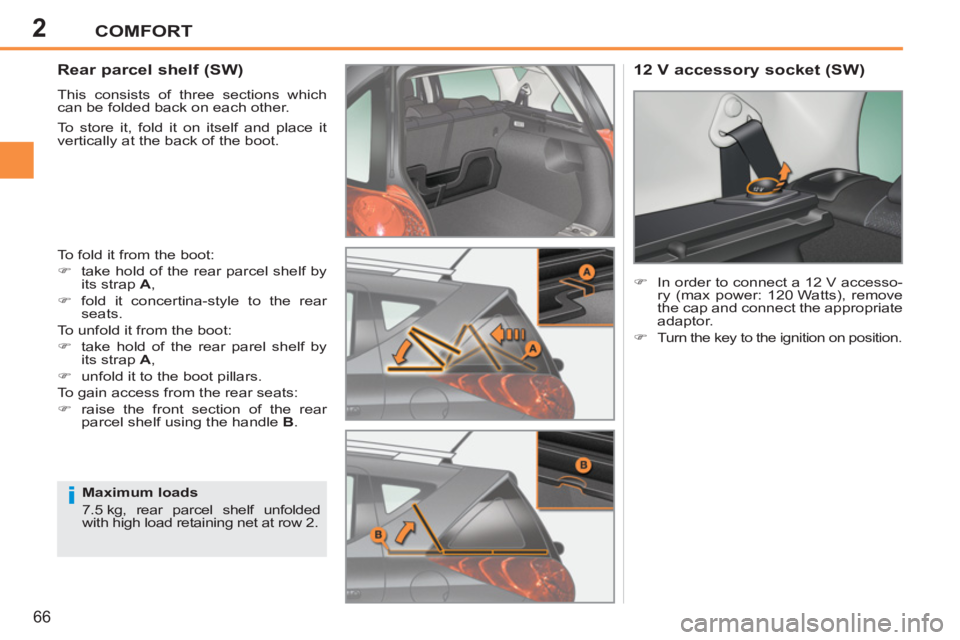

Rear parcel shelf (SW)

This consists of three sections which
can be folded back on each other.
To store it, fold it on itself and place it
vertically at the back of the boot.
To fold it from the boot:


)
take hold of the rear parcel shelf by
its strap A
,

)
fold it concertina-style to the rear
seats.
To unfold it from the boot:


)
take hold of the rear parel shelf by
its strap A
,

)
unfold it to the boot pillars.
To gain access from the rear seats:


)
raise the front section of the rear
parcel shelf using the handle B
.







12 V accessory socket (SW)



)
In order to connect a 12 V accesso-
ry (max power: 120 Watts), remove
the cap and connect the appropriate
adaptor.

)

Turn the key to the ignition on position.



Maximum loads
7.5 kg, rear parcel shelf unfolded
with high load retaining net at row 2.

2
i
COMFORT
67

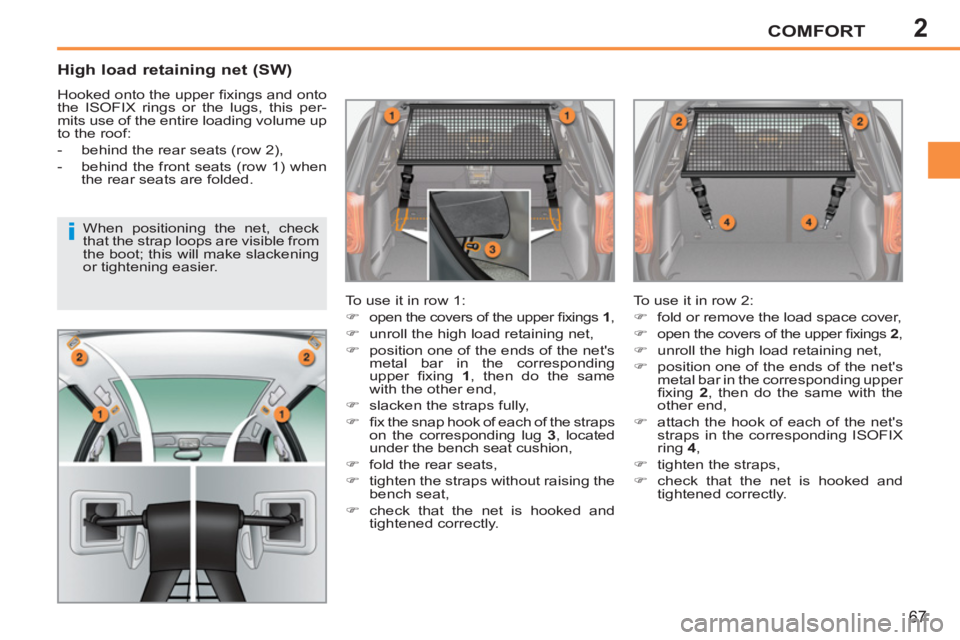

High load retaining net (SW)

Hooked onto the upper fi xings and onto
the ISOFIX rings or the lugs, this per-
mits use of the entire loading volume up
to the roof:


- behind the rear seats (row 2),

- behind the front seats (row 1) when
the rear seats are folded.
To use it in row 1:


)
open the covers of the upper fi xings 1
,

)
unroll the high load retaining net,

)
position one of the ends of the net's
metal bar in the corresponding
upper fi xing 1
, then do the same
with the other end,

)
slacken the straps fully,

)
fi x the snap hook of each of the straps
on the corresponding lug 3
, located
under the bench seat cushion,

)
fold the rear seats,

)
tighten the straps without raising the
bench seat,

)
check that the net is hooked and
tightened correctly. To use it in row 2:


)
fold or remove the load space cover,

)
open the covers of the upper fi xings 2
,

)
unroll the high load retaining net,

)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2
, then do the same with the
other end,

)
attach the hook of each of the net's
straps in the corresponding ISOFIX
ring 4
,

)
tighten the straps,
)check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

3
i
ACCESS
68
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft.
Unfolding the key


)
First press button A
to unfold the
key.



Unlocking the vehicle

Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.



Locking the vehicle



)
Press the open padlock to
unlock the vehicle.


Unlocking using the key


)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Normal locking using the key


)
Turn the key to the right in the driv-
er's door lock to lock the vehicle.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximate-
ly two seconds.
According to version, the door mirrors
fold at the same time.
Unlocking using the remote control

)
Press the closed padlock
to lock the vehicle.

)
Press the closed padlock
for more than two seconds
to close the windows auto-
matically in addition to lock-
ing (with sequential electric
windows).

If one of the doors or the boot is
still open, the central locking does
not take place.
Normal locking using the remote
control

3
i
ACCESS
69

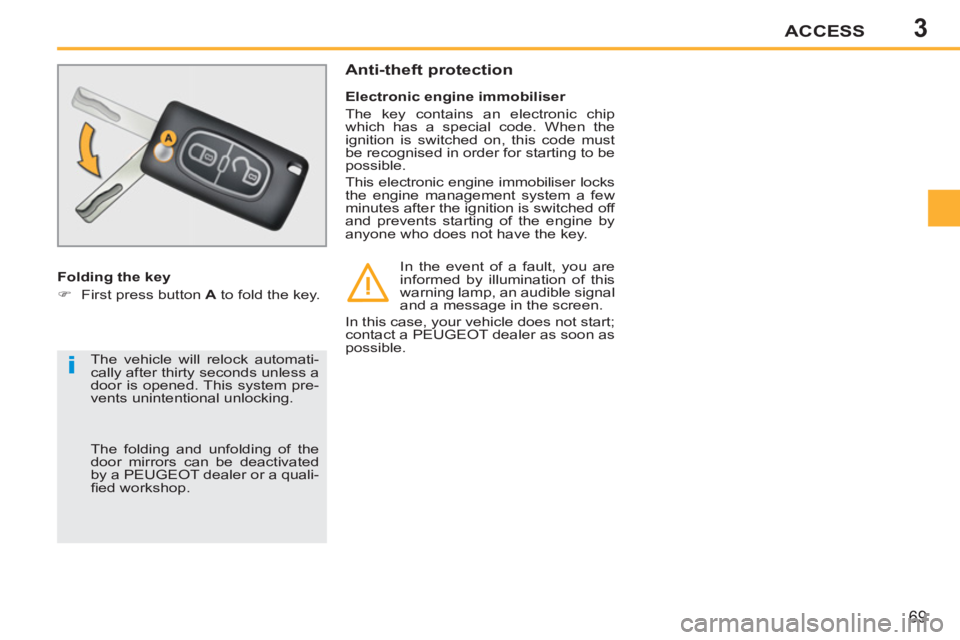

Folding the key


)
First press button A
to fold the key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.












Anti-theft protection

In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

The vehicle will relock automati-
cally after thirty seconds unless a
door is opened. This system pre-
vents unintentional unlocking.
The folding and unfolding of the
door mirrors can be deactivated
by a PEUGEOT dealer or a quali-
fi ed workshop.

3
i
ACCESS
70









Starting the vehicle



)
Insert the key in the ignition switch.
The system recognises the starting
code.

)
Turn the key fully towards the dash-
board to position 3 (Starting)
.

)
When the engine starts, release the
key.



Switching the vehicle off



)
Immobilise the vehicle.

)
Turn the key fully towards you to po-
sition 1 (Stop)
.

)
Remove the key from the ignition
switch.

















Remote control problem

Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.


)
First of all, use the key in the lock to
unlock or lock your vehicle.

)
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.

Reinitialisation


)
Switch off the ignition.

)
Turn the key to position 2 (Ignition
on)
.

)
Press the closed padlock immedi-
ately for a few seconds.

)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.

)
Unclip the casing using a coin at the
notch.

)
Slide the fl at battery out of its location.

)
Slide the new battery into its loca-
tion observing the original direction.

)
Clip the casing.

)
Reinitialise the remote control.

If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.






Locating your vehicle

To locate your vehicle, if you have
locked it, in a car park:


)
press the closed padlock, the cour-
tesy lights come on and the direction
indicators fl ash for a few seconds.








Key in ignition
If the key has been left in the igni-
tion, an audible signal is heard on
opening the driver's door.
