CONTENTS
Instrument panels 19Indicator and warning lamps 20Indicators 28Adjustment buttons 32Screens without audio system 33Screens with audio system 3516/9 colour screen(Peugeot Connect Navigation) 40Trip computer 42
„ „ „ „ „ „ „
„
Ventilation 45Heating 47Manual air conditioning 47Rear screen demist - defrost 49Digital air conditioning 50Front seats 52Rear seats 54Mirrors 57Steering wheel adjustment 59Interior fi ttings 59
„ „ „ „ „ „ „ „ „ „
COMFORT 45 Î67
Remote control key 68Window controls 72Rear quarter windows 73Doors 74
Boot 76Panoramic sunroof 78Fuel tank 79Misfuel prevention 81
„ „ „ „ „ „ „ „
ACCESS 68 Î81
Lighting control stalk 82Headlamp adjustment 85Wiper control stalk 86Courtesy lamps 89
„ „ „ „
VISIBILITY 82 Î 89
Child seats 90Isofi x child seats 96Child lock 100
„ „ „
CHILD
SAFETY 90 Î 100 FAMILIARISATION 4
Î 16
INSTRUMENTS and
CONTROLS 19 Î445
4
3
2
1
ECO-DRIVING 17 Î18
Page 9 of 248
7
FAMILIARISATION
INTERIOR
Dual-zone digital air conditioning
This system allows different levels of
comfort to be set for the driver and the
front passenger. It then automatically
controls these levels according to the
ambient conditions.
50
Distance recorder
The trip distance recorder is reset to
zero by pressing the right-hand button
in the instrument panel for more than
two seconds.
32
Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible Peugeot
Connect Sound, Peugeot Connect USB,
Bluetooth hands-free system, Peugeot
Connect Navigation, auxiliary sockets.
Peugeot Connect Navigation
179
Peugeot Connect Sound
213
Peugeot Connect USB
220
Page 11 of 248
9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Steering lock and ignition.
2.
Audio equipment steering mounted
controls.
3.
Wiper/wash-wipe/trip computer
control stalk.
4.
Hazard warning lamps switch.
5.
Multifunction screen.
Seat belt fastening status warning
lamps.
6.
Sunshine sensor.
7.
Passenger's airbag.
8.
Glove box/Passenger's airbag
deactivation/Audio/video sockets.
9.
Heated seat control.
10.
Front ashtray.
11 .
12 V accessory socket.
12.
USB port.
13.
Dynamic stability control
(ESP/ASR) button.
Central locking button.
Electric child lock button.
14.
Heating/air conditioning controls.
15.
Storage compartment.
16.
Peugeot Connect Sound or
Peugeot Connect Navigation.
17.
Central adjustable air vents.
Page 42 of 248
1
i
INSTRUMENTS and CONTROLS
40
16/9 COLOUR SCREEN (WITH
PEUGEOT CONNECT NAVIGATION)
For more information on these ap-
plications, refer to the "Audio and
Telematics" section or to the spe-
cifi c user guide given to you with
the other owner's documents.
Displays on the screen
This displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- check on openings,
- warning and vehicle function status
messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system information.
Controls
From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,
)
turn the navigator to move the se-
lection,
)
press the navigator to confi rm the
selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
Page 156 of 248
9
!
i
i
PRACTICAL INFORMATION
154
Do not charge the batteries with-
out disconnecting the terminals
fi rst.
Do not disconnect the terminals
while the engine is running.
The batteries contain harmful sub-
stances such as sulphuric acid
and lead. They must be disposed
of in accordance with regulations
and must not, in any circumstanc-
es, be discarded with household
waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
)
Disconnect the battery from the vehicle.
)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
)
Reconnect starting with the negative
terminal (-).
)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if slight diffi cul-
ties are encountered following this
operation, contact a PEUGEOT
dealer or a qualifi ed workshop.
Referring to the corresponding
section, you must yourself reini-
tialise:
- the remote control key,
- the one-touch electric windows,
- the GPS satellite navigation
system.
Disconnecting the cables
Reconnecting the cables
)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.
)
Press vertically on the clip 1
to position
it correctly against the battery.
)
Lock the clip by spreading the position-
ing lug and then lowering the tab 2
.
)
Raise the locking tab fully.
Do not force the tab as locking will
not be possible if the clip is not po-
sitioned correctly; start the proce-
dure again.
Page 163 of 248
9
!
i
i
PRACTICAL INFORMATION
161
Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC)
.
Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses avail-
able in the vehicle.
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the
range of recommended equipment
and accessories.
"Multimedia":
audio systems, satellite navigation
systems, hands-free kit, CD changer,
speakers, DVD player, connection kit
for MP3 or CD player, USB Box...
You can also obtain products for cleaning
and maintenance (exterior and interior),
topping up (screenwash...), and refi lls
(cartridge for the temporary puncture re-
pair kit...) by visiting a PEUGEOT dealer.
Page 181 of 248
179
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.
Certain functions described in this handbook will
become available during the year.
PEUGEOT CONNECT
NAVIGATION
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the Peugeot Connect
Navigation switches off following the activation of the Energy Economy mode.
MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD
01 First steps
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Radio
07 Music media players
08 Bluetooth telephone
09 Configuration
10 Trip computer p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
11 Screen menu map
Frequently asked questions p.
p. 180
181
182
185
193
195
196
199
202
203
204
208
Page 182 of 248
180
01
1
55
101
22
334466
131
111
99
144155
77881212161
1. Engine not running
- Short press: on/off.
- Long press: CD pause, mute for the radio.
Engine running
- Short press: CD pause, mute for the radio.
- Long press: reinitialisation of the system. 2. Volume adjustment (each source is independent, including also navigation messages and alerts).3. Access to the "Radio" Menu. Display the list of stations. 4. Access to the "Music" Menu. Display thetracks.
5. Access to the "SETUP" menu. Long press: access to the GPS coverage and the demonstration mode.6. Access to the "Phone" Menu. Display thecall list. 7. Access to the "MODE" menu. Selection of the successive display of:Radio, Map, NAV (if navigation is inprogress), Telephone (if a conversation is inprogress), Trip computer. Long press: display of a black screen (DARK).8. Access to the "Navigation" Menu. Display the last destinations.9. Access to the "Traffi c" Menu. Display thecurrent traffi c alerts. 10. ESC: abandon the operation in progress. 11. CD eject.
12. Selection of the previous/next radio station from the list. Selection of the previous/next MP3 folder. Selection of the previous/next page of a list.
13. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
14. Buttons 1 to 6: Selection of the stored radio station. Long press: store the current radio station.
15. SD card reader (navigation SD card only).
16. Dial for selection of the screen display andaccording to the context of the menu Short press: contextual menu or confi rmation. Long press press: contextual menu specifi c to the list displayed.

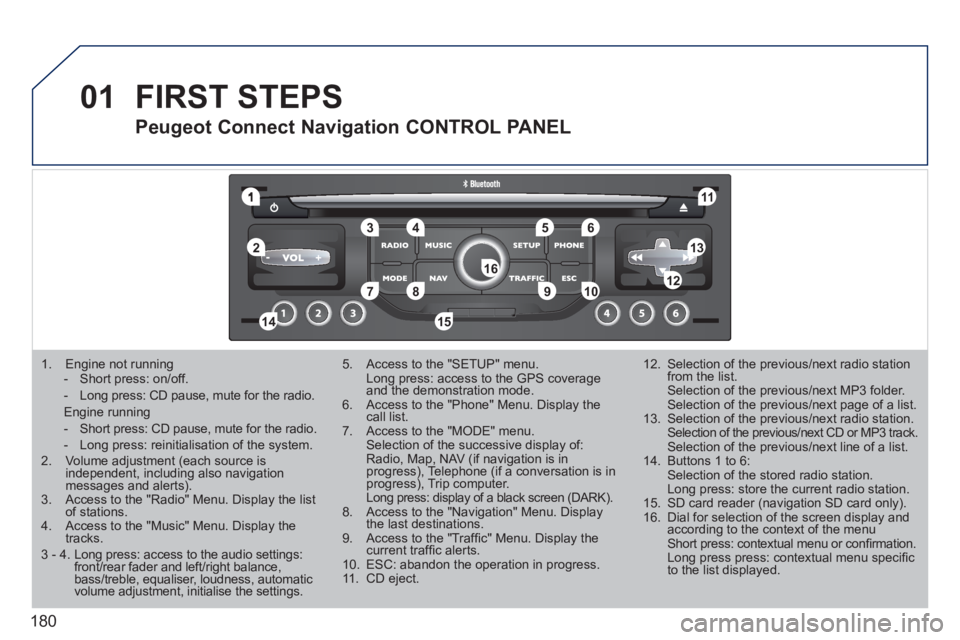

FIRST STEPS
Peugeot Connect Navigation CONTROL PANEL
3 - 4. Long press: access to the audio settings:front/rear fader and left/right balance,bass/treble, equaliser, loudness, automatic volume adjustment, initialise the settings.
