9
!
PRACTICAL INFORMATION
135

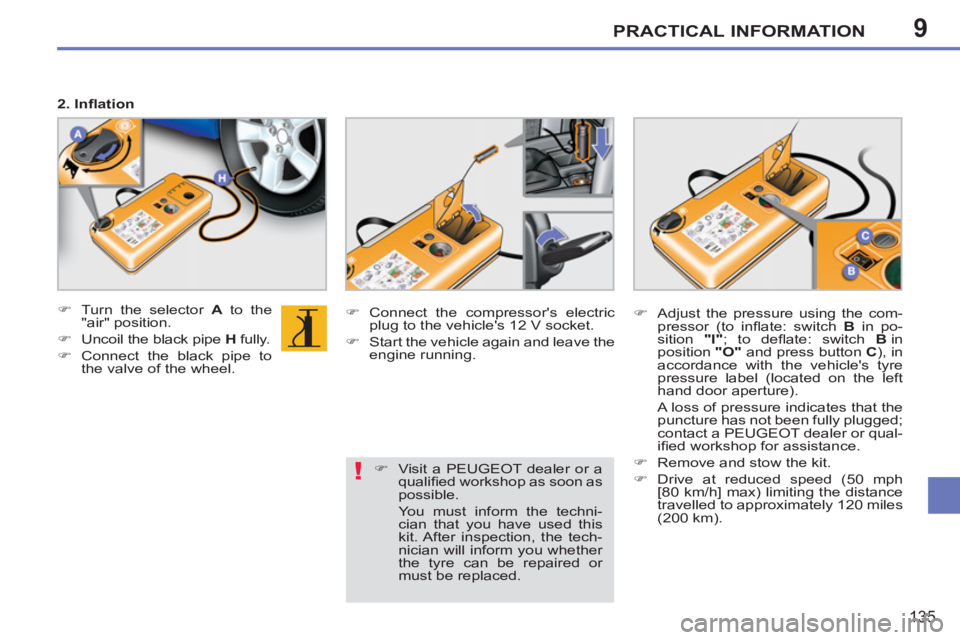

2. Infl ation


)
Turn the selector A
to the
"air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to
the valve of the wheel.
)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle again and leave the
engine running.
)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in po-
sition "I"
; to defl ate: switch B
in
position "O"
and press button C
), in
accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer or qual-
ifi ed workshop for assistance.

)
Remove and stow the kit.

)
Drive at reduced speed (50 mph
[80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).
)
Visit a PEUGEOT dealer or a
qualifi ed workshop as soon as
possible.
You must inform the techni-
cian that you have used this
kit. After inspection, the tech-
nician will inform you whether
the tyre can be repaired or
must be replaced.

9
!
PRACTICAL INFORMATION
136

Removing the cartridge




)
Stow the black pipe.

)
Detach the angled base from the
white pipe.

)
Support the compressor vertically.

)

Unscrew the cartridge from the bottom.



Beware of discharges of fl uid.
The expiry date of the fl uid is indi-
cated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a PEUGEOT dealer.
Do not forget to obtain a new sealant
cartridge, available from PEUGEOT
dealers or from a qualifi ed work-
shop.



Checking tyre pressures/
inflating accessories

You can also use the compressor, without
injecting any product, to:


- check or adjust the pressure of your
tyres,

- infl ate other accessories (balls, bi-
cycle tyres...).


)
Turn the selector A
to the
"Air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to
the valve of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.
)
Connect the compressor's electri-
cal connector to the vehicle's 12 V
socket.

)
Start the vehicle and let the engine
run.

)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in
position "I"
; to defl ate: switch B
in
position "O"
and press button C
),
according to the vehicle's tyre pres-
sure label or the accessory's pres-
sure label.

)
Remove the kit then stow it.

9
i
PRACTICAL INFORMATION
137

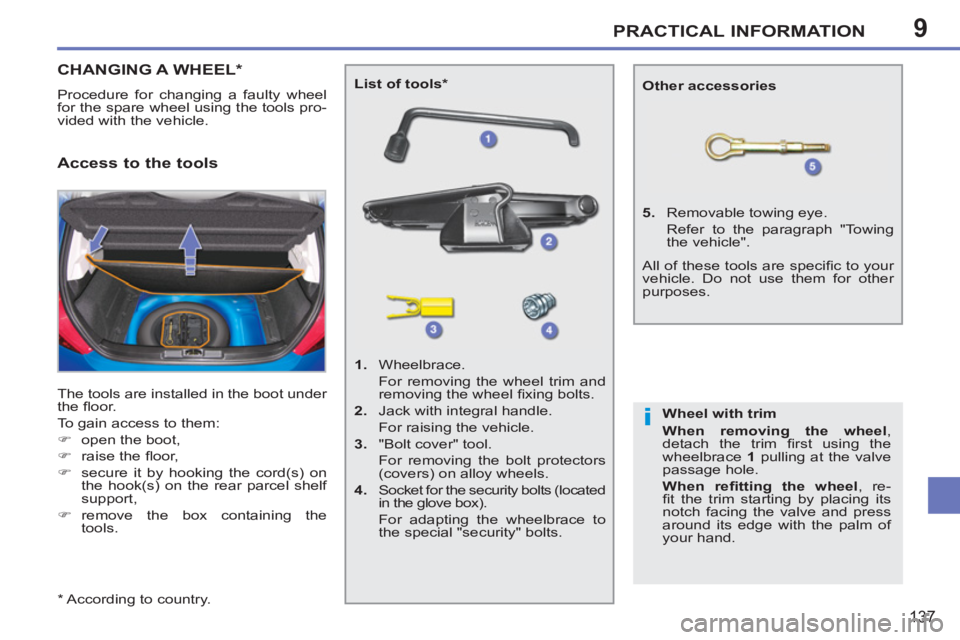

CHANGING A WHEEL *

Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
the fl oor.
To gain access to them:


)
open the boot,

)
raise the fl oor,

)
secure it by hooking the cord(s) on
the hook(s) on the rear parcel shelf
support,

)
remove the box containing the
tools.


Access to the tools

List of tools
*

1.
Wheelbrace.
For removing the wheel trim and
removing the wheel fi xing bolts.

2.
Jack with integral handle.
For raising the vehicle.

3.
"Bolt cover" tool.
For removing the bolt protectors
(covers) on alloy wheels.

4.

Socket for the security bolts (located
in the glove box).
For adapting the wheelbrace to
the special "security" bolts.
5.
Removable towing eye.

Refer to the paragraph "Towing
the vehicle".
Other accessories

Wheel with trim

When removing the wheel
,
detach the trim fi rst using the
wheelbrace 1
pulling at the valve
passage hole.

When refi tting the wheel
, re-
fi t the trim starting by placing its
notch facing the valve and press
around its edge with the palm of
your hand.

All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.

*
According to country.

9
i
PRACTICAL INFORMATION
138

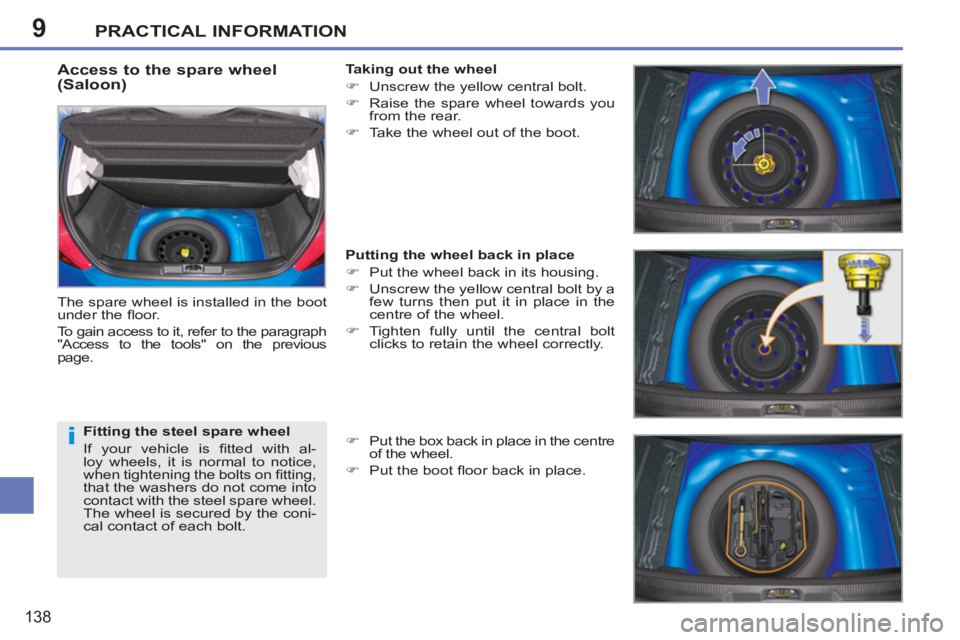

Access to the spare wheel
(Saloon)
The spare wheel is installed in the boot
under the fl oor.
To gain access to it, refer to the paragraph
"Access to the tools" on the previous
page.

Fitting the steel spare wheel
If your vehicle is fi tted with al-
loy wheels, it is normal to notice,
when tightening the bolts on fi tting,
that the washers do not come into
contact with the steel spare wheel.
The wheel is secured by the coni-
cal contact of each bolt.
Taking out the wheel


)
Unscrew the yellow central bolt.

)
Raise the spare wheel towards you
from the rear.

)
Take the wheel out of the boot.


Putting the wheel back in place


)
Put the wheel back in its housing.

)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

)
Tighten fully until the central bolt
clicks to retain the wheel correctly.

)
Put the box back in place in the centre
of the wheel.

)
Put the boot fl oor back in place.

9
i
PRACTICAL INFORMATION
139

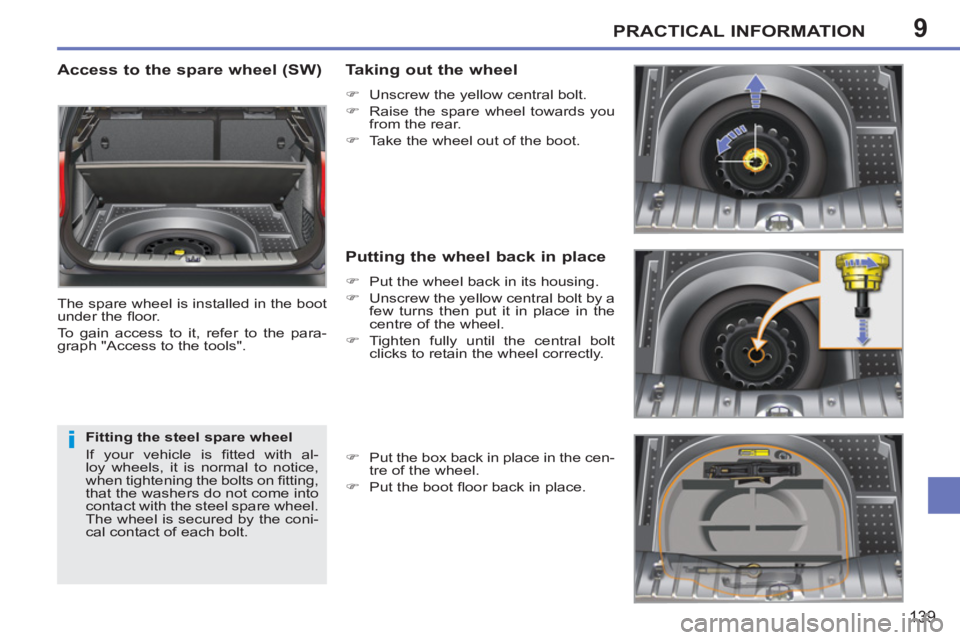

Access to the spare wheel (SW)

The spare wheel is installed in the boot
under the fl oor.
To gain access to it, refer to the para-
graph "Access to the tools".

Fitting the steel spare wheel
If your vehicle is fi tted with al-
loy wheels, it is normal to notice,
when tightening the bolts on fi tting,
that the washers do not come into
contact with the steel spare wheel.
The wheel is secured by the coni-
cal contact of each bolt.


Taking out the wheel



)
Unscrew the yellow central bolt.

)
Raise the spare wheel towards you
from the rear.

)
Take the wheel out of the boot.



Putting the wheel back in place



)
Put the wheel back in its housing.

)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

)
Tighten fully until the central bolt
clicks to retain the wheel correctly.

)
Put the box back in place in the cen-
tre of the wheel.

)
Put the boot fl oor back in place.

9
i
PRACTICAL INFORMATION
140

Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-
slippery.
Apply the parking brake, switch off
the ignition and engage fi rst gear *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
You should ensure that the occu-
pants get out of the vehicle and
wait where they are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.


Removing the wheel

List of operations


)
Remove the chromed bolt cover from
each of the bolts using the tool 3
.

)
If your vehicle is equipped with
this, fi t the security socket 4
on the
wheelbrace 1
to slacken the security
bolt.

)
Slacken the other bolts using the
wheelbrace 1
only.

)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.

)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A

or B
used.

)
Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

)
Remove the bolts and store them in
a clean place.

)
Remove the wheel.



*
position P
for the automatic gearbox.

9
i
PRACTICAL INFORMATION
141

After changing a wheel
To store the punctured wheel in
the boot correctly, fi rst remove the
central cover.
Have the tightening of the bolts
and the pressure of the spare
wheel checked by a PEUGEOT
dealer or a qualifi ed workshop
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon
as possible.

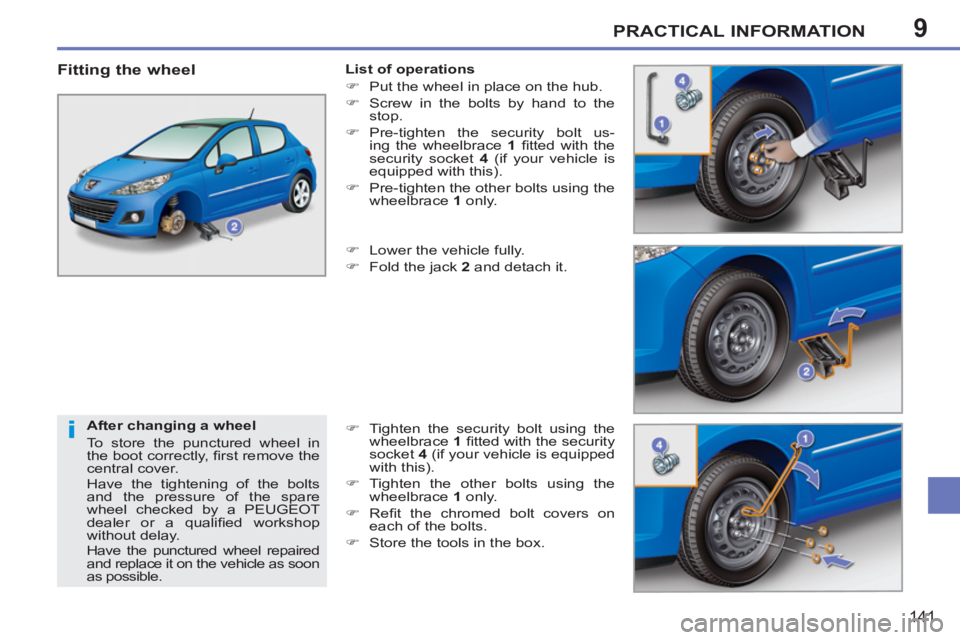

Fitting the wheel

List of operations


)
Put the wheel in place on the hub.

)
Screw in the bolts by hand to the
stop.

)
Pre-tighten the security bolt us-
ing the wheelbrace 1
fi tted with the
security socket 4
(if your vehicle is
equipped with this).

)
Pre-tighten the other bolts using the
wheelbrace 1
only.

)
Lower the vehicle fully.

)
Fold the jack 2
and detach it.

)
Tighten the security bolt using the
wheelbrace 1
fi tted with the security
socket 4
(if your vehicle is equipped
with this).

)
Tighten the other bolts using the
wheelbrace 1
only.

)
Refi t the chromed bolt covers on
each of the bolts.

)
Store the tools in the box.

9
i
ii
PRACTICAL INFORMATION
142
The headlamps are fi tted with polycar-
bonate glass with a protective coating:


)
do not clean them using a dry or
abrasive cloth, nor with a deter-
gent or solvent product,


)
use a sponge and soapy water,

)
when using a high pressure washer
on persistent marks, do not direct
at the lamps or their outlines for too
long, so as not to damage their pro-
tective coating and seals.


Front lamps CHANGING A BULB

Changing the direction indicator
bulbs
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical spec-
ifi cation and colour.

)
Turn the bulb holder one quarter of
a turn and remove it.

)
Pull the bulb then change it.
To r efi t, carry out these operations in re-
verse order.
































1.

Direction indicators (PY21W amber).


2.
Sidelamps (W5W).


3.
Dipped beam headlamps (H7-55W).

4.
Main beam headlamps (H1-55W).


5.
Foglamps (H11-55W).





)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation. In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
