2011 PEUGEOT 207 Owners Manual

8CHECKS
127
DIESEL ENGINES
The caps and covers provide access for checking the levels of the various fl uids, to replace certain components and to prime
the fuel system.


1.
Coolant reservoir.

2.
Passenger compartment fi lter.

3.
Screenwash and headlamp wash
reservoir.
4.
Priming pump.

5.
Brake fl uid reservoir.

6.
Fusebox.
7.
Battery.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Air fi lter.

8CHECKS
128
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Take care when working under the bon-
net, as some parts of the engine can be
extremely hot (risk of burns).

Brake fluid level

Oil level

The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.
The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick.
It is normal to top up the engine oil be-
tween two services. The manufacturer
recommends a check of the oil level, and
top up if necessary, every 3 000 miles
(5 000 km). The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the brake fl uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.

Changing the engine oil
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
fulfi l the DOT4 standards.

8
!
CHECKS
129
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Coolant level

The coolant level should be close
to the "MAX" mark but should nev-
er exceed it.
When the engine is warm, the tem-
perature of the coolant is regulated by the
fan. This can operate with the ignition off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may operate
after the vehicle has been switched off,
even if the engine is cold.
In addition, as the cooling system is pres-
surised, wait at least one hour after switch-
ing off the engine before carrying out any
work.

Screenwash and headlamp
wash * fluid

The minimum level of this fl uid
is indicated by an audible sig-
nal and a message on the mul-
tifunction screen.
Top up the level when you stop the
vehicle.

*
According to country.
Changing the coolant
The coolant does not have to be
changed.

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Fluid specifi cation
To guarantee optimum cleaning and
avoid freezing, plain water should not
be used to top up or replace this fl uid.

Avoid any prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT
dealer or a qualifi ed workshop
(France) or an authorised waste
disposal site.


Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warn-
ing lamp, accompanied by an audible
signal and a message on the multifunc-
tion screen.

Used products


Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.

8
i
CHECKS
130
CHECKS
Unless otherwise indicated, check these
components in accordance with the
Warranty and Maintenance Record and in
relation to your engine.
Otherwise, have them checked by a
PEUGEOT dealer or a qualifi ed workshop.


Battery

The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.


Air filter and passenger compartment filter

Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary
.
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.


Particle emission filter (Diesel)

Illumination of the service warning lamp togeth-
er with a related message indicates the start of
saturation of the particle emissions fi lter.
As soon as the driving conditions permit, re-
generate the fi lter by driving at a speed of at
least 35 mph (60 km/h) until the service warn-
ing lamp goes off.
Maintenance of the particle emission fi lter
must be carried out by a PEUGEOT dealer or
a qualifi ed workshop.


Oil filter

Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component. Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at
the exhaust on acceleration. This
does not have any adverse effect
on the performance of the vehicle
or on the environment.

8
!
CHECKS
131

Automatic gearbox

The gearbox does not re-
quire any maintenance (no oil
change).

Refer to the Warranty and
Maintenance Record for de-
tails of the checking intervals
for this component.


Parking brake

If the parking brake travel is too
long or if you notice a loss of effec-
tiveness of this system, the parking
brake must be adjusted, even be-
tween two services.
This system must be checked by a PEUGEOT
dealer or a qualifi ed workshop.


Manual gearbox

The gearbox does not re-
quire any maintenance (no oil
change).

Refer to the Warranty and
Maintenance Record for de-
tails of the level checking in-
tervals for this component.


Brake disc and drum wear

For any information relating
to checking of the brake disc
and/or drum wear, contact a
PEUGEOT dealer or a quali-
fi ed workshop. Only use products recommend-
ed by PEUGEOT or products of
equivalent quality and specifi ca-
tions.
In order to optimise the operation
of units as important as the brak-
ing system, PEUGEOT selects
and offers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is strictly prohibited
.


Brake pads

Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.

9
i
PRACTICAL INFORMATION
132

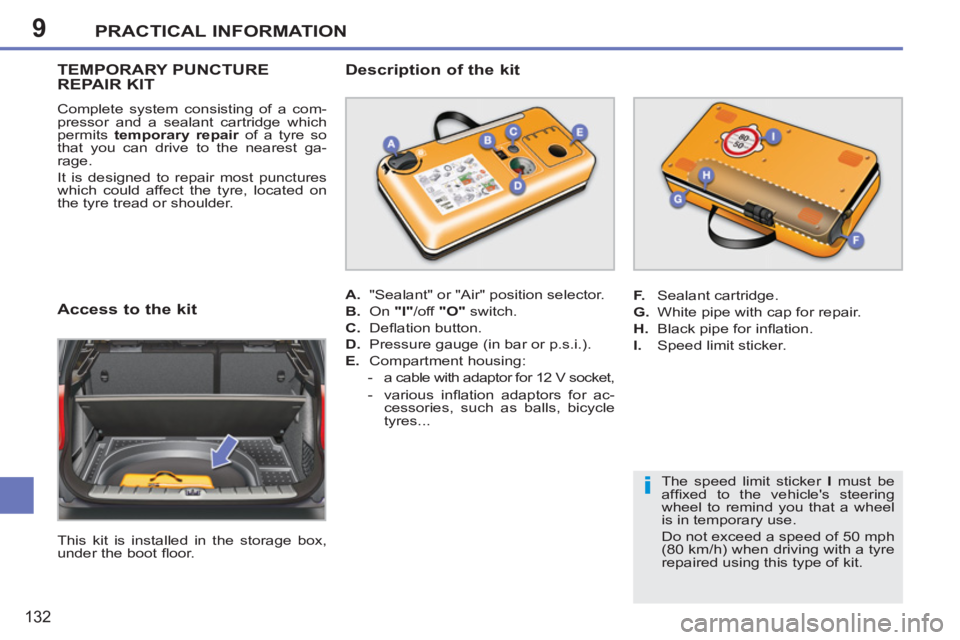

TEMPORARY PUNCTURE REPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.



Access to the kit

This kit is installed in the storage box,
under the boot fl oor.


Description of the kit



A.
"Sealant" or "Air" position selector.

B.
On "I"
/off "O"
switch.

C.
Defl ation button.

D.
Pressure gauge (in bar or p.s.i.).

E.
Compartment housing:


- a cable with adaptor for 12 V socket,

- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
F.
Sealant cartridge.

G.
White pipe with cap for repair.

H.
Black pipe for infl ation.

I.
Speed limit sticker.

The speed limit sticker I
must be
affi xed to the vehicle's steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.

9
i!
PRACTICAL INFORMATION
133

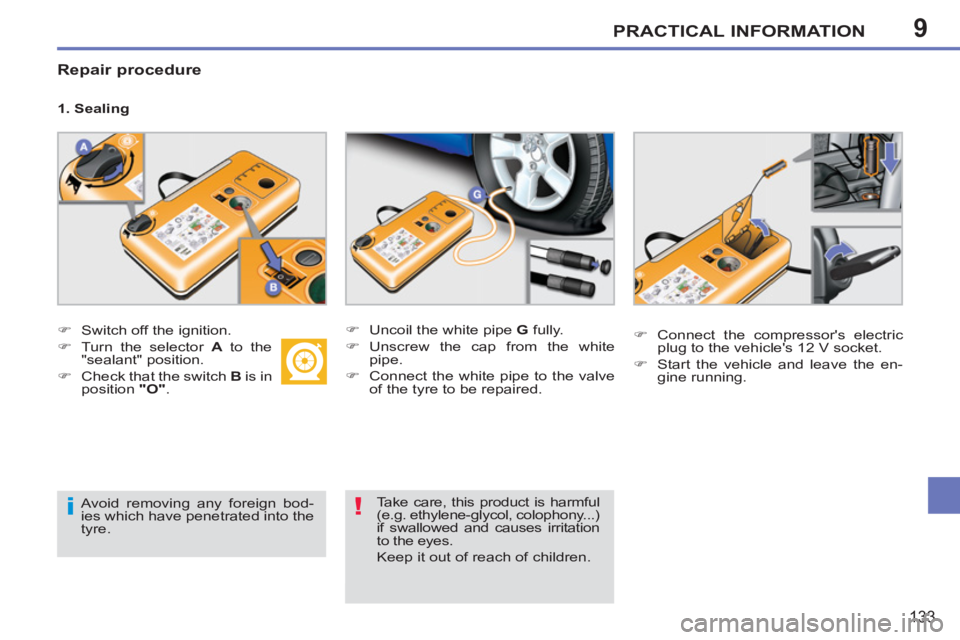

Repair procedure


1. Sealing


)
Switch off the ignition.

)
Turn the selector A
to the
"sealant" position.

)
Check that the switch B
is in
position "O"
.
)
Uncoil the white pipe G
fully.

)
Unscrew the cap from the white
pipe.

)
Connect the white pipe to the valve
of the tyre to be repaired.
)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle and leave the en-
gine running.

Avoid removing any foreign bod-
ies which have penetrated into the
tyre.
Take care, this product is harmful
(e.g. ethylene-glycol, colophony...)
if swallowed and causes irritation
to the eyes.
Keep it out of reach of children.

9
i
PRACTICAL INFORMATION
134

)

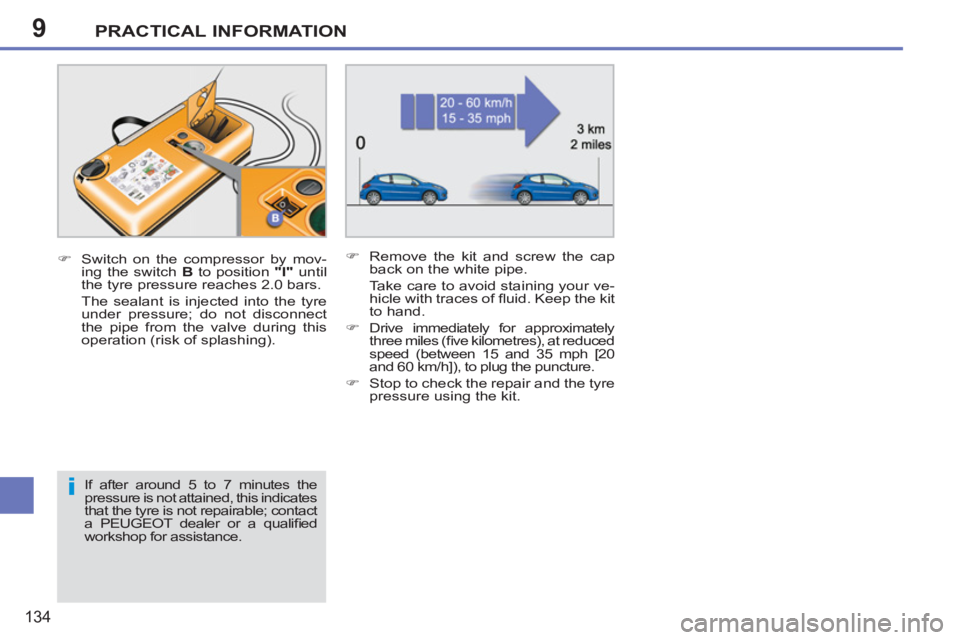

Switch on the compressor by mov-
ing the switch B
to position "I"
until
the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre
under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).
)
Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your ve-
hicle with traces of fl uid. Keep the kit
to hand.

)
Drive immediately for approximately
three miles (fi ve kilometres), at reduced
speed (between 15 and 35 mph [20
and 60 km/h]), to plug the puncture.

)
Stop to check the repair and the tyre
pressure using the kit.


If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a PEUGEOT dealer or a qualifi ed
workshop for assistance.
