2011 PEUGEOT 207 Owners Manual

2
!
i
COMFORT
55

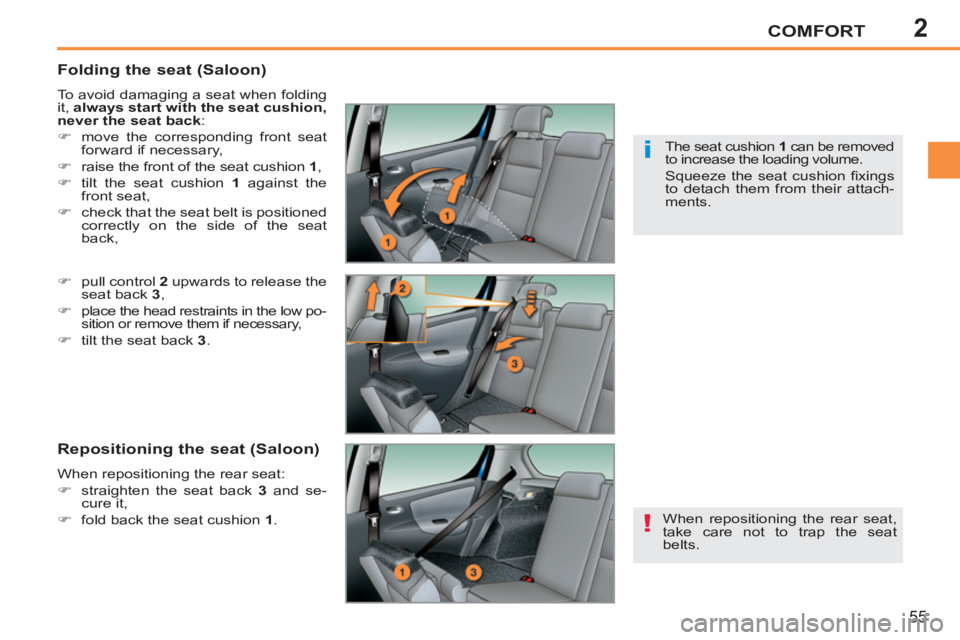

Folding the seat (Saloon)

To avoid damaging a seat when folding
it, always start with the seat cushion,
never the seat back
:


)
move the corresponding front seat
forward if necessary,

)
raise the front of the seat cushion 1
,

)
tilt the seat cushion 1
against the
front seat,

)
check that the seat belt is positioned
correctly on the side of the seat
back,

Repositioning the seat (Saloon)

When repositioning the rear seat:


)
straighten the seat back 3
and se-
cure it,

)
fold back the seat cushion 1
.
)
pull control 2
upwards to release the
seat back 3
,

)
place the head restraints in the low po-
sition or remove them if necessary,

)
tilt the seat back 3
.
When repositioning the rear seat,
take care not to trap the seat
belts. The seat cushion 1
can be removed
to increase the loading volume.
Squeeze the seat cushion fi xings
to detach them from their attach-
ments.

2
!
i
COMFORT
56

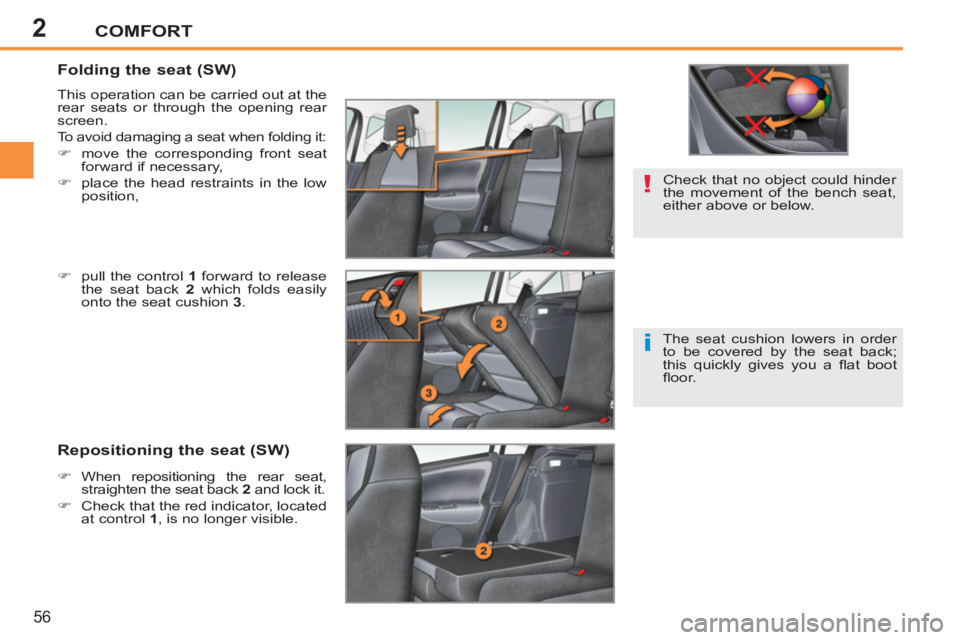

Folding the seat (SW)

This operation can be carried out at the
rear seats or through the opening rear
screen.
To avoid damaging a seat when folding it:


)
move the corresponding front seat
forward if necessary,

)
place the head restraints in the low
position, Check that no object could hinder
the movement of the bench seat,
either above or below.

Repositioning the seat (SW)

The seat cushion lowers in order
to be covered by the seat back;
this quickly gives you a fl at boot
fl oor.

)
pull the control 1
forward to release
the seat back 2
which folds easily
onto the seat cushion 3
.


)
When repositioning the rear seat,
straighten the seat back 2
and lock it.

)
Check that the red indicator, located
at control 1
, is no longer visible.

2
!
i
COMFORT
57
MIRRORS

Door mirrors

Adjustable mirror providing the lateral
rearward vision necessary for overtak-
ing or parking.
Folding


)
from outside: lock the vehicle using
the remote control or the key.

)
from inside: with the ignition on, pull
switch A
rearwards.



Manual model


Adjustment


)
Move the lever in all four directions
to adjust the mirror.

The folding and unfolding of the
door mirrors can be deactivated
by a PEUGEOT dealer or a quali-
fi ed workshop.
Folding


)
When parked, fold the mirror manu-
ally to protect it.


Unfolding


)
Before starting, unfold the mirror.




Electric model


Adjustment


)
Slide switch A
to the right or to the left
to select the corresponding mirror.

)
Move knob B
in all four directions to
adjust.

)
Return switch A
to the centre position.

Unfolding


)
from outside: unlock the vehicle us-
ing the remote control or the key.

)
from inside: with the ignition on, pull
switch A
rearwards.
The objects observed are, in reality,
closer than they appear.
Take this into account to correctly
judge the distance of vehicles ap-
proaching from behind.

2
i
!
COMFORT
58





Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...

Adjustment


)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.







Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.

Manual day/night model

Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the nor-
mal "day" position.


In order to ensure optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.

As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".

2
!
i
COMFORT
59
STEERING WHEEL ADJUSTMENT



)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.

)
Adjust the height and reach to suit
your driving position.

)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.

Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.


)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit automati-
cally.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET
WINDOW
S
Facility for affi xing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the rear view mirror.
They are two non-refl ective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, ...).

2
!
!
COMFORT
60
MATS
Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured cor-
rectly.


Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)
move the seat as far back as possible,

)
unclip the fi xings,

)
remove the mat.

PEUGEOT CONNECT USB


The "AUX"
connection box, located in
the centre console, comprises an auxil-
iary JACK socket and/or a USB port.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® or USB memory stick type.
It reads certain audio fi le formats allow-
ing them to be heard via the vehicle's
speakers.
You can manage these fi les using the
steering mounted controls or the audio
system control panel and display them
in the multifunction screen.

Connected to the USB port, the porta-
ble device charges automatically while
in use.

For more information on the use of
this equipment, refer to the "Audio
and Telematics" section.
To avoid any risk of jamming of the
pedals:


- only use mats which are suited
to the fi xings already present
in the vehicle; these fi xings
must be used,

- never fi t one mat on top of
another.
The use of mats not approved
by PEUGEOT may interfere with
access to the pedals and hinder
the operation of the cruise control/
speed limiter.

2COMFORT
61
INTERIOR FITTINGS


1.
Illuminated glove box


(see details on following page)

2.
Storage compartment with
non-slip mat


3.
Card

/ticket

holder


4.
Door tray


5.
Storage compartment with non-
slip mat


6.
USB port


(see details on previous page)

7.
12 V accessories socket


(see details on following page)

8.
Storage compartments


9.
Cup holder

2COMFORT
62












Illuminated glove box *

This has an upper open storage com-
partment, a recess and locations for
storing a bottle of water, the vehicle's
handbook, ...
Its lid has locations for storing a pen,
a pair of spectacles, tokens, cards, a
can, ...


)
To open the glove box, raise the
handle.
It is illuminated when the lid is opened.
It houses the front passenger's airbag
deactivation switch A
.

)
To connect a 12 V accessory (max
power: 120 Watts), lift the cover and
connect a suitable adaptor.







12 V accessory socket

If the vehicle is fi tted with digital air con-
ditioning, it provides access to the ven-
tilation nozzle B
, which can be opened
or closed, distributing the same condi-
tioned air as the vents in the passenger
compartment.

*
According to version.
