2011 PEUGEOT 207 Owners Manual

5
!
CHILD SAFETY
95

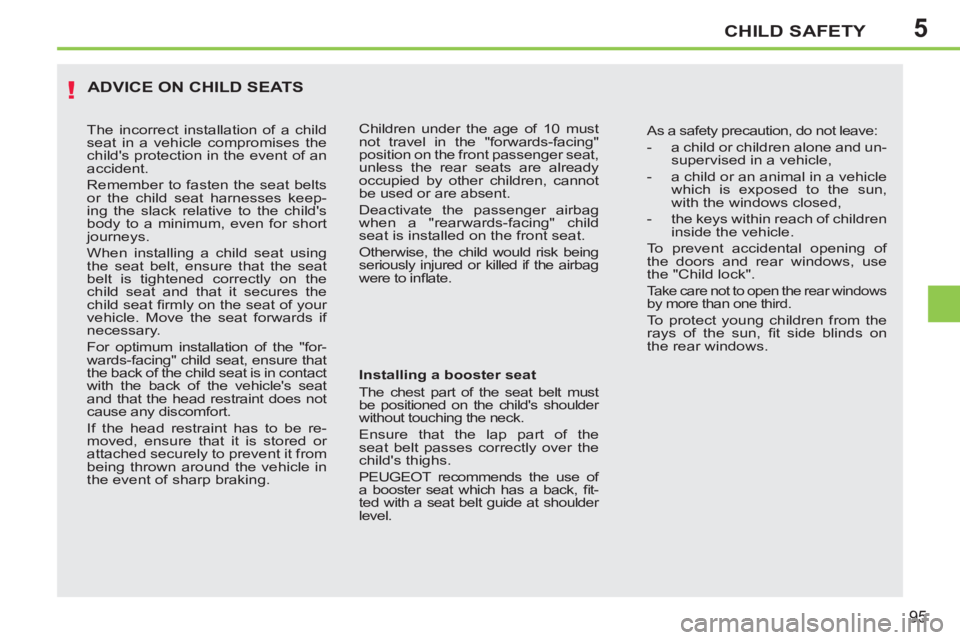

ADVICE ON CHILD SEATS


Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the
seat belt passes correctly over the
child's thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts
or the child seat harnesses keep-
ing the slack relative to the child's
body to a minimum, even for short
journeys.
When installing a child seat using
the seat belt, ensure that the seat
belt is tightened correctly on the
child seat and that it secures the
child seat fi rmly on the seat of your
vehicle. Move the seat forwards if
necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. As a safety precaution, do not leave:


- a child or children alone and un-
supervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun,
with the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of
the doors and rear windows, use
the "Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on
the rear windows.
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already
occupied by other children, cannot
be used or are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child
seat is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

5
!
i
CHILD SAFETY
96
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table giving
the locations for the installation of
ISOFIX child seats.

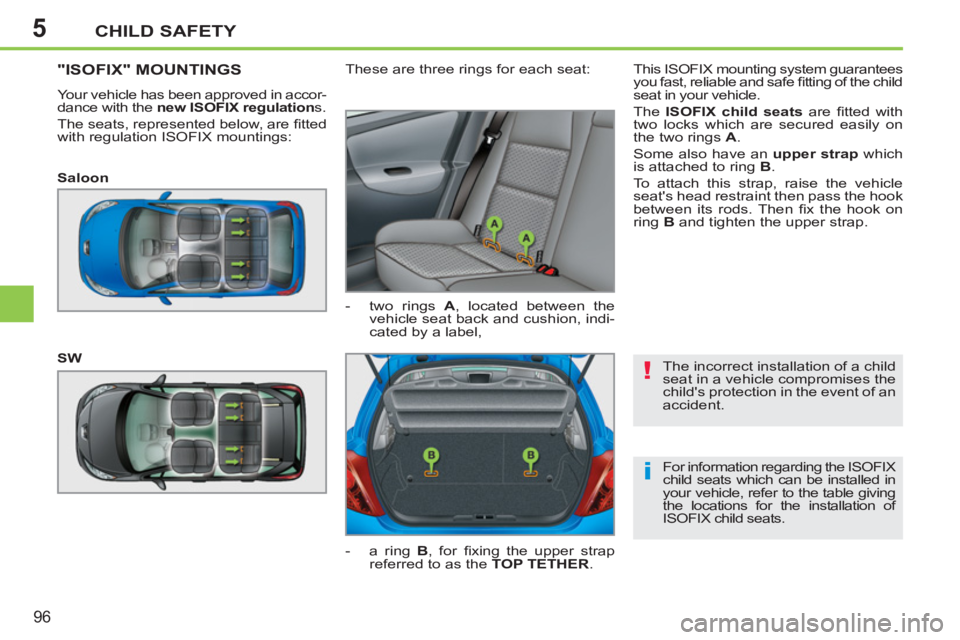

"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation
s.
The seats, represented below, are fi tted
with regulation ISOFIX mountings: These are three rings for each seat:


- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label,

- a ring B
, for fi xing the upper strap
referred to as the TOP TETHER
. This ISOFIX mounting system guarantees
you fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two locks which are secured easily on
the two rings A
.
Some also have an upper strap
which
is attached to ring B
.
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.
Saloon


SW

5
i
CHILD SAFETY

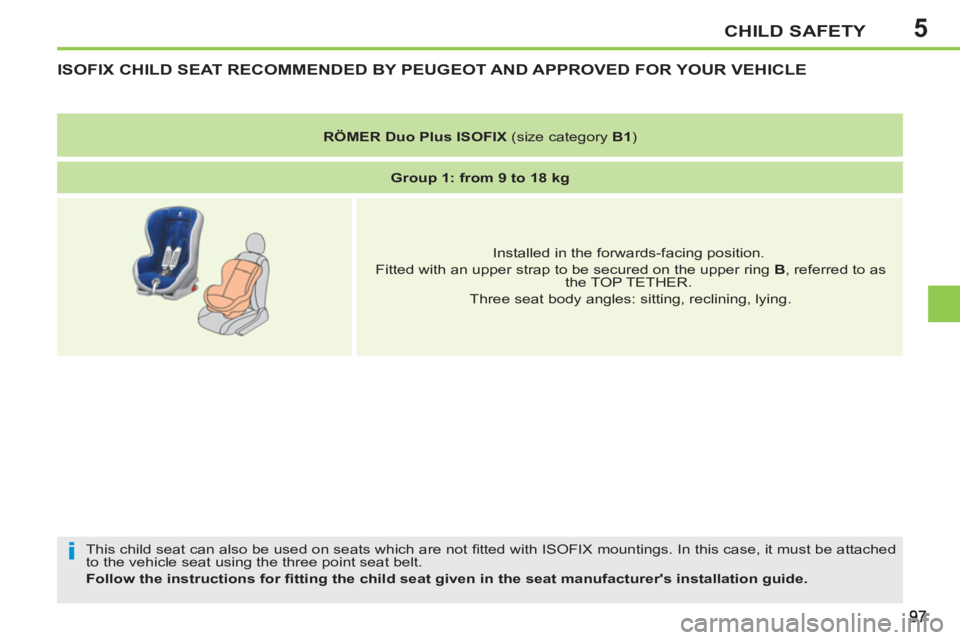

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it must be attached
to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.


RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg








Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B
, referred to as
the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

5CHILD SAFETY
98








LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SALOON)

In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
vehicle seats fi tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a
letter from A
to G
, is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" and secured using the "Top Tether" upper strap.

IL-SU:
seat suitable for the installation an I
sofi x S
emi- U
niversal seat which is:


- "rear facing" fi tted with a "Top Tether" upper strap or a stay,

- "forward facing" fi tted with a stay,

- an infant car seat fi tted with a "Top Tether" upper strap or a stay.
For the securing of the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.

X:
seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.






Weight of the child
/indicative age





Less than 10 kg
(group 0)

Up to 6 months
approx

Less than 10 kg
(group 0)

Less than 13 kg
(group 0+)

Up to 1 year approx

From 9 to 18 kg (group 1)

From 1 to 3 years approx


Type of ISOFIX child seat



Infant car seat *



"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F



G



C



D



E



C



D



A



B



B1




Universal and semi-universal
ISOFIX child seats which can
be installed on the rear seats


IL-SU **



X



IL-SU **



X



IL-SU **



IUF **
IL-SU **



*
The ISOFIX infant car seat, fi xed to the lower rings of a seat equipped with ISOFIX mountings, occupies the three rear seats.
To install it on the rear seats of a 3-door model, the front seat belt must be adjusted to the lowest position.
Infant car seats and "car cots" cannot be installed on the front passenger seat.

**
The head restraint of the seat equipped with ISOFIX mountings must be removed and stored.

5CHILD SAFETY
99








LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SW)

In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
vehicle seats fi tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a
letter from A
to G
, is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" and secured using the "Top Tether" upper strap.

IL-SU:
seat suitable for the installation an I
sofi x S
emi- U
niversal seat which is:


- "rear facing" fi tted with a "Top Tether" upper strap or a stay,

- "forward facing" fi tted with a stay,

- an infant car seat fi tted with a "Top Tether" upper strap or a stay.
For the securing of the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.
(a) The head restraint where the ISOFIX seat is fi tted must be removed and stored safely.







Weight of the child
/indicative age


Less than 10 kg
(group 0)

Up to 6 months
approx

Less than 10 kg
(group 0)

Less than 13 kg
(group 0+)

Up to 1 year approx

From 9 to 18 kg (group 1)

From 1 to 3 years approx


Type of ISOFIX child seat



Infant car seat

*


"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F



G



C **



D



E



C **



D



A



B



B1




Universal and semi-universal
ISOFIX child seats which can
be installed on the rear seats



IL-SU(a)



IL-SU(a)



IL-SU(a)



IUF(a)
IL-SU(a)



*
The ISOFIX infant car seat, fi xed to the lower rings of a seat equipped with ISOFIX mountings, occupies the three rear
seats and prevents use of the 2/3 - 1/3 modularity.
Infant car seats and "car cots" cannot be installed on the front passenger seat.

**
The front seat must be adjusted fi ve notches back from the fully forward position.

5
!
CHILD SAFETY
100
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to allow the rear pas-
sengers to exit the vehicle.

MANUAL CHILD LOCK

Mechanical system to prevent opening of
the rear door using its interior control.
The control is located on the edge of
each rear door.


)
With the ignition key, turn the red
control one quarter of a turn:


- to the right on the left-hand rear
door,

- to the left on the right-hand rear
door.


ELECTRIC CHILD LOCK

Remote control system to prevent opening
of the rear doors using their interior controls.
The control is located in the centre of
the dashboard.


)
Press button A
.
The indicator lamp on button A
comes
on, accompanied by a message on the
multifunction screen.
Locking

Unlocking


)
With the ignition key, turn the red
control one quarter of a turn:


- to the left on the left-hand rear
door,

- to the right on the right-hand rear
door.



Activation

Deactivation


)
Press button A
again.
The indicator lamp on button A
switches
off, accompanied by a message on the
multifunction screen.

6
i
SAFETY
101

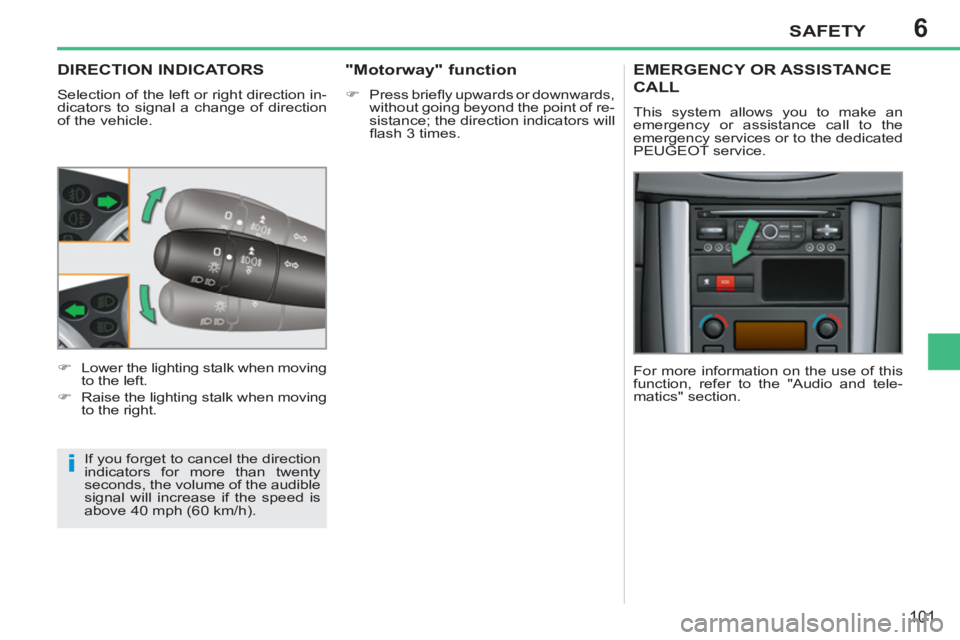

DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.
If you forget to cancel the direction
indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).

)
Lower the lighting stalk when moving
to the left.

)
Raise the lighting stalk when moving
to the right.







"Motorway" function



)
Press briefl y upwards or downwards,
without going beyond the point of re-
sistance; the direction indicators will
fl ash 3 times.

EMERGENCY OR ASSISTANCE
CALL

This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and tele-
matics" section.

6
i
SAFETY
102

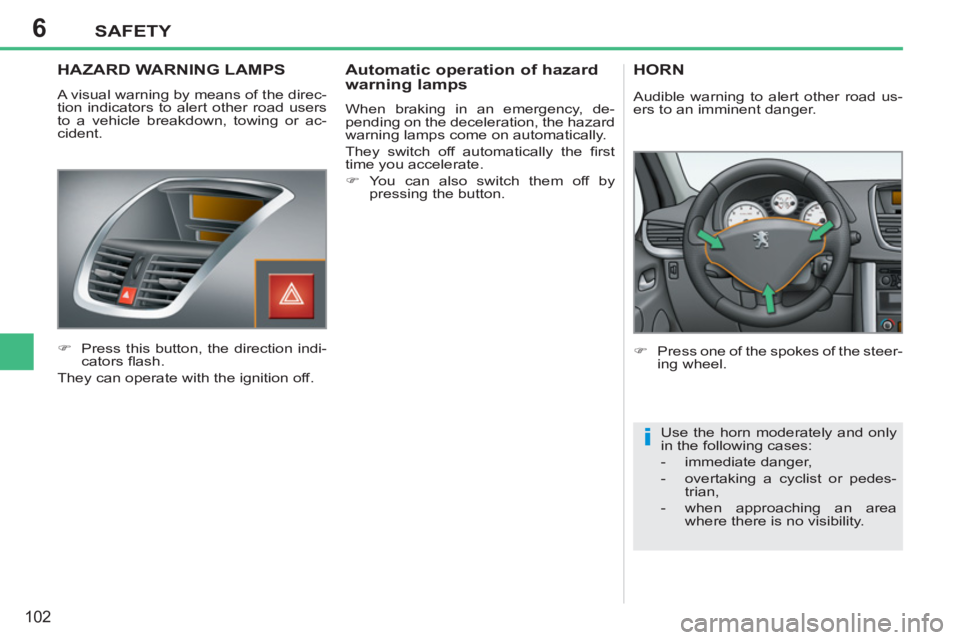

HAZARD WARNING LAMPS

A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.


)
Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.













Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.

HORN



)
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:


- immediate danger,

- overtaking a cyclist or pedes-
trian,

- when approaching an area
where there is no visibility.

Audible warning to alert other road us-
ers to an imminent danger.
