12
FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Switching on "AUTO" mode
)
Push the control downwards and re-
lease it.
Ring B
Control A: windscreen wipers
2.
Fast wipe.
1.
Normal wipe.
I.
Intermittent wipe.
0.
Park.
AUTO È
Automatic wiping or single wipe.
Wash-wipe: pull the control towards you.
86
Wipers
Switching off "AUTO" mode
)
Push the control upwards and return
it to position "0"
.
88
82
Lighting off.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamps.
or
Front and rear foglamps.
Automatic illumination of headlamps.
Ring B: rear wiper
Park.
87
Intermittent wipe.
Wash-wipe.
Page 84 of 248
4
82
VISIBILITY
LIGHTING CONTROL STALK
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Manual controls
The lighting commands are made di-
rectly by the driver by means of ring A
and stalk B
.
lighting off,
sidelamps only,
dipped or main beam
headlamps,
B.
stalk for inversion of the beam by pull-
ing: dipped headlamps/main beam
headlamps.
In the lighting off and sidelamps modes,
the driver can switch on the main beam
headlamps directly ("headlamp fl ash")
by pulling and holding the stalk.
Displays
The corresponding indicator lamp comes
on in the instrument panel to confi rm the
switching on of the lighting selected.
Main lighting
The vehicle's various front and rear
lamps are designed to adapt the driver's
visibility gradually in relation to the cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps for good vis-
ibility when the road is clear.
Additional lighting
Other lamps are installed to respond to
particular driving conditions:
- rear foglamps to be seen from a dis-
tance,
- front foglamps for even better visibility.
Programmes
Various automatic lighting control
modes are also available according to
the following options:
- "guide-me-home" lighting,
- automatic lighting.
A.
main lighting mode selection ring, with:
Model without AUTO lighting
Model with AUTO lighting
automatic illumination of
headlamps.

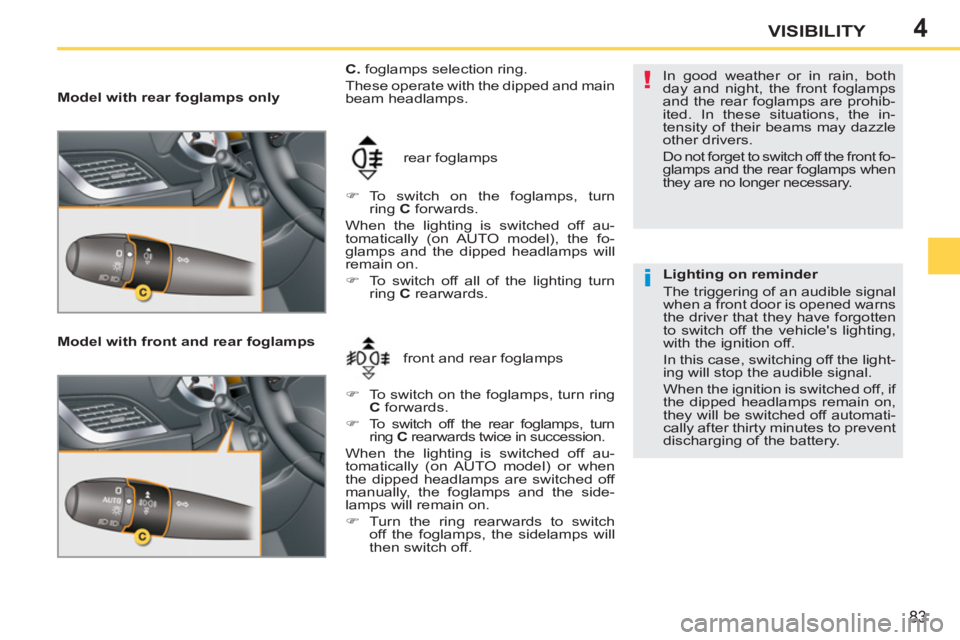

Page 85 of 248
4
!
i
83
VISIBILITY
Model with rear foglamps only
Model with front and rear foglamps
front and rear foglamps rear foglamps
C.
foglamps selection ring.
These operate with the dipped and main
beam headlamps.
)
To switch on the foglamps, turn
ring C
forwards.
When the lighting is switched off au-
tomatically (on AUTO model), the fo-
glamps and the dipped headlamps will
remain on.
)
To switch off all of the lighting turn
ring C
rearwards.
)
To switch on the foglamps, turn ring
C
forwards.
)
To switch off the rear foglamps, turn
ring C
rearwards twice in succession.
When the lighting is switched off au-
tomatically (on AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and the side-
lamps will remain on.
)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off. In good weather or in rain, both
day and night, the front foglamps
and the rear foglamps are prohib-
ited. In these situations, the in-
tensity of their beams may dazzle
other drivers.
Do not forget to switch off the front fo-
glamps and the rear foglamps when
they are no longer necessary.
Lighting on reminder
The triggering of an audible signal
when a front door is opened warns
the driver that they have forgotten
to switch off the vehicle's lighting,
with the ignition off.
In this case, switching off the light-
ing will stop the audible signal.
When the ignition is switched off, if
the dipped headlamps remain on,
they will be switched off automati-
cally after thirty minutes to prevent
discharging of the battery.
Page 86 of 248
4
!
84
VISIBILITY
In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumination of
headlamps provides the "guide-me-home"
lighting with the following additional options:
- selection of the lighting duration to 15, 30
or 60 seconds in the vehicle parameters
in the multifunction screen confi guration
menu,
- automatic activation of "guide-me-home"
lighting when automatic illumination of
headlamps is in operation.
Automatic illumination
of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected (sensor behind the rear view
mirror) or when the windscreen wipers
are switched on.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lighting is
switched off automatically.
"Guide-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
)
With the ignition off, activate a
"headlamp fl ash" using stalk B
.
)
A second "headlamp fl ash" switches
the function off again.
Switching off
The "guide-me-home" lighting is switched
off automatically following the door lock-
ing command, after a given time.
Activation
)
Turn ring A
to the " AUTO
" position. The
automatic illumination of headlamps
is accompanied by a message in the
multifunction screen.
Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Daytime running lamps *
On vehicles fi tted with daytime running
lamps, the dipped headlamps come on
when the vehicle is started.
This indicator lamp comes on
in the instrument panel.
The instruments and controls (multi-
function screen, air conditioning control
panel, ...) are not lit, unless the auto-
matic lighting mode is activated or the
lighting is switched on manually.
Deactivation
)
Turn ring A
to a position other than
" AUTO
". Deactivation is accompa-
nied by a message in the multifunction
screen.
*
According to country.
Page 162 of 248
9PRACTICAL INFORMATION
160
ACCESSORIES
A wide range of accessories and
genuine parts is available from the
PEUGEOT dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Transport solutions":
boot liner, luggage net, cigarette lighter,
roof bars, bicycle carrier on roof bars,
ski carrier, roof box...
Tow bar, which mst be fi tted by PEUGEOT
dealer or a qualifi ed workshop.
"Comfort":
door defl ectors, side blinds and rear
blind, coat hanger fi xed to head restraint,
front centre armrest, under shelf storage,
front and rear parking sensors...
"Styling":
aluminium gear lever knob, spoiler, styl-
ing strips, alloy wheels, trims, chromed
mirror shells, body kit...
*
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
"Security":
anti-theft alarm, window engraving,
wheel security bolts, child seats and
booster cushions, breathalyzer, fi rst aid
kit, warning triangle, high visibility jack-
et, stolen vehicle tracking system, tem-
porary puncture repair kit, snow chains,
non-slip covers, front foglamps kit...
"Protection":
mats * , seat covers compatible with lat-
eral airbags, aluminium or PVC door
aperture fi nishers...
