2011 PEUGEOT 207 Owners Manual

6
i
!
!
SAFETY
103

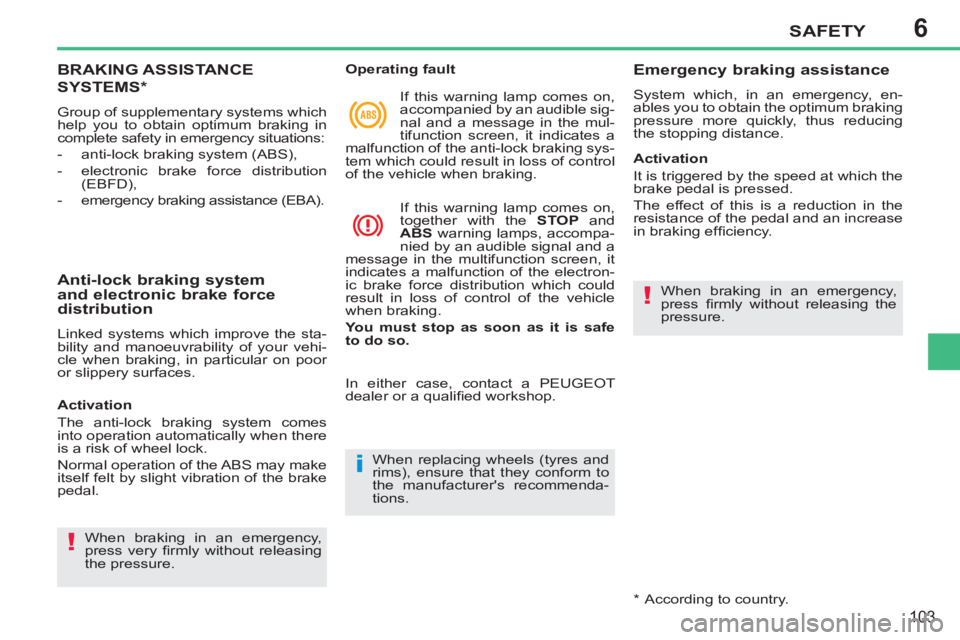

BRAKING ASSISTANCE
SYSTEMS *

Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution
(EBFD),

- emergency braking assistance (EBA).


Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.

When braking in an emergency,
press very fi rmly without releasing
the pressure.










Emergency braking assistance

System which, in an emergency, en-
ables you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.

Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.
Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.

*
According to country. When braking in an emergency,
press fi rmly without releasing the
pressure.

Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message in the mul-
tifunction screen, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning lamp comes on,
together with the STOP
and
ABS
warning lamps, accompa-
nied by an audible signal and a
message in the multifunction screen, it
indicates a malfunction of the electron-
ic brake force distribution which could
result in loss of control of the vehicle
when braking.

You must stop as soon as it is safe
to do so.

In either case, contact a PEUGEOT
dealer or a qualifi ed workshop.

When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommenda-
tions.

6
!
SAFETY
104

The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations on:


- wheels (tyres and rims),

- braking system components,

- electronic components,

- assembly and repair proce-
dures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer or a qualifi ed workshop.


Deactivation
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.

)
Press the "ESP OFF"
button, locat-
ed in the centre of the dashboard.

If this warning lamp comes on in the instru-
ment panel and the indicator lamp in the
button comes on, this indicates that the
ASR and ESP systems are deactivated.


Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h).


)
Press the "ESP OFF"
button again
to reactivate them manually.

TRAJECTORY CONTROL
SYSTEMS


Activation
These systems are activated automati-
cally each time the vehicle is started.

Anti-slip regulation (ASR) and
electronic stability programme
(ESP)
They come into operation in
the event of a grip or trajectory
problem.
This is indicated by fl ashing of
this warning lamp in the instru-
ment panel.



Steering/ESP coupling system
(SSP)

The anti-slip regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
This system optimises the stability of
the vehicle and its braking capacity by
combining the actions of the ESP and
electric power steering when braking on
surfaces on which the grip of the right-
hand and left-hand wheel differs.
It permits increased braking of the
wheels which are in contact with the
section of road offering the higher level
of grip and, anticipating the instability of
the vehicle, the application of a slight
correction to the turning angle of the
wheels to assist the driver in maintain-
ing his trajectory.



Operating fault

If this warning lamp comes on,
accompanied by an audible sig-
nal and a message in the multi-
function screen, this indicates a
malfunction of these systems.
Have them checked by a PEUGEOT
dealer or a qualifi ed workshop.

6SAFETY
105

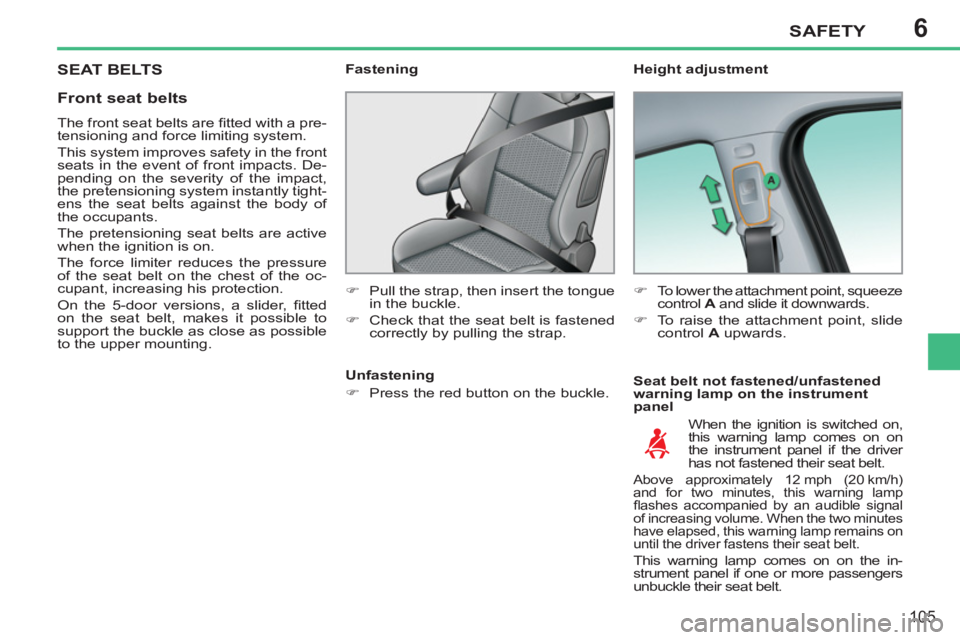

SEAT BELTS
Height adjustment

Seat belt not fastened/unfastened
warning lamp on the instrument
panel
Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


)
To lower the attachment point, squeeze
control A
and slide it downwards.

)
To raise the attachment point, slide
control A
upwards.


When the ignition is switched on,
this warning lamp comes on on
the instrument panel if the driver
has not fastened their seat belt.
Above approximately 12 mph (20 km/h)
and for two minutes, this warning lamp
fl ashes accompanied by an audible signal
of increasing volume. When the two minutes
have elapsed, this warning lamp remains on
until the driver fastens their seat belt.
This warning lamp comes on on the in-
strument panel if one or more passengers
unbuckle their seat belt.


Unfastening


)
Press the red button on the buckle.



Front seat belts

The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of front impacts. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the oc-
cupant, increasing his protection.
On the 5-door versions, a slider, fi tted
on the seat belt, makes it possible to
support the buckle as close as possible
to the upper mounting.

6SAFETY
106


1.
Front left seat belt warning lamp.

2.
Front right seat belt warning lamp.

3.
Rear left seat belt warning lamp.

4.
Rear centre seat belt warning lamp.

5.
Rear right seat belt warning lamp.
On the central panel, the corresponding
warning lamp 1
or 2
comes on in red if
the seat belt is not fastened or is unfas-
tened.
When the engine is running, the corre-
sponding warning lamp 1
or 2
comes on
in red, accompanied by an audible sig-
nal and a message on the multifunction
screen, if a front occupant has unfas-
tened their seat belt.

Seat belt not fastened/unfastened
warning lamp panel

Rear seat belts

The rear seats are fi tted with three,
three point, inertia reel seat belts.
Seat belt unfastened warning lamp
panel
When the ignition is switched on, the
corresponding warning lamps 3, 4
and 5

come on for approximately 30 seconds
in red if the seat belt is not fastened.
When the engine is running, the corre-
sponding warning lamp 3, 4
or 5
comes
on in red, accompanied by an audible
signal and a message on the multifunc-
tion screen, if a rear passenger has
unfastened their seat belt.

Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


Unfastening


)
Press the red button on the buckle.

6
i
SAFETY
107

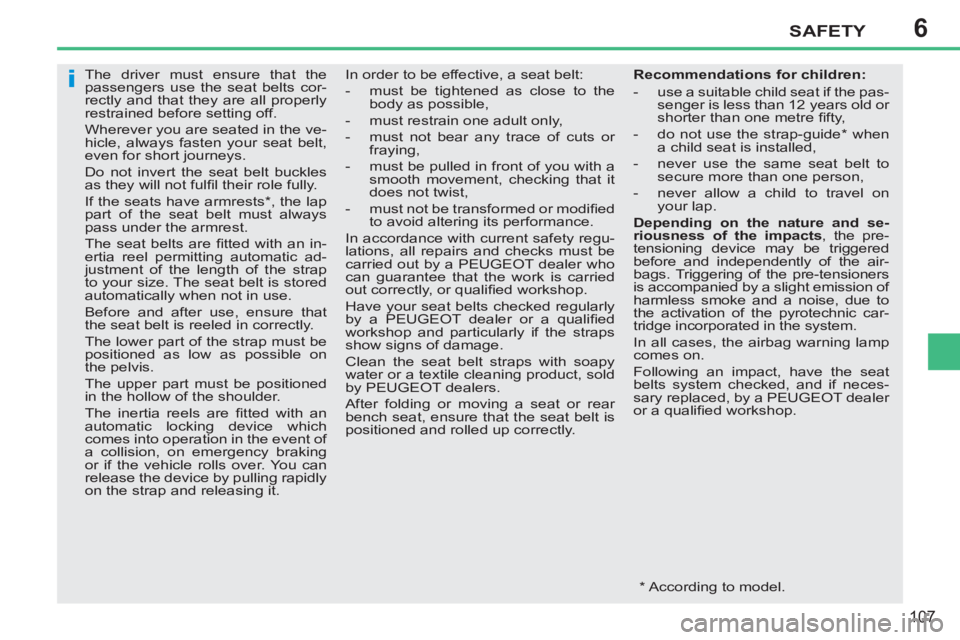

The driver must ensure that the
passengers use the seat belts cor-
rectly and that they are all properly
restrained before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
as they will not fulfi l their role fully.
If the seats have armrests * , the lap
part of the seat belt must always
pass under the armrest.
The seat belts are fi tted with an in-
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that
the seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on
the pelvis.
The upper part must be positioned
in the hollow of the shoulder.
The inertia reels are fi tted with an
automatic locking device which
comes into operation in the event of
a collision, on emergency braking
or if the vehicle rolls over. You can
release the device by pulling rapidly
on the strap and releasing it.

*
According to model. In order to be effective, a seat belt:


- must be tightened as close to the
body as possible,

- must restrain one adult only,

- must not bear any trace of cuts or
fraying,

- must be pulled in front of you with a
smooth movement, checking that it
does not twist,

- must not be transformed or modifi ed
to avoid altering its performance.
In accordance with current safety regu-
lations, all repairs and checks must be
carried out by a PEUGEOT dealer who
can guarantee that the work is carried
out correctly, or qualifi ed workshop.
Have your seat belts checked regularly
by a PEUGEOT dealer or a qualifi ed
workshop and particularly if the straps
show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt is
positioned and rolled up correctly.
Recommendations for children:


- use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one metre fi fty,

- do not use the strap-guide * when
a child seat is installed,

- never use the same seat belt to
secure more than one person,

- never allow a child to travel on
your lap.

Depending on the nature and se-
riousness of the impacts
, the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners
is accompanied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer
or a qualifi ed workshop.

6
i
!
SAFETY
108

AIRBAGS


The airbags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs (dur-
ing the same or a subsequent acci-
dent), the airbag will not operate.










Front airbags

System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

Operation
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact applied to all or part
of the front impact zone A
, in the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.
Deployment of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:


- in the case of a serious impact, the
airbags are deployed instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
impact, the airbags defl ate rapidly
so that they do not hinder visibility
or the exit of the occupants,

- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the
seat belt alone is suffi cient to pro-
vide optimum protection in these
situations.

6
!
!
SAFETY
109

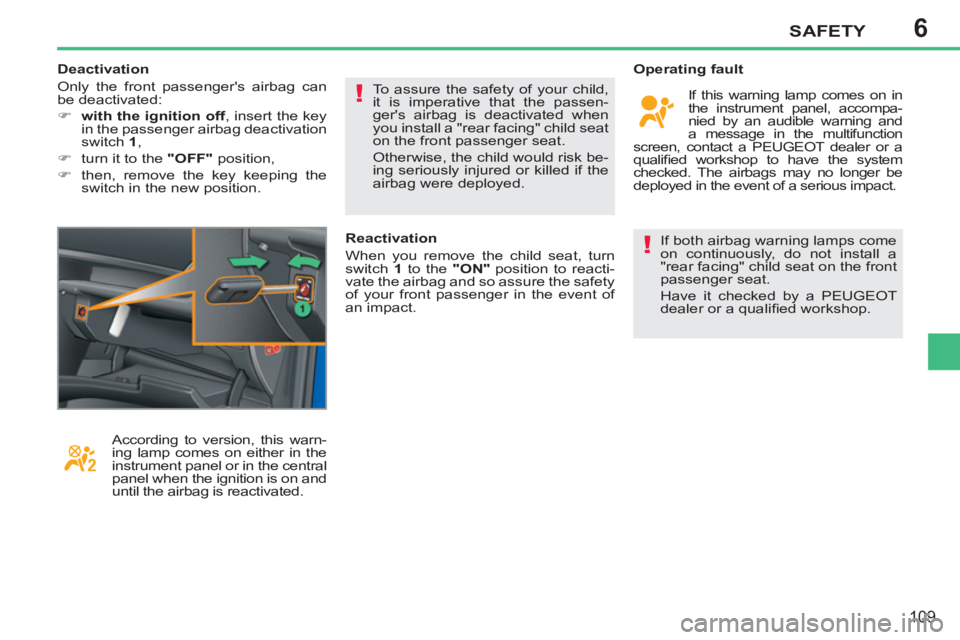

If both airbag warning lamps come
on continuously, do not install a
"rear facing" child seat on the front
passenger seat.
Have it checked by a PEUGEOT
dealer or a qualifi ed workshop.

Operating fault
If this warning lamp comes on in
the instrument panel, accompa-
nied by an audible warning and
a message in the multifunction
screen, contact a PEUGEOT dealer or a
qualifi ed workshop to have the system
checked. The airbags may no longer be
deployed in the event of a serious impact. To assure the safety of your child,
it is imperative that the passen-
ger's airbag is deactivated when
you install a "rear facing" child seat
on the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were deployed.
According to version, this warn-
ing lamp comes on either in the
instrument panel or in the central
panel when the ignition is on and
until the airbag is reactivated.
Reactivation
When you remove the child seat, turn
switch 1
to the "ON"
position to reacti-
vate the airbag and so assure the safety
of your front passenger in the event of
an impact.
Deactivation
Only the front passenger's airbag can
be deactivated:


)
with the ignition off
, insert the key
in the passenger airbag deactivation
switch 1
,

)
turn it to the "OFF"
position,

)
then, remove the key keeping the
switch in the new position.

6
!
SAFETY
110

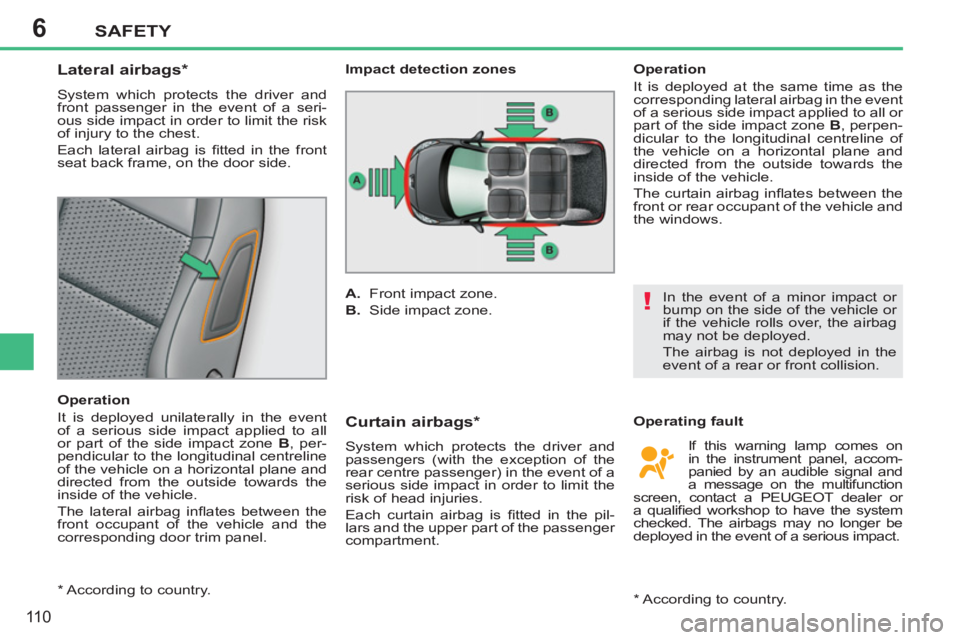

Lateral airbags *

System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the chest.
Each lateral airbag is fi tted in the front
seat back frame, on the door side.

Operation
It is deployed unilaterally in the event
of a serious side impact applied to all
or part of the side impact zone B
, per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
The lateral airbag infl ates between the
front occupant of the vehicle and the
corresponding door trim panel.


Curtain airbags *

System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of head injuries.
Each curtain airbag is fi tted in the pil-
lars and the upper part of the passenger
compartment. If this warning lamp comes on
in the instrument panel, accom-
panied by an audible signal and
a message on the multifunction
screen, contact a PEUGEOT dealer or
a qualifi ed workshop to have the system
checked. The airbags may no longer be
deployed in the event of a serious impact.


*
According to country.
Operating fault
Operation
It is deployed at the same time as the
corresponding lateral airbag in the event
of a serious side impact applied to all or
part of the side impact zone B
, perpen-
dicular to the longitudinal centreline of
the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be deployed.
The airbag is not deployed in the
event of a rear or front collision.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.



* According to country.
