2011 PEUGEOT 207 Owners Manual

2COMFORT
47

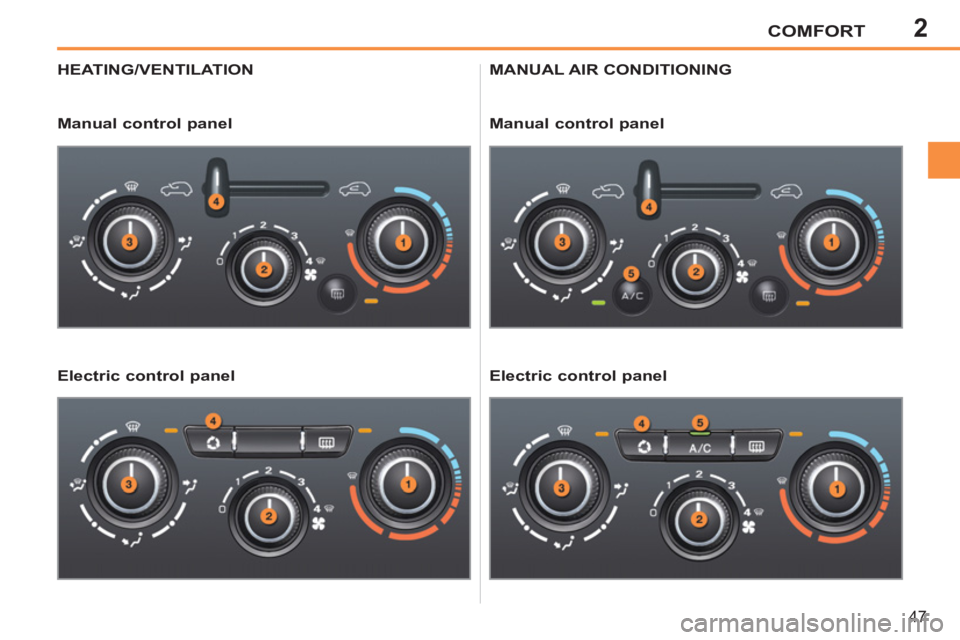

HEATING/VENTILATION

Manual control panel

Electric control panel MANUAL AIR CONDITIONING

Manual control panel

Electric control panel

2
i
COMFORT
48

2. Air fl ow adjustment


)
Turn the dial from position 1

to position 4
to obtain an
air fl ow suffi cient to ensure
your comfort. Windscreen, side windows
and footwells.
Footwells.
(vents closed)
Central and side vents.

)
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to suit your
requirements.
Windscreen and side windows.

1. Temperature adjustment
The air distribution can be
adapted by placing the dial
in an intermediate position,
marked by a dot "●".

HEATING/VENTILATION AND
MANUAL AIR CONDITIONING

The heating/ventilation or air condition-
ing systems can only operate when the
engine is running.
Manual control panel

4. Air intake/Air recirculation
The intake of exterior air prevents the
formation of mist on the windscreen and
side windows.
The recirculation of interior air prevents
exterior odours and smoke from enter-
ing the passenger compartment.
Return to exterior air intake mode as
soon as possible to avoid deterioration
of the air quality and prevent misting.
Electric control panel


Demisting/defrosting

To quickly demist or defrost the wind-
screen and side windows:


)
place the air intake control 4
in the
"Exterior air intake" position,

)
place the air distribution dial 3
in the
"Windscreen" position,

)
place the temperature dial 1
and the air
fl ow dial 2
in the maximum position,

)
close the central vents,

)
switch on the air conditioning by
pressing the "A/C"
button.
)
If you place the air fl ow control
in position 0
(deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl ow of air, due to the movement
of the vehicle, can still be felt.

3. Air distribution adjustment


)
Move the manual control to the right to
the "Interior air recirculation" position.

)
Move the manual control to the left
to return to the "Exterior air intake"
position.



)
Press the button to recircu-
late the interior air. This is
displayed by lighting of the
indicator lamp.

)
Press the button again to permit the
intake of exterior air. This is confi rmed
by the indicator lamp going off.

2
i
49

5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DEMIST -
DEFROST

)
Switch off the demisting/de-
frosting of the rear screen
and door mirrors as soon as
appropriate as lower current
consumption results in re-
duced fuel consumption.


If the engine is switched off before the
demisting/defrosting is switched off auto-
matically, demisting/defrosting will resume
next time the engine is switched on.

Switching on

The rear screen demisting/defrosting
can only operate when the engine is
running.


)
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indica-
tor lamp associated with the button
comes on.



Switching off

The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.


)
It is possible to stop the demisting/de-
frosting operation before it is switched
off automatically by pressing the but-
ton again. The indicator lamp associ-
ated with the button switches off. It enables you to:


- lower the temperature, in summer,

- increase the effectiveness of the
demisting, in winter above 0 °C.


Switching on


)
Press the "A/C"
button, the associ-
ated indicator lamp comes on.

The air conditioning does not op-
erate when the air fl ow adjustment
dial 2 is in position "0".



Switching off


)
Press the "A/C"
button again, the as-
sociated indicator lamp switches off.

2
i
i
COMFORT
50
When the engine is cold, to pre-
vent too great a distribution of cold
air, the air fl ow will only reach its
optimum level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, the side windows and the
footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the val-
ue displayed in order to obtain
the required level of comfort. The
system corrects the temperature
difference automatically and as
quickly as possible. The air conditioning can only operate
with the engine running.
The driver and his front pas-
senger can each set the
temperature to suit their re-
quirements.

)
Turn dial 2
or 3
to the left to reduce
the value or to the right to increase it.
A setting around 21 enables you to ob-
tain an optimum level of comfort. De-
pending on your requirements, a setting
between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.

4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice...).


)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.

Automatic operation



)
Press the "AUTO"
button.
The "AUTO"
symbol is dis-
played.

2. Driver's side adjustment
DUAL-ZONE DIGITAL AIR CONDITIONING

We recommend that you use this mode:
it provides optimised automatic con-
trol of all of the functions, passenger
compartment temperature, air fl ow, air
distribution and air recirculation, in ac-
cordance with the comfort value that
you have selected.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
1. Automatic comfort programme

3. Passenger's side adjustment

2
i
!
!
COMFORT
51


)
To exit this programme, press the
"visibility"
button again or the "AUTO"

button, the indicator lamp on the button
switches off and "AUTO"
is displayed.




)
Press this button to switch
the air conditioning off.
6. Air distribution adjustment


)
Press this button several
times in succession to direct
the air fl ow in turn towards:

7. Air fl ow adjustment


)
Press the "small fan"
but-
ton to reduce the air fl ow.

8. Air intake/Air recirculation


Deactivation of the system



)
Press the "small fan"
button until
the fan symbol disappears.
This action deactivates all of the func-
tions of the air conditioning system.
The temperature is no longer main-
tained at a comfortable level. However,
a slight fl ow of air, due to the movement
of the vehicle, can still be felt.


)
Press the "large fan"
button again
or the "AUTO"
button to reactivate
the system with the values which
were set before it was deactivated.


)
Press this button to recircu-
late the interior air. The air
recirculation symbol is dis-
played.
5. Air conditioning On/Off
Avoid driving for too long with the
air conditioning deactivated. Avoid prolonged operation in inte-
rior air recirculation mode (risk of
condensation and of deterioration
of the air quality).


- the windscreen, the side windows
and the footwells,

- the windscreen and side windows
(demisting or defrosting),

- the central and side vents,

- the central vents, the side vents and
the footwells,

- the footwells.



)
Press the "large fan"
but-
ton to increase the air fl ow.
The air fl ow symbol, the fan, is fi lled in
progressively in relation to the value re-
quired. Air recirculation prevents exterior odours
and smoke from entering the passenger
compartment.


)
As soon as possible, press this but-
ton again to permit the intake of
exterior air and prevent misting.
For maximum cooling or heating of
the passenger compartment, you
can exceed the minimum value of
14 or the maximum value of 28.


)
Turn dial 2
or 3
to the left un-
til "LO"
is displayed or to the
right until "HI"
is displayed.


Resuming manual control

Depending on your requirements, you
can make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically.



)
Press the "AUTO"
button to return
to fully automatic operation.
Switching the system off may result in
discomfort (humidity, condensation).


)
Press the button again to return to
automatic operation of the air con-
ditioning. The symbol " A/C " is dis-
played.

2
52
FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.

1. Forwards-backwards adjustment


)
Lift the control and slide the seat for-
wards or backwards.

2. Driver's or passenger's seat
height adjustment


)
Pull the handle upwards or push it
downwards as many times as neces-
sary to obtain the required position.

3. Seat back angle adjustment


)
Push the handle towards the rear.

2
!
!
53
No person or object must prevent
the seat slide from returning to its
initial position; return to this posi-
tion is necessary for the seat to
lock in place.
Take care not to trap the seat belt
to avoid hindering the passage of
the rear passengers.

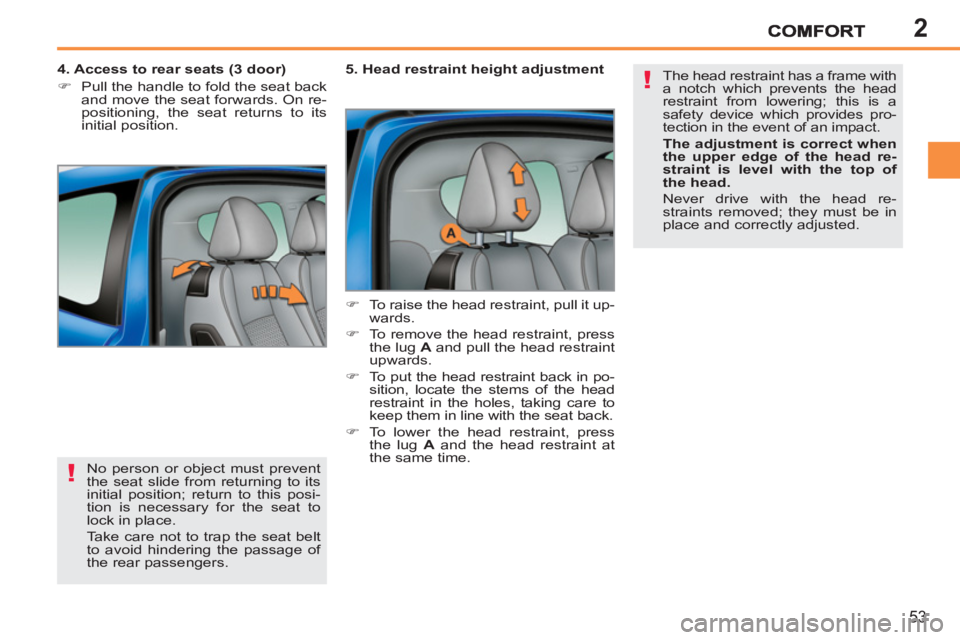

4. Access to rear seats (3 door)


)
Pull the handle to fold the seat back
and move the seat forwards. On re-
positioning, the seat returns to its
initial position.
5. Head restraint height adjustment


)
To raise the head restraint, pull it up-
wards.

)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.

)
To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.

)
To lower the head restraint, press
the lug A
and the head restraint at
the same time. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.

The adjustment is correct when
the upper edge of the head re-
straint is level with the top of
the head.

Never drive with the head re-
straints removed; they must be in
place and correctly adjusted.

2
!
i
COMFORT
54

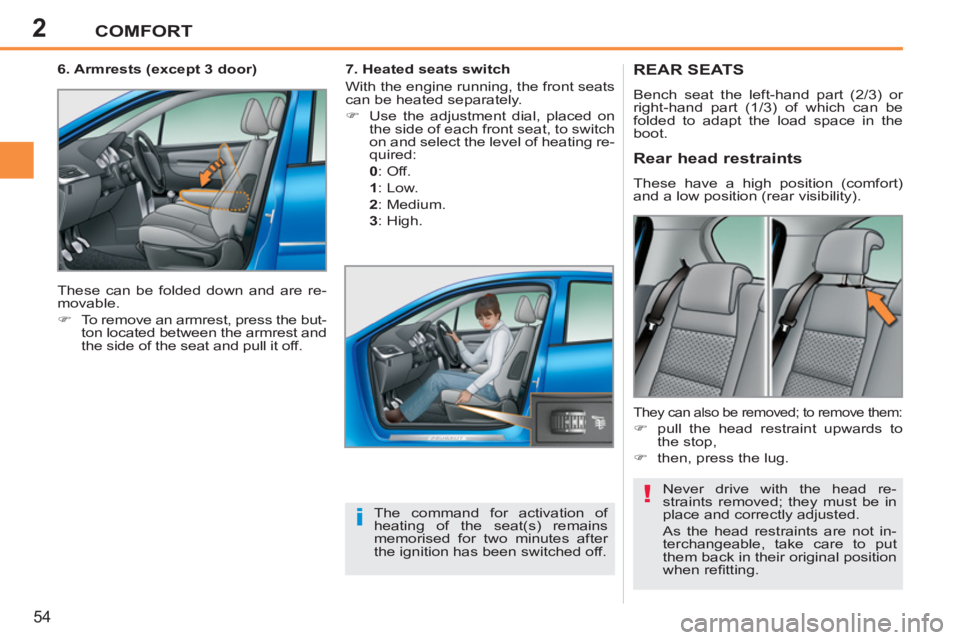

REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot.
Never drive with the head re-
straints removed; they must be in
place and correctly adjusted.
As the head restraints are not in-
terchangeable, take care to put
them back in their original position
when refi tting.


Rear head restraints

These have a high position (comfort)
and a low position (rear visibility).
The command for activation of
heating of the seat(s) remains
memorised for two minutes after
the ignition has been switched off.

7. Heated seats switch
With the engine running, the front seats
can be heated separately.


)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0
:
Off.

1
:
Low.

2
:
Medium.

3
:
High.

They can also be removed; to remove them:



)
pull the head restraint upwards to
the stop,

)
then, press the lug.
6. Armrests (except 3 door)
These can be folded down and are re-
movable.


)
To remove an armrest, press the but-
ton located between the armrest and
the side of the seat and pull it off.
