2011 PEUGEOT 207 weight
[x] Cancel search: weightPage 5 of 248
3
CONTENTS
Direction indicators 101Emergency or assistance call 101Hazard warning lamps 102Horn 102Braking assistance systems 103Trajectory control systems 104Seat belts 105Airbags 108
„ „ „ „ „ „ „ „
SAFETY 101 Î111
Parking brake 112Manual gearbox 112Gear shift indicator 113Automatic gearbox 114Speed limiter 117Cruise control 119Parking sensors 121
„ „ „ „ „ „ „
DRIVING 112 Î122
Bonnet 124Running out of fuel (Diesel) 124Petrol engines 126Diesel engines 127Checking levels 128Checks 130
„ „ „ „ „ „
CHECKS123 Î 131
Temporary puncture repair kit 13t2Changing a wheel 137Changing a bulb 142Changing a fuse 148Battery 153Energy economy mode 155Changing a wiper blade 155Towing the vehicle 156Towing a trailer 158Fitting roof bars 159Accessories 160
„ „ „ „ „ „ „ „ „ „ „
PRACTICAL
INFORMATION 132 Î161
Petrol engines 162Petrol weights 164
Diesel engines 170Diesel weights 171Dimensions 174
Identifi cation markings 175
„ „ „ „ „ „
TECHNICALD ATA162 Î 175
AUDIO EQUIPMENT andTELEMATICS 176 Î234
Emergency or assistance 177Peugeot Connect Navigation 179Peugeot Connect Sound 213
„ „ „
ALPHABETICAL
INDEX 240 Î 243
7
86
9
10
VISUALSEARCH 235 Î239
Page 31 of 248
1
i
i
INSTRUMENTS and CONTROLS
29
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving
habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.
Example:
the service is overdue by
300 km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains
on
.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
)
switch off the ignition,
)
press and hold the trip distance re-
corder zero reset button,
)
switch on the ignition; the distance
recorder display begins a count-
down,
)
when the display indicates "=0"
, release
the button; the spanner disappears.
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi ve minutes for the zero reset to
be taken into account.
Page 92 of 248
5
i
CHILD SAFETY
90
PEUGEOT recommends
that
children should travel in the rear
seats
of your vehicle:
- "rearwards-facing"
up to the
age of 2,
- "forwards-facing"
over the
age of 2.

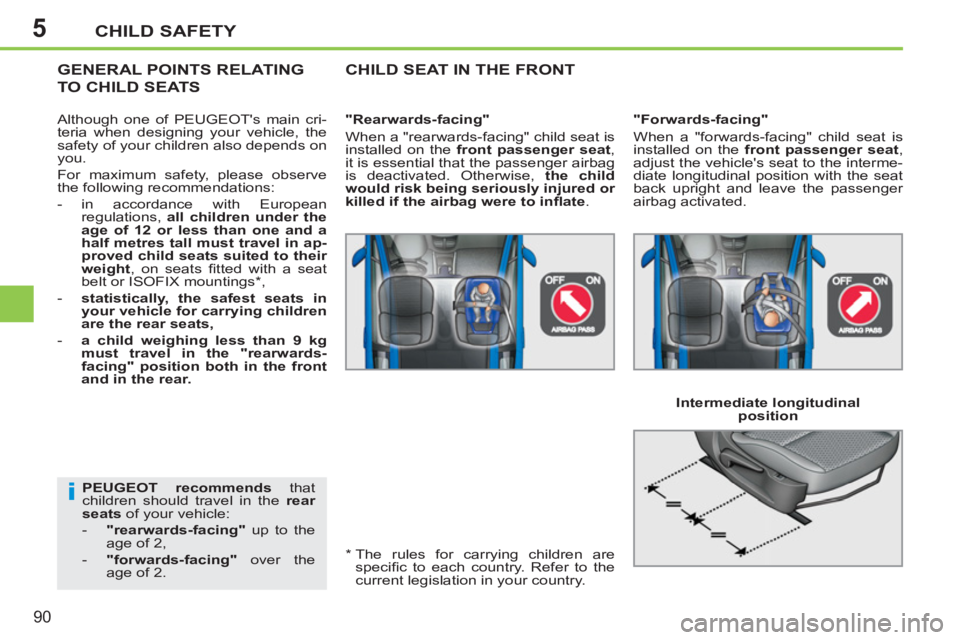

GENERAL POINTS RELATING
TO CHILD SEATS
CHILD SEAT IN THE FRONT
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.
*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European
regulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
Intermediate longitudinal
position
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
Page 95 of 248
5CHILD SAFETY
93

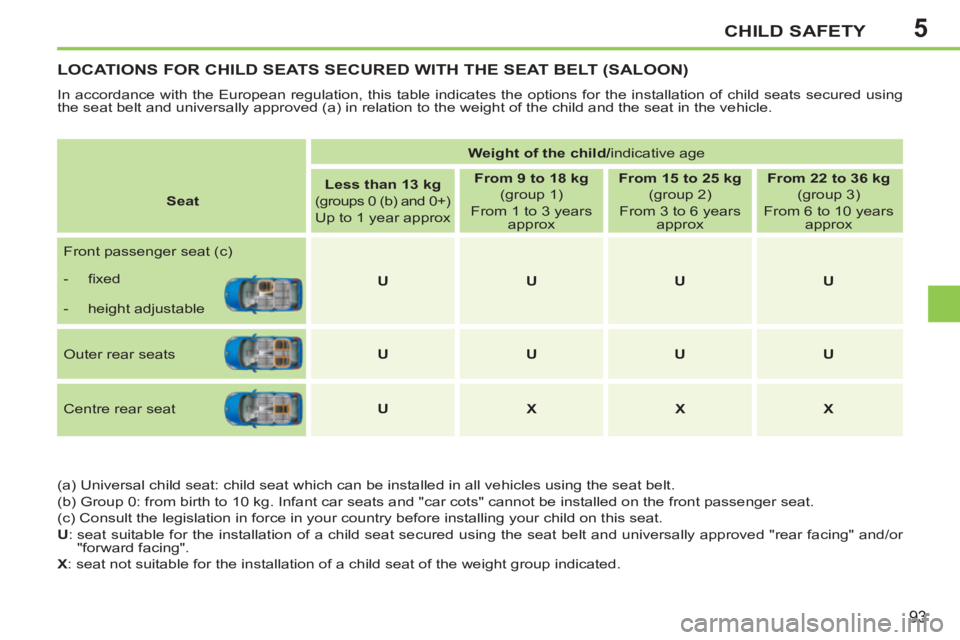

LOCATIONS FOR CHILD SEATS SECURED WITH THE SEAT BELT (SALOON)
In accordance with the European regulation, this table indicates the options for the installation of child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".
X
: seat not suitable for the installation of a child seat of the weight group indicated.
Weight of the child/
indicative age
Seat
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years
approx
From 15 to 25 kg
(group 2)
From 3 to 6 years
approx
From 22 to 36 kg
(group 3)
From 6 to 10 years
approx
Front passenger seat (c)
U
U
U
U
- fi xed
- height adjustable
Outer rear seats
U
U
U
U
Centre rear seat
U
X
X
X
Page 96 of 248
5CHILD SAFETY
94

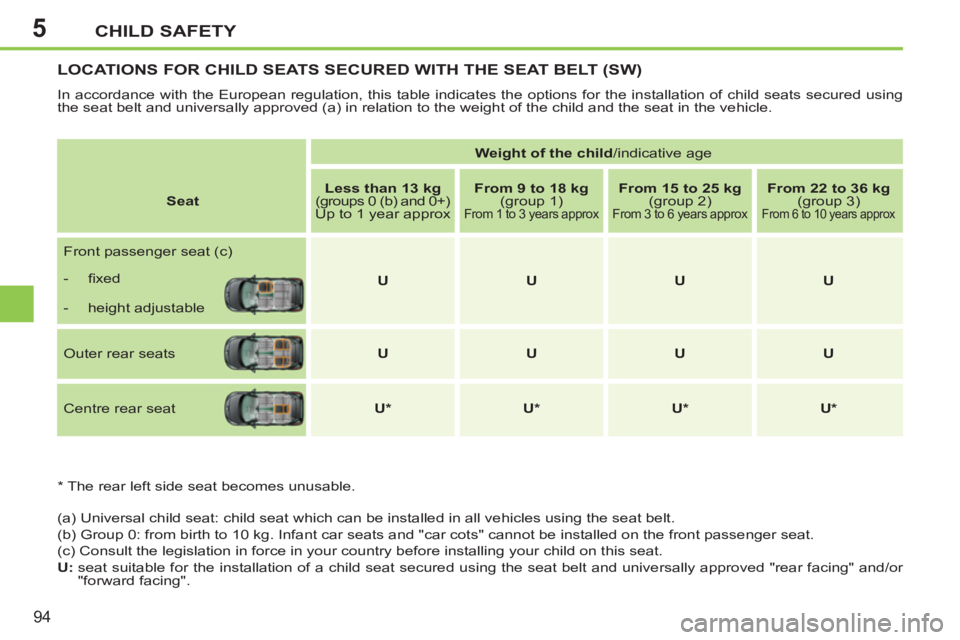

LOCATIONS FOR CHILD SEATS SECURED WITH THE SEAT BELT (SW)
In accordance with the European regulation, this table indicates the options for the installation of child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U:
seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".
Weight of the child
/indicative age
Seat
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
U
U
U
U
- fi xed
- height adjustable
Outer rear seats
U
U
U
U
Centre rear seat
U *
U *
U *
U *
*
The rear left side seat becomes unusable.
Page 100 of 248
5CHILD SAFETY
98

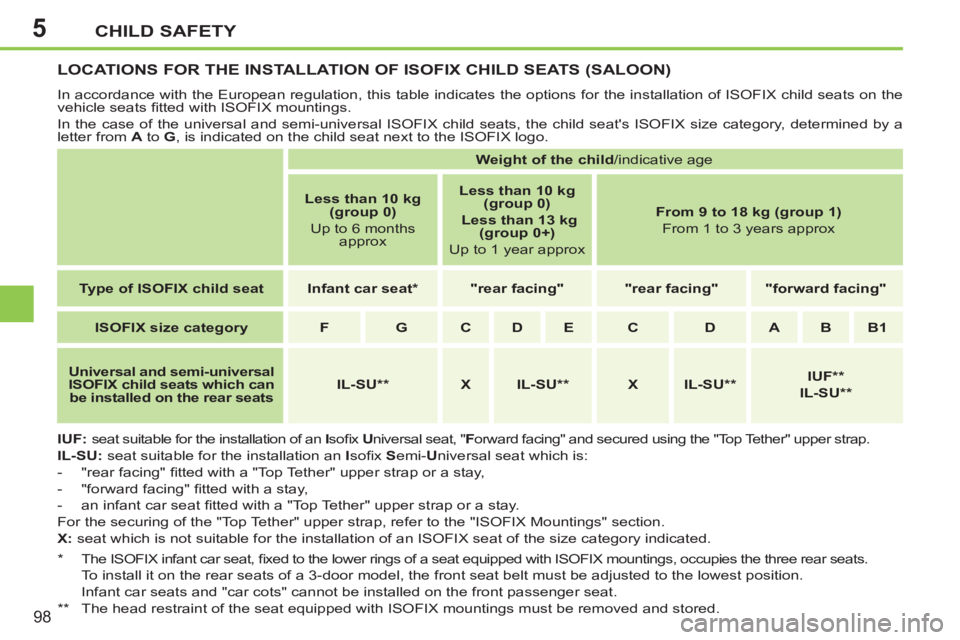

LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SALOON)
In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
vehicle seats fi tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a
letter from A
to G
, is indicated on the child seat next to the ISOFIX logo.
IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" and secured using the "Top Tether" upper strap.
IL-SU:
seat suitable for the installation an I
sofi x S
emi- U
niversal seat which is:
- "rear facing" fi tted with a "Top Tether" upper strap or a stay,
- "forward facing" fi tted with a stay,
- an infant car seat fi tted with a "Top Tether" upper strap or a stay.
For the securing of the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.
X:
seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
Weight of the child
/indicative age
Less than 10 kg
(group 0)
Up to 6 months
approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat
Infant car seat *
"rear facing"
"rear facing"
"forward facing"
ISOFIX size category
F
G
C
D
E
C
D
A
B
B1
Universal and semi-universal
ISOFIX child seats which can
be installed on the rear seats
IL-SU **
X
IL-SU **
X
IL-SU **
IUF **
IL-SU **
*
The ISOFIX infant car seat, fi xed to the lower rings of a seat equipped with ISOFIX mountings, occupies the three rear seats.
To install it on the rear seats of a 3-door model, the front seat belt must be adjusted to the lowest position.
Infant car seats and "car cots" cannot be installed on the front passenger seat.
**
The head restraint of the seat equipped with ISOFIX mountings must be removed and stored.
Page 101 of 248
5CHILD SAFETY
99

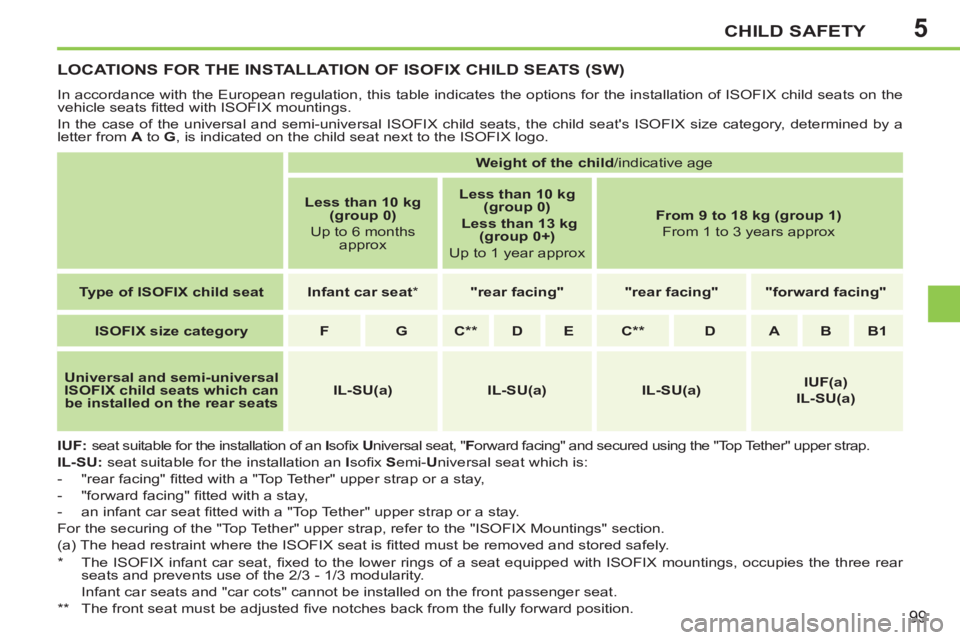

LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SW)
In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
vehicle seats fi tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a
letter from A
to G
, is indicated on the child seat next to the ISOFIX logo.
IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" and secured using the "Top Tether" upper strap.
IL-SU:
seat suitable for the installation an I
sofi x S
emi- U
niversal seat which is:
- "rear facing" fi tted with a "Top Tether" upper strap or a stay,
- "forward facing" fi tted with a stay,
- an infant car seat fi tted with a "Top Tether" upper strap or a stay.
For the securing of the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.
(a) The head restraint where the ISOFIX seat is fi tted must be removed and stored safely.
Weight of the child
/indicative age
Less than 10 kg
(group 0)
Up to 6 months
approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat
Infant car seat
*
"rear facing"
"rear facing"
"forward facing"
ISOFIX size category
F
G
C **
D
E
C **
D
A
B
B1
Universal and semi-universal
ISOFIX child seats which can
be installed on the rear seats
IL-SU(a)
IL-SU(a)
IL-SU(a)
IUF(a)
IL-SU(a)
*
The ISOFIX infant car seat, fi xed to the lower rings of a seat equipped with ISOFIX mountings, occupies the three rear
seats and prevents use of the 2/3 - 1/3 modularity.
Infant car seats and "car cots" cannot be installed on the front passenger seat.
**
The front seat must be adjusted fi ve notches back from the fully forward position.
Page 158 of 248
9
i
i
PRACTICAL INFORMATION
156

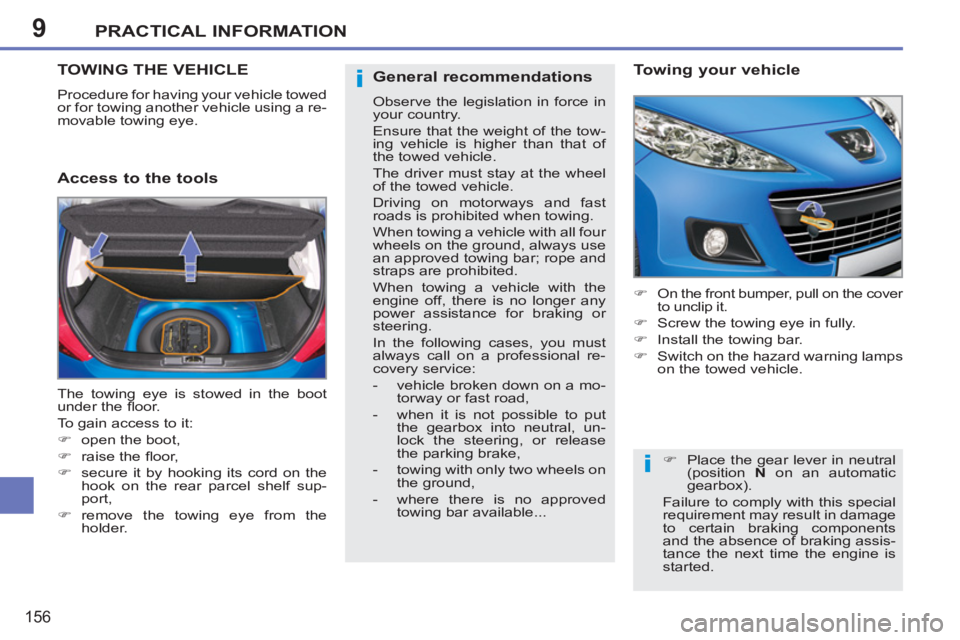

TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools
Towing your vehicle
)
On the front bumper, pull on the cover
to unclip it.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
The towing eye is stowed in the boot
under the fl oor.
To gain access to it:
)
open the boot,
)
raise the fl oor,
)
secure it by hooking its cord on the
hook on the rear parcel shelf sup-
port,
)
remove the towing eye from the
holder.
)
Place the gear lever in neutral
(position N
on an automatic
gearbox).
Failure to comply with this special
requirement may result in damage
to certain braking components
and the absence of braking assis-
tance the next time the engine is
started.
General recommendations
Observe the legislation in force in
your country.
Ensure that the weight of the tow-
ing vehicle is higher than that of
the towed vehicle.
The driver must stay at the wheel
of the towed vehicle.
Driving on motorways and fast
roads is prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use
an approved towing bar; rope and
straps are prohibited.
When towing a vehicle with the
engine off, there is no longer any
power assistance for braking or
steering.
In the following cases, you must
always call on a professional re-
covery service:
- vehicle broken down on a mo-
torway or fast road,
- when it is not possible to put
the gearbox into neutral, un-
lock the steering, or release
the parking brake,
- towing with only two wheels on
the ground,
- where there is no approved
towing bar available...
