2011 MITSUBISHI OUTLANDER SPORT Owners Manual

3-144 Features and controls
3
To reset The “---” display can be reset while the ignition switch or the
operation mode is in OFF. When the display is reset, the time
until the next periodic inspection is displayed and the warning
display is no longer displayed when the ignition switch is
switched from the “LOCK” position to the “ON” position or
the operation mode is changed from OFF to ON.
1. When you lightly press the multi-information meter
switch, the information screen switches to the service
reminder display screen.2. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ ” and make it
flash. (If there is no operation for about 10 seconds with
this indicator flashing, the display returns to the previous
screen.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the screen switches from “---”
to “CLEAR”. After that, the time until the next periodic
inspection is shown.Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0120400US.book 144 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-145
3
NOTE
The “---” display cannot be reset while the ignition switch
or the operation mode is in ON.

When “---” is displayed, after a certain distance and a cer-
tain period of time, the display is reset and the time until
the next periodic inspection is displayed.

If you accidentally reset the display, consult an authorized
Mitsubishi Motors dealer for assistance.
Door ajar warning display screen (With ignition
switch or operation mode is in ON)
N00555700132
Ty p e 1
Ty p e 2
If any of the doors or the liftgate is not completely closed, this
displays the open door or liftgate.
If the speed increases to about 5 mph (8 km/h) or higher with a
door ajar, a tone will sound 4 times to inform you that a door is
ajar.
CAUTION
!
The customer is responsible for making sure that
regular inspections and maintenance and periodic
inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
CAUTION
!
Always make sure that the warning display goes out
before beginning to drive.
BK0120400US.book 145 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-146 Features and controls
3

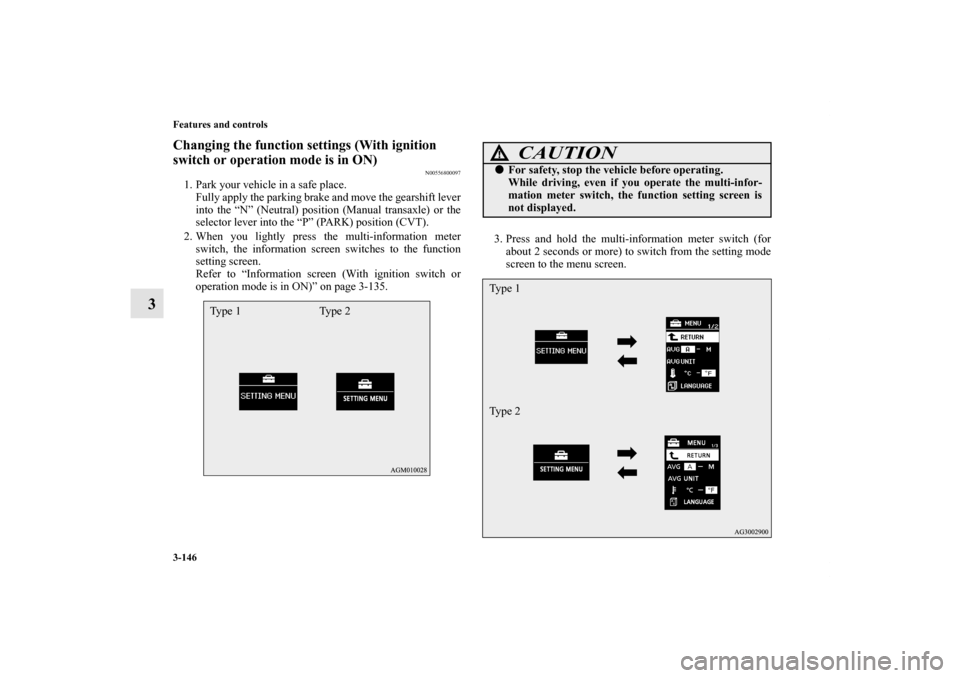

Changing the function settings (With ignition
switch or operation mode is in ON)
N00556800097
1. Park your vehicle in a safe place.
Fully apply the parking brake and move the gearshift lever
into the “N” (Neutral) position (Manual transaxle) or the
selector lever into the “P” (PARK) position (CVT).
2. When you lightly press the multi-information meter
switch, the information screen switches to the function
setting screen.
Refer to “Information screen (With ignition switch or
operation mode is in ON)” on page 3-135.3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Ty p e 1 Ty p e 2
CAUTION
!
For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.Type 1
Type 2
BK0120400US.book 146 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-147
3
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections .
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-147.
Refer to “Changing the fuel consumption display unit” on
page 3-149.
Refer to “Changing the temperature unit” on page 3-151.
Refer to “Changing the display language” on page 3-152.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-153.
Refer to “Operation sound setting” on page 3-154.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-155.
Refer to “Changing the turn signal sound” on page 3-156.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-157.
Refer to “Returning to the factory settings” on page 3-
158.
Changing the reset mode for average fuel consumption
and average speed
N00557000139
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset.”
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-146.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0120400US.book 147 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-148 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset) → M (Manual reset) → A (Auto reset).
The setting is changed to the selected reset condition.Manual reset mode

If you press and hold the multi-information meter switch
when the average fuel consumption and average speed are
displayed, these calculations will be reset to zero.

When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “LOCK” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode

When the average fuel consumption and average speed
are being displayed, if you hold down the multi-informa-
tion meter switch, these calculations will be reset to zero.

When the engine switch or the operation mode is in the
following conditions, the average fuel consumption dis-
play and the average speed display will automatically
reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “LOCK”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been in ACC or OFF for about 4
hours or more.Type 1
Type 2
BK0120400US.book 148 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-149
3
NOTE
Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average speed display and average fuel consumption dis-
play.

The initial (default) setting is “Auto reset mode”.Changing the fuel consumption display unit
N00557100143
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-146.2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).
Type 1
Type 2
BK0120400US.book 149 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-150 Features and controls
3

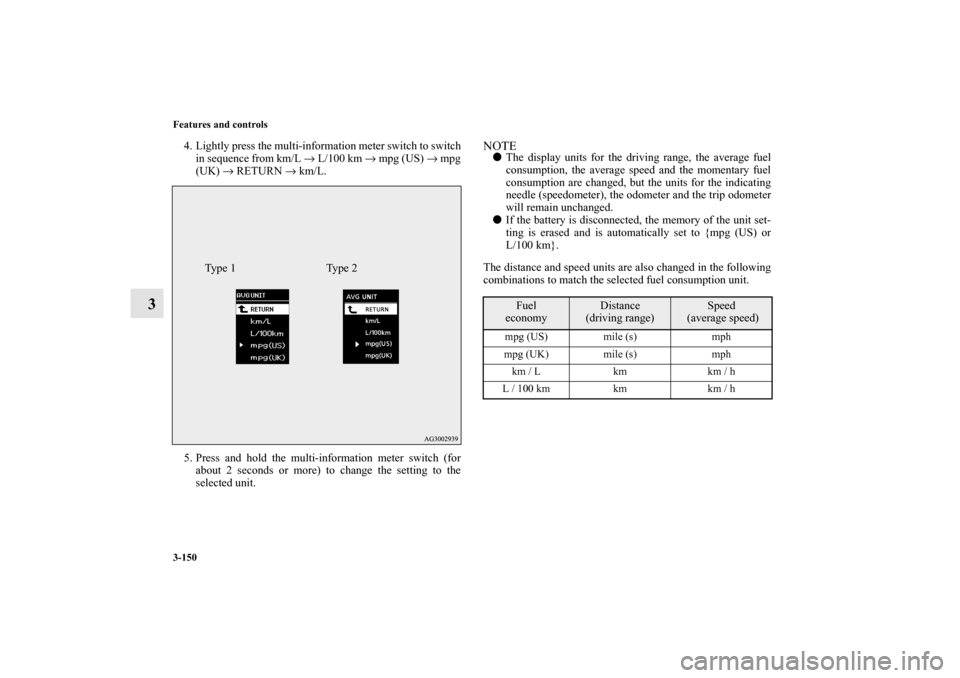

4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
NOTE
The display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.

If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Type 1 Type 2
Fuel
economy
Distance
(driving range)
Speed
(average speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
BK0120400US.book 150 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-151
3

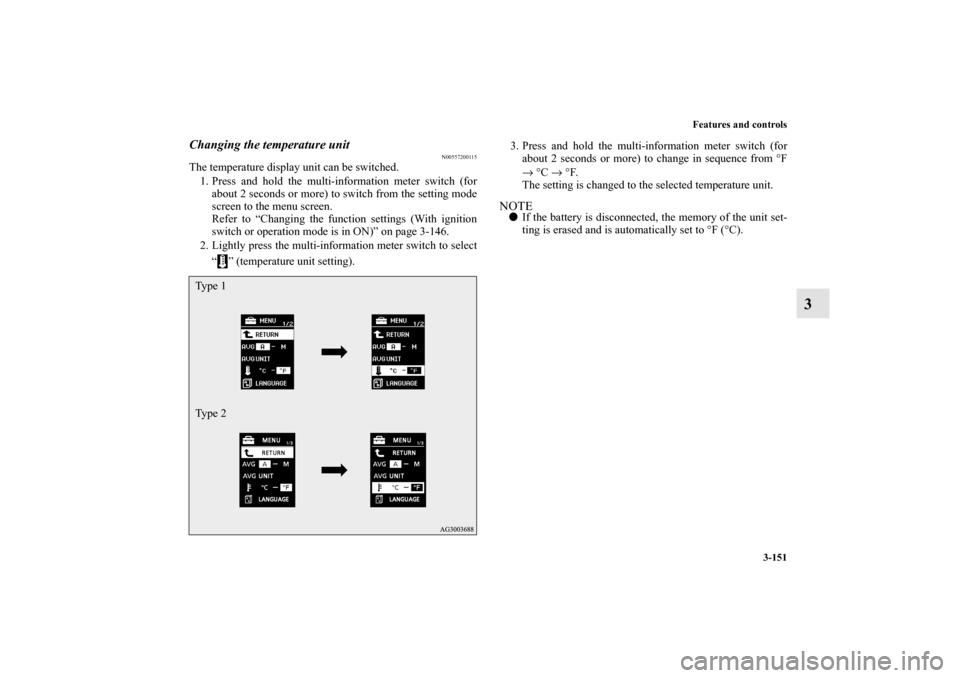

Changing the temperature unit
N00557200115
The temperature display unit can be switched.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-146.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.
NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).
Ty p e 1
Ty p e 2
