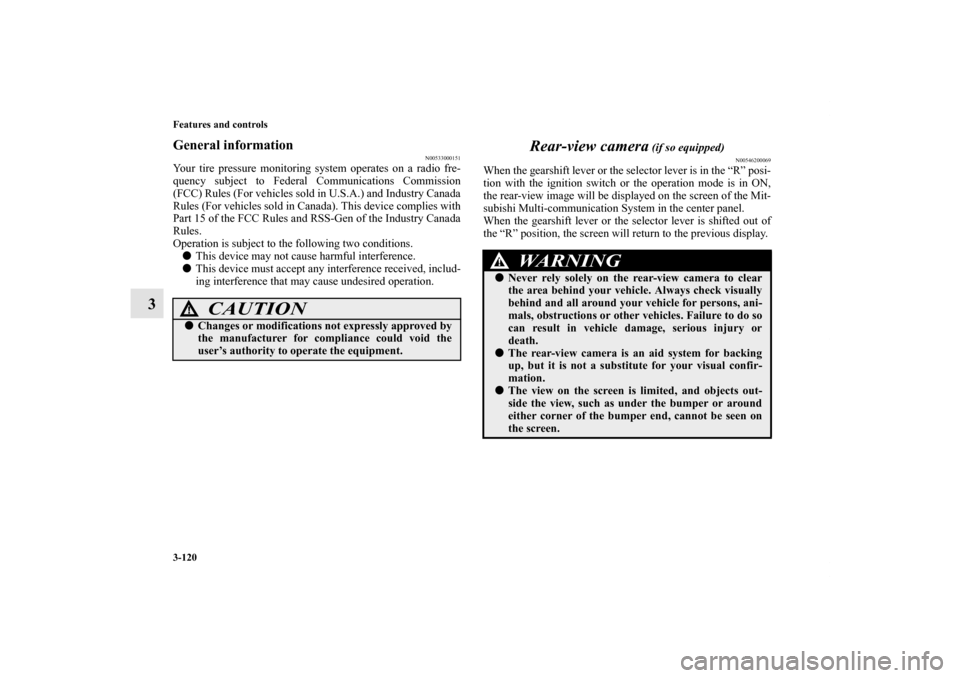

General information
N00533000151
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS-Gen of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Rear-view camera
(if so equipped)
N00546200069
When the gearshift lever or the selector lever is in the “R” posi-
tion with the ignition switch or the operation mode is in ON,
the rear-view image will be displayed on the screen of the Mit-
subishi Multi-communication System in the center panel.
When the gearshift lever or the selector lever is shifted out of
the “R” position, the screen will return to the previous display.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
WA R N I N G
!
Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the screen is limited, and objects out-
side the view, such as under the bumper or around
either corner of the bumper end, cannot be seen on
the screen.
BK0120400US.book 120 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-121
3

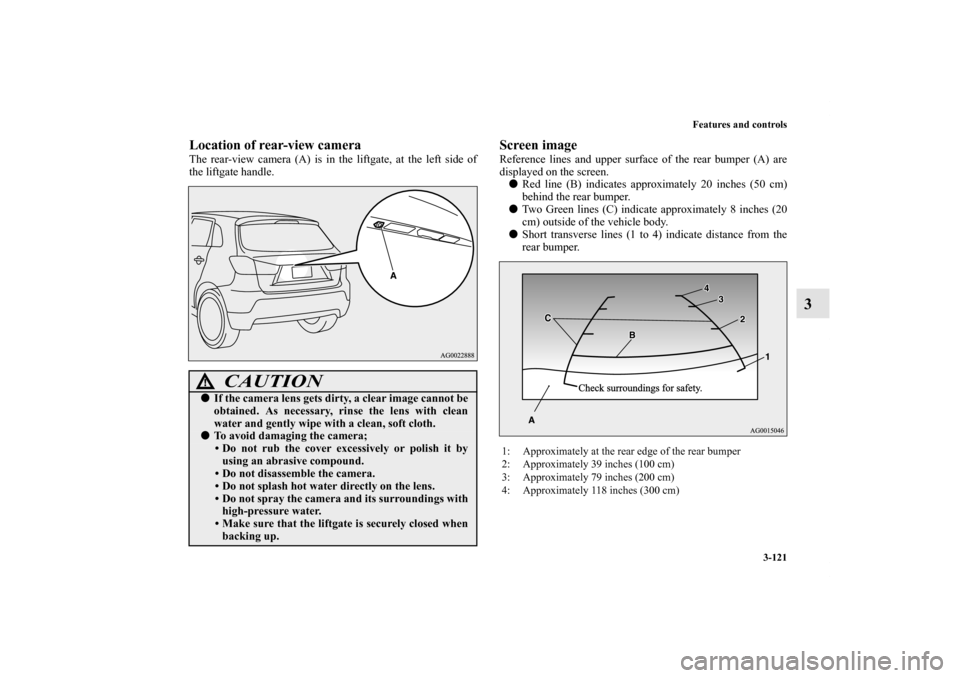

Location of rear-view cameraThe rear-view camera (A) is in the liftgate, at the left side of
the liftgate handle.
Screen imageReference lines and upper surface of the rear bumper (A) are
displayed on the screen.

Red line (B) indicates approximately 20 inches (50 cm)
behind the rear bumper.

Two Green lines (C) indicate approximately 8 inches (20
cm) outside of the vehicle body.

Short transverse lines (1 to 4) indicate distance from the
rear bumper.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
• Make sure that the liftgate is securely closed when
backing up.
1: Approximately at the rear edge of the rear bumper
2: Approximately 39 inches (100 cm)
3: Approximately 79 inches (200 cm)
4: Approximately 118 inches (300 cm)
BK0120400US.book 121 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-122 Features and controls
3
NOTE
Mirror image is displayed on the screen.

It is possible to set the display language of the screen to
English, Spanish or French.
For details, please refer to the separated owner’s manual
for “Mitsubishi Multi-Communication System”.

Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
→ When the camera picks up extremely bright light,
such as sunlight reflected off the rear bumper, a bright
vertical line may appear on the screen.
Instrument cluster
N00519000346
CAUTION
!
The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the screen are
not exact.
Actual distance may be different from distance indi-
cated by the lines on the screen, depending on the
loading condition of the vehicle and road surface
condition.
1- Tachometer → P.3-124
2- Multi-information display → P. 3 - 1 2 6
Information screen display list → P.3-161
3- Speedometer → P. 3 - 1 2 3
4- Rheostat meter illumination button → P.3-124
BK0120400US.book 122 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-123
3
Speedometer
N00519100204

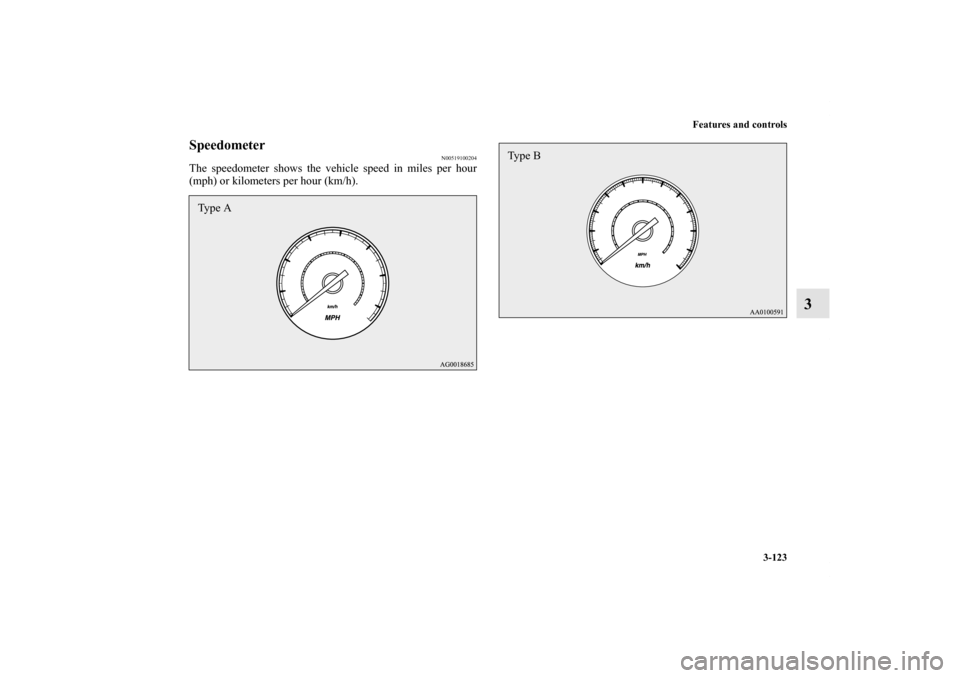

The speedometer shows the vehicle speed in miles per hour
(mph) or kilometers per hour (km/h).Type A
Type B
BK0120400US.book 123 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-124 Features and controls
3
Tachometer
N00519200263
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient selector posi-
tion and engine speed combinations.
This gauge also assists in evaluating engine performance.
Rheostat meter illumination button
N00554900140
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.NOTE
You can adjust to 8 different levels respectively for when
the front side-marker and parking lights are illuminated
and when they are not.

If the vehicle is equipped with the automatic light control,
when the light switch is in a position other than the “OFF”
position, the meter illumination switches automatically to
the adjusted brightness, depending on the brightness out-
side the vehicle.

The brightness level of the instruments is stored when the
ignition switch is turned to the “LOCK” position or the
operation mode is put in OFF.

If you press and hold the button for longer than about 1
second when the front side-marker and parking lights are
illuminated, the brightness level changes to the maximum
level. Pressing and holding the button for longer than
about 1 second again returns the brightness level to the
previous level.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct shift position (manual transaxle)
or selector position (CVT) to control the engine
speed so that the tachometer indicator does not
enter the red zone.
BK0120400US.book 124 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-125
3

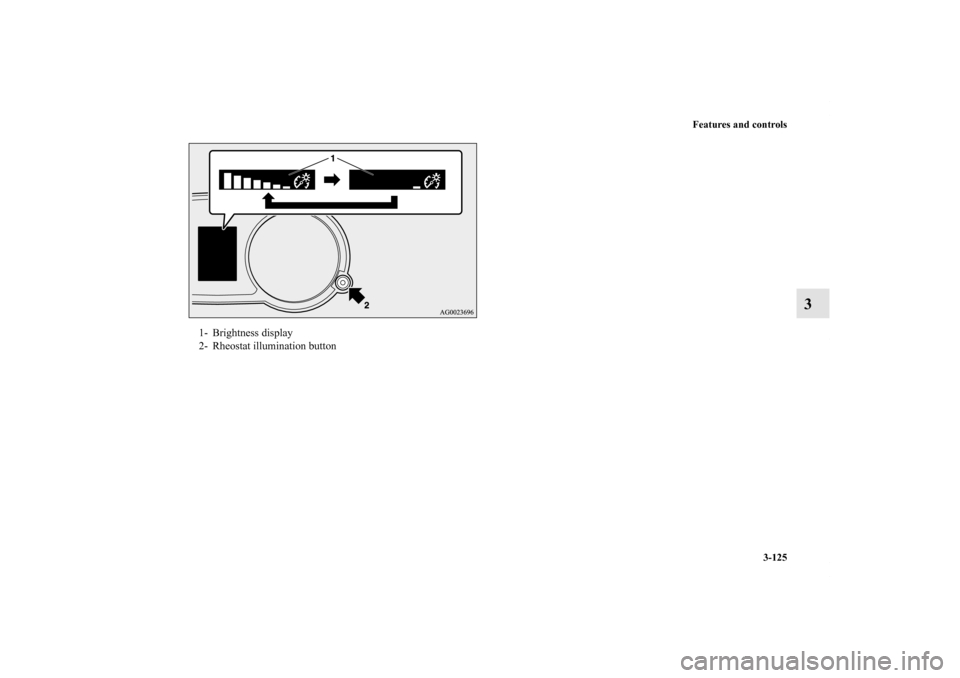

1- Brightness display
2- Rheostat illumination button
BK0120400US.book 125 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-126 Features and controls
3Multi-information display
N00555000180
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, all-wheel drive operation status, average and momentary fuel consumption,
driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch or
operation mode is in OFFWith ignition switch or operation
mode is in ON (CVT)
Type 1 Type 2With ignition switch or operation
mode is in ON (Manual transaxle)
Type 1 Type 2 Type 1 Type 2
1-
Warning display screen (With ignition switch or opera-
tion mode in OFF) →P.3-134
2- Information screen (With ignition switch or operation mode
in OFF) → P.3-128
Interrupt display screen (With ignition switch or operation
mode in OFF) → P. 3 - 1 3 1
3- Door ajar warning display screen (With ignition switch or
operation mode in OFF) → P.3-132
4- Drive mode indicator display screen (if so equipped)
→ P. 3 - 1 3 4
5-
Warning display screen (With ignition switch or opera-
tion mode in ON) → P.3-128
6- Active stability control (ASC) OFF display screen (if so
equipped) → P.3-134
7- Information screen (With ignition switch or operation mode
in ON) → P. 3 - 1 3 5
Interrupt display screen (With ignition switch or operation
mode in ON) → P. 3 - 1 4 0
8- Selector lever position display screen (if so equipped) →
P. 3 - 1 4 1
9- Outside temperature display screen → P.3-141
