2011 MITSUBISHI OUTLANDER SPORT Owners Manual

3-248 Features and controls
3

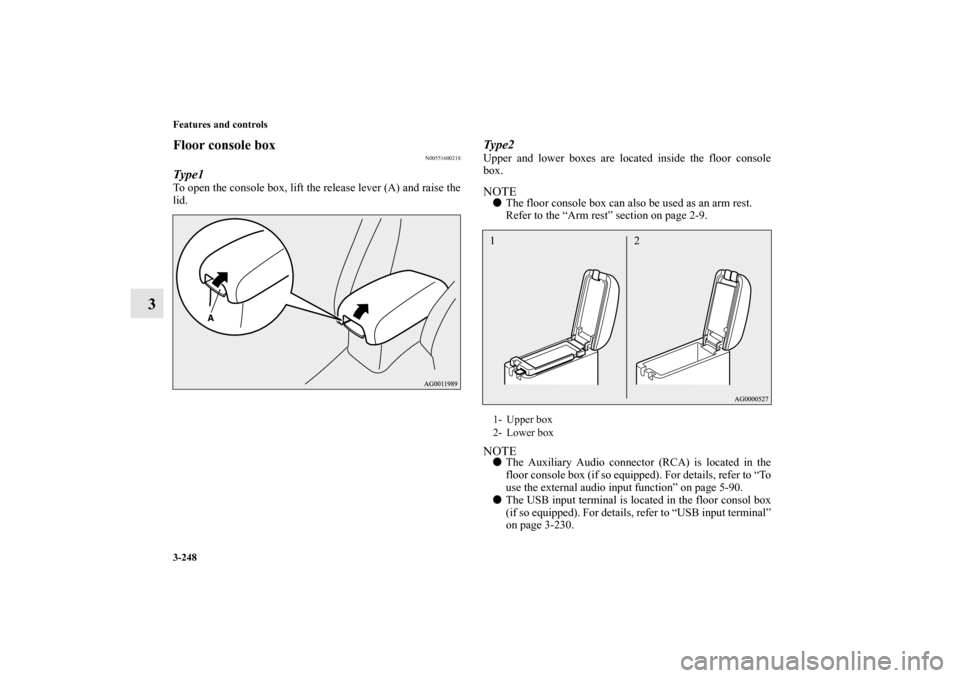

Floor console box
N00551600218
Type1To open the console box, lift the release lever (A) and raise the
lid.
Type2Upper and lower boxes are located inside the floor console
box.NOTE
The floor console box can also be used as an arm rest.
Refer to the “Arm rest” section on page 2-9.NOTE
The Auxiliary Audio connector (RCA) is located in the
floor console box (if so equipped). For details, refer to “To
use the external audio input function” on page 5-90.

The USB input terminal is located in the floor consol box
(if so equipped). For details, refer to “USB input terminal”
on page 3-230.1- Upper box
2- Lower box12
BK0120400US.book 248 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-249
3

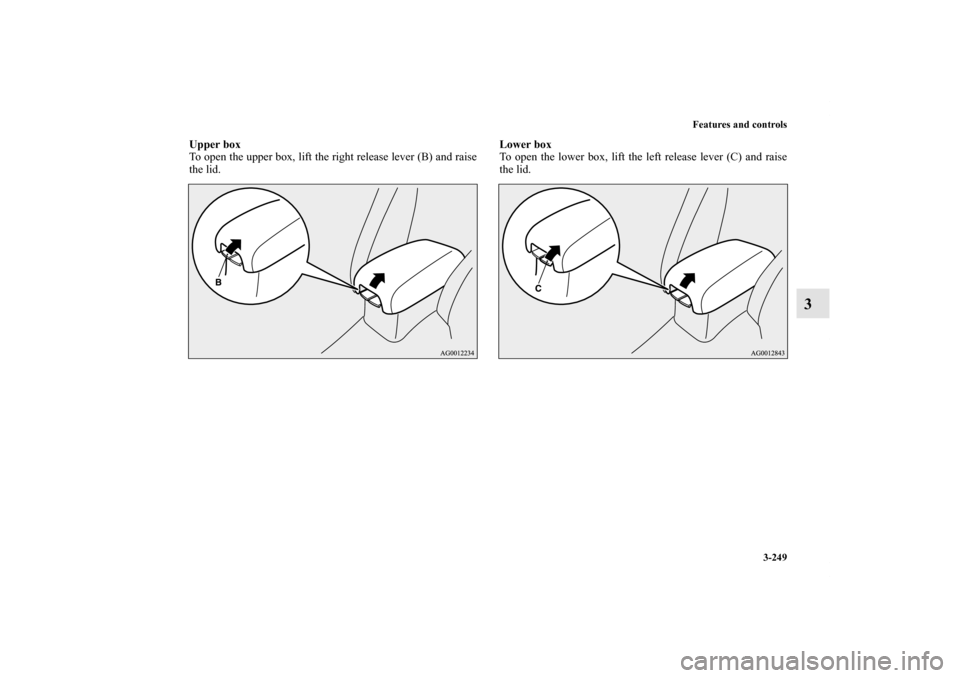

Upper box
To open the upper box, lift the right release lever (B) and raise
the lid.Lower box
To open the lower box, lift the left release lever (C) and raise
the lid.
BK0120400US.book 249 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-250 Features and controls
3

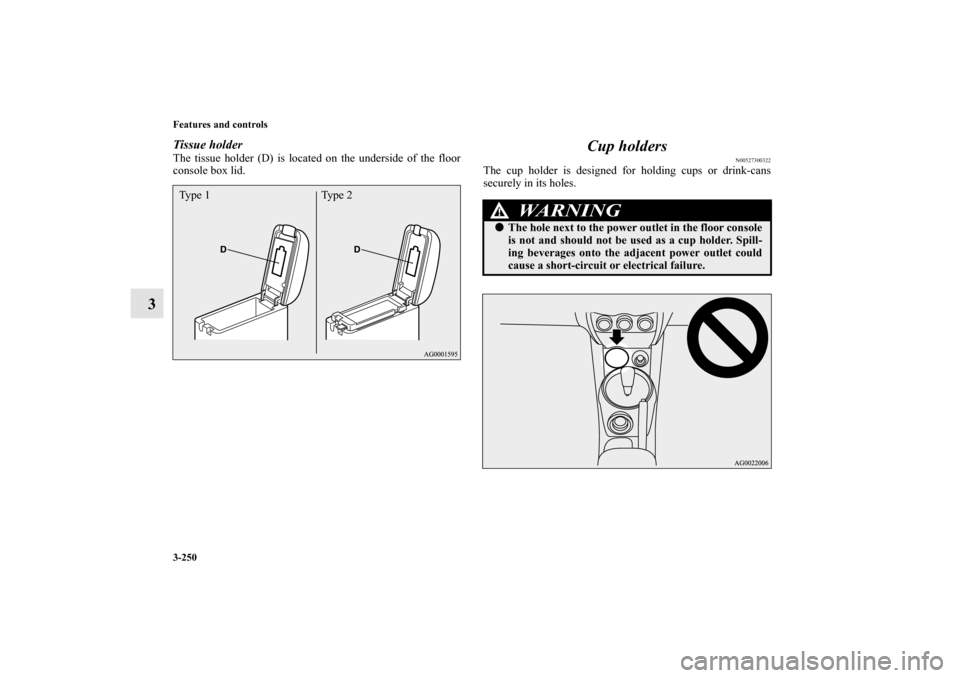

Tissue holderThe tissue holder (D) is located on the underside of the floor
console box lid.
Cup holders
N00527300322
The cup holder is designed for holding cups or drink-cans
securely in its holes.
Type 1 Type 2
WA R N I N G
!
The hole next to the power outlet in the floor console
is not and should not be used as a cup holder. Spill-
ing beverages onto the adjacent power outlet could
cause a short-circuit or electrical failure.
BK0120400US.book 250 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-251
3

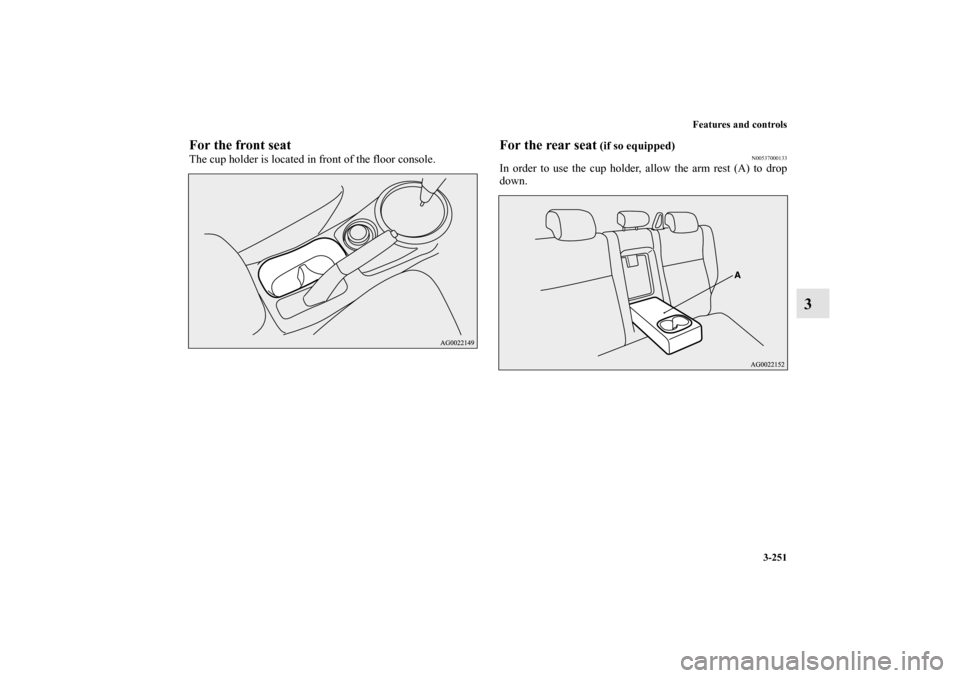

For the front seatThe cup holder is located in front of the floor console.
For the rear seat
(if so equipped)
N00537000133
In order to use the cup holder, allow the arm rest (A) to drop
down.
BK0120400US.book 251 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-252 Features and controls
3Bottle holders
N00527300335
There are bottle holders located on the front doors.NOTE
Make sure all lids are tightly closed when storing bever-
ages that are in plastic bottles, etc.

Some beverages may not be stored, depending on the size
and shape of the plastic bottles, etc.
Cargo area cover
(if so equipped)
N00528300130
To install1. Insert the concave portion (A) on the underside of the
cargo area cover into the inside protruding portion (B) of
the liftgate.
CAUTION
!
Drink beverages while driving your vehicle is dis-
tracting and can cause an accident.
Vibration and shaking while driving may cause bev-
erages to spill. Be very careful, as spilling hot bever-
ages could cause burns.
CAUTION
!
Do not place luggage or other items on the cargo
area cover. Any items on the cargo area cover would
obstruct your rearward view, and they could fly for-
ward and cause injuries or other mishap in the event
of hard braking.
BK0120400US.book 252 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-253
3
2. Hang the strap (C) of the cargo area cover on the hook
(D).To removeFollow this procedure in reverse to remove.
Assist grips
N00559000045
The assist grips (located above the doors on the headliner) are
not designed to support body weight. They are intended for use
only while seated in the vehicle.
CAUTION
!
Lightly push the cargo area cover to make sure that
the concave portion (A) is set firmly in the protrud-
ing portion (B) of the liftgate. If the cargo area cover
is not securely locked in place, it could unhook while
driving and cause injuries.
CAUTION
!
Do not use the assist grips when getting into or out
of the vehicle. The assist grips could detach causing
you to fall.
BK0120400US.book 253 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-254 Features and controls

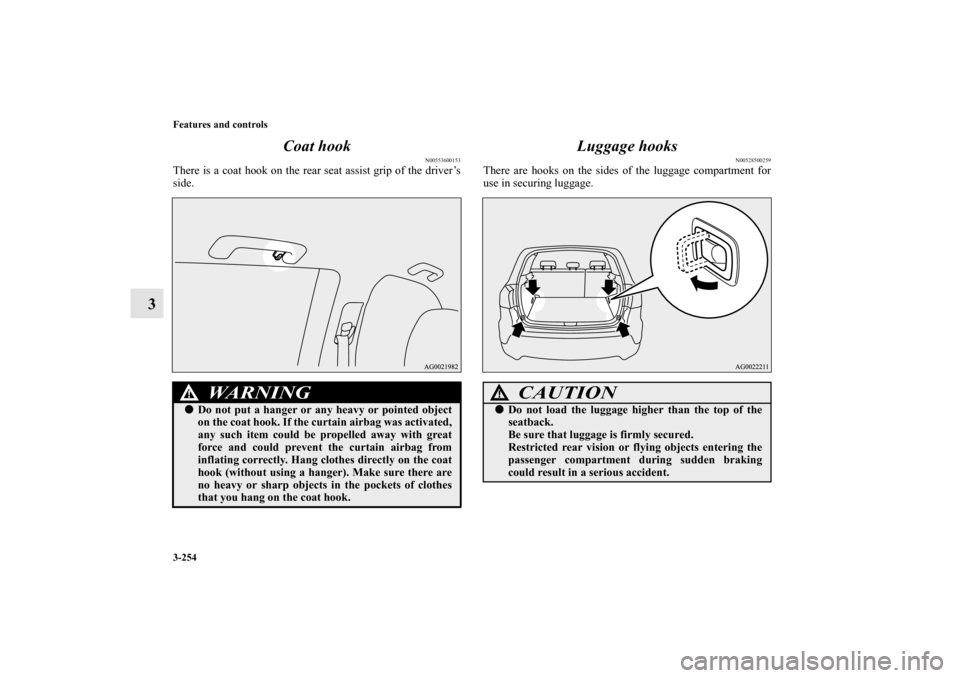

3Coat hook
N00553600153
There is a coat hook on the rear seat assist grip of the driver’s
side.
Luggage hooks
N00528500259
There are hooks on the sides of the luggage compartment for
use in securing luggage.
WA R N I N G
!
Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain airbag was activated,
any such item could be propelled away with great
force and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on the coat
hook (without using a hanger). Make sure there are
no heavy or sharp objects in the pockets of clothes
that you hang on the coat hook.
CAUTION
!
Do not load the luggage higher than the top of the
seatback.
Be sure that luggage is firmly secured.
Restricted rear vision or flying objects entering the
passenger compartment during sudden braking
could result in a serious accident.
BK0120400US.book 254 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
