2011 MITSUBISHI OUTLANDER SPORT Owners Manual

3-232 Features and controls
3
4. Connect the connector cable (C) to the USB input termi-
nal (D).
NOTE
Do not connect the USB memory device to the USB input
terminal directly.
The USB memory device may be damaged.

When closing the floor console box, be careful not to trap
the connector cable.
5. To remove the connector cable, turn the ignition switch to
the “LOCK” position or put the operation mode in OFF
first and perform the installation steps in reverse.
CAUTION
!
Keep the lid of the floor console box closed while
driving the vehicle. A lid or the contents of the floor
console box could otherwise cause injuries.
BK0120400US.book 232 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-233
3
How to connect an iPod
N00566900033
1. Park your vehicle in a safe place and turn the ignition
switch to the “LOCK” position or put the operation mode
in OFF.
2. Open the USB input terminal cover (A) in the floor con-
sole box.3. Connect the Dock connector (C) to the iPod (B).
NOTE
Use a genuine Dock connector from Apple Inc.
BK0120400US.book 233 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-234 Features and controls
3
4. Connect the Dock connector (C) to the USB input termi-
nal (D).NOTE
When closing the floor console box, be careful not to trap
the connector cable.
5. To remove the Dock connector, turn the ignition switch to
the “LOCK” position or put the operation mode in OFF
first and perform the installation steps in reverse.
Types of connectable devices and supported file
specifications
N00567000015
Device types
N00567100029
Devices of the following types can be connected.
*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are
registered trademarks of Apple Inc. in the United States and
other countries.
CAUTION
!
Keep the lid of the floor console box closed while
driving the vehicle. A lid or the contents of the floor
console box could otherwise cause injuries.
Model name
Condition
USB memory deviceStorage capacity of 256 Mbytes
or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)* F/W Ver.1.1.2 or later
Models other than USB mem-
ory devices and iPodsDigital audio player supporting
mass storage class
BK0120400US.book 234 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-235
3
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

Use the iPod whose firmware has been updated to the lat-
est version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch or the operation
mode is in ON or ACC.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “LOCK” position or putting the
operation mode in OFF.
File specifications
N00567200017
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class.Item
Condition
File format MP3, WMA, AAC, WAV
Maximum number of levels
(including the root)Level 8
Number of folders 700
Number of files 65,535
BK0120400US.book 235 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

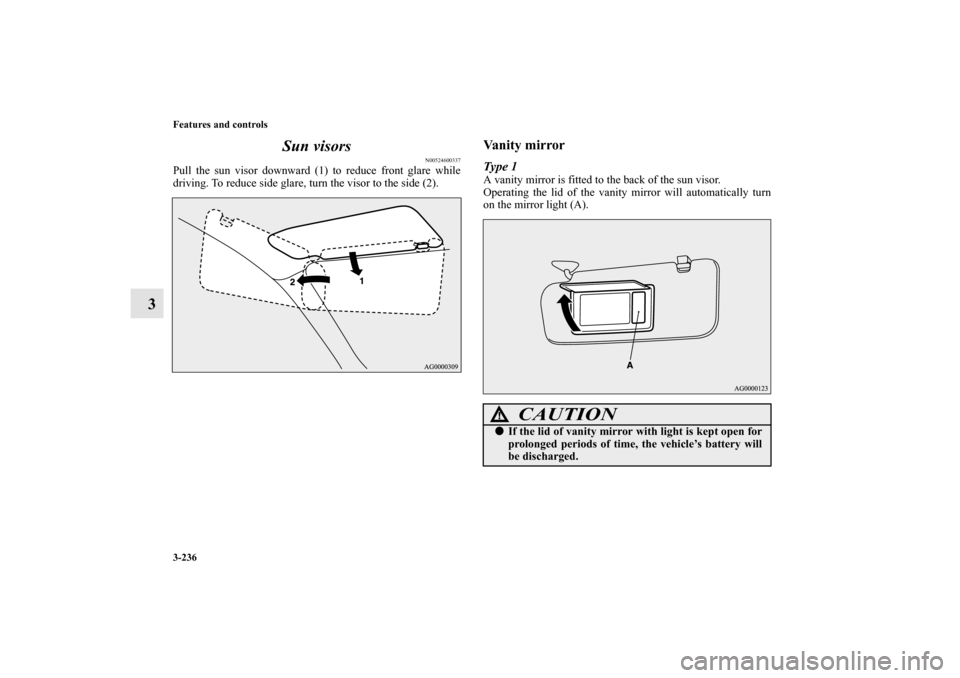

3-236 Features and controls
3Sun visors
N00524600337
Pull the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Vanity mirrorType 1A vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will automatically turn
on the mirror light (A).
CAUTION
!
If the lid of vanity mirror with light is kept open for
prolonged periods of time, the vehicle’s battery will
be discharged.
BK0120400US.book 236 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

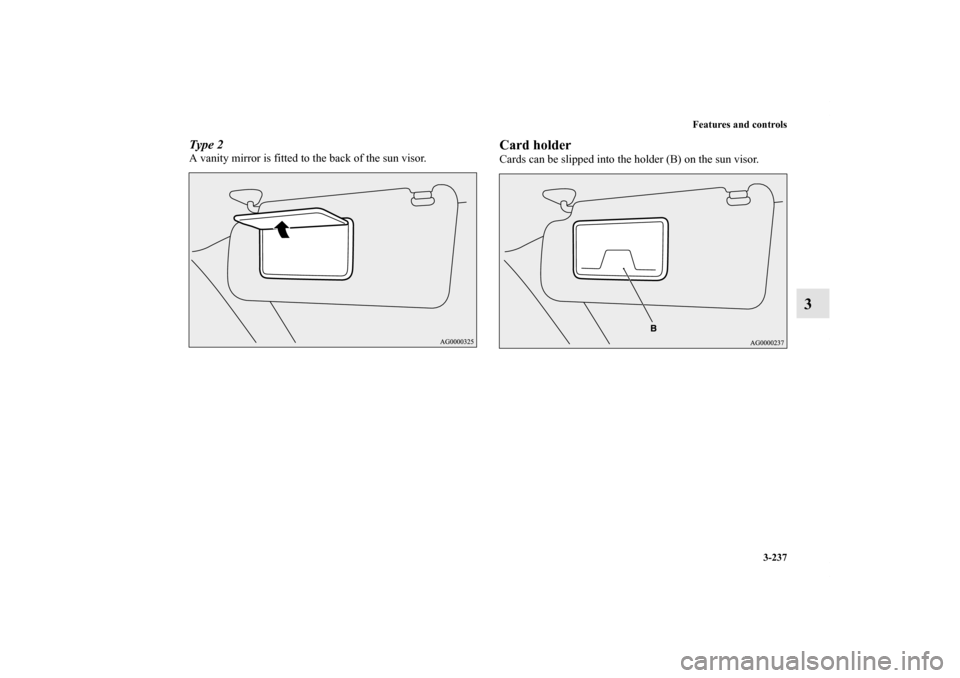

Features and controls
3-237
3
Type 2A vanity mirror is fitted to the back of the sun visor.
Card holderCards can be slipped into the holder (B) on the sun visor.
BK0120400US.book 237 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

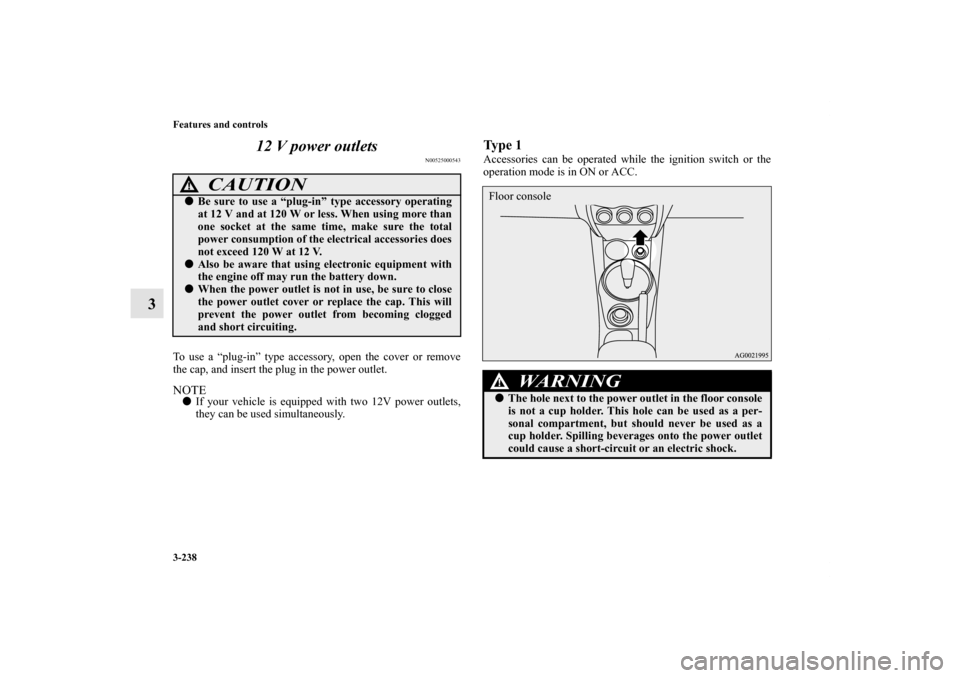

3-238 Features and controls
312 V power outlets
N00525000543
To use a “plug-in” type accessory, open the cover or remove
the cap, and insert the plug in the power outlet.NOTE
If your vehicle is equipped with two 12V power outlets,
they can be used simultaneously.
Ty p e 1Accessories can be operated while the ignition switch or the
operation mode is in ON or ACC.
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and at 120 W or less. When using more than
one socket at the same time, make sure the total
power consumption of the electrical accessories does
not exceed 120 W at 12 V.
Also be aware that using electronic equipment with
the engine off may run the battery down.
When the power outlet is not in use, be sure to close
the power outlet cover or replace the cap. This will
prevent the power outlet from becoming clogged
and short circuiting.
WA R N I N G
!
The hole next to the power outlet in the floor console
is not a cup holder. This hole can be used as a per-
sonal compartment, but should never be used as a
cup holder. Spilling beverages onto the power outlet
could cause a short-circuit or an electric shock.Floor console
BK0120400US.book 238 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

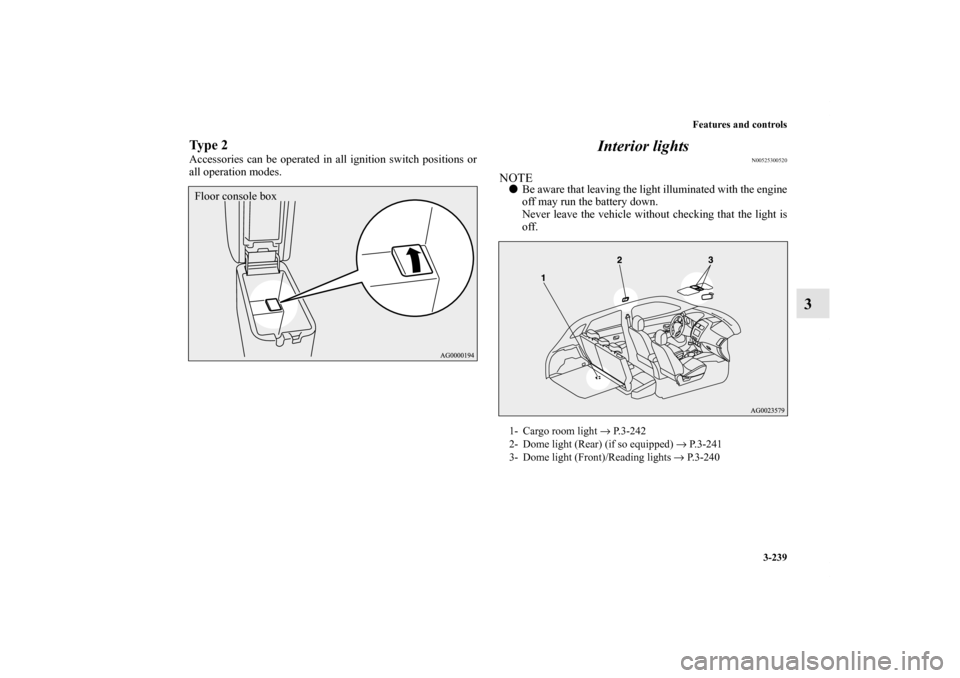

Features and controls
3-239
3
Ty p e 2Accessories can be operated in all ignition switch positions or
all operation modes.
Interior lights
N00525300520
NOTE
Be aware that leaving the light illuminated with the engine
off may run the battery down.
Never leave the vehicle without checking that the light is
off.
Floor console box
1- Cargo room light → P.3-242
2- Dome light (Rear) (if so equipped) → P.3-241
3- Dome light (Front)/Reading lights → P. 3 - 2 4 0
