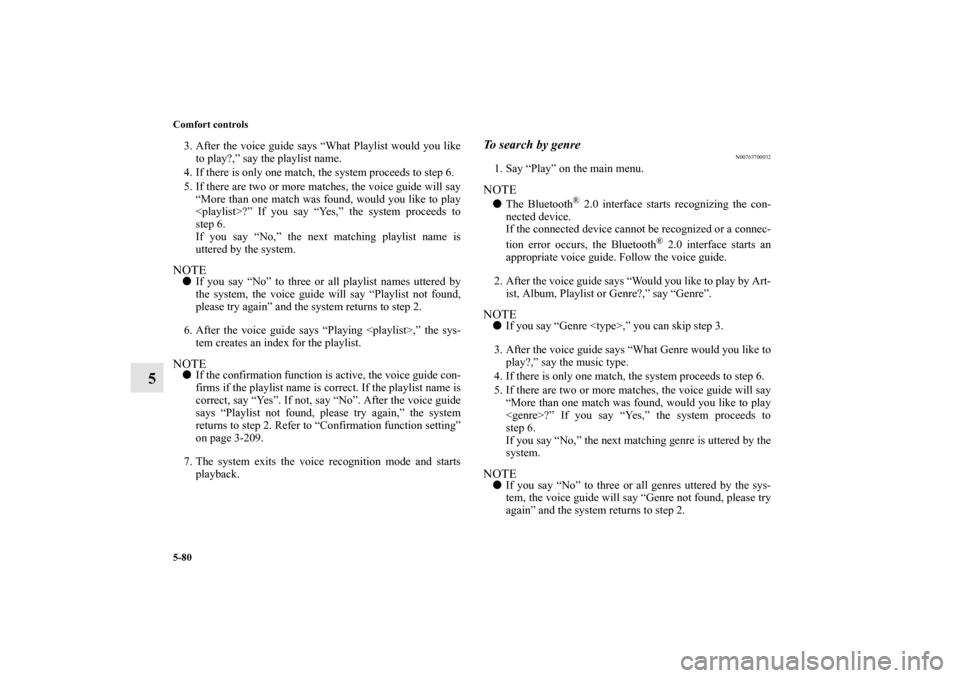

5-80 Comfort controls
5
3. After the voice guide says “What Playlist would you like
to play?,” say the playlist name.
4. If there is only one match, the system proceeds to step 6.
5. If there are two or more matches, the voice guide will say
“More than one match was found, would you like to play
?” If you say “Yes,” the system proceeds to
step 6.
If you say “No,” the next matching playlist name is
uttered by the system.NOTE
If you say “No” to three or all playlist names uttered by
the system, the voice guide will say “Playlist not found,
please try again” and the system returns to step 2.
6. After the voice guide says “Playing ,” the sys-
tem creates an index for the playlist.NOTE
If the confirmation function is active, the voice guide con-
firms if the playlist name is correct. If the playlist name is
correct, say “Yes”. If not, say “No”. After the voice guide
says “Playlist not found, please try again,” the system
returns to step 2. Refer to “Confirmation function setting”
on page 3-209.
7. The system exits the voice recognition mode and starts
playback.
To search by genre
N00763700032
1. Say “Play” on the main menu.NOTE
The Bluetooth
® 2.0 interface starts recognizing the con-
nected device.
If the connected device cannot be recognized or a connec-
tion error occurs, the Bluetooth
® 2.0 interface starts an
appropriate voice guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Art-
ist, Album, Playlist or Genre?,” say “Genre”.
NOTE
If you say “Genre ,” you can skip step 3.
3. After the voice guide says “What Genre would you like to
play?,” say the music type.
4. If there is only one match, the system proceeds to step 6.
5. If there are two or more matches, the voice guide will say
“More than one match was found, would you like to play
?” If you say “Yes,” the system proceeds to
step 6.
If you say “No,” the next matching genre is uttered by the
system.NOTE
If you say “No” to three or all genres uttered by the sys-
tem, the voice guide will say “Genre not found, please try
again” and the system returns to step 2.
BK0120400US.book 80 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

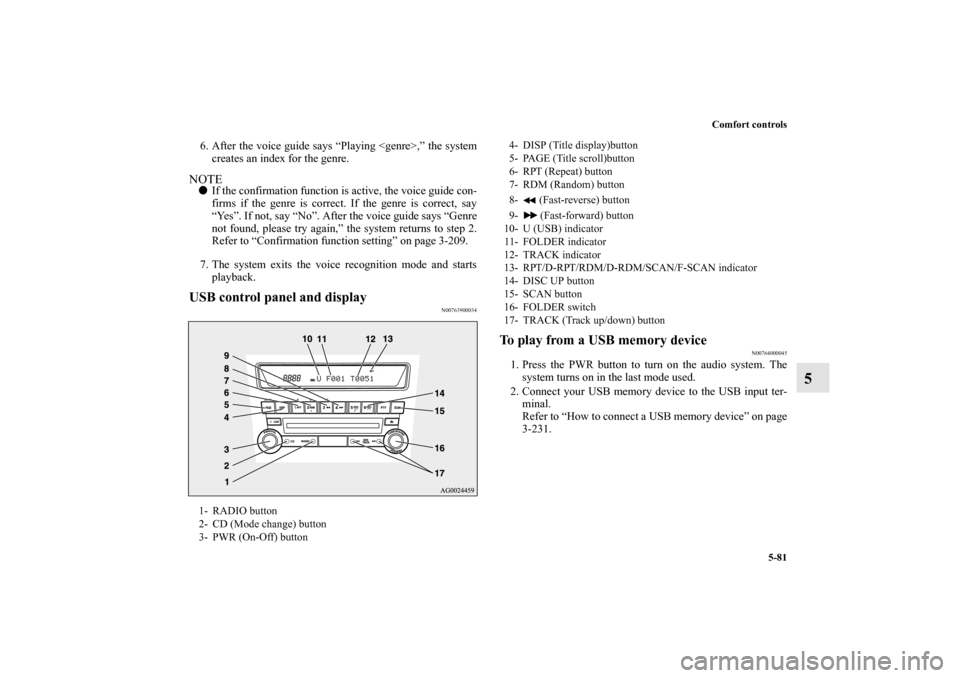

Comfort controls
5-81
5
6. After the voice guide says “Playing ,” the system
creates an index for the genre.NOTE
If the confirmation function is active, the voice guide con-
firms if the genre is correct. If the genre is correct, say
“Yes”. If not, say “No”. After the voice guide says “Genre
not found, please try again,” the system returns to step 2.
Refer to “Confirmation function setting” on page 3-209.
7. The system exits the voice recognition mode and starts
playback.USB control panel and display
N00763900034
To play from a USB memory device
N00764000045
1. Press the PWR button to turn on the audio system. The
system turns on in the last mode used.
2. Connect your USB memory device to the USB input ter-
minal.
Refer to “How to connect a USB memory device” on page
3-231.
1- RADIO button
2- CD (Mode change) button
3- PWR (On-Off) button
4- DISP (Title display)button
5- PAGE (Title scroll)button
6- RPT (Repeat) button
7- RDM (Random) button
8- (Fast-reverse) button
9- (Fast-forward) button
10- U (USB) indicator
11- FOLDER indicator
12- TRACK indicator
13- RPT/D-RPT/RDM/D-RDM/SCAN/F-SCAN indicator
14- DISC UP button
15- SCAN button
16- FOLDER switch
17- TRACK (Track up/down) button
BK0120400US.book 81 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

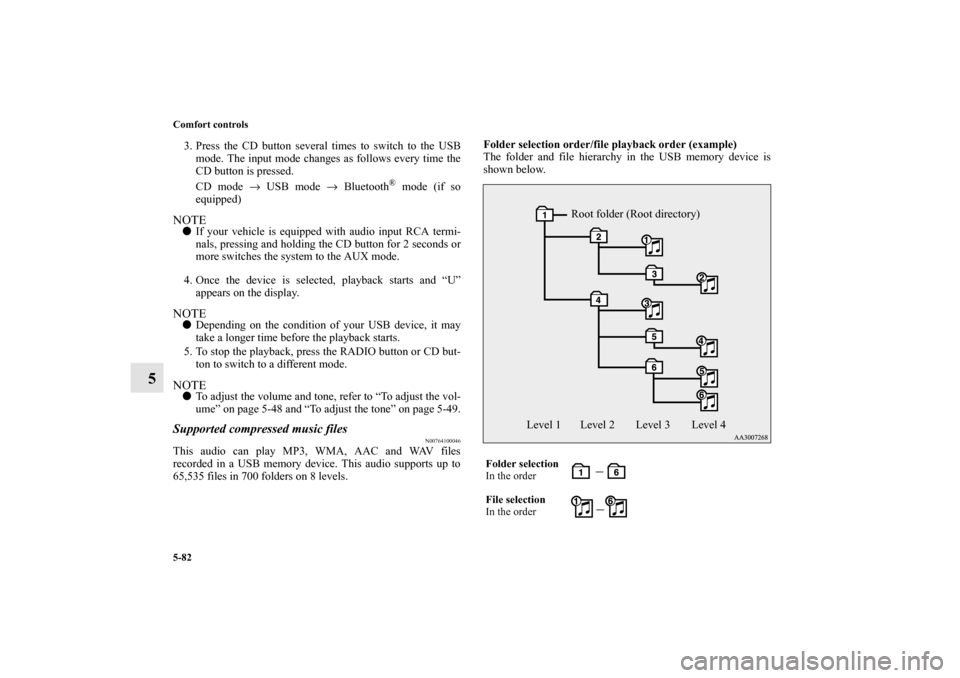

5-82 Comfort controls
5
3. Press the CD button several times to switch to the USB
mode. The input mode changes as follows every time the
CD button is pressed.
CD mode → USB mode → Bluetooth
® mode (if so
equipped)
NOTE
If your vehicle is equipped with audio input RCA termi-
nals, pressing and holding the CD button for 2 seconds or
more switches the system to the AUX mode.
4. Once the device is selected, playback starts and “U”
appears on the display.NOTE
Depending on the condition of your USB device, it may
take a longer time before the playback starts.
5. To stop the playback, press the RADIO button or CD but-
ton to switch to a different mode.NOTE
To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-48 and “To adjust the tone” on page 5-49.Supported compressed music files
N00764100046
This audio can play MP3, WMA, AAC and WAV files
recorded in a USB memory device. This audio supports up to
65,535 files in 700 folders on 8 levels.Folder selection order/file playback order (example)
The folder and file hierarchy in the USB memory device is
shown below.
Folder selection
In the order
File selection
In the order
Root folder (Root directory)
Level 1 Level 2 Level 3 Level 4
BK0120400US.book 82 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

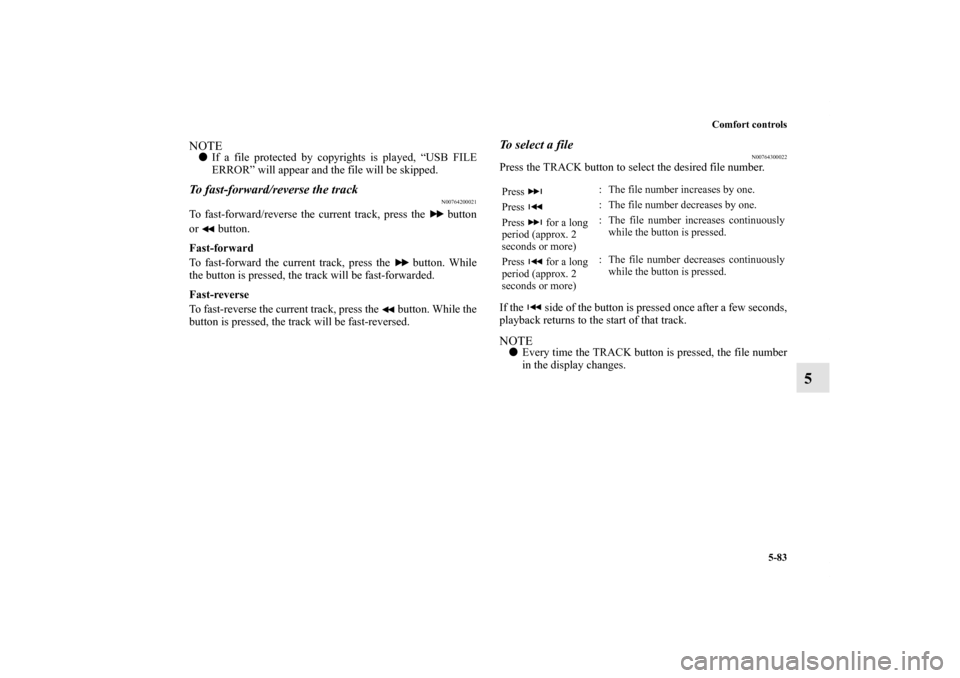

Comfort controls
5-83
5
NOTE
If a file protected by copyrights is played, “USB FILE
ERROR” will appear and the file will be skipped.To fast-forward/reverse the track
N00764200021
To fast-forward/reverse the current track, press the button
or button.
Fast-forward
To fast-forward the current track, press the button. While
the button is pressed, the track will be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the button. While the
button is pressed, the track will be fast-reversed.
To select a file
N00764300022
Press the TRACK button to select the desired file number.
If the side of the button is pressed once after a few seconds,
playback returns to the start of that track.NOTE
Every time the TRACK button is pressed, the file number
in the display changes.Press : The file number increases by one.
Press : The file number decreases by one.
Press for a long
period (approx. 2
seconds or more): The file number increases continuously
while the button is pressed.
Press for a long
period (approx. 2
seconds or more): The file number decreases continuously
while the button is pressed.
BK0120400US.book 83 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

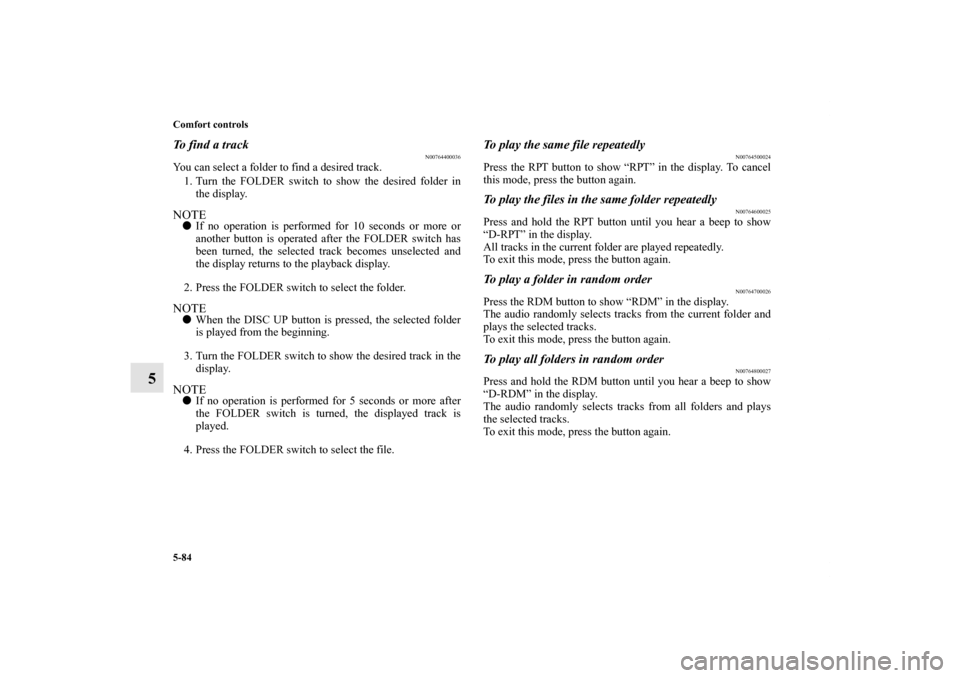

5-84 Comfort controls
5
To f i n d a t r a c k
N00764400036
You can select a folder to find a desired track.
1. Turn the FOLDER switch to show the desired folder in
the display.NOTE
If no operation is performed for 10 seconds or more or
another button is operated after the FOLDER switch has
been turned, the selected track becomes unselected and
the display returns to the playback display.
2. Press the FOLDER switch to select the folder.NOTE
When the DISC UP button is pressed, the selected folder
is played from the beginning.
3. Turn the FOLDER switch to show the desired track in the
display.NOTE
If no operation is performed for 5 seconds or more after
the FOLDER switch is turned, the displayed track is
played.
4. Press the FOLDER switch to select the file.
To play the same file repeatedly
N00764500024
Press the RPT button to show “RPT” in the display. To cancel
this mode, press the button again.To play the files in the same folder repeatedly
N00764600025
Press and hold the RPT button until you hear a beep to show
“D-RPT” in the display.
All tracks in the current folder are played repeatedly.
To exit this mode, press the button again.To play a folder in random order
N00764700026
Press the RDM button to show “RDM” in the display.
The audio randomly selects tracks from the current folder and
plays the selected tracks.
To exit this mode, press the button again.To play all folders in random order
N00764800027
Press and hold the RDM button until you hear a beep to show
“D-RDM” in the display.
The audio randomly selects tracks from all folders and plays
the selected tracks.
To exit this mode, press the button again.
BK0120400US.book 84 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

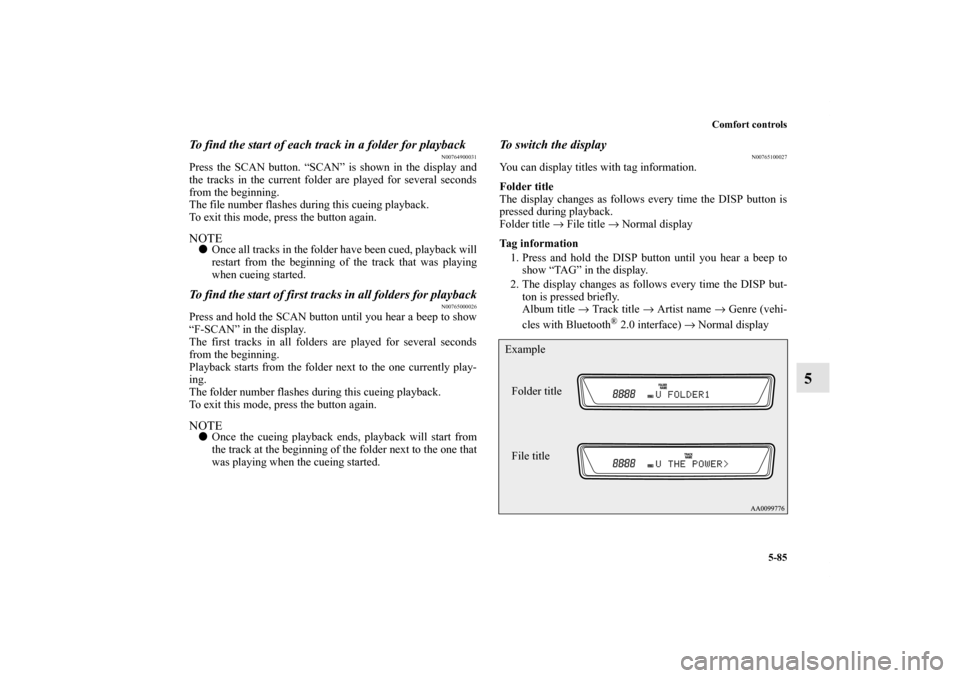

Comfort controls
5-85
5
To find the start of each track in a folder for playback
N00764900031
Press the SCAN button. “SCAN” is shown in the display and
the tracks in the current folder are played for several seconds
from the beginning.
The file number flashes during this cueing playback.
To exit this mode, press the button again.NOTE
Once all tracks in the folder have been cued, playback will
restart from the beginning of the track that was playing
when cueing started.To find the start of first tracks in all folders for playback
N00765000026
Press and hold the SCAN button until you hear a beep to show
“F-SCAN” in the display.
The first tracks in all folders are played for several seconds
from the beginning.
Playback starts from the folder next to the one currently play-
ing.
The folder number flashes during this cueing playback.
To exit this mode, press the button again.NOTE
Once the cueing playback ends, playback will start from
the track at the beginning of the folder next to the one that
was playing when the cueing started.
To switch the display
N00765100027
You can display titles with tag information.
Folder title
The display changes as follows every time the DISP button is
pressed during playback.
Folder title → File title → Normal display
Tag information
1. Press and hold the DISP button until you hear a beep to
show “TAG” in the display.
2. The display changes as follows every time the DISP but-
ton is pressed briefly.
Album title → Track title → Artist name → Genre (vehi-
cles with Bluetooth
® 2.0 interface) → Normal display
Folder title
File title Example
BK0120400US.book 85 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

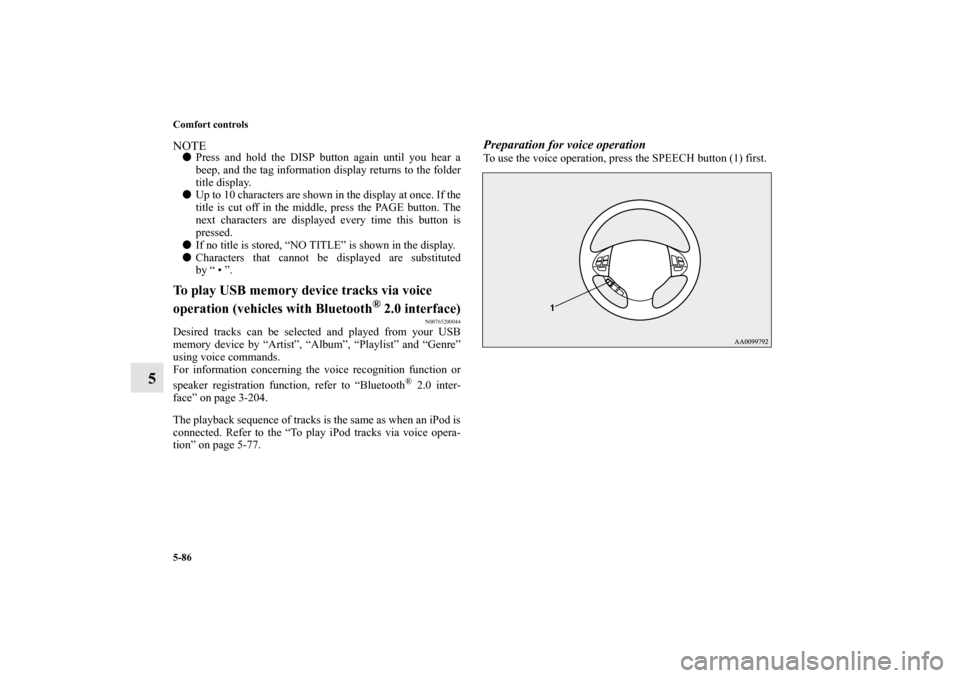

5-86 Comfort controls
5
NOTE
Press and hold the DISP button again until you hear a
beep, and the tag information display returns to the folder
title display.

Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted
by “ • ”.To play USB memory device tracks via voice
operation (vehicles with Bluetooth
® 2.0 interface)
N00765200044
Desired tracks can be selected and played from your USB
memory device by “Artist”, “Album”, “Playlist” and “Genre”
using voice commands.
For information concerning the voice recognition function or
speaker registration function, refer to “Bluetooth
® 2.0 inter-
face” on page 3-204.
The playback sequence of tracks is the same as when an iPod is
connected. Refer to the “To play iPod tracks via voice opera-
tion” on page 5-77.
Preparation for voice operationTo use the voice operation, press the SPEECH button (1) first.
BK0120400US.book 86 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-87

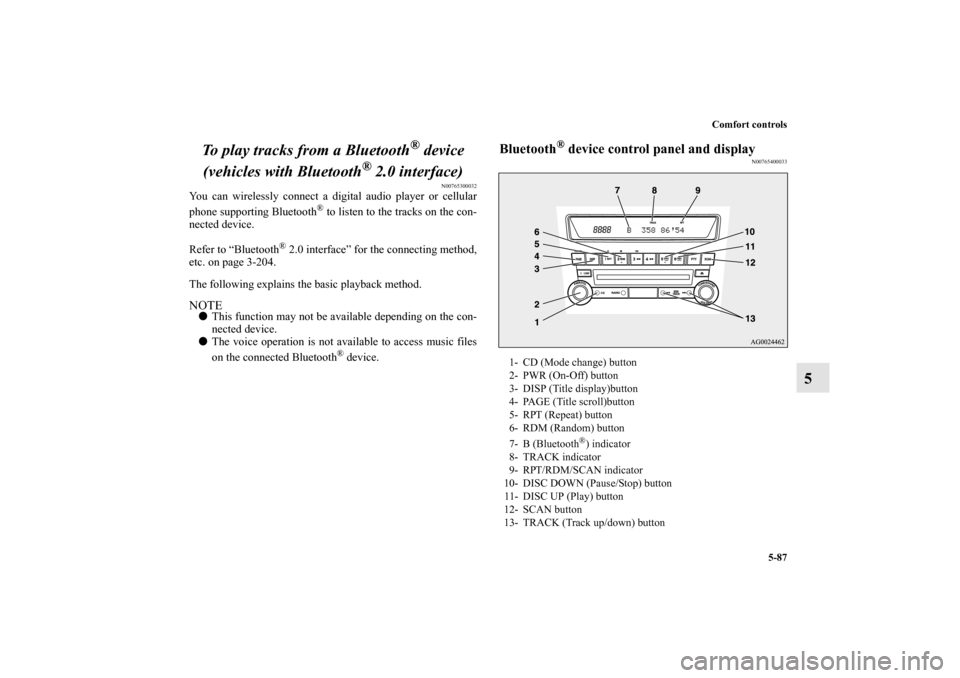

5 To play tracks from a Bluetooth
® device
(vehicles with Bluetooth
® 2.0 interface)
N00765300032
You can wirelessly connect a digital audio player or cellular
phone supporting Bluetooth
® to listen to the tracks on the con-
nected device.
Refer to “Bluetooth
® 2.0 interface” for the connecting method,
etc. on page 3-204.
The following explains the basic playback method.
NOTE
This function may not be available depending on the con-
nected device.

The voice operation is not available to access music files
on the connected Bluetooth
® device.
Bluetooth
® device control panel and display
N00765400033
1- CD (Mode change) button
2- PWR (On-Off) button
3- DISP (Title display)button
4- PAGE (Title scroll)button
5- RPT (Repeat) button
6- RDM (Random) button
7- B (Bluetooth
®) indicator
8- TRACK indicator
9- RPT/RDM/SCAN indicator
10- DISC DOWN (Pause/Stop) button
11- DISC UP (Play) button
12- SCAN button
13- TRACK (Track up/down) button
BK0120400US.book 87 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
