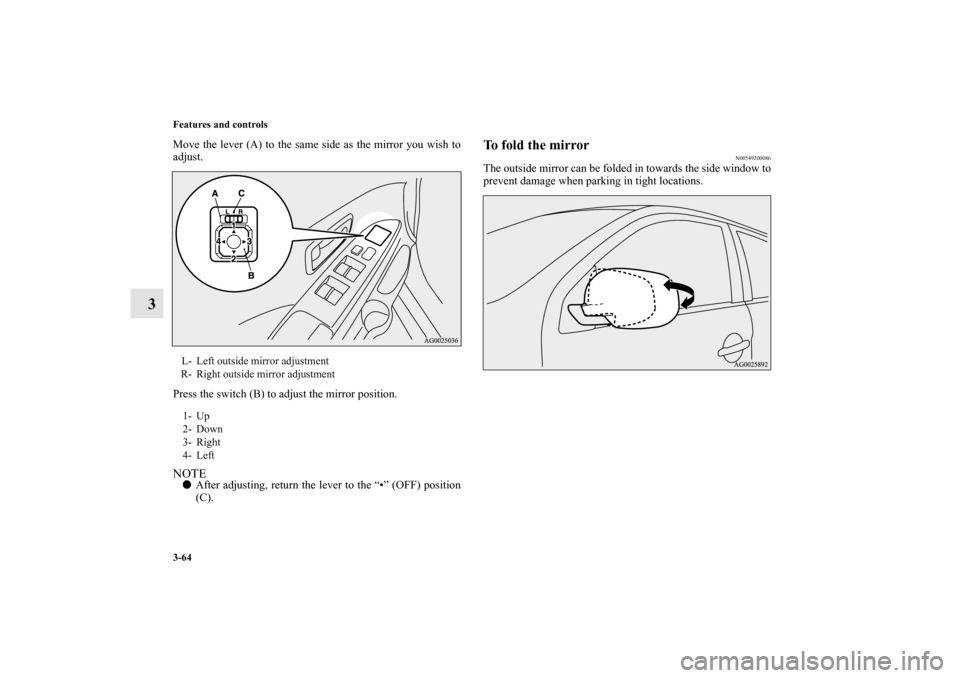

3-64 Features and controls
3
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position.NOTE
After adjusting, return the lever to the “•” (OFF) position
(C).
To fold the mirror
N00549200086
The outside mirror can be folded in towards the side window to
prevent damage when parking in tight locations.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0120400US.book 64 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-65
3
Door mirror heater
N00549300191
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
Ignition switch
N00512400644
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Engine switch”on page 3-21.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]
BK0120400US.book 65 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-66 Features and controls
3
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion.ACCAllows operation of electrical accessories with the engine off.ONThe engine runs and all accessories can be used.STARTEngages the starter. Release the key when the engine starts.It
will automatically back to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer. (Refer to “Electronic immobilizer”
on page 3-30.)
ACC power auto-cutout function
N00539600058
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
about 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, we recommend you to consult an authorized
MITSUBISHI MOTORS dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate Mitsubishi Multi-Communications
System manual for details.
BK0120400US.book 66 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-67
3
To remove the key
N00550900171
1. Set the selector lever to the “P” (PARK) position {contin-
uously variable transmission (CVT)}.
2. Push the key in at the “ACC” position and keep it
depressed until it is turned to the “LOCK” position and
remove it.
CAUTION
!
Do not remove the ignition key from the ignition
switch while driving. The steering wheel will be
locked, causing loss of control.
If the engine is stopped while driving, the brake ser-
vomechanism will cease to function and braking
efficiency will deteriorate. Also, the power steering
system will not function and it will require greater
manual effort to operate the steering.
Do not leave the key in the “ON” position for a long
time when the engine is not running, doing so will
cause the battery to be discharged.
Do not turn the key to the “START” position when
the engine is running, doing so could damage the
starter motor.
BK0120400US.book 67 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-68 Features and controls
3Steering wheel lock
N00512500182
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Steering wheel lock” on page3-25
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]
To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To u n l o c kTurn the key to the “ACC” position while moving the steering
wheel slightly.NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
to “ACC”. Firmly turn the steering wheel to the left or to
the right as you turn the key.
CAUTION
!
Remove the key when leaving the vehicle.
BK0120400US.book 68 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-69
3 Starting the engine
N00512600688
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Starting” on page3-14.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Refer to “Interrupt display screen (When the igni-
tion switch is in the “ON” position)” on page 3-140.
Starting the engineThis model is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is no need to depress the accelerator pedal
when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Insert the ignition key.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0120400US.book 69 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-70 Features and controls
3
3. Make sure the parking brake is applied.
4. Press and hold the brake pedal down with your right foot.
5. Press and hold the clutch pedal all the way down (manual
transaxle).
6. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.NOTE
On vehicles equipped with CVT, the starter will not oper-
ate unless the selector lever is in the “P” (PARK) or “N”
(NEUTRAL) position.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
7. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
8. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts.NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
Startability of automatic transaxle vehicle and CVT
vehicle with ambient temperature of -22
°F (-30
°C) or
lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This occurs because the transaxle has not warmed up suffi-
ciently; it does not indicate a problem. If this occurs, place the
selector lever in the “P” (PARK) position and let the engine
idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
BK0120400US.book 70 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-71

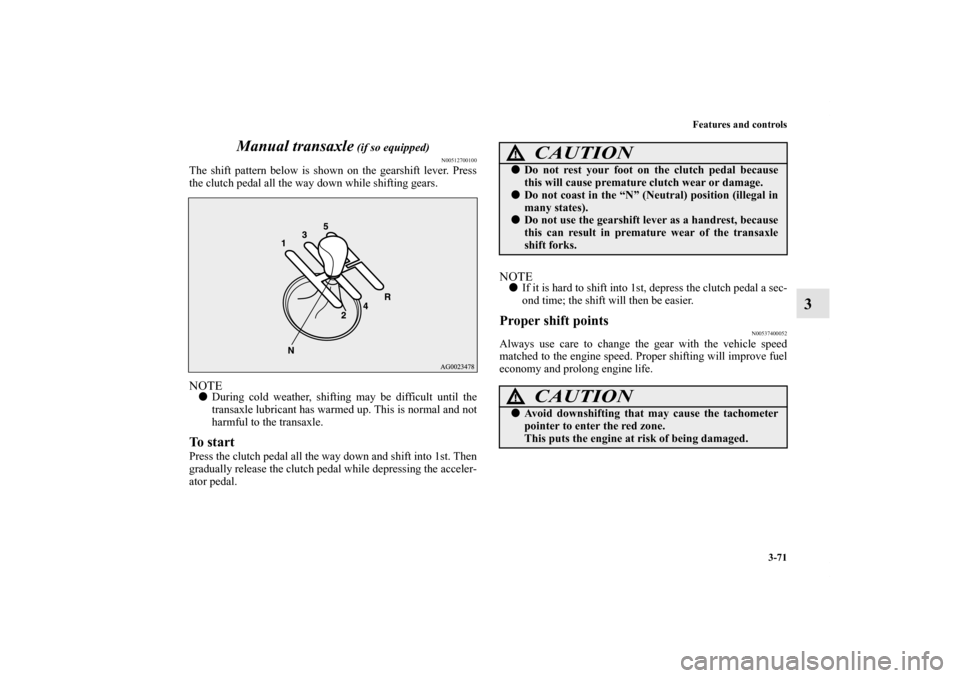

3 Manual transaxle
(if so equipped)
N00512700100
The shift pattern below is shown on the gearshift lever. Press
the clutch pedal all the way down while shifting gears.NOTE
During cold weather, shifting may be difficult until the
transaxle lubricant has warmed up. This is normal and not
harmful to the transaxle.To startPress the clutch pedal all the way down and shift into 1st. Then
gradually release the clutch pedal while depressing the acceler-
ator pedal.
NOTE
If it is hard to shift into 1st, depress the clutch pedal a sec-
ond time; the shift will then be easier.Proper shift points
N00537400052
Always use care to change the gear with the vehicle speed
matched to the engine speed. Proper shifting will improve fuel
economy and prolong engine life.
CAUTION
!
Do not rest your foot on the clutch pedal because
this will cause premature clutch wear or damage.
Do not coast in the “N” (Neutral) position (illegal in
many states).
Do not use the gearshift lever as a handrest, because
this can result in premature wear of the transaxle
shift forks.
CAUTION
!
Avoid downshifting that may cause the tachometer
pointer to enter the red zone.
This puts the engine at risk of being damaged.
