Page 272 of 602
Features and controls
3-175
3
This informs you that a periodic inspection is due.
The rest time can be set.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-143.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (When the ignition switch or operation mode is
in ON)” on page 3-146.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest.
In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “LOCK” position or the operation mode is
put in OFF.
• The multi-information meter switch is held (for about 2 seconds or more).
BK0120400US.book 175 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 359 of 602
4-6 Driving safety
4
Check the engine antifreeze.
If there is not enough coolant because of a leak or from
engine overheating, add Dia Queen Super Long Life
Coolant Premium or equivalent.
Please read this section in conjunction with the “Engine
coolant” on page 7-10.
Braking
N00629500491
All the parts of the brake system are critical to safety. Have the
vehicle serviced by an authorized Mitsubishi Motors dealer or
a repair facility of your choice at regular intervals according to
the “WARRANTY AND MAINTENANCE MANUAL”.When brakes are wetCheck the brake system while driving at a low speed immedi-
ately after starting, especially when the brakes are wet, to con-
firm they work normally.
A film of water can be formed on the brake discs and prevent
normal braking after driving in heavy rain or through large
puddles, or after the vehicle is washed. If this occurs, dry the
brakes out by driving slowly while lightly depressing the brake
pedal.When driving in cold weatherOn snowy roads, ice can form on the braking system, making
the brakes less effective. While driving in such conditions, pay
close attention to preceding and following vehicles and to the
condition of the road surface. From time to time, lightly
depress the brake pedal and check how effective the brakes are.When driving downhillIt is important to take advantage of the engine braking by
downshifting while driving on steep downhill roads in order to
prevent the brakes from overheating.
WA R N I N G
!Never open the radiator cap when the radiator is
hot. You could be seriously burned.
BK0120400US.book 6 ページ ２０１０年５月１２日 水曜日 午前１０時５０分

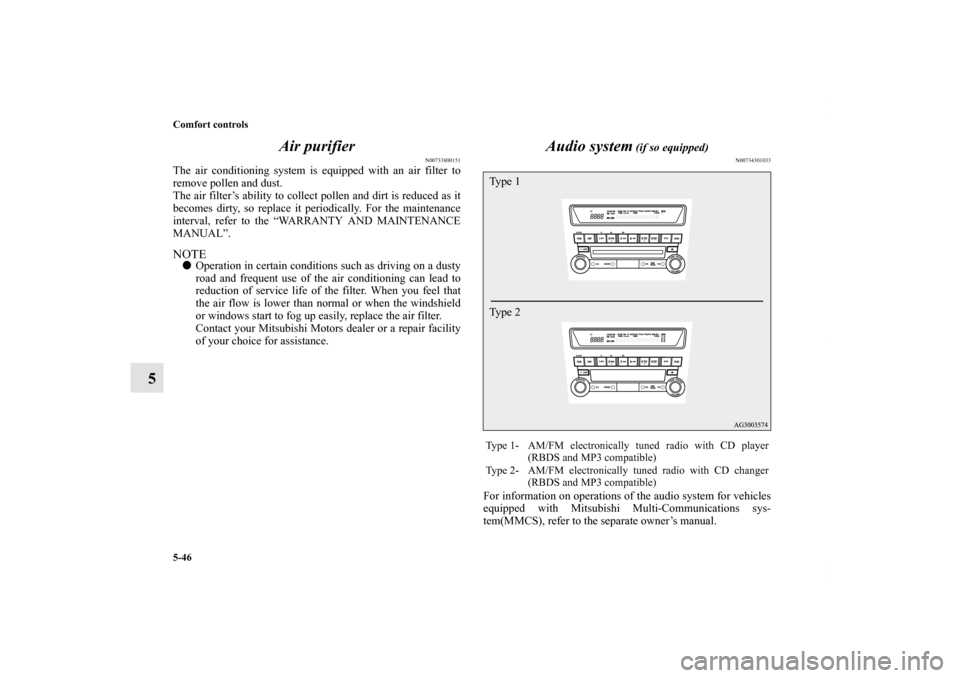

Page 415 of 602
5-46 Comfort controls
5Air purifier
N00733800151
The air conditioning system is equipped with an air filter to
remove pollen and dust.
The air filter’s ability to collect pollen and dirt is reduced as it
becomes dirty, so replace it periodically. For the maintenance
interval, refer to the “WARRANTY AND MAINTENANCE
MANUAL”.NOTEOperation in certain conditions such as driving on a dusty
road and frequent use of the air conditioning can lead to
reduction of service life of the filter. When you feel that
the air flow is lower than normal or when the windshield
or windows start to fog up easily, replace the air filter.
Contact your Mitsubishi Motors dealer or a repair facility
of your choice for assistance.
Audio system
(if so equipped)
N00734301033
For information on operations of the audio system for vehicles
equipped with Mitsubishi Multi-Communications sys-
tem(MMCS), refer to the separate owner’s manual.Type 1- AM/FM electronically tuned radio with CD player
(RBDS and MP3 compatible)
Type 2- AM/FM electronically tuned radio with CD changer
(RBDS and MP3 compatible)Ty p e 1
Ty p e 2
BK0120400US.book 46 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
