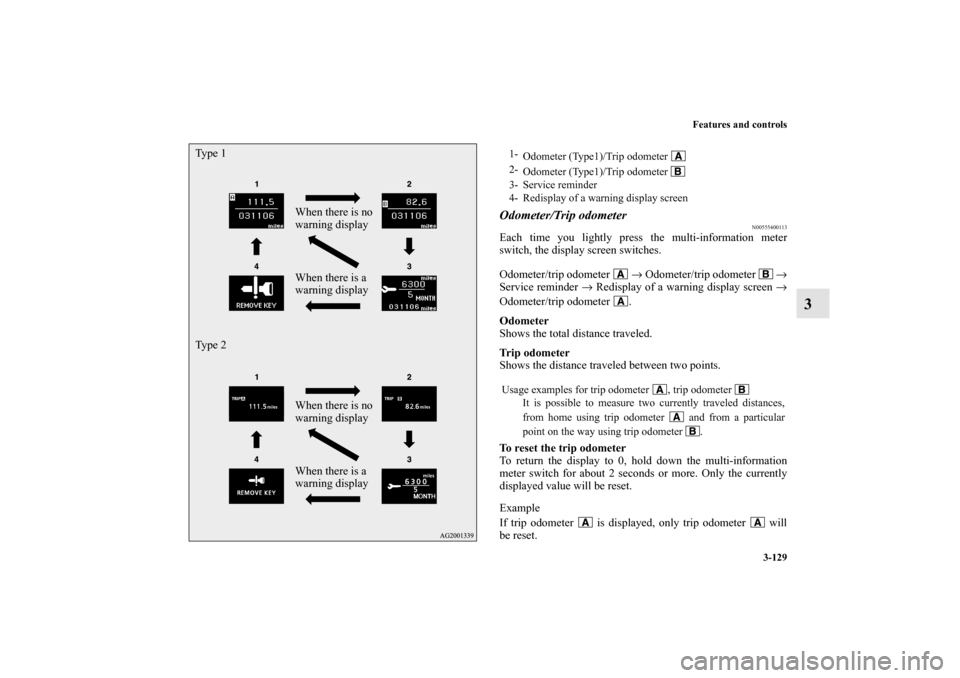

Features and controls
3-129
3
Odometer/Trip odometer
N00555400113
Each time you lightly press the multi-information meter
switch, the display screen switches.
Odometer/trip odometer → Odometer/trip odometer →
Service reminder → Redisplay of a warning display screen →
Odometer/trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.
To reset the trip odometer
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example
If trip odometer is displayed, only trip odometer will
be reset.
When there is no
warning display
When there is a
warning display Ty p e 1
Ty p e 2
When there is no
warning display
When there is a
warning display
1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
BK0120400US.book 129 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 234 of 602

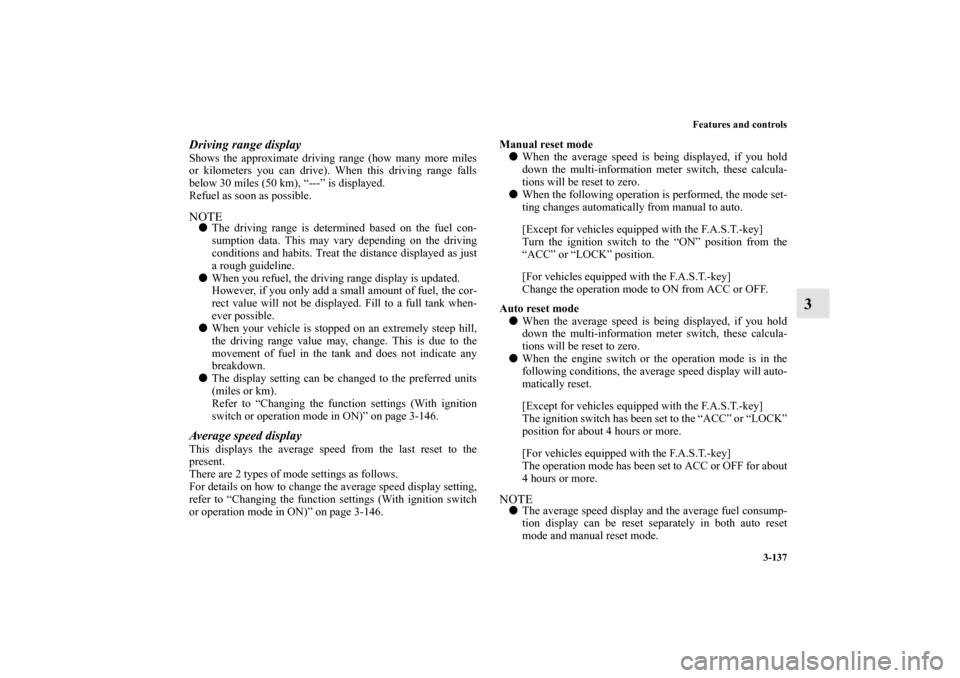

Features and controls
3-137
3
Driving range displayShows the approximate driving range (how many more miles
or kilometers you can drive). When this driving range falls
below 30 miles (50 km), “---” is displayed.
Refuel as soon as possible.NOTEThe driving range is determined based on the fuel con-
sumption data. This may vary depending on the driving
conditions and habits. Treat the distance displayed as just
a rough guideline.
When you refuel, the driving range display is updated.
However, if you only add a small amount of fuel, the cor-
rect value will not be displayed. Fill to a full tank when-
ever possible.
When your vehicle is stopped on an extremely steep hill,
the driving range value may, change. This is due to the
movement of fuel in the tank and does not indicate any
breakdown.
The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.Average speed displayThis displays the average speed from the last reset to the
present.
There are 2 types of mode settings as follows.
For details on how to change the average speed display setting,
refer to “Changing the function settings (With ignition switch
or operation mode in ON)” on page 3-146.Manual reset mode
When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.
When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “LOCK” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode
When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.
When the engine switch or the operation mode is in the
following conditions, the average speed display will auto-
matically reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “LOCK”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been set to ACC or OFF for about
4 hours or more.
NOTEThe average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.
BK0120400US.book 137 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 235 of 602

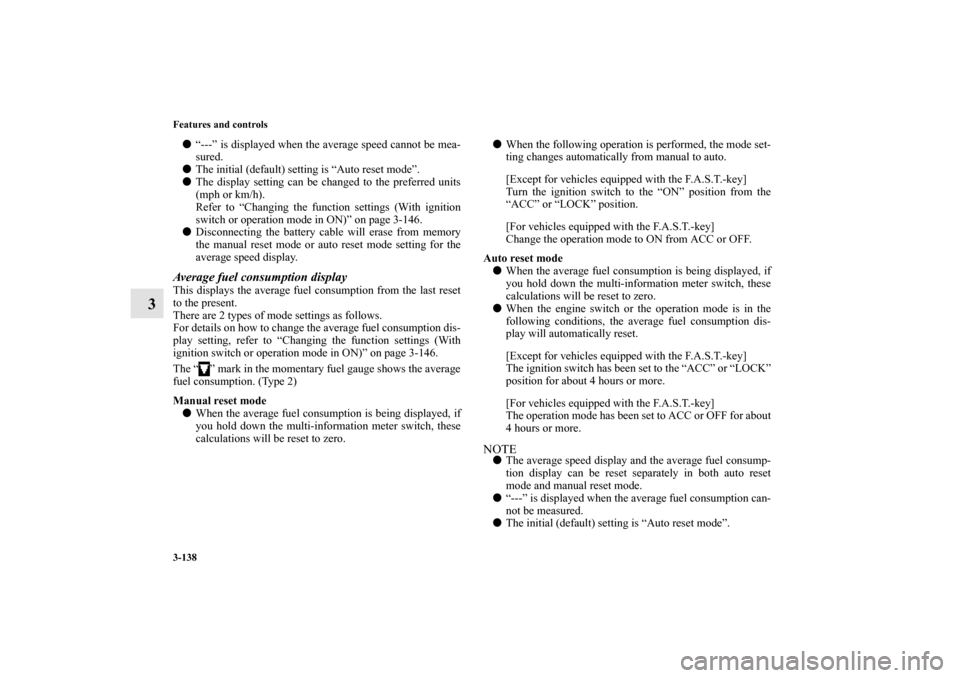

3-138 Features and controls
3
“---” is displayed when the average speed cannot be mea-
sured.
The initial (default) setting is “Auto reset mode”.
The display setting can be changed to the preferred units
(mph or km/h).
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.
Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average speed display.Average fuel consumption displayThis displays the average fuel consumption from the last reset
to the present.
There are 2 types of mode settings as follows.
For details on how to change the average fuel consumption dis-
play setting, refer to “Changing the function settings (With
ignition switch or operation mode in ON)” on page 3-146.
The “ ” mark in the momentary fuel gauge shows the average
fuel consumption. (Type 2)
Manual reset mode
When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “LOCK” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode
When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.
When the engine switch or the operation mode is in the
following conditions, the average fuel consumption dis-
play will automatically reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “LOCK”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been set to ACC or OFF for about
4 hours or more.
NOTEThe average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.
“---” is displayed when the average fuel consumption can-
not be measured.
The initial (default) setting is “Auto reset mode”.
BK0120400US.book 138 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 236 of 602

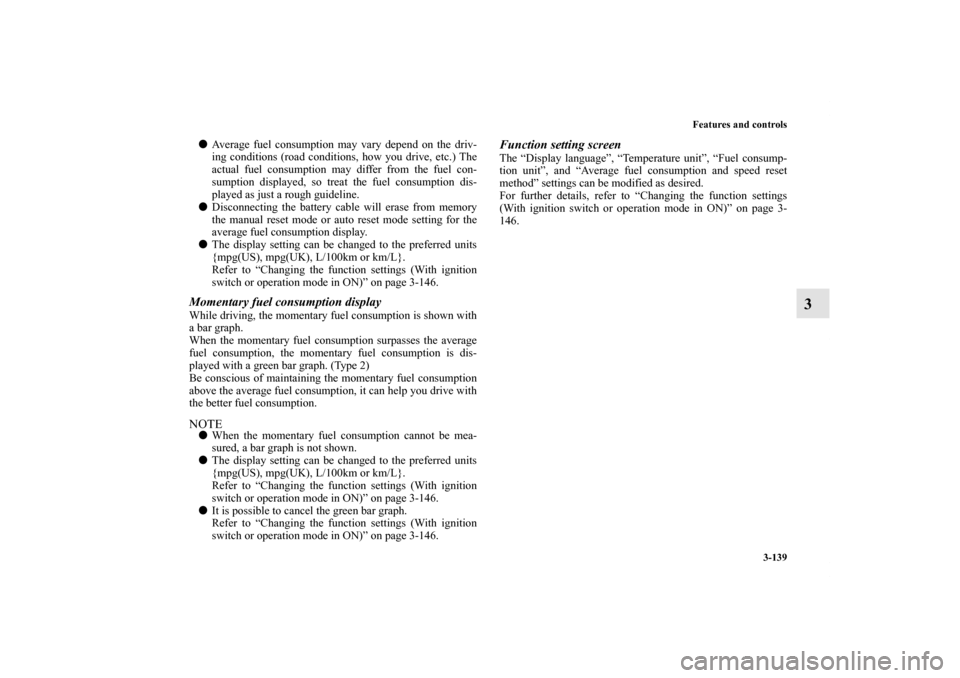

Features and controls
3-139
3
Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.) The
actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.
Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average fuel consumption display.
The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.Momentary fuel consumption displayWhile driving, the momentary fuel consumption is shown with
a bar graph.
When the momentary fuel consumption surpasses the average
fuel consumption, the momentary fuel consumption is dis-
played with a green bar graph. (Type 2)
Be conscious of maintaining the momentary fuel consumption
above the average fuel consumption, it can help you drive with
the better fuel consumption.NOTEWhen the momentary fuel consumption cannot be mea-
sured, a bar graph is not shown.
The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.
It is possible to cancel the green bar graph.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.
Function setting screenThe “Display language”, “Temperature unit”, “Fuel consump-
tion unit”, and “Average fuel consumption and speed reset
method” settings can be modified as desired.
For further details, refer to “Changing the function settings
(With ignition switch or operation mode in ON)” on page 3-
146.
BK0120400US.book 139 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 241 of 602

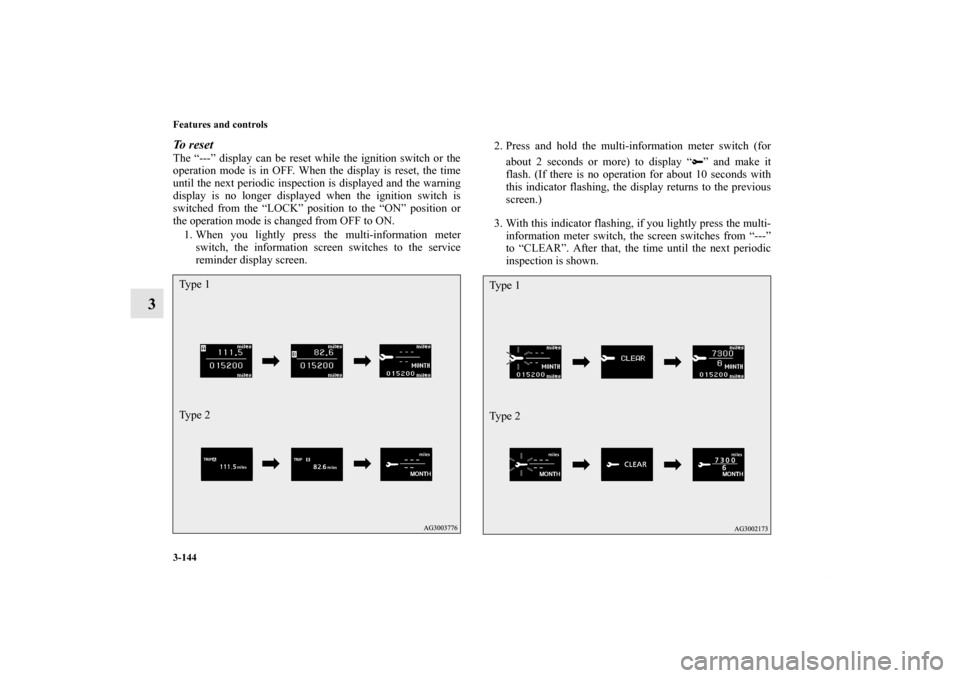

3-144 Features and controls
3
To reset The “---” display can be reset while the ignition switch or the
operation mode is in OFF. When the display is reset, the time
until the next periodic inspection is displayed and the warning
display is no longer displayed when the ignition switch is
switched from the “LOCK” position to the “ON” position or
the operation mode is changed from OFF to ON.
1. When you lightly press the multi-information meter
switch, the information screen switches to the service
reminder display screen.2. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ ” and make it
flash. (If there is no operation for about 10 seconds with
this indicator flashing, the display returns to the previous
screen.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the screen switches from “---”
to “CLEAR”. After that, the time until the next periodic
inspection is shown.Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0120400US.book 144 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 242 of 602

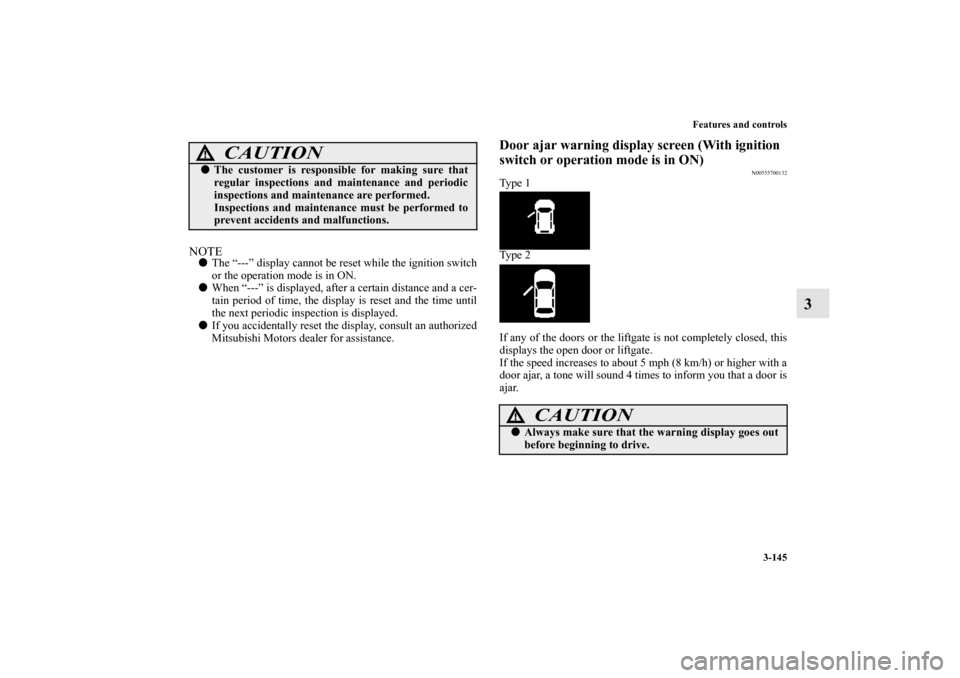

Features and controls
3-145
3
NOTEThe “---” display cannot be reset while the ignition switch
or the operation mode is in ON.
When “---” is displayed, after a certain distance and a cer-
tain period of time, the display is reset and the time until
the next periodic inspection is displayed.
If you accidentally reset the display, consult an authorized
Mitsubishi Motors dealer for assistance.
Door ajar warning display screen (With ignition
switch or operation mode is in ON)
N00555700132
Ty p e 1
Ty p e 2
If any of the doors or the liftgate is not completely closed, this
displays the open door or liftgate.
If the speed increases to about 5 mph (8 km/h) or higher with a
door ajar, a tone will sound 4 times to inform you that a door is
ajar.
CAUTION
!The customer is responsible for making sure that
regular inspections and maintenance and periodic
inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
CAUTION
!Always make sure that the warning display goes out
before beginning to drive.
BK0120400US.book 145 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 244 of 602

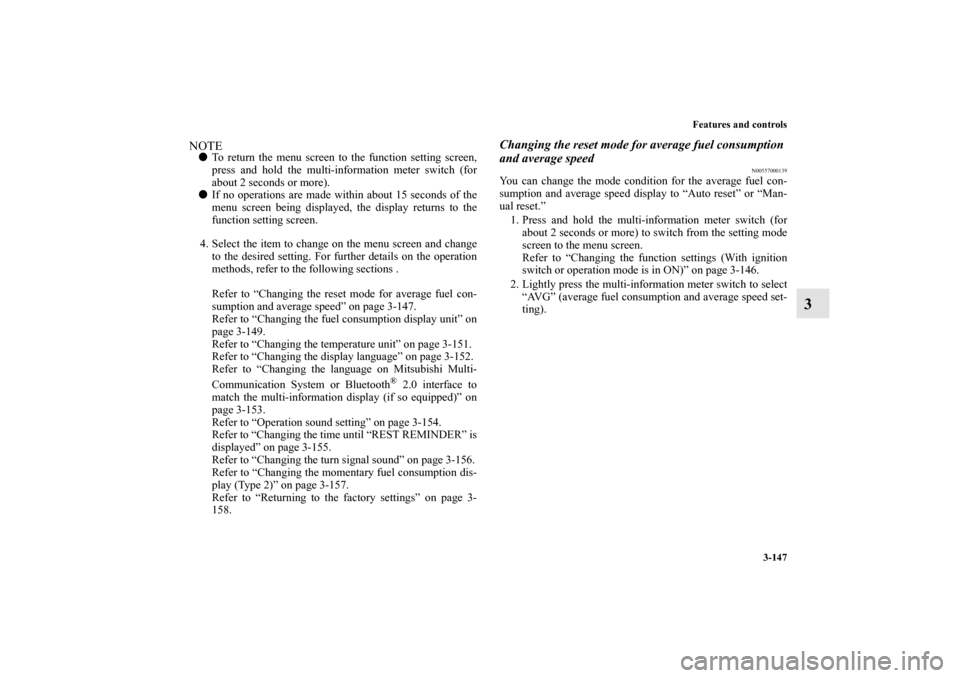

Features and controls
3-147
3
NOTETo return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).
If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections .
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-147.
Refer to “Changing the fuel consumption display unit” on
page 3-149.
Refer to “Changing the temperature unit” on page 3-151.
Refer to “Changing the display language” on page 3-152.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-153.
Refer to “Operation sound setting” on page 3-154.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-155.
Refer to “Changing the turn signal sound” on page 3-156.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-157.
Refer to “Returning to the factory settings” on page 3-
158.
Changing the reset mode for average fuel consumption
and average speed
N00557000139
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset.”
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-146.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0120400US.book 147 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 245 of 602
3-148 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset) → M (Manual reset) → A (Auto reset).
The setting is changed to the selected reset condition.Manual reset mode
If you press and hold the multi-information meter switch
when the average fuel consumption and average speed are
displayed, these calculations will be reset to zero.
When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “LOCK” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode
When the average fuel consumption and average speed
are being displayed, if you hold down the multi-informa-
tion meter switch, these calculations will be reset to zero.
When the engine switch or the operation mode is in the
following conditions, the average fuel consumption dis-
play and the average speed display will automatically
reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “LOCK”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been in ACC or OFF for about 4
hours or more.Type 1
Type 2
BK0120400US.book 148 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
