Overview

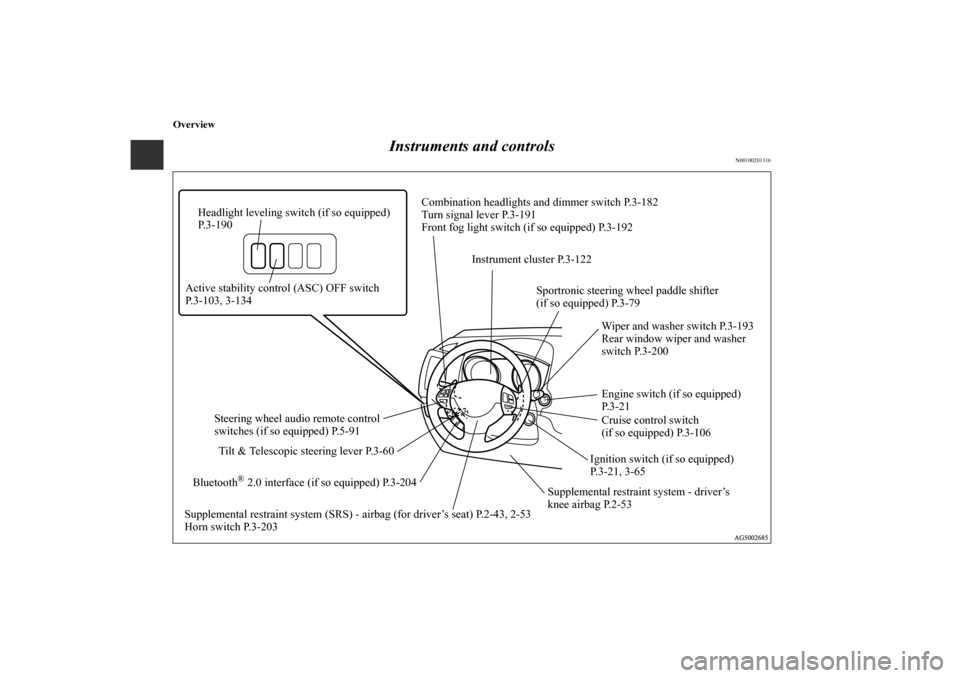

Instruments and controls
N00100201316
Cruise control switch
(if so equipped) P.3-106 Active stability control (ASC) OFF switch
P.3-103, 3-134
Ignition switch (if so equipped)
P.3-21, 3-65 Tilt & Telescopic steering lever P.3-60Wiper and washer switch P.3-193
Rear window wiper and washer
switch P.3-200 Instrument cluster P.3-122
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.2-43, 2-53
Horn switch P.3-203Combination headlights and dimmer switch P.3-182
Turn signal lever P.3-191
Front fog light switch (if so equipped) P.3-192
Sportronic steering wheel paddle shifter
(if so equipped) P.3-79
Steering wheel audio remote control
switches (if so equipped) P.5-91
Bluetooth
® 2.0 interface (if so equipped) P.3-204 Headlight leveling switch (if so equipped)
P. 3 - 1 9 0
Engine switch (if so equipped)
P. 3 - 2 1
Supplemental restraint system - driver’s
knee airbag P.2-53
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Overview

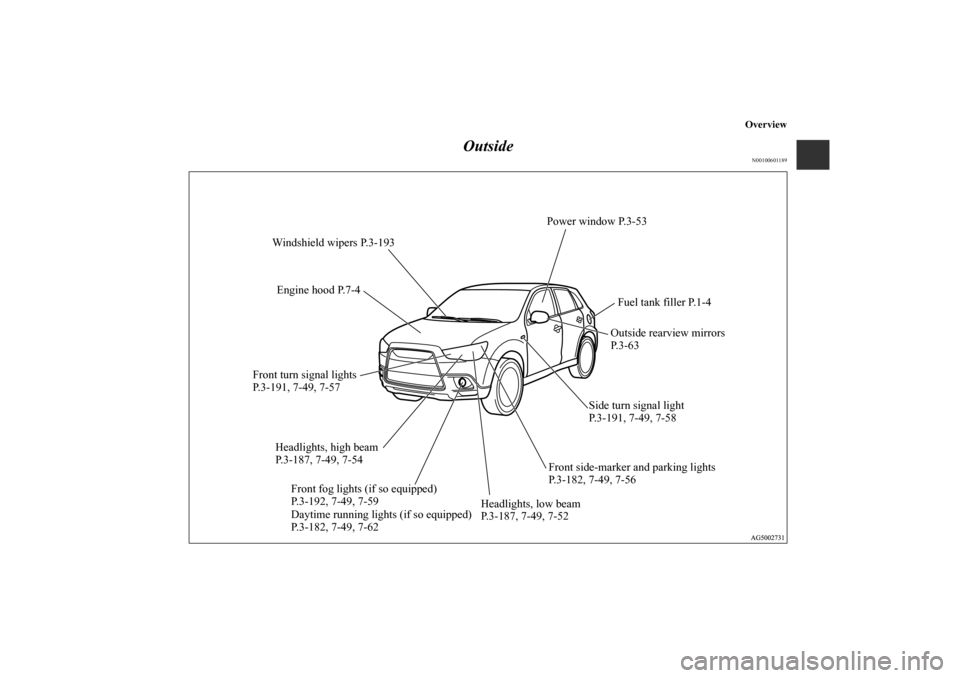

Outside
N00100601189
Power window P.3-53
Front turn signal lights
P.3-191, 7-49, 7-57Engine hood P.7-4
Fuel tank filler P.1-4
Outside rearview mirrors
P.3-63 Windshield wipers P.3-193
Front fog lights (if so equipped)
P.3-192, 7-49, 7-59Side turn signal light
P.3-191, 7-49, 7-58
Headlights, low beam
P.3-187, 7-49, 7-52 Headlights, high beam
P.3-187, 7-49, 7-54
Front side-marker and parking lights
P.3-182, 7-49, 7-56
Daytime running lights (if so equipped)
P.3-182, 7-49, 7-62
BK0120400US.book 6 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 14
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 37
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 41
Child safety locks for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 43
Liftgate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 44
Inside liftgate release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 46
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 48
Power window control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Sunshade (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 57
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Steering wheel height and reach adjustment . . . . . . . . . . . . . . . . . . .3- 60
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 65
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 68
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 69
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 73
Electronically controlled 4WD system (if so equipped) . . . . . . . . . . 3- 83
4-wheel drive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 86
Inspection and maintenance following rough road operation . . . . . . 3- 89
Cautions on the handling of 4-wheel drive vehicles . . . . . . . . . . . . . 3- 90
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 92
Hill start assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 93
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 95
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 96
Electric power steering system (EPS) . . . . . . . . . . . . . . . . . . . . . . . .3- 100
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 102Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 106
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 114
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 120
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 122
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 126
Indicator light, warning light, and
information screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 176
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 176
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 179
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 182
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 190
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 191
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 192
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 192
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 193
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 202
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 203
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 204
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 204
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 230
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 236
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 238
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 239
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 245
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 250
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Cargo area cover (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 253
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-10 Features and controls
3
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800051
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the liftgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.Additional remote control transmitters
N00543900049
To add a remote control transmitter, you must already have 1
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 remote control transmitters, but
you may register up to 8 remote control transmitters.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock onlyBK0120400US.book 10 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-35
3
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Setting of door and liftgate unlock function
N00544600072
The door and liftgate unlock function can be set to the follow-
ing two conditions.
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Using the panic alarm
N00544700057
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTE
The indicator light (4) comes on each time a button is
pressed.

The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the buttery in the F.A.S.T.-key may need to be
replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock only
BK0120400US.book 35 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-50 Features and controls
3
If the answerback function (flashing of the turn signal
lights by locking and unlocking the doors and the liftgate)
is deactivated, the turn signal lights do not flash after the
locking and unlocking operation.
For information on the answerback function, refer to
“Keyless entry system” on pages 3-8 and 3-33, and “To
operate using the F.A.S.T.-key” on page 3-18.

For vehicles equipped with the interior alarm sensor, the
theft-alarm system could be activated in the following sit-
uations.
• Using a car washer.
• Taking the vehicle on a ferry.
• Parking in an automated car park.
• Leaving someone or a pet in the vehicle.
• Leaving a window open.
• Leaving an unstable object such as a stuffed toy or
accessory in the vehicle.
• Suffering a continuous impact or vibration by hail, thun-
der, etc.
According to the situations, deactivate the vehicle inclina-
tion detection function and the interior intrusion detection
function.
Refer to “Theft-alarm system: To deactivate the vehicle
inclination detection function and the interior intrusion
detection function” on page 3-48.

For vehicles equipped with the interior alarm sensor, the
sensitivity of the interior intrusion detection function can
be adjusted. For further details, please contact an autho-
rized Mitsubishi Motors dealer.
Alarm stageThe alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.

One of the doors and the liftgate is opened without using
the keyless entry system or the F.A.S.T.-key operation.

The engine hood is opened.
Also, for vehicles equipped with the interior alarm sensor, the
alarm will be activated if any of the following occur.

Attempt an unauthorized moving of the vehicle. (the vehi-
cle inclination detection function)

Detect a motion in the vehicle. (the interior intrusion
detection function)

Disconnect the battery terminal.Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn (the siren for vehicles equipped with the interior
alarm sensor) will sound intermittently for 3 minutes.
BK0120400US.book 50 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-51
3
NOTE
The alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.

The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.

While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.
Ty p e 1
Ty p e 2
Alarm deactivationThe alarm can be deactivated in the following ways.

By using the keyless entry system or the F.A.S.T.-key
operation to lock or unlock the doors and the liftgate.

Except for vehicles equipped with the F.A.S.T.-key, by
turning the ignition switch to the “ON” position.

For vehicles equipped with the F.A.S.T.-key, by putting
the operation mode in ON.To deactivate the vehicle inclination detection function
and the interior intrusion detection function (vehicles
equipped with the interior alarm sensor)The vehicle inclination detection function and the interior
intrusion detection function can be deactivated when parking in
automated car parks or leaving pets in the vehicle.
1. Except for vehicles equipped with the F.A.S.T.-key,
remove the key from the ignition switch.
For vehicles equipped with the F.A.S.T.-key, put the oper-
ation mode in OFF.
2. Raise and hold the wiper and washer switch to the
“MIST” position for about 3 seconds. The buzzer will
sound once and the function will be deactivated.
To activate the function again, raise and hold the wiper and
washer switch to the “MIST” position for about 3 seconds.
The buzzer will sound twice and the function will be activated.
Horn or siren sounds!
Headlights blink on and off!
BK0120400US.book 51 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-53
3

Once the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and open the door.
5. Make sure that the horn (the siren for vehicles equipped
with the interior alarm sensor) sounds intermittently and
the headlights blink when a door is opened.
6. Disarm the system by unlocking all doors and the liftgate
by using the keyless entry system or the F.A.S.T.-key
operation.
Power window control
N00510800370
NOTE
Never try to operate the main switch and sub-switch in
different directions at the same time. This will freeze the
window in position.

Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running.1- Open (down)
2- Close (up)
BK0120400US.book 53 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
