2011 MITSUBISHI OUTLANDER SPORT headlights

Features and controls
3-185
3
Light auto-cutout function (headlights and other
lights)
N00532600512

If the following operation is performed with the combina-
tion headlights and dimmer switch in the “ ” or “ ”
position, the lights automatically turn off.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is turned to the “LOCK” or “ACC”
position or the key is removed from the ignition switch
and the driver’s door is opened.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode is changed to OFF or ACC and the
driver’s door is opened.
When using a key to start the engine
• If the driver’s door is opened after the key is removed
from the ignition switch, a high-pitched constant tone
will sound to remind you to turn off the lights.
• If the driver’s door is opened with the key in the ignition
switch, a low-pitched beep will sound to remind you to
remove the key.
When using the F.A.S.T.-key to start the engine
• If the operation mode is put in OFF and the driver’s door
is opened, a high-pitched constant buzzer will sound to
remind you to turn off the lights.
• If the operation mode is changed to any mode other than
OFF and the driver’s door is opened, a low-pitched con-
stant buzzer will sound to remind you to put the opera-
tion mode in OFF.
If the following operation is performed with the combina-
tion headlights and dimmer switch in the “ ” or “ ”
position, the lights automatically turn off after about 3
minutes.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is turned to the “LOCK” or “ACC”
position or the key is removed from the ignition switch
and the driver’s door is not opened.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode is changed to OFF or ACC and the
driver’s door is not opened.
NOTE
The light auto-cutout function can be deactivated.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.When you want to keep the lights on:If the combination headlights and dimmer switch is turned to
the “ ” or “ ” position again after the engine is turned off,
the about 3-minute auto-cutout function described above will
not work. The lights (the parking lights, tail lights and license
plate lights) will stay on and will not turn off automatically.
BK0120400US.book 185 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-187
3

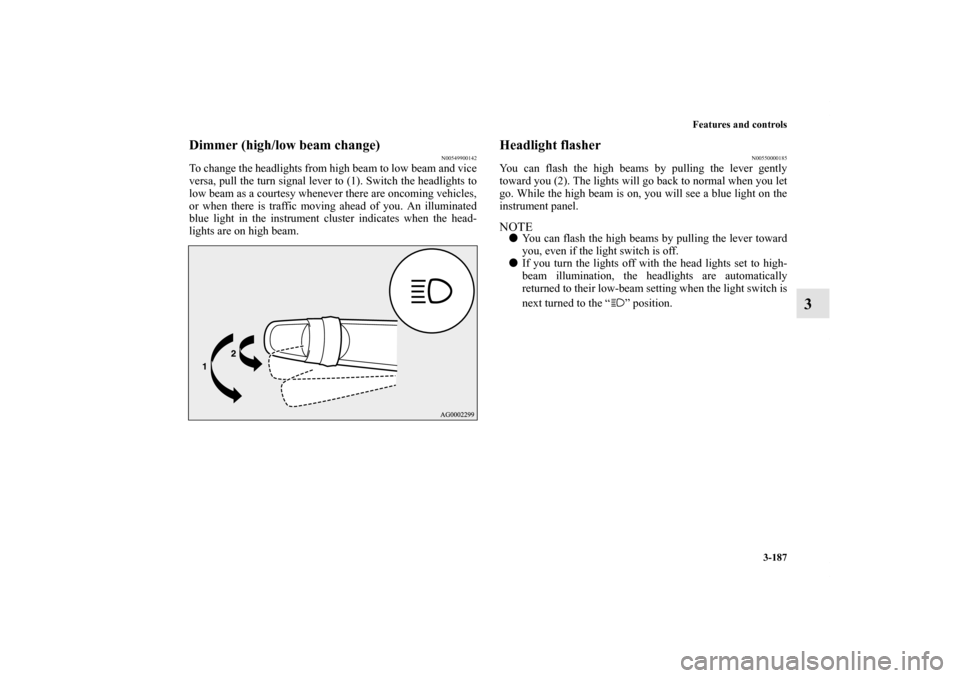

Dimmer (high/low beam change)
N00549900142
To change the headlights from high beam to low beam and vice
versa, pull the turn signal lever to (1). Switch the headlights to
low beam as a courtesy whenever there are oncoming vehicles,
or when there is traffic moving ahead of you. An illuminated
blue light in the instrument cluster indicates when the head-
lights are on high beam.
Headlight flasher
N00550000185
You can flash the high beams by pulling the lever gently
toward you (2). The lights will go back to normal when you let
go. While the high beam is on, you will see a blue light on the
instrument panel.NOTE
You can flash the high beams by pulling the lever toward
you, even if the light switch is off.

If you turn the lights off with the head lights set to high-
beam illumination, the headlights are automatically
returned to their low-beam setting when the light switch is
next turned to the “ ” position.
BK0120400US.book 187 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-188 Features and controls
3
Welcome light
N00563200064
This function turns on the front side-marker and parking lights
for about 30 seconds after the UNLOCK button (A) on the
remote control transmitter is pressed when the combination
headlights and dimmer switch is in the “OFF” or “AUTO”
position (for vehicles equipped with the automatic light con-
trol). On vehicles equipped with the automatic light control,
the welcome light function will operate only when it is dark
outside the vehicle.NOTE
While the welcome light function is operating, perform
one of the following operations to cancel the function.• Push the LOCK button (B) on the remote control trans-
mitter.
• Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
• Turn the ignition switch to the “ON” position or put the
operation mode in ON.

It is possible to modify functions as follows:
• The headlights can be set to come on in the low beam
setting.
• The welcome light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
BK0120400US.book 188 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-189
3
Coming home light
N00547300067
This function turns on the headlights in the low beam setting
for about 30 seconds after the ignition switch is turned to the
“LOCK” position or the operation mode is put in OFF.
1. Turn the combination headlights and dimmer switch to the
“OFF” or “AUTO” position (for vehicles equipped with
the automatic light control).
2. Turn the ignition switch to the “LOCK” position or put
the operation mode in OFF. Also, if a key was used to start
the engine, remove the key from the ignition switch.
3. Within 60 seconds of turning the ignition switch to the
“LOCK” position or putting the operation mode in OFF,
pull the turn signal lever toward you.4. The headlights will come on in the low beam setting for
about 30 seconds. After the headlights go off, the head-
lights can be turned on again in the low beam setting for
about 30 seconds by pulling the turn signal lever toward
you within 60 seconds of turning the ignition switch to the
“LOCK” position or putting the operation mode in OFF.
To turn on the headlights again after 60 seconds of turning
the ignition switch to the “LOCK” position or putting the
operation mode in OFF, repeat the process from step 1.
NOTE
While the coming home light function is operating, per-
form one of the following operations to cancel the func-
tion.
• Pull the turn signal lever toward you.
• Turn the combination headlights and dimmer switch to
the “ ” or “ ” position or put the operation mode in
ON.
• Turn the ignition switch to the “ON” position or put the
operation mode in ON.

It is possible to modify functions as follows:
• The time that the headlights remain on can be changed.
• The coming home light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
BK0120400US.book 189 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-190 Features and controls

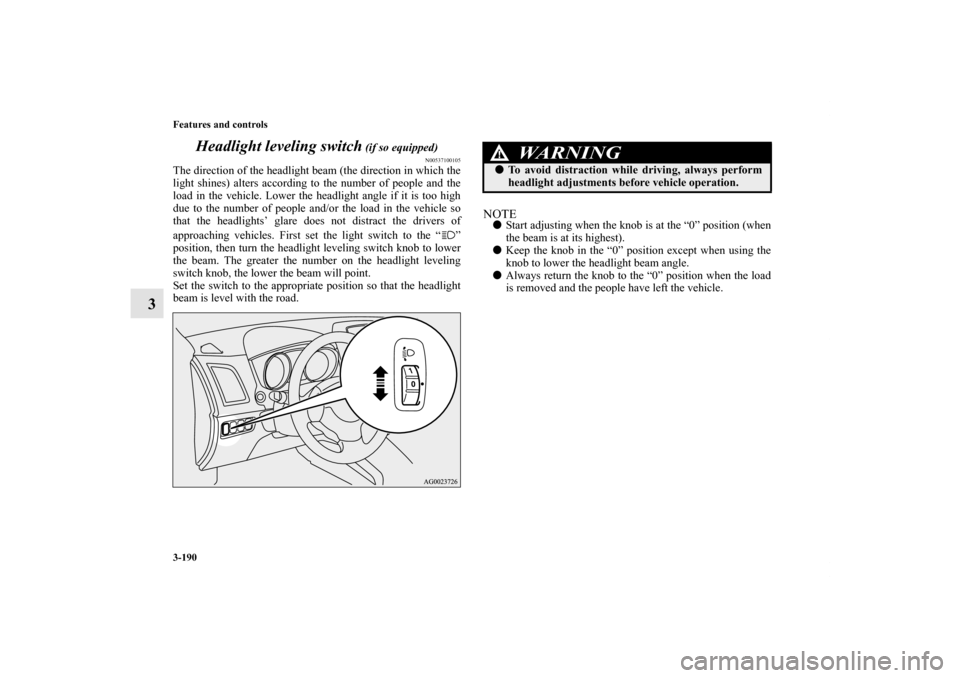

3Headlight leveling switch
(if so equipped)
N00537100105
The direction of the headlight beam (the direction in which the
light shines) alters according to the number of people and the
load in the vehicle. Lower the headlight angle if it is too high
due to the number of people and/or the load in the vehicle so
that the headlights’ glare does not distract the drivers of
approaching vehicles. First set the light switch to the “ ”
position, then turn the headlight leveling switch knob to lower
the beam. The greater the number on the headlight leveling
switch knob, the lower the beam will point.
Set the switch to the appropriate position so that the headlight
beam is level with the road.
NOTE
Start adjusting when the knob is at the “0” position (when
the beam is at its highest).

Keep the knob in the “0” position except when using the
knob to lower the headlight beam angle.

Always return the knob to the “0” position when the load
is removed and the people have left the vehicle.
WA R N I N G
!
To avoid distraction while driving, always perform
headlight adjustments before vehicle operation.
BK0120400US.book 190 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-192 Features and controls

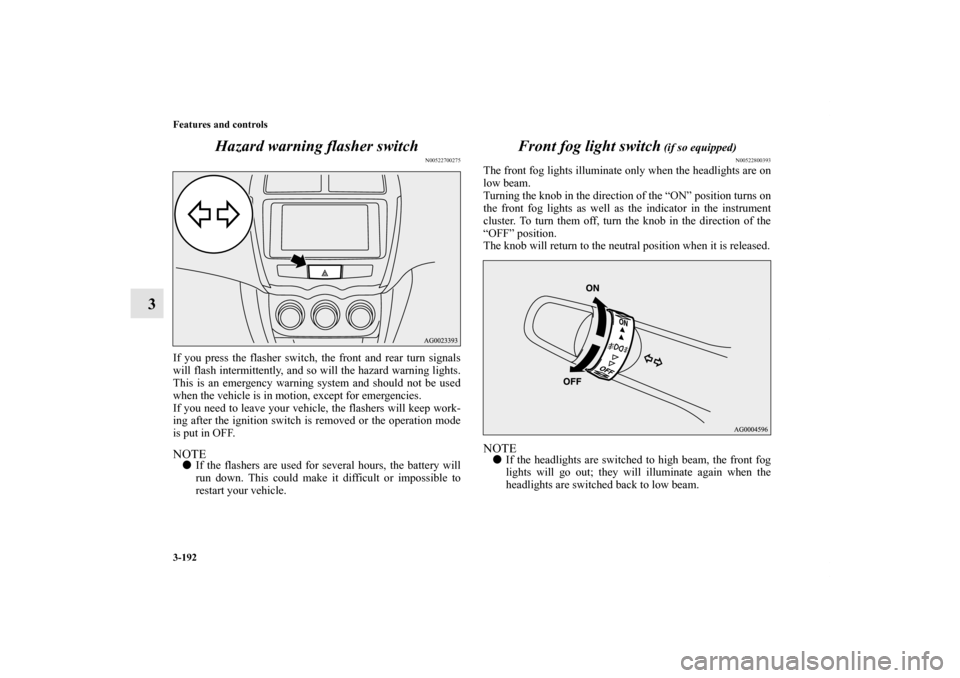

3Hazard warning flasher switch
N00522700275
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition switch is removed or the operation mode
is put in OFF.NOTE
If the flashers are used for several hours, the battery will
run down. This could make it difficult or impossible to
restart your vehicle.
Front fog light switch
(if so equipped)
N00522800393
The front fog lights illuminate only when the headlights are on
low beam.
Turning the knob in the direction of the “ON” position turns on
the front fog lights as well as the indicator in the instrument
cluster. To turn them off, turn the knob in the direction of the
“OFF” position.
The knob will return to the neutral position when it is released.NOTE
If the headlights are switched to high beam, the front fog
lights will go out; they will illuminate again when the
headlights are switched back to low beam.
BK0120400US.book 192 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-193
3

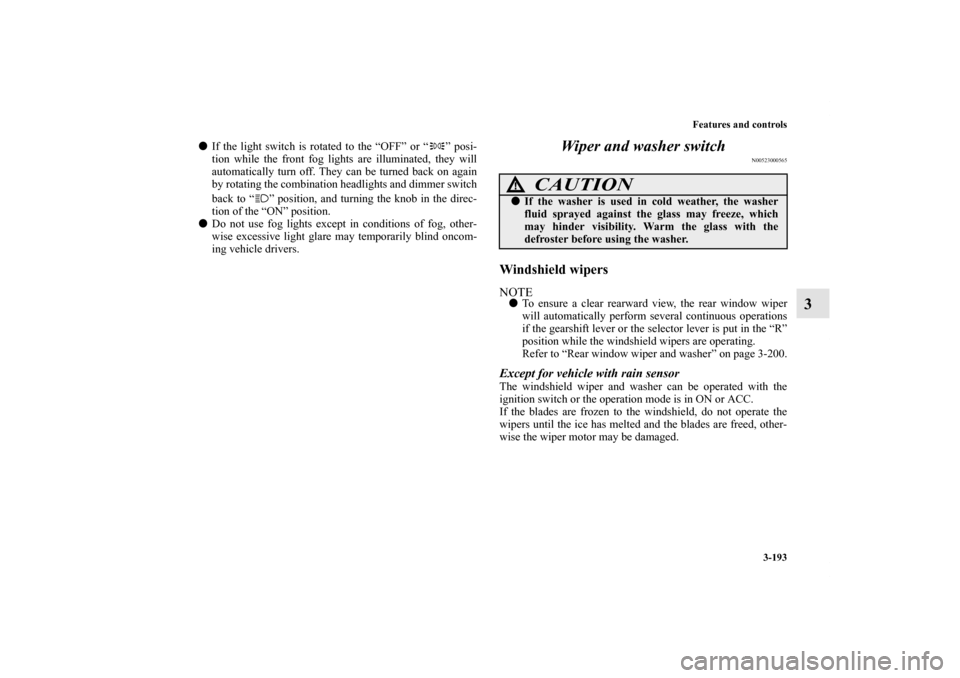

If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the combination headlights and dimmer switch
back to “ ” position, and turning the knob in the direc-
tion of the “ON” position.

Do not use fog lights except in conditions of fog, other-
wise excessive light glare may temporarily blind oncom-
ing vehicle drivers.
Wiper and washer switch
N00523000565
Windshield wipersNOTE
To ensure a clear rearward view, the rear window wiper
will automatically perform several continuous operations
if the gearshift lever or the selector lever is put in the “R”
position while the windshield wipers are operating.
Refer to “Rear window wiper and washer” on page 3-200.Except for vehicle with rain sensorThe windshield wiper and washer can be operated with the
ignition switch or the operation mode is in ON or ACC.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
BK0120400US.book 193 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Driving safety
4-5

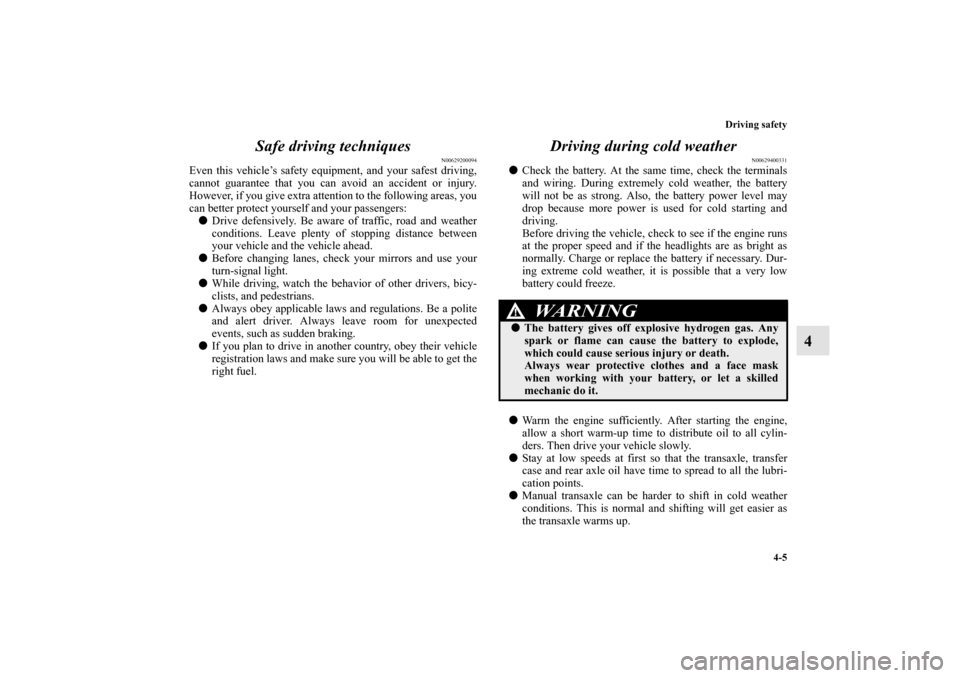

4 Safe driving techniques
N00629200094
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn-signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
Driving during cold weather
N00629400331

Check the battery. At the same time, check the terminals
and wiring. During extremely cold weather, the battery
will not be as strong. Also, the battery power level may
drop because more power is used for cold starting and
driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.

Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders. Then drive your vehicle slowly.

Stay at low speeds at first so that the transaxle, transfer
case and rear axle oil have time to spread to all the lubri-
cation points.

Manual transaxle can be harder to shift in cold weather
conditions. This is normal and shifting will get easier as
the transaxle warms up.
WA R N I N G
!
The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
BK0120400US.book 5 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
