2011 MITSUBISHI OUTLANDER SPORT change language

3-126 Features and controls
3Multi-information display
N00555000180
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, all-wheel drive operation status, average and momentary fuel consumption,
driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch or
operation mode is in OFFWith ignition switch or operation
mode is in ON (CVT)
Type 1 Type 2With ignition switch or operation
mode is in ON (Manual transaxle)
Type 1 Type 2 Type 1 Type 2
1-
Warning display screen (With ignition switch or opera-
tion mode in OFF) →P.3-134
2- Information screen (With ignition switch or operation mode
in OFF) → P.3-128
Interrupt display screen (With ignition switch or operation
mode in OFF) → P. 3 - 1 3 1
3- Door ajar warning display screen (With ignition switch or
operation mode in OFF) → P.3-132
4- Drive mode indicator display screen (if so equipped)
→ P. 3 - 1 3 4
5-
Warning display screen (With ignition switch or opera-
tion mode in ON) → P.3-128
6- Active stability control (ASC) OFF display screen (if so
equipped) → P.3-134
7- Information screen (With ignition switch or operation mode
in ON) → P. 3 - 1 3 5
Interrupt display screen (With ignition switch or operation
mode in ON) → P. 3 - 1 4 0
8- Selector lever position display screen (if so equipped) →
P. 3 - 1 4 1
9- Outside temperature display screen → P.3-141
BK0120400US.book 126 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-127
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.

The display screen is different depending on whether the
ignition switch or the operation mode in OFF or ON.
Refer to “Information screen (With ignition switch or
operation mode in OFF)” on page 3-128.
Refer to “Warning display list (With ignition switch or
operation mode in OFF)” on page 3-162.
Refer to “Information screen (With ignition switch turned
from the “LOCK” position to the “ON” position or opera-
tion mode changed from OFF to ON)” on page 3-133.
Refer to “Information screen (With ignition switch or
operation mode in ON)” on page 3-135.
Refer to “Warning display list (With ignition switch or
operation mode in ON)” on page 3-166.
10- Fuel remaining display screen → P.3-142
11- Engine coolant temperature display (if so equipped)
→ P.3-135
12- ECO mode indicator (if so equipped) → P.3-141
BK0120400US.book 127 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

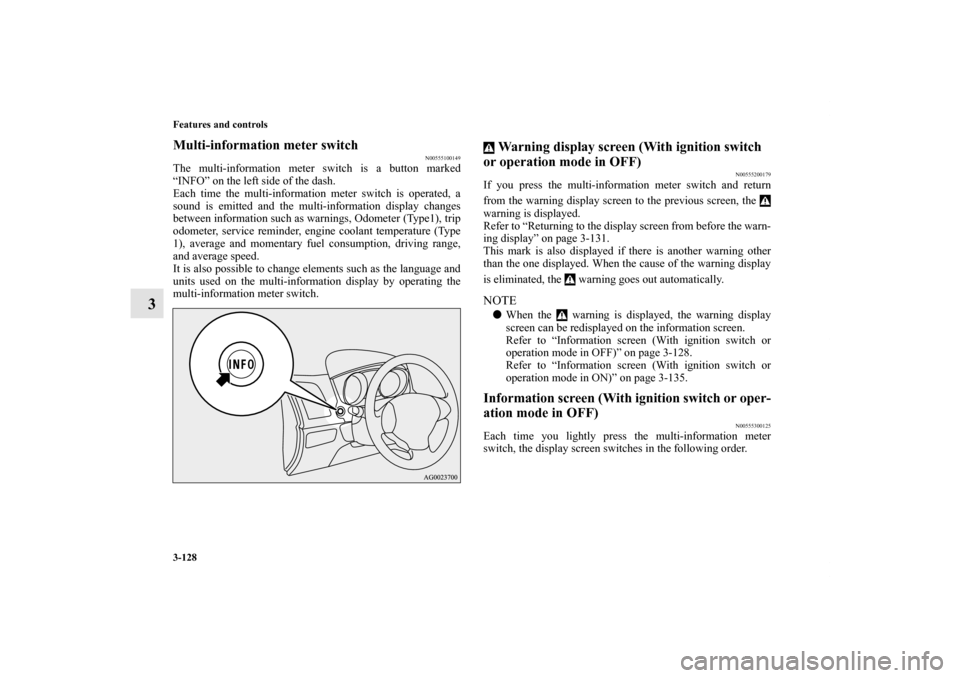

3-128 Features and controls
3
Multi-information meter switch
N00555100149
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, Odometer (Type1), trip
odometer, service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
Warning display screen (With ignition switch
or operation mode in OFF)
N00555200179
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-131.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the warning goes out automatically.NOTE
When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch or
operation mode in OFF)” on page 3-128.
Refer to “Information screen (With ignition switch or
operation mode in ON)” on page 3-135.Information screen (With ignition switch or oper-
ation mode in OFF)
N00555300125
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
BK0120400US.book 128 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-139
3

Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.) The
actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.

Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average fuel consumption display.

The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.Momentary fuel consumption displayWhile driving, the momentary fuel consumption is shown with
a bar graph.
When the momentary fuel consumption surpasses the average
fuel consumption, the momentary fuel consumption is dis-
played with a green bar graph. (Type 2)
Be conscious of maintaining the momentary fuel consumption
above the average fuel consumption, it can help you drive with
the better fuel consumption.NOTE
When the momentary fuel consumption cannot be mea-
sured, a bar graph is not shown.

The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.

It is possible to cancel the green bar graph.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.
Function setting screenThe “Display language”, “Temperature unit”, “Fuel consump-
tion unit”, and “Average fuel consumption and speed reset
method” settings can be modified as desired.
For further details, refer to “Changing the function settings
(With ignition switch or operation mode in ON)” on page 3-
146.
BK0120400US.book 139 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-147
3
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections .
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-147.
Refer to “Changing the fuel consumption display unit” on
page 3-149.
Refer to “Changing the temperature unit” on page 3-151.
Refer to “Changing the display language” on page 3-152.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-153.
Refer to “Operation sound setting” on page 3-154.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-155.
Refer to “Changing the turn signal sound” on page 3-156.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-157.
Refer to “Returning to the factory settings” on page 3-
158.
Changing the reset mode for average fuel consumption
and average speed
N00557000139
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset.”
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-146.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0120400US.book 147 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

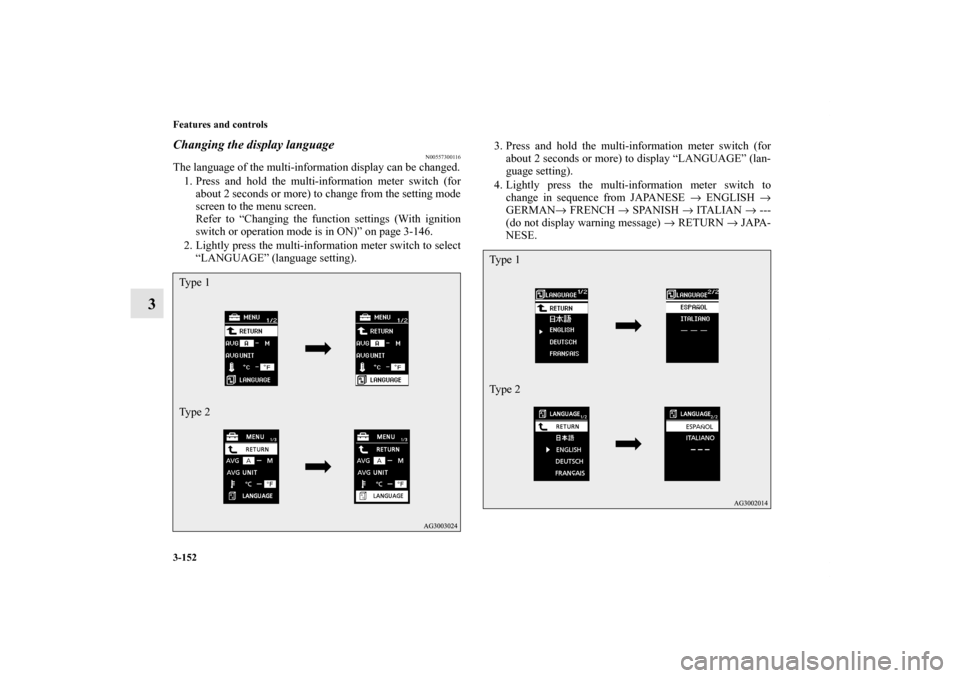

3-152 Features and controls
3
Changing the display language
N00557300116
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-146.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to
change in sequence from JAPANESE → ENGLISH →
GERMAN→ FRENCH → SPANISH → ITALIAN → ---
(do not display warning message) → RETURN → JAPA-
NESE.Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0120400US.book 152 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

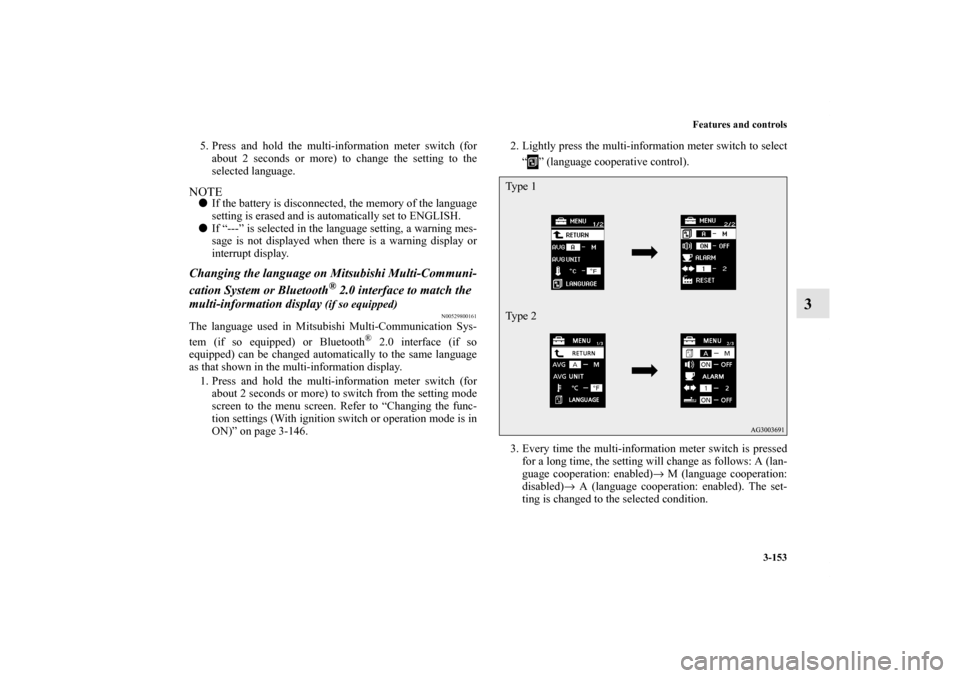

Features and controls
3-153
3
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.NOTE
If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.

If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800161
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen. Refer to “Changing the func-
tion settings (With ignition switch or operation mode is in
ON)” on page 3-146. 2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for a long time, the setting will change as follows: A (lan-
guage cooperation: enabled)→ M (language cooperation:
disabled)→ A (language cooperation: enabled). The set-
ting is changed to the selected condition.
Ty p e 1
Ty p e 2
BK0120400US.book 153 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

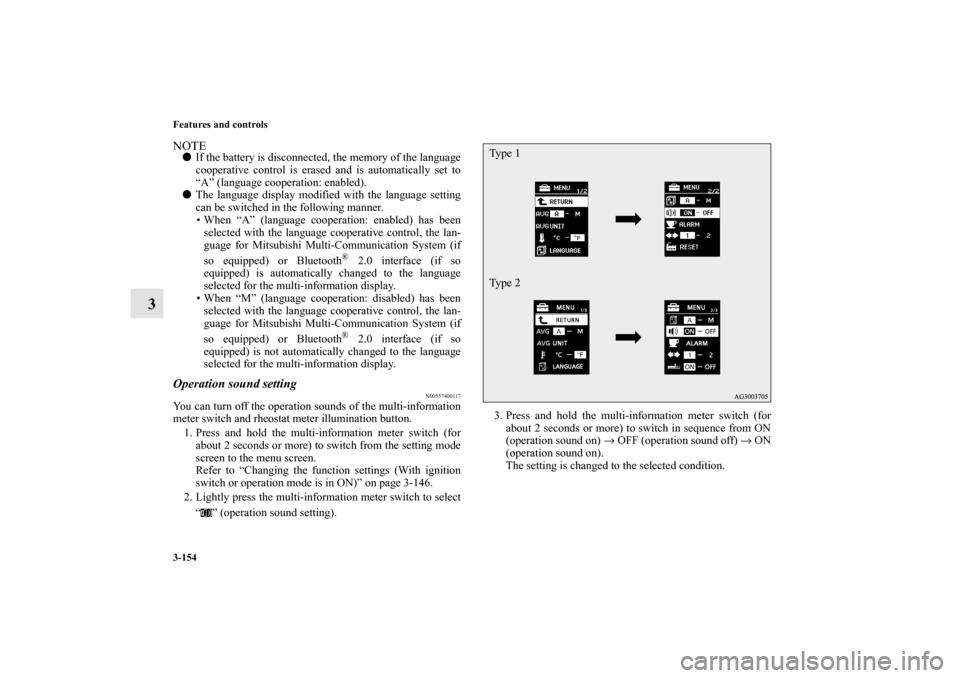

3-154 Features and controls
3
NOTE
If the battery is disconnected, the memory of the language
cooperative control is erased and is automatically set to
“A” (language cooperation: enabled).

The language display modified with the language setting
can be switched in the following manner.
• When “A” (language cooperation: enabled) has been
selected with the language cooperative control, the lan-
guage for Mitsubishi Multi-Communication System (if
so equipped) or Bluetooth
® 2.0 interface (if so
equipped) is automatically changed to the language
selected for the multi-information display.
• When “M” (language cooperation: disabled) has been
selected with the language cooperative control, the lan-
guage for Mitsubishi Multi-Communication System (if
so equipped) or Bluetooth® 2.0 interface (if so
equipped) is not automatically changed to the language
selected for the multi-information display.
Operation sound setting
N00557400117
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-146.
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.
Ty p e 1
Ty p e 2
BK0120400US.book 154 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
