2011 MITSUBISHI OUTLANDER SPORT headlights

7-52 Vehicle care and maintenance
7
Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800062
1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0120400US.book 52 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-53
7

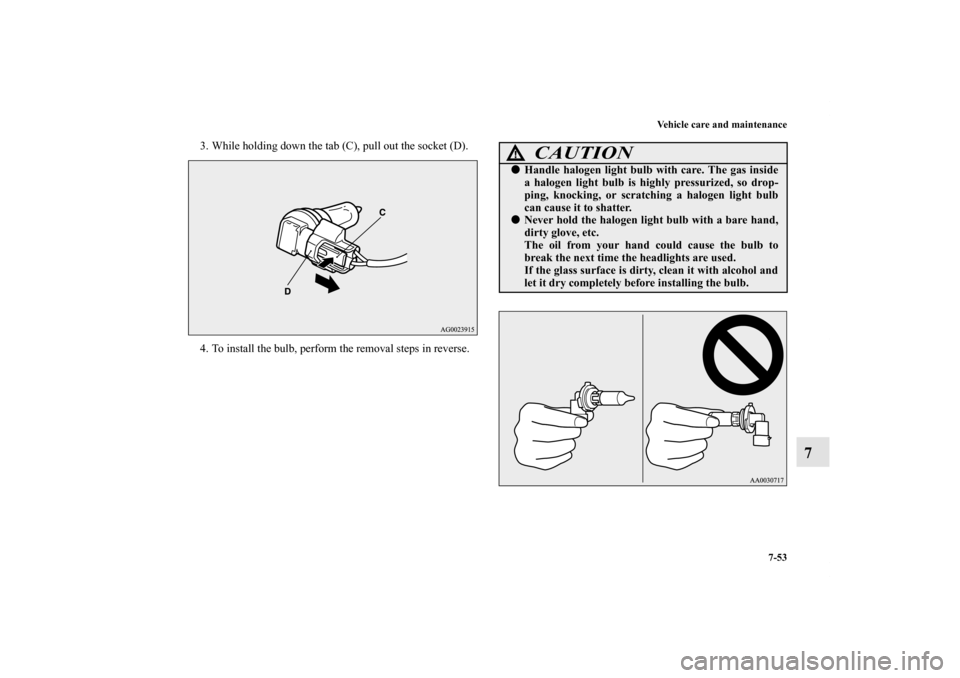

3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0120400US.book 53 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-54 Vehicle care and maintenance
7
Headlights (high beam)
N00901900050
1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0120400US.book 54 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-55
7

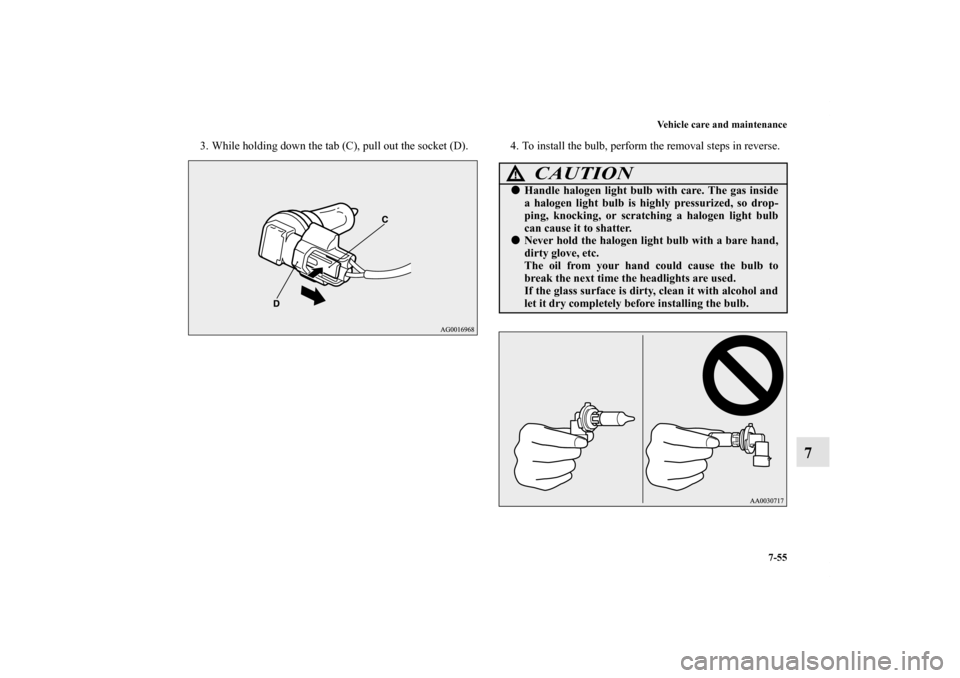

3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0120400US.book 55 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-56 Vehicle care and maintenance
7
Headlights (low beam, for vehicles equipped with
high intensity discharge headlights)
N00900300099
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
Front side-marker and parking lights
N00917300479
1. Turn the socket (A) counterclockwise to remove it.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
*- Front of the vehicle
BK0120400US.book 56 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Alphabetical index
3
Coolant 7-10
,9-9
Hood 7-4
Oil and oil filter 7-7
,9-9
Overheating 6-5
Serial number 9-2
Specification 9-7
Engine coolant temperature display 3-136
Engine hood 7-4
Engine switch 3-21
Exhaust system 7-39
F
Floor console box 3-248
Fluid
Automatic transaxle fluid 9-9
Brake fluid 9-9
Continuously variable transmission (CVT) fluid 7-14
,9-9
Engine coolant 7-10
,9-9
Power steering fluid 9-9
Washer fluid 7-16
,9-9
Fluid capacities and lubricants 9-9
Free-hand advanced security transmitter (F.A.S.T.-key) 3-14
Front fog lights
Bulb capacity 7-49
Indicators 3-176
Replacement 7-59
Switch 3-192
Front seat adjustment 2-3
Front side-marker lightsBulb capacity 7-49
Replacement 7-56
Front turn signal light
Replacement 7-57
Fuel
Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-36
Fuel selection 1-2
Tank capacity 9-9
Fuses 7-41
Fusible links 7-40
G
General maintenance
Maintenance 7-37
General vehicle data 9-5
Genuine parts 1-9
Glove compartment 3-246
H
Hazard warning flasher switch 3-192
Hazard warning lights 3-176
Head restraints 2-12
Headlight leveling switch 3-190
Headlights
Bulb capacity 7-49
Dimmer 3-187
Headlight flasher 3-187
