Overview
Instruments and controls
N00100201316
Cruise control switch
(if so equipped) P.3-106 Active stability control (ASC) OFF switch
P.3-103, 3-134
Ignition switch (if so equipped)
P.3-21, 3-65 Tilt & Telescopic steering lever P.3-60Wiper and washer switch P.3-193
Rear window wiper and washer
switch P.3-200 Instrument cluster P.3-122
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.2-43, 2-53
Horn switch P.3-203Combination headlights and dimmer switch P.3-182
Turn signal lever P.3-191
Front fog light switch (if so equipped) P.3-192
Sportronic steering wheel paddle shifter
(if so equipped) P.3-79
Steering wheel audio remote control
switches (if so equipped) P.5-91
Bluetooth
® 2.0 interface (if so equipped) P.3-204 Headlight leveling switch (if so equipped)
P. 3 - 1 9 0
Engine switch (if so equipped)
P. 3 - 2 1
Supplemental restraint system - driver’s
knee airbag P.2-53
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Quick index
1

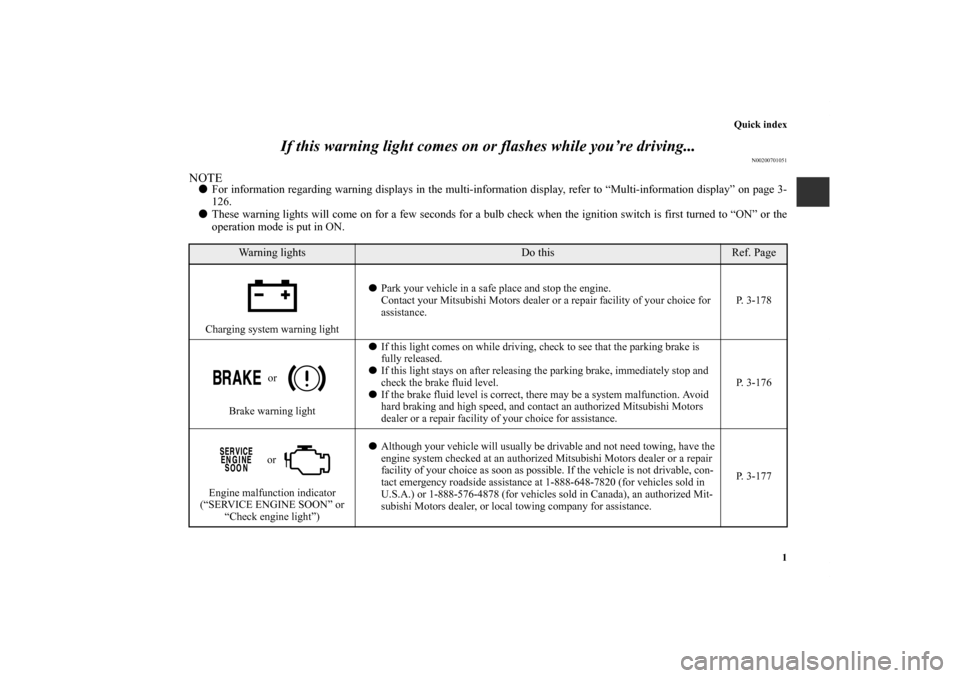

If this warning light comes on or flashes while you’re driving...
N00200701051
NOTE
For information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 3-
126.

These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the
operation mode is put in ON.
Warning lights
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3-178
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is
fully released.

If this light stays on after releasing the parking brake, immediately stop and
check the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speed, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P. 3-176
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mit-
subishi Motors dealer, or local towing company for assistance.P. 3-177
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

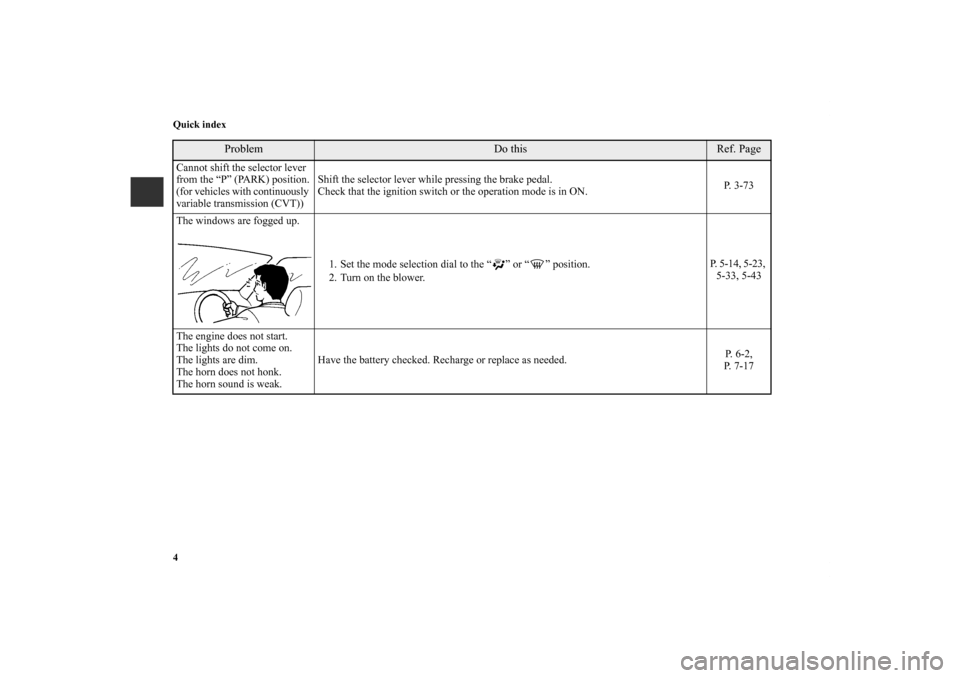

4 Quick indexCannot shift the selector lever
from the “P” (PARK) position.
(for vehicles with continuously
variable transmission (CVT))Shift the selector lever while pressing the brake pedal.
Check that the ignition switch or the operation mode is in ON.P. 3 - 7 3
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P. 5-14, 5-23,
5-33, 5-43
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
P. 7 - 1 7
Problem
Do this
Ref. Page
BK0120400US.book 4 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-9
2
Arm rest
(if so equipped)
N00402300069

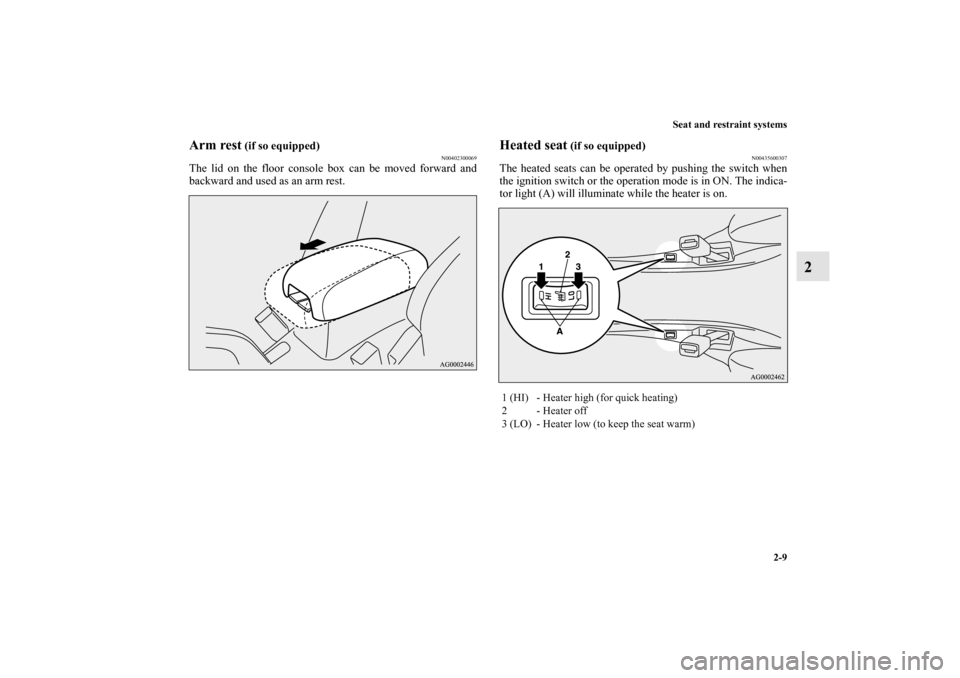

The lid on the floor console box can be moved forward and
backward and used as an arm rest.
Heated seat
(if so equipped)
N00435600307
The heated seats can be operated by pushing the switch when
the ignition switch or the operation mode is in ON. The indica-
tor light (A) will illuminate while the heater is on.1 (HI) - Heater high (for quick heating)
2 - Heater off
3 (LO) - Heater low (to keep the seat warm)
BK0120400US.book 9 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-26 Seat and restraint systems
2

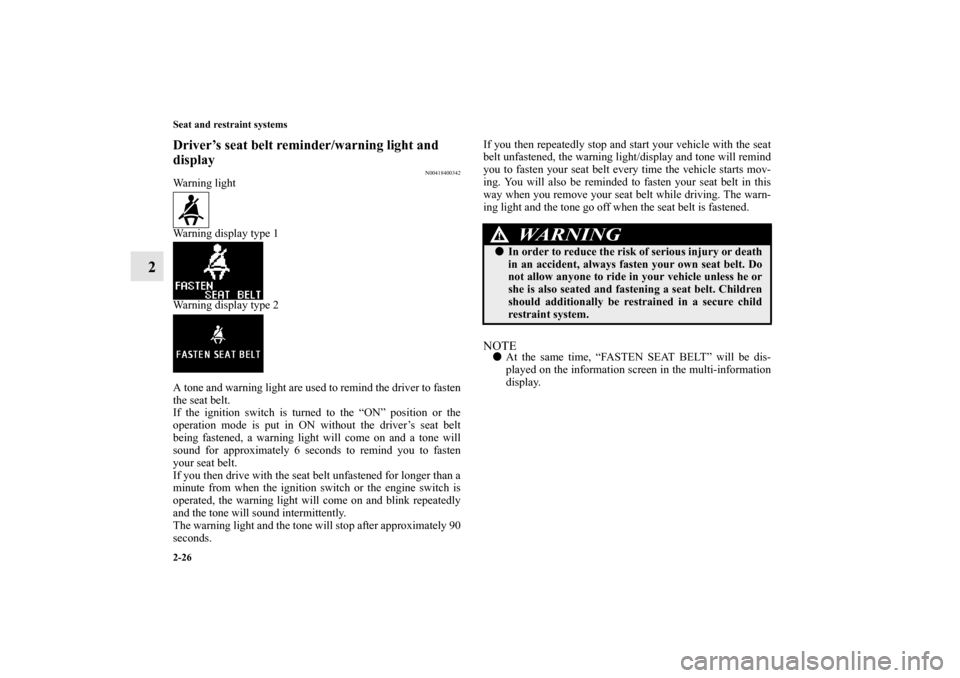

Driver’s seat belt reminder/warning light and
display
N00418400342
Warning light
Warning display type 1
Warning display type 2
A tone and warning light are used to remind the driver to fasten
the seat belt.
If the ignition switch is turned to the “ON” position or the
operation mode is put in ON without the driver’s seat belt
being fastened, a warning light will come on and a tone will
sound for approximately 6 seconds to remind you to fasten
your seat belt.
If you then drive with the seat belt unfastened for longer than a
minute from when the ignition switch or the engine switch is
operated, the warning light will come on and blink repeatedly
and the tone will sound intermittently.
The warning light and the tone will stop after approximately 90
seconds.If you then repeatedly stop and start your vehicle with the seat
belt unfastened, the warning light/display and tone will remind
you to fasten your seat belt every time the vehicle starts mov-
ing. You will also be reminded to fasten your seat belt in this
way when you remove your seat belt while driving. The warn-
ing light and the tone go off when the seat belt is fastened.
NOTE
At the same time, “FASTEN SEAT BELT” will be dis-
played on the information screen in the multi-information
display.
WA R N I N G
!
In order to reduce the risk of serious injury or death
in an accident, always fasten your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and fastening a seat belt. Children
should additionally be restrained in a secure child
restraint system.
BK0120400US.book 26 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-27
2
Front passenger seat belt warning light
N00418300194
The front passenger seat belt warning light is located in the
instrument panel.
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, this indicator normally comes on
and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
Adjustable seat belt shoulder anchor (front seats)
N00406300302
To move the anchor (A), press the lock knob (B) and slide the
anchor to the desired position.
WA R N I N G
!
Do not install any accessory or sticker that makes
the light difficult to see.
Anchor down Anchor up
BK0120400US.book 27 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-30 Seat and restraint systems
2
The seat belt pre-tensioner system includes the following com-
ponents:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch or the opera-
tion mode is under the following conditions. These include all
of the items listed above and all related wiring.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is in the “ON” or “START” position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in ON.The seat belt pre-tensioners will operate under the same condi-
tions as the airbag control unit.
When the seat belt pre-tensioners activate, some smoke is
released and a loud noise will be heard. The smoke is not harm-
ful, but care should be taken not to intentionally inhale it, as it
may cause some temporary irritation to people with respiratory
problems.
The pre-tensioners activate whenever a moderate-to-serve
impact is applied to the front or side of the vehicle, even if the
seat belt is not being worn. The seat belt pre-tensioners may
not activate in certain collisions, even though the vehicle may
appear to be severely damaged. Such non-activation does not
mean that something is wrong with the seat belt pre-tensioner
system, but rather that the collision forces were not severe
enough to activate the system.1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioner
4- Airbag control unit
5- Side impact sensors
WA R N I N G
!
The seat belt pre-tensioner system is designed to
work only once. After the seat belt pre-tensioners
have been activated, they will not work again. They
must promptly be replaced and the entire seat belt
pre-tensioner system inspected by an authorized
Mitsubishi Motors dealer.
BK0120400US.book 30 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-47
2
How the Supplemental Restraint System works
N00407800450
The SRS includes the following components:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch or the opera-
tion mode is under the following conditions. These include all
of the items listed above and all related wiring.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is in the “ON” or “START” position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in ON.
The airbags will operate under the same conditions as the air-
bag control unit.1- Airbag module (Driver)
2- SRS warning light
3- Passenger’s airbag off indicator
4- Airbag module (Passenger)
5- Front impact sensors
6- Airbag module (Driver’s knee)
7- Driver’s seat position sensor
8- Passenger’s seat weight sensors
9- Weight control unit
10- Airbag control unit
11- Side airbag modules
12- Curtain airbag modules
13- Side impact sensors
BK0120400US.book 47 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
