Features and controls
3-11
3
Customer remote control transmitter program-
ming
N00544000089
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.

The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0120400US.book 11 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

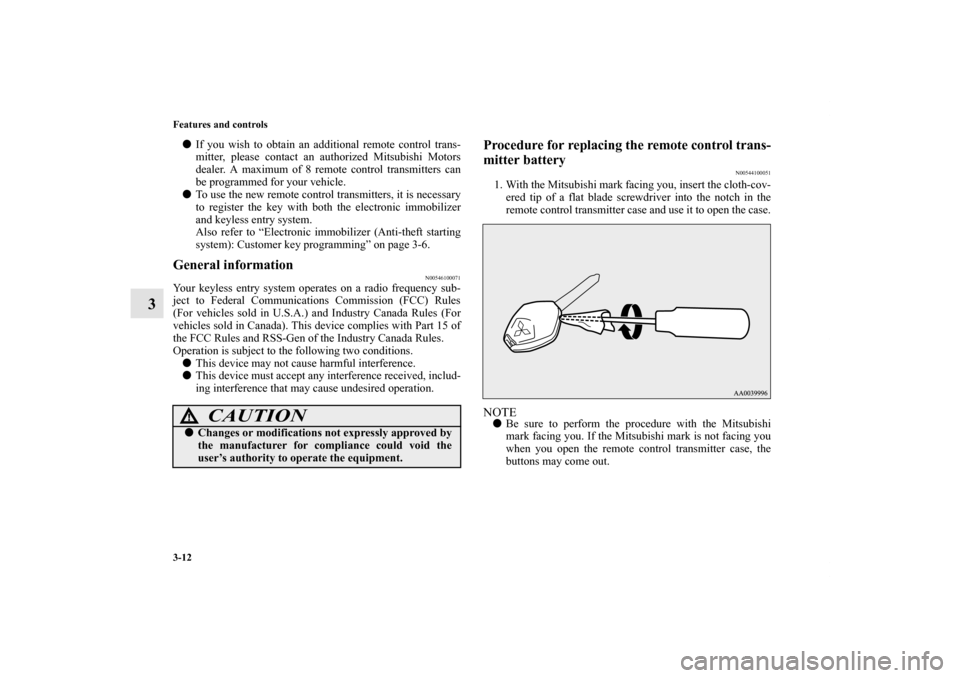

3-12 Features and controls
3

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 8 remote control transmitters can
be programmed for your vehicle.

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-6.General information
N00546100071
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Procedure for replacing the remote control trans-
mitter battery
N00544100051
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0120400US.book 12 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-16 Features and controls
3
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
• The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
• A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
• The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate without using the F.A.S.T.-key” on
page 3-29.

The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.

Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near to electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200125
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and presses the driver’s or
front passenger’s door lock/unlock switch, the liftgate LOCK
switch or the liftgate OPEN switch, verification of the ID code
is performed.
The doors and the liftgate can only be locked and unlocked, the
engine can only be started and the operation mode can only be
changed when the ID codes of the vehicle and F.A.S.T.-key
match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0120400US.book 16 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-23
3
ACC power auto-cutout function
N00568100013
After approximately 30 minutes has elapsed with the operation
mode in ACC, the function automatically cuts out the power
for the audio system and other electric devices that can be
operated with that mode.
When the engine switch is pressed while the operation mode is
in ACC, the power is supplied again to those devices.
NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
approximately 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, we recommend you to consult an authorized
Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate Mitsubishi Multi-Communications
System manual for details.Warning activation
N00503500173
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.
If the following warning displays, contact an authorized Mit-
subishi Motors dealer.
CAUTION
!
When the engine is not running, put the operation
mode in OFF. Leaving the operation mode in ON or
ACC for a long time when the engine is not running
may cause the battery to be discharged, making it
impossible to start the engine and to lock and unlock
the steering wheel.
When the battery is disconnected, the current oper-
ation mode is memorized. After reconnecting the
battery, the memorized mode is selected automati-
cally. Before disconnecting the battery for repair or
replacement, make sure to put the operation mode
in OFF.
Be careful if you are not sure which operation mode
the vehicle is in when the battery is run down.
The operation mode cannot be changed from OFF to
ACC or ON if the F.A.S.T.-key is not detected to be
in the vehicle. Refer to “Operating range for start-
ing the engine and changing the operation mode” on
page 3-18.
There is a problem in the F.A.S.T.-key
BK0120400US.book 23 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-24 Features and controls
3
If the following warnings display, the display goes off if the
correct action is taken.

The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified

A door or the liftgate cannot be locked even when the
driver’s or front passenger’s door lock/unlock switch, or
the liftgate LOCK switch is pressed.
F.A.S.T.-key take-out monitoring system
N00559800128
When the operation mode in any mode other than OFF, and a
door is opened and the F.A.S.T.-key is removed from the pas-
senger compartment so that the ID codes of the F.A.S.T.-key
and the vehicle can no longer be verified, the warning display
is displayed and the buzzer sounds 4 times as a warning.NOTE
The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.

The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine and changing the
operation mode. The surrounding environment or electro-
magnetic waves may make it impossible to verify the ID
codes of the F.A.S.T.-key and vehicle.
Put the operation mode in OFF and then start the
engine again.
If the warning is not cancelled, there is a fault in
the electronic immobilizer (Anti-theft starting sys-
tem).
Please contact an authorized Mitsubishi Motors
dealer.
Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range
Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-24.
The battery of the F.A.S.T.-key is run down
Refer to “Key lock-in prevention system” on page
3-25.
Refer to “Door ajar prevention system” on page 3-
25.
Refer to “Operation mode OFF reminder system”
on page 3-25.
BK0120400US.book 24 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

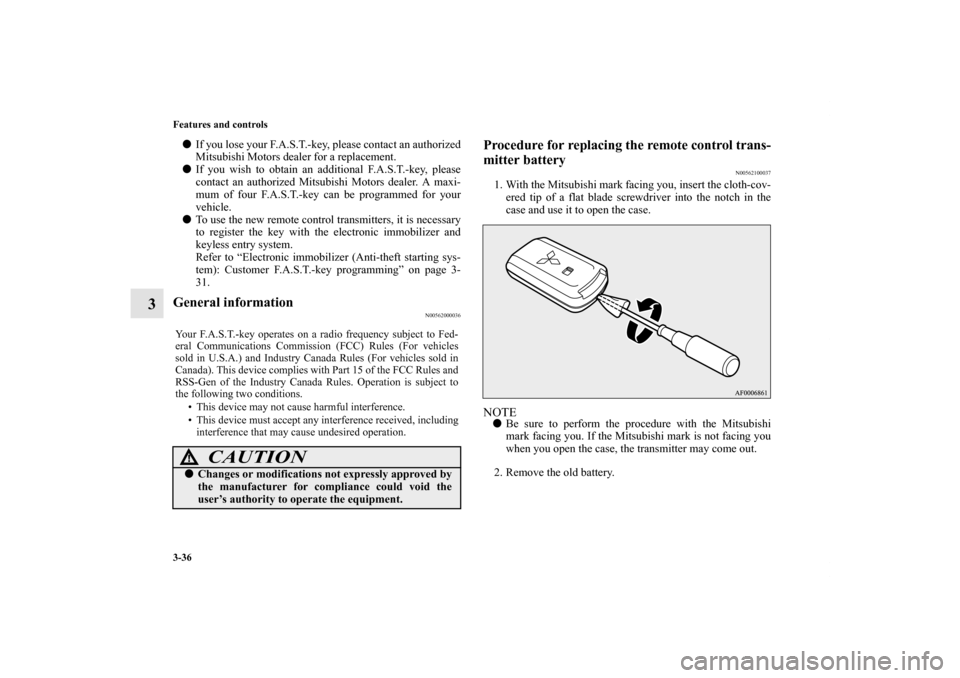

3-36 Features and controls
3

If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.

To use the new remote control transmitters, it is necessary
to register the key with the electronic immobilizer and
keyless entry system.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem): Customer F.A.S.T.-key programming” on page 3-
31.General information
N00562000036
Procedure for replacing the remote control trans-
mitter battery
N00562100037
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the case, the transmitter may come out.
2. Remove the old battery.
Your F.A.S.T.-key operates on a radio frequency subject to Fed-
eral Communications Commission (FCC) Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules (For vehicles sold in
Canada). This device complies with Part 15 of the FCC Rules and
RSS-Gen of the Industry Canada Rules. Operation is subject to
the following two conditions.
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0120400US.book 36 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-138 Features and controls
3

“---” is displayed when the average speed cannot be mea-
sured.

The initial (default) setting is “Auto reset mode”.

The display setting can be changed to the preferred units
(mph or km/h).
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.

Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average speed display.Average fuel consumption displayThis displays the average fuel consumption from the last reset
to the present.
There are 2 types of mode settings as follows.
For details on how to change the average fuel consumption dis-
play setting, refer to “Changing the function settings (With
ignition switch or operation mode in ON)” on page 3-146.
The “ ” mark in the momentary fuel gauge shows the average
fuel consumption. (Type 2)
Manual reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.
When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “LOCK” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.

When the engine switch or the operation mode is in the
following conditions, the average fuel consumption dis-
play will automatically reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “LOCK”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been set to ACC or OFF for about
4 hours or more.
NOTE
The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.

“---” is displayed when the average fuel consumption can-
not be measured.

The initial (default) setting is “Auto reset mode”.
BK0120400US.book 138 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
