Page 30 of 602
Seat and restraint systems
2-3
2 Seats and restraint systems
N00401600153
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with airbags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.
Always check the following before you drive:
That everyone in your vehicle is properly wearing their
seat belt.
That infants and small children are properly secured in
appropriate child restraint systems in the rear seat.
That all doors are fully closed and locked.
That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
Front seats
N00401800373
Position the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.
Power seat adjustment Manual seat adjustment
BK0120400US.book 3 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 34 of 602
Seat and restraint systems
2-7
2
To adjust the seat height (Driver’s seat only)
N00402100197
Manual seat adjustmentOperate the lever repeatedly to raise or lower the seat.
WA R N I N G
!To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
1- Raise
2- Lower
BK0120400US.book 7 ページ ２０１０年５月１２日 水曜日 午前１０時５０分

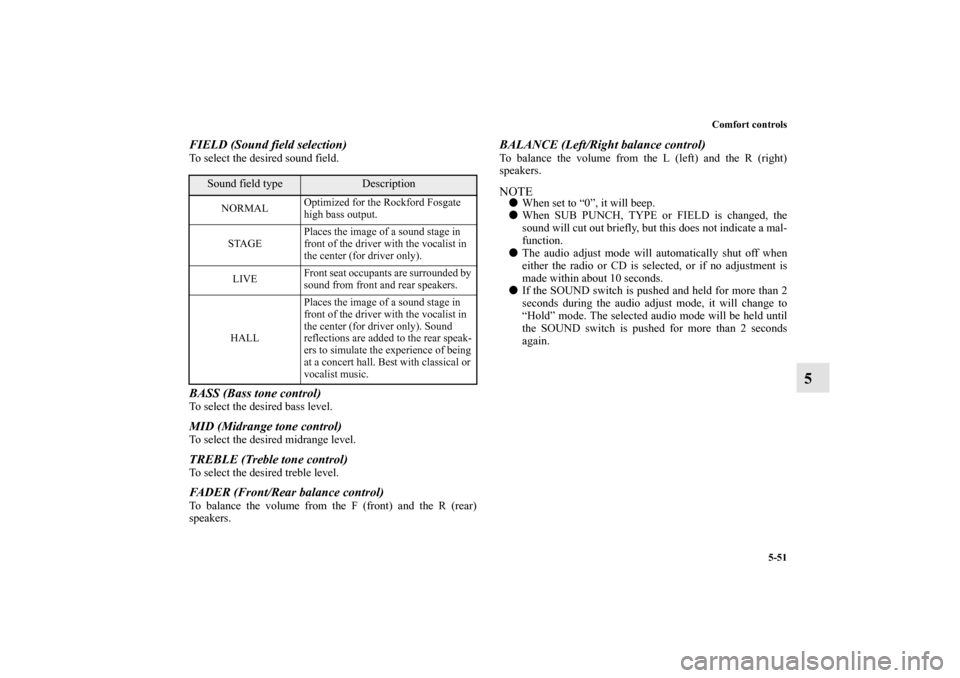

Page 420 of 602
Comfort controls
5-51
5
FIELD (Sound field selection)To select the desired sound field.BASS (Bass tone control)To select the desired bass level.MID (Midrange tone control)To select the desired midrange level.TREBLE (Treble tone control)To select the desired treble level.FADER (Front/Rear balance control)To balance the volume from the F (front) and the R (rear)
speakers.
BALANCE (Left/Right balance control)To balance the volume from the L (left) and the R (right)
speakers.NOTEWhen set to “0”, it will beep.
When SUB PUNCH, TYPE or FIELD is changed, the
sound will cut out briefly, but this does not indicate a mal-
function.
The audio adjust mode will automatically shut off when
either the radio or CD is selected, or if no adjustment is
made within about 10 seconds.
If the SOUND switch is pushed and held for more than 2
seconds during the audio adjust mode, it will change to
“Hold” mode. The selected audio mode will be held until
the SOUND switch is pushed for more than 2 seconds
again.
Sound field type
Description
NORMALOptimized for the Rockford Fosgate
high bass output.
STAGEPlaces the image of a sound stage in
front of the driver with the vocalist in
the center (for driver only).
LIVEFront seat occupants are surrounded by
sound from front and rear speakers.
HALLPlaces the image of a sound stage in
front of the driver with the vocalist in
the center (for driver only). Sound
reflections are added to the rear speak-
ers to simulate the experience of being
at a concert hall. Best with classical or
vocalist music.
BK0120400US.book 51 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
