2011 MITSUBISHI OUTLANDER SPORT Owners Manual

BK0120400US.book 16 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Manual air conditioning-Type 1
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Manual air conditioning-Type 2
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 16
Automatic air conditioning-Type1
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 25
Automatic air conditioning-Type2
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 35
Important air conditioning operating tips . . . . . . .5- 45
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 46
Audio system (if so equipped) . . . . . . . . . . . . . . . .5- 46
To play tracks from USB device
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 73
To play tracks from a Bluetooth® device
(vehicles with Bluetooth® 2.0 interface) . . . . . .5- 87
To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 90
Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 91
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 94Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 95
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 97
Error codes (USB memory device) . . . . . . . . . . . . 5- 98
Handling of compact discs . . . . . . . . . . . . . . . . . . 5- 99
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 101
Clock (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 5- 102
General information about your radio . . . . . . . . . . 5- 103
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

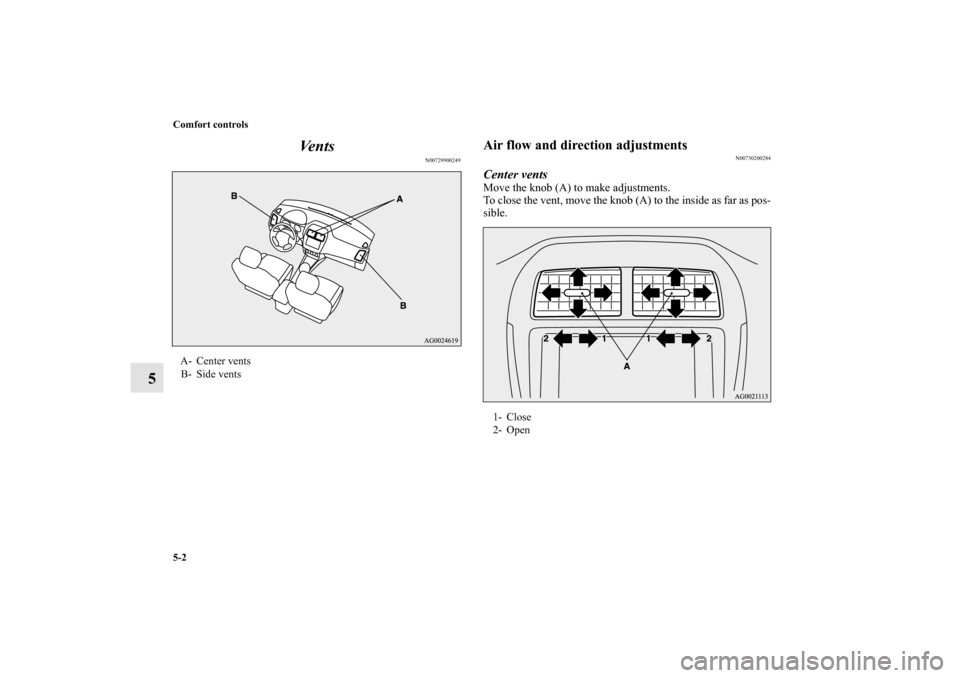

5-2 Comfort controls
5Ve n t s
N00729900249
Air flow and direction adjustments
N00730200284
Center ventsMove the knob (A) to make adjustments.
To close the vent, move the knob (A) to the inside as far as pos-
sible.
A- Center vents
B- Side vents
1- Close
2- Open
BK0120400US.book 2 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-3
5
Side ventsMove the knob (A) to make adjustments.
To close the vent, move the knob (A) to the outside as far as
possible.NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.

Do not let drinks or other liquids get into the vents as they
could prevent the air conditioning from operating nor-
mally.
Changing the mode selection
N00736400552
To change the position and amount of air flowing from the
vents, turn the mode selection dial. Refer to “Mode selection
dial” on page5-7, 5-17, 5-27, 5-37.
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the ventsFace positionAir flows only to the upper part of the passenger compartment.
1- Close
2- OpenLeft Right
BK0120400US.book 3 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-4 Comfort controls
5

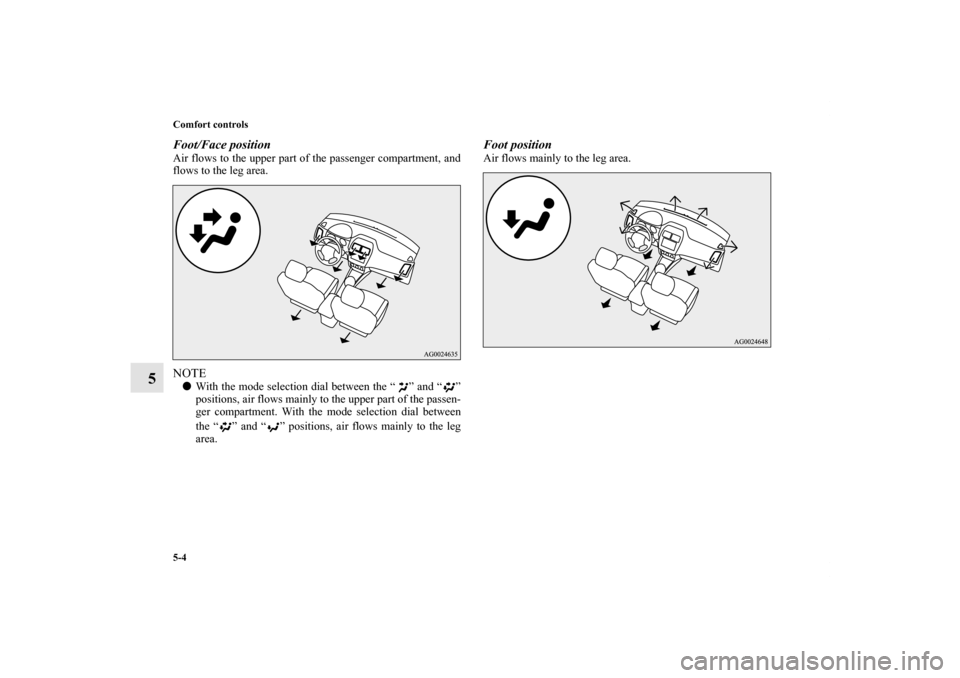

Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot positionAir flows mainly to the leg area.
BK0120400US.book 4 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-5
5

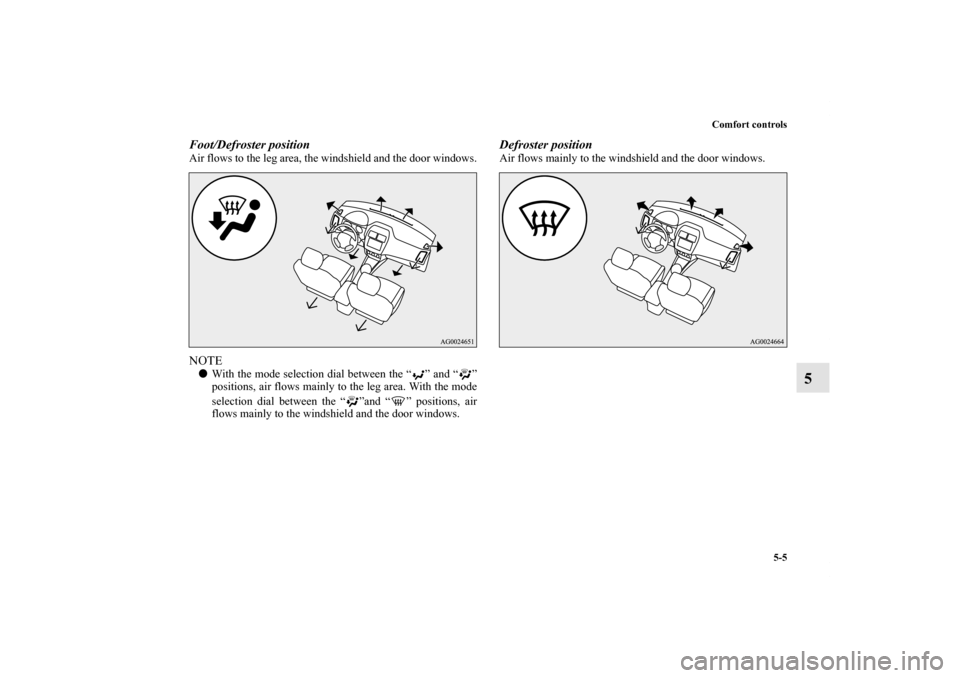

Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
BK0120400US.book 5 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-6 Comfort controls
5Manual air conditioning-Type 1
(if so equipped)
N00730300272
Control panel
N00730500258
Blower speed selection dial
N00736500175
When the ignition switch or the operation mode is in ON,
select the blower speed by turning the blower speed selection
dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
A- Temperature control dial
B- Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Electric rear window defogger switch→ P. 3 - 2 0 2
BK0120400US.book 6 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-7
5
Temperature control dial
N00736600222
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

For instructions on how to use the “MAX A/C” position
(A), refer to “For quick cooling” on page5-12.
Mode selection dial
N00736700151
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
