2011 MITSUBISHI OUTLANDER SPORT towing

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701051
NOTE
For information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 3-
126.

These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the
operation mode is put in ON.
Warning lights
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3-178
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is
fully released.

If this light stays on after releasing the parking brake, immediately stop and
check the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speed, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P. 3-176
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mit-
subishi Motors dealer, or local towing company for assistance.P. 3-177
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-2 Features and controls
3Break-in recommendations
N00508700330
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).

Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
12.)

Do not use this vehicle for trailer towing.
Keys
N00508800562
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0120400US.book 2 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

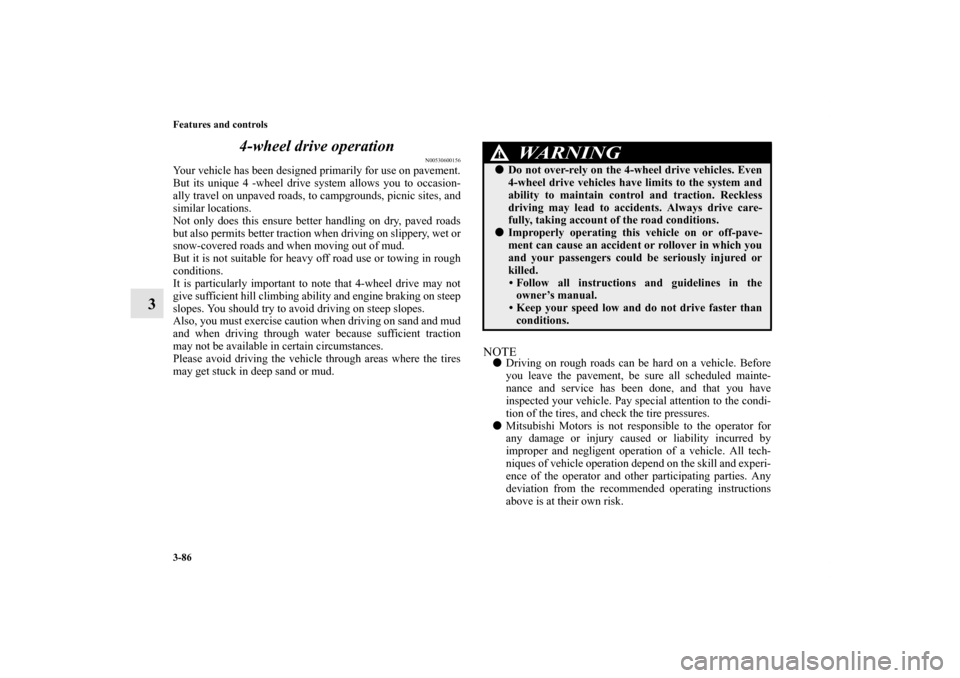

3-86 Features and controls
34-wheel drive operation
N00530600156
Your vehicle has been designed primarily for use on pavement.
But its unique 4 -wheel drive system allows you to occasion-
ally travel on unpaved roads, to campgrounds, picnic sites, and
similar locations.
Not only does this ensure better handling on dry, paved roads
but also permits better traction when driving on slippery, wet or
snow-covered roads and when moving out of mud.
But it is not suitable for heavy off road use or towing in rough
conditions.
It is particularly important to note that 4-wheel drive may not
give sufficient hill climbing ability and engine braking on steep
slopes. You should try to avoid driving on steep slopes.
Also, you must exercise caution when driving on sand and mud
and when driving through water because sufficient traction
may not be available in certain circumstances.
Please avoid driving the vehicle through areas where the tires
may get stuck in deep sand or mud.
NOTE
Driving on rough roads can be hard on a vehicle. Before
you leave the pavement, be sure all scheduled mainte-
nance and service has been done, and that you have
inspected your vehicle. Pay special attention to the condi-
tion of the tires, and check the tire pressures.

Mitsubishi Motors is not responsible to the operator for
any damage or injury caused or liability incurred by
improper and negligent operation of a vehicle. All tech-
niques of vehicle operation depend on the skill and experi-
ence of the operator and other participating parties. Any
deviation from the recommended operating instructions
above is at their own risk.
WA R N I N G
!
Do not over-rely on the 4-wheel drive vehicles. Even
4-wheel drive vehicles have limits to the system and
ability to maintain control and traction. Reckless
driving may lead to accidents. Always drive care-
fully, taking account of the road conditions.
Improperly operating this vehicle on or off-pave-
ment can cause an accident or rollover in which you
and your passengers could be seriously injured or
killed.
• Follow all instructions and guidelines in the
owner’s manual.
• Keep your speed low and do not drive faster than
conditions.
BK0120400US.book 86 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-91
3

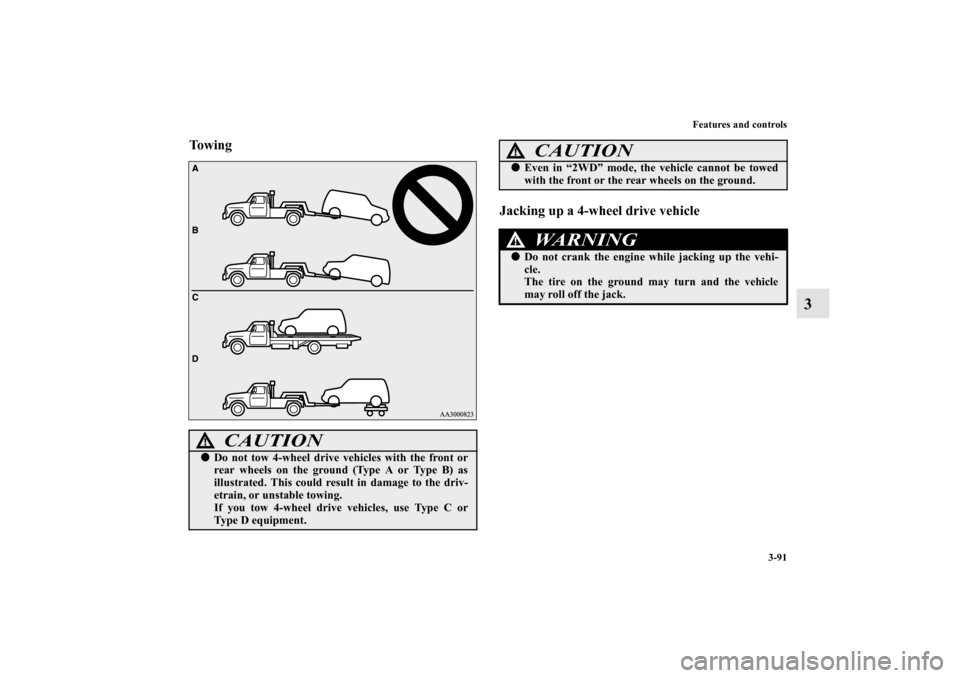

To w i n g
Jacking up a 4-wheel drive vehicle
CAUTION
!
Do not tow 4-wheel drive vehicles with the front or
rear wheels on the ground (Type A or Type B) as
illustrated. This could result in damage to the driv-
etrain, or unstable towing.
If you tow 4-wheel drive vehicles, use Type C or
Type D equipment.

Even in “2WD” mode, the vehicle cannot be towed
with the front or the rear wheels on the ground.
WA R N I N G
!
Do not crank the engine while jacking up the vehi-
cle.
The tire on the ground may turn and the vehicle
may roll off the jack.
CAUTION
!
BK0120400US.book 91 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

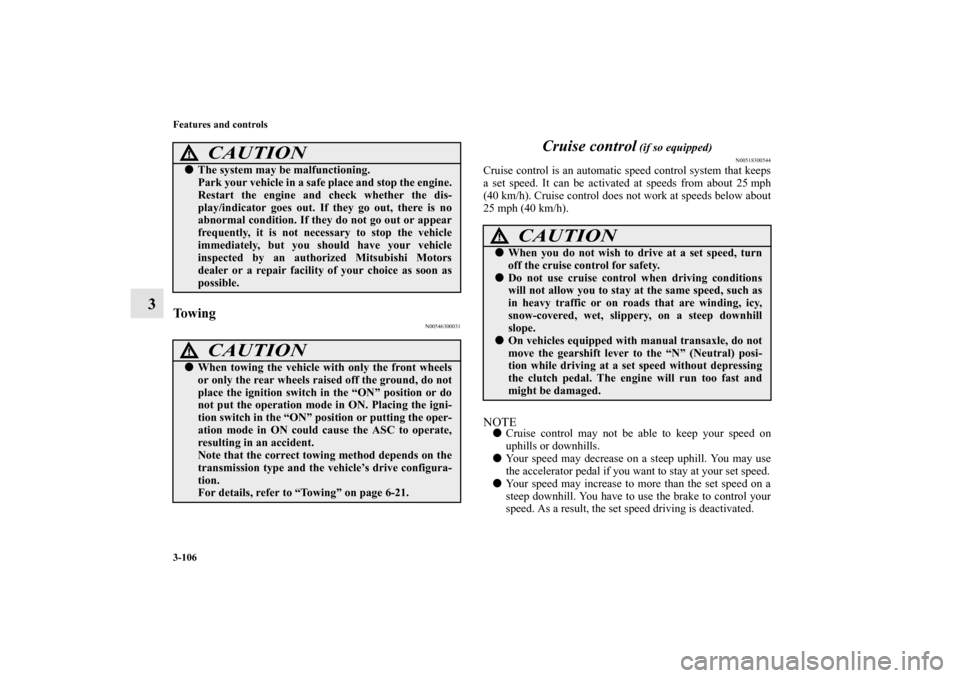

3-106 Features and controls
3
To w i n g
N00546300031
Cruise control
(if so equipped)
N00518300544
Cruise control is an automatic speed control system that keeps
a set speed. It can be activated at speeds from about 25 mph
(40 km/h). Cruise control does not work at speeds below about
25 mph (40 km/h).NOTE
Cruise control may not be able to keep your speed on
uphills or downhills.

Your speed may decrease on a steep uphill. You may use
the accelerator pedal if you want to stay at your set speed.

Your speed may increase to more than the set speed on a
steep downhill. You have to use the brake to control your
speed. As a result, the set speed driving is deactivated.
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the dis-
play/indicator goes out. If they go out, there is no
abnormal condition. If they do not go out or appear
frequently, it is not necessary to stop the vehicle
immediately, but you should have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
CAUTION
!
When towing the vehicle with only the front wheels
or only the rear wheels raised off the ground, do not
place the ignition switch in the “ON” position or do
not put the operation mode in ON. Placing the igni-
tion switch in the “ON” position or putting the oper-
ation mode in ON could cause the ASC to operate,
resulting in an accident.
Note that the correct towing method depends on the
transmission type and the vehicle’s drive configura-
tion.
For details, refer to “Towing” on page 6-21.
CAUTION
!
When you do not wish to drive at a set speed, turn
off the cruise control for safety.
Do not use cruise control when driving conditions
will not allow you to stay at the same speed, such as
in heavy traffic or on roads that are winding, icy,
snow-covered, wet, slippery, on a steep downhill
slope.
On vehicles equipped with manual transaxle, do not
move the gearshift lever to the “N” (Neutral) posi-
tion while driving at a set speed without depressing
the clutch pedal. The engine will run too fast and
might be damaged.
BK0120400US.book 106 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

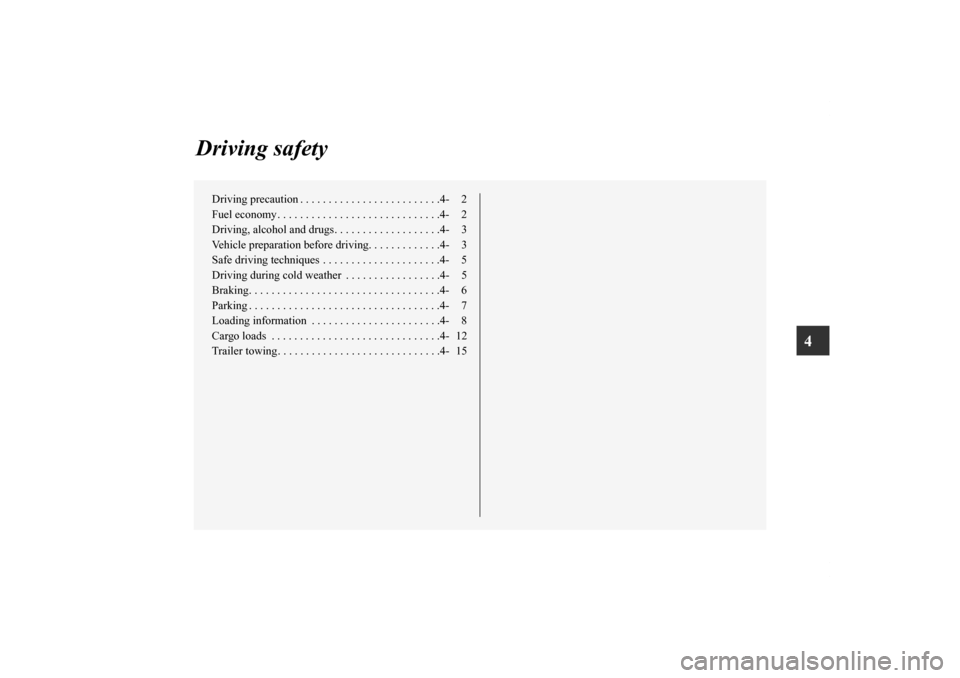

4
Driving safety
Driving precaution . . . . . . . . . . . . . . . . . . . . . . . . .4- 2
Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 2
Driving, alcohol and drugs. . . . . . . . . . . . . . . . . . .4- 3
Vehicle preparation before driving. . . . . . . . . . . . .4- 3
Safe driving techniques . . . . . . . . . . . . . . . . . . . . .4- 5
Driving during cold weather . . . . . . . . . . . . . . . . .4- 5
Braking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 6
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 7
Loading information . . . . . . . . . . . . . . . . . . . . . . .4- 8
Cargo loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 12
Trailer towing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 15
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

4-10 Driving safety
4
Steps for Determining Correct Load Limit
N00630200182
1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX kg or XXX
lbs.” on your vehicle’s placard.
2. Determine the combined weight of the driver and pas-
sengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passen-
gers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
“XXX” amount equals 1400 lbs. and there will be five
150 lbs. passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not
safely exceed the available cargo and luggage load
capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.NOTE
The above steps for determining correct load limit were
written in accordance with U.S.A. regulations.
Your vehicle cannot tow a trailer, so step 6 is irrelevant.
BK0120400US.book 10 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Driving safety
4-15
4

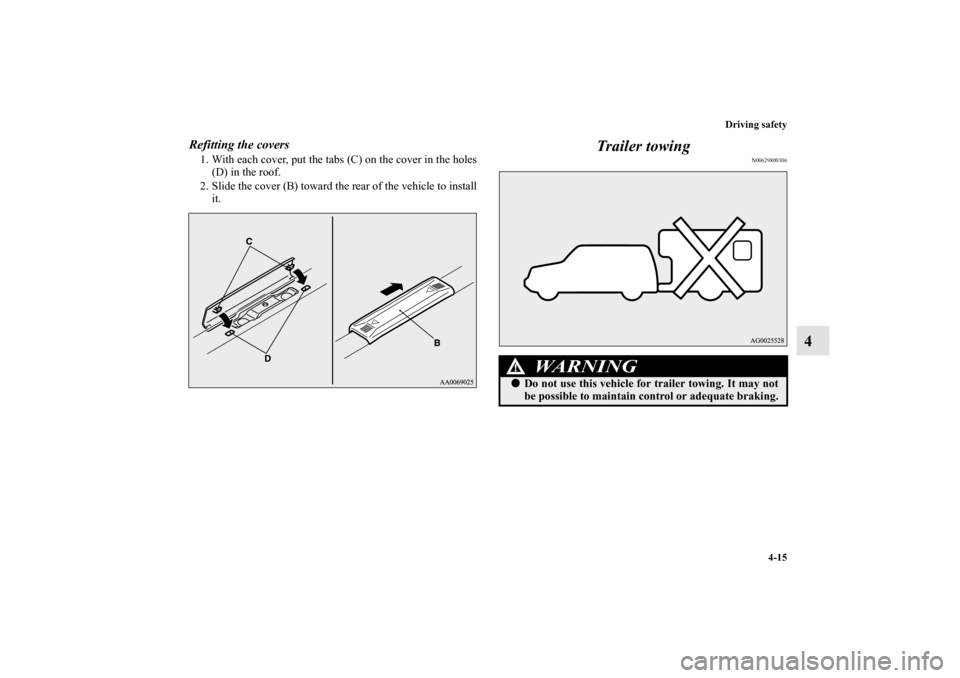

Refitting the covers1. With each cover, put the tabs (C) on the cover in the holes
(D) in the roof.
2. Slide the cover (B) toward the rear of the vehicle to install
it.
Trailer towing
N00629800306
WA R N I N G
!
Do not use this vehicle for trailer towing. It may not
be possible to maintain control or adequate braking.
