2011 MITSUBISHI OUTLANDER Owners Manual

9-6 Specifications

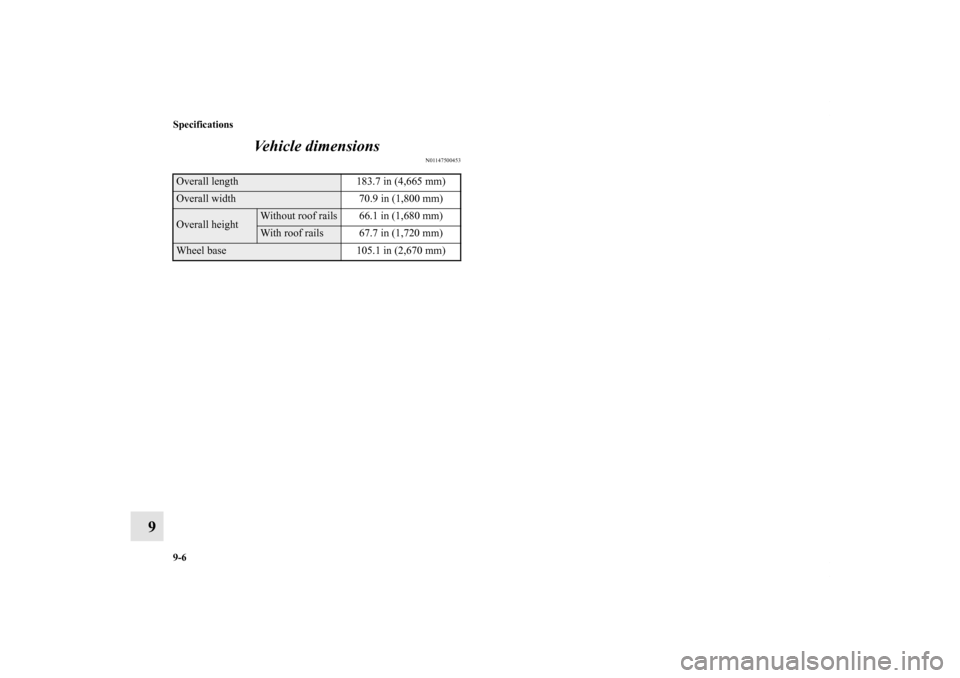

9Vehicle dimensions
N01147500453
Overall length 183.7 in (4,665 mm)Overall width 70.9 in (1,800 mm)Overall height
Without roof rails 66.1 in (1,680 mm)With roof rails 67.7 in (1,720 mm)
Wheel base 105.1 in (2,670 mm)BK0122500US.book 6 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Specifications
9-7

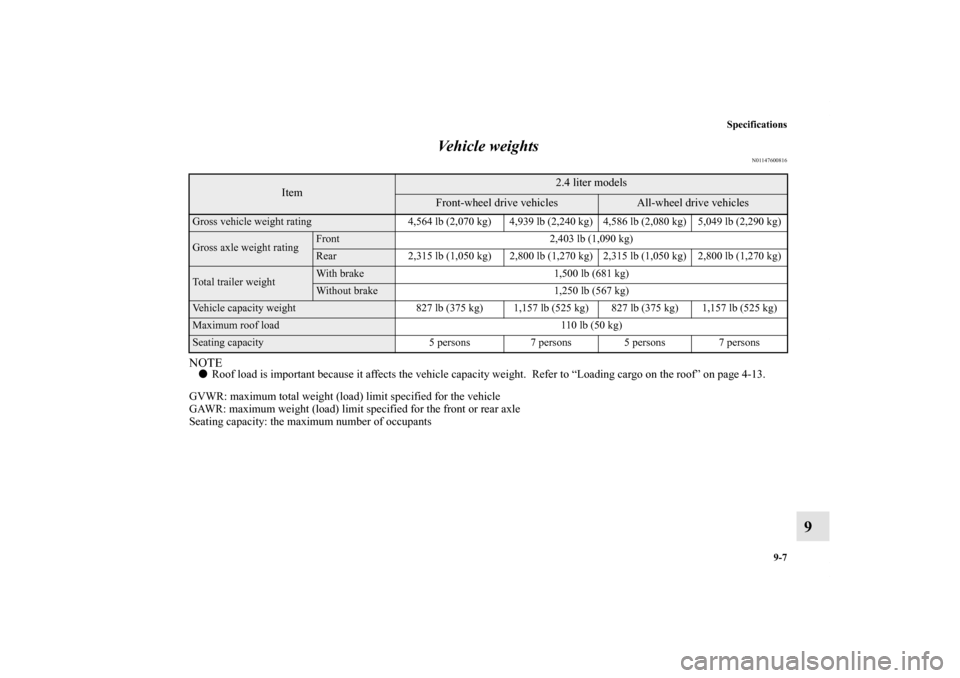

9 Vehicle weights
N01147600816
NOTE
Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-13.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the maximum number of occupants
Item
2.4 liter models
Front-wheel drive vehicles
All-wheel drive vehicles
Gross vehicle weight rating 4,564 lb (2,070 kg) 4,939 lb (2,240 kg) 4,586 lb (2,080 kg) 5,049 lb (2,290 kg)Gross axle weight rating
Front 2,403 lb (1,090 kg)Rear 2,315 lb (1,050 kg) 2,800 lb (1,270 kg) 2,315 lb (1,050 kg) 2,800 lb (1,270 kg)
Total trailer weight
With brake 1,500 lb (681 kg)Without brake 1,250 lb (567 kg)
Vehicle capacity weight 827 lb (375 kg) 1,157 lb (525 kg) 827 lb (375 kg) 1,157 lb (525 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons 7 persons 5 persons 7 persons
BK0122500US.book 7 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

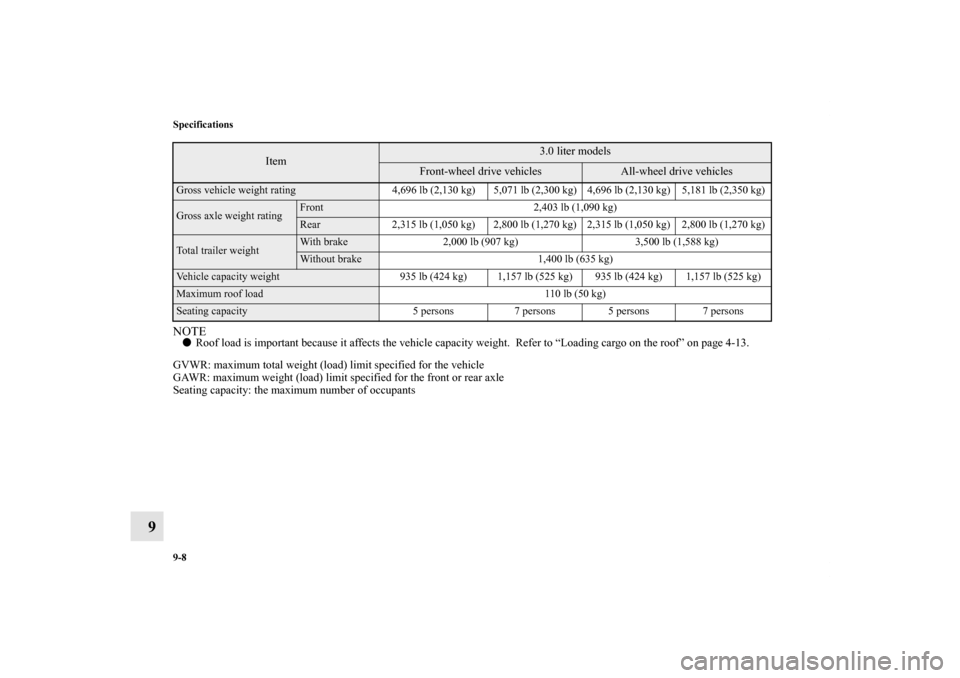

9-8 Specifications
9
NOTE
Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-13.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the maximum number of occupants
Item
3.0 liter models
Front-wheel drive vehicles
All-wheel drive vehicles
Gross vehicle weight rating 4,696 lb (2,130 kg) 5,071 lb (2,300 kg) 4,696 lb (2,130 kg) 5,181 lb (2,350 kg)Gross axle weight rating
Front 2,403 lb (1,090 kg)Rear 2,315 lb (1,050 kg) 2,800 lb (1,270 kg) 2,315 lb (1,050 kg) 2,800 lb (1,270 kg)
Total trailer weight
With brake 2,000 lb (907 kg) 3,500 lb (1,588 kg)Without brake 1,400 lb (635 kg)
Vehicle capacity weight 935 lb (424 kg) 1,157 lb (525 kg) 935 lb (424 kg) 1,157 lb (525 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons 7 persons 5 persons 7 personsBK0122500US.book 8 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Specifications
9-9
9 Engine specifications
N01147700455
Item
2.4 liter
3.0 liter
Engine model 4B12 6B31Engine displacement 144.0 CID (2,360 cm³) 182.9 CID (2,998 cm³)No. of cylinders and cylinder arrangement 4 in line 6-V60°Bore 3.46 in (88.0 mm) 3.45 in (87.6 mm)Stroke 3.82 in (97.0 mm) 3.26 in (82.9 mm)Compression ratio 10.5Thermostat valve opening temperature 188.6 °F (87.0 °C) 179.6 °F (82.0 °C)Spark plugs
NGK DIFR5C11 ILKR7B8DENSO — SXU22HDR8
Spark plug gap .040 to .043 in (1.0 to 1.1 mm) .028 to .031 in (0.7 to 0.8 mm)Firing order 1-3-4-2 1-2-3-4-5-6
BK0122500US.book 9 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

9-10 Specifications

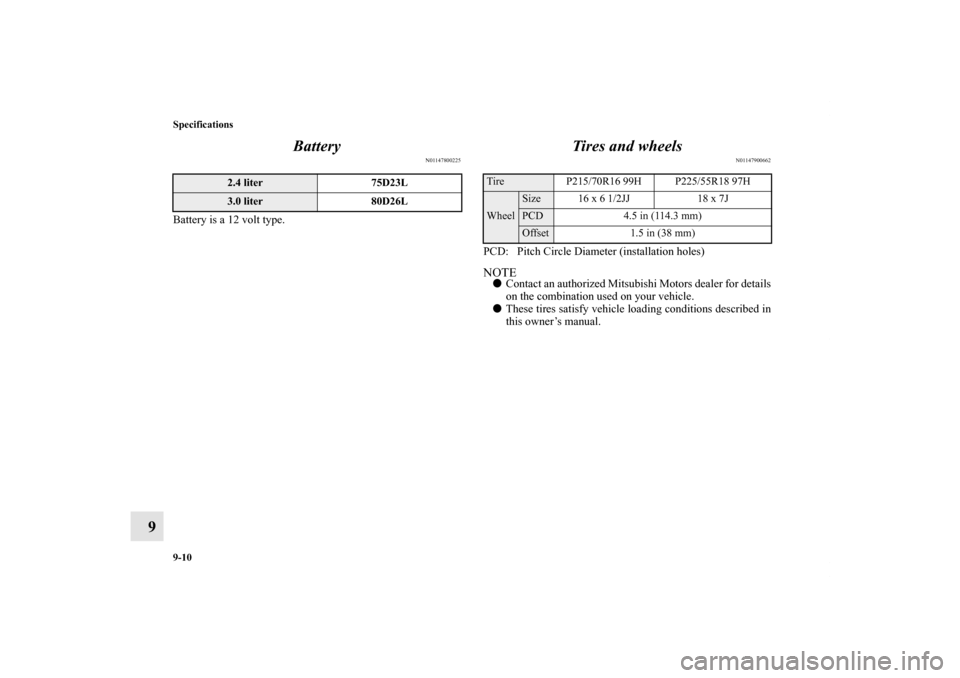

9Battery
N01147800225
Battery is a 12 volt type.
Tires and wheels
N01147900662
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
2.4 liter 75D23L3.0 liter 80D26L
Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2JJ 18 x 7JPCD 4.5 in (114.3 mm)Offset 1.5 in (38 mm)
BK0122500US.book 10 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Specifications
9-11

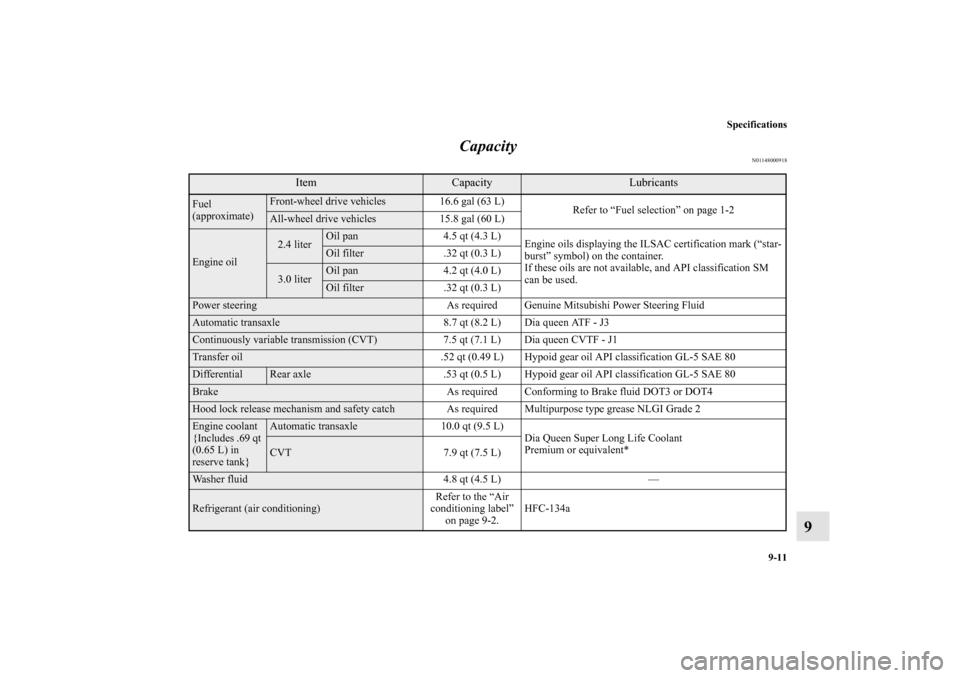

9 Capacity
N01148000918
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
2.4 liter
Oil pan 4.5 qt (4.3 L)
Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SM
can be used.Oil filter .32 qt (0.3 L)
3.0 liter
Oil pan 4.2 qt (4.0 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering FluidAutomatic transaxle 8.7 qt (8.2 L) Dia queen ATF - J3Continuously variable transmission (CVT) 7.5 qt (7.1 L) Dia queen CVTF - J1Transfer oil .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Differential
Rear axle .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt
(0.65 L) in
reserve tank}
Automatic transaxle 10.0 qt (9.5 L)
Dia Queen Super Long Life Coolant
Premium or equivalent*CVT 7.9 qt (7.5 L)
Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
BK0122500US.book 11 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

9-12 Specifications
9

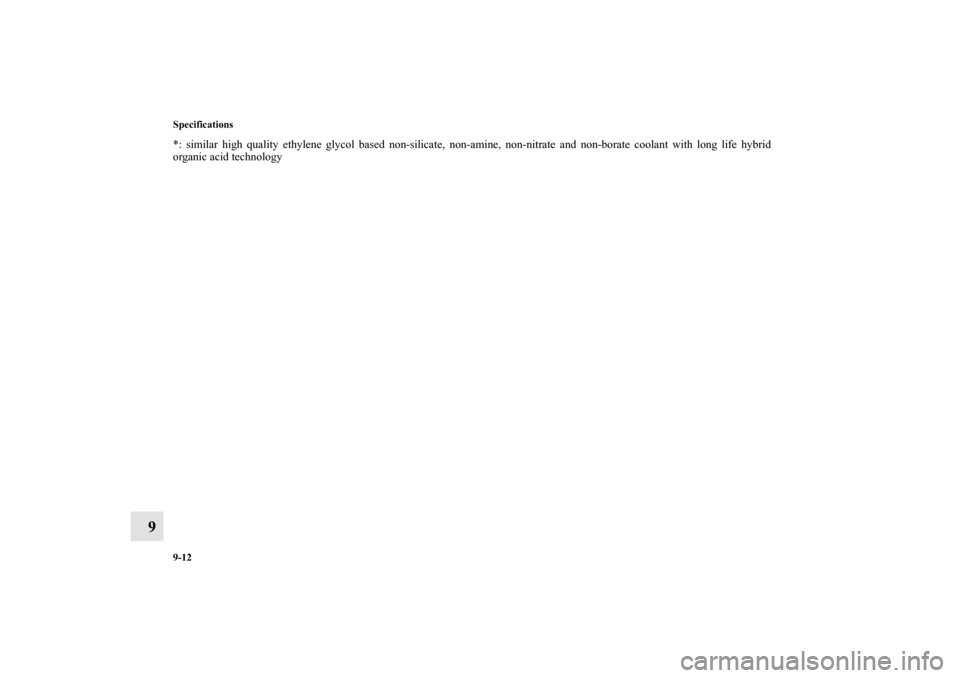

*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technologyBK0122500US.book 12 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

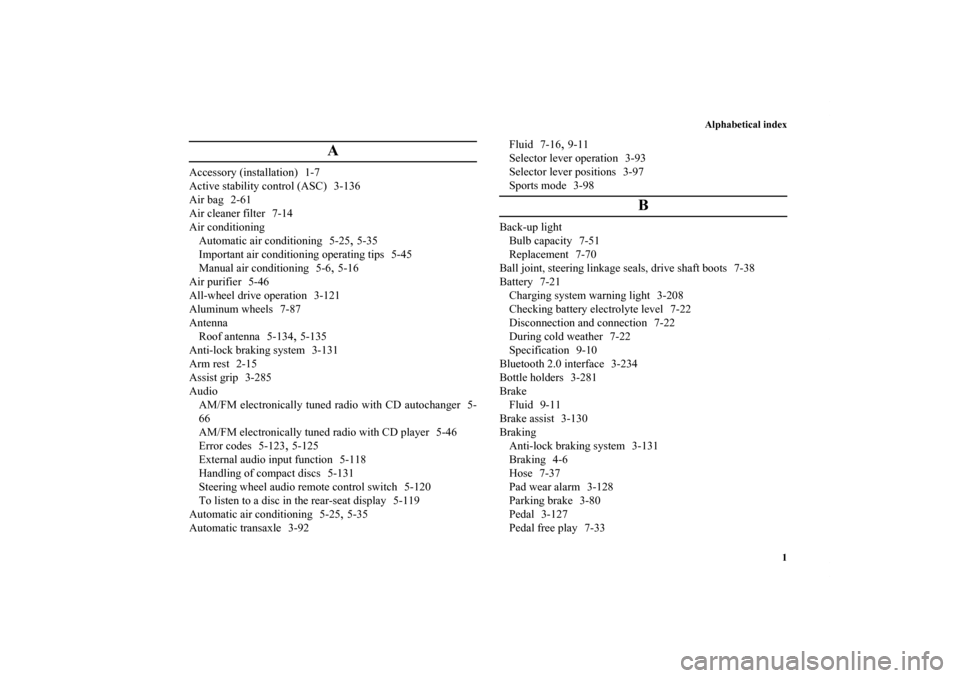

Alphabetical index
1
A
Accessory (installation) 1-7
Active stability control (ASC) 3-136
Air bag 2-61
Air cleaner filter 7-14
Air conditioning
Automatic air conditioning 5-25
,5-35
Important air conditioning operating tips 5-45
Manual air conditioning 5-6
,5-16
Air purifier 5-46
All-wheel drive operation 3-121
Aluminum wheels 7-87
Antenna
Roof antenna 5-134
,5-135
Anti-lock braking system 3-131
Arm rest 2-15
Assist grip 3-285
Audio
AM/FM electronically tuned radio with CD autochanger 5-
66
AM/FM electronically tuned radio with CD player 5-46
Error codes 5-123
,5-125
External audio input function 5-118
Handling of compact discs 5-131
Steering wheel audio remote control switch 5-120
To listen to a disc in the rear-seat display 5-119
Automatic air conditioning 5-25
,5-35
Automatic transaxle 3-92Fluid 7-16
,9-11
Selector lever operation 3-93
Selector lever positions 3-97
Sports mode 3-98
B
Back-up light
Bulb capacity 7-51
Replacement 7-70
Ball joint, steering linkage seals, drive shaft boots 7-38
Battery 7-21
Charging system warning light 3-208
Checking battery electrolyte level 7-22
Disconnection and connection 7-22
During cold weather 7-22
Specification 9-10
Bluetooth 2.0 interface 3-234
Bottle holders 3-281
Brake
Fluid 9-11
Brake assist 3-130
Braking
Anti-lock braking system 3-131
Braking 4-6
Hose 7-37
Pad wear alarm 3-128
Parking brake 3-80
Pedal 3-127
Pedal free play 7-33
