2011 MITSUBISHI OUTLANDER Owners Manual

7-4 Vehicle care and maintenance

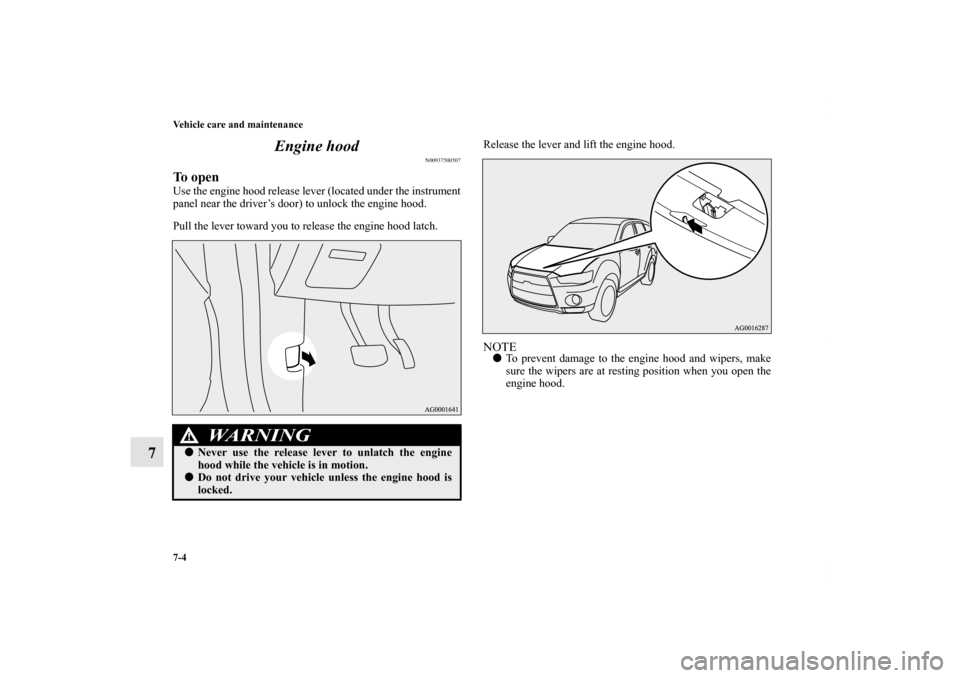

7Engine hood
N00937500507
To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.Release the lever and lift the engine hood.
NOTE
To prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood.
WA R N I N G
!
Never use the release lever to unlatch the engine
hood while the vehicle is in motion.
Do not drive your vehicle unless the engine hood is
locked.
BK0122500US.book 4 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-5
7

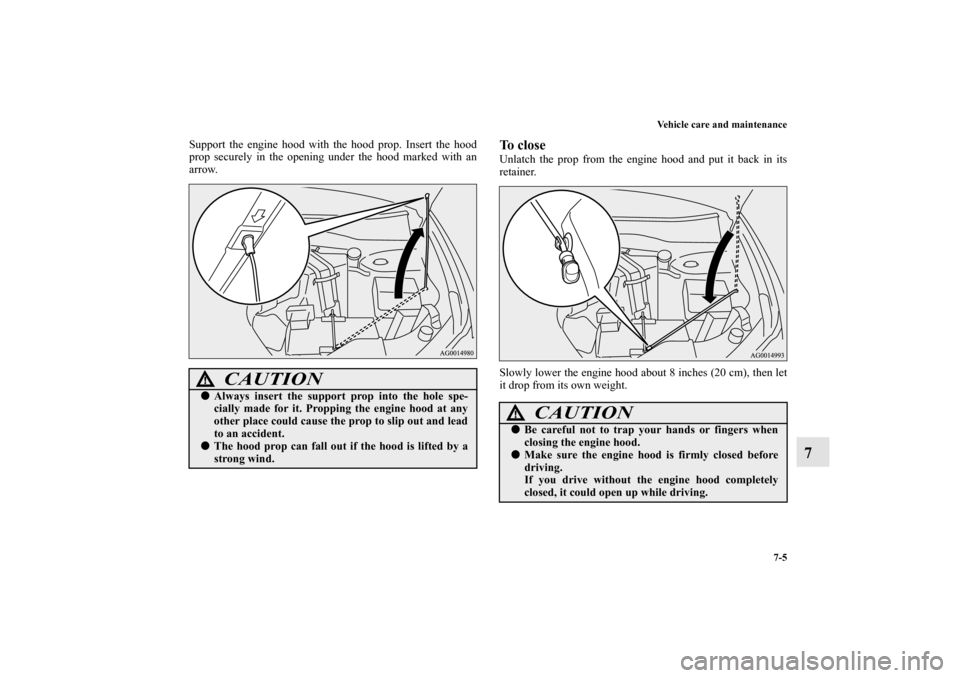

Support the engine hood with the hood prop. Insert the hood
prop securely in the opening under the hood marked with an
arrow.
To closeUnlatch the prop from the engine hood and put it back in its
retainer.
Slowly lower the engine hood about 8 inches (20 cm), then let
it drop from its own weight.
CAUTION
!
Always insert the support prop into the hole spe-
cially made for it. Propping the engine hood at any
other place could cause the prop to slip out and lead
to an accident.
The hood prop can fall out if the hood is lifted by a
strong wind.
CAUTION
!
Be careful not to trap your hands or fingers when
closing the engine hood.
Make sure the engine hood is firmly closed before
driving.
If you drive without the engine hood completely
closed, it could open up while driving.
BK0122500US.book 5 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-6 Vehicle care and maintenance
7
NOTE
If this does not close the engine hood properly, drop it
again from a slightly higher position.

Do not push down strongly on the engine hood. Depend-
ing on how strongly or where you push down, you could
create a dent in the vehicle body.

If you drive with the engine hood left open, warning dis-
play is displayed on the information screen in the multi-
information display.
Type 1 Type 2
BK0122500US.book 6 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-7

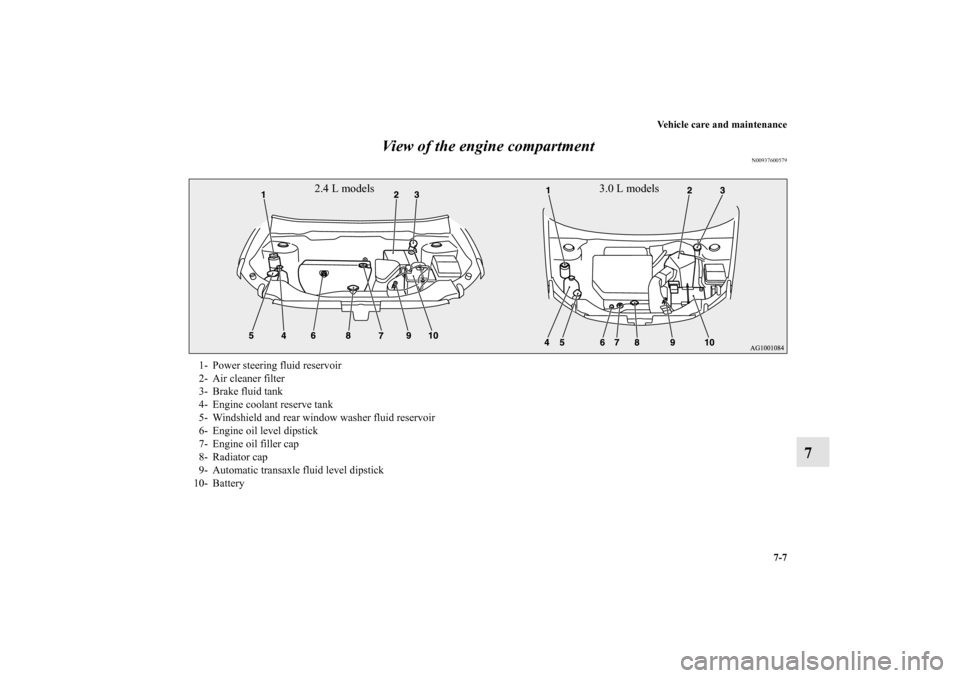

7 View of the engine compartment
N00937600579
2.4 L models 3.0 L models
1- Power steering fluid reservoir
2- Air cleaner filter
3- Brake fluid tank
4- Engine coolant reserve tank
5- Windshield and rear window washer fluid reservoir
6- Engine oil level dipstick
7- Engine oil filler cap
8- Radiator cap
9- Automatic transaxle fluid level dipstick
10- Battery
BK0122500US.book 7 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-8 Vehicle care and maintenance

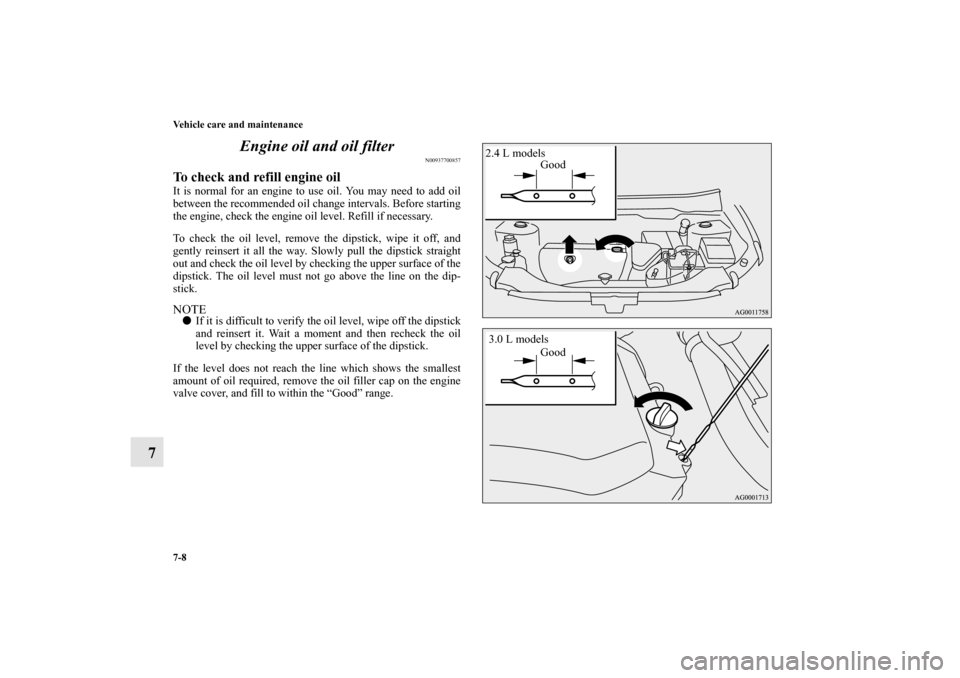

7Engine oil and oil filter
N00937700857
To check and refill engine oilIt is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently reinsert it all the way. Slowly pull the dipstick straight
out and check the oil level by checking the upper surface of the
dipstick. The oil level must not go above the line on the dip-
stick.NOTE
If it is difficult to verify the oil level, wipe off the dipstick
and reinsert it. Wait a moment and then recheck the oil
level by checking the upper surface of the dipstick.
If the level does not reach the line which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
2.4 L models
Good
Good 3.0 L models
BK0122500US.book 8 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-9
7
NOTE
Engine oil consumption is greatly influenced by payload,
engine speed, etc.

The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.
Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.
CAUTION
!
Overfilling will cause oil aeration and loss of oil
pressure, which could damage the engine.
WA R N I N G
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Do not let used oil touch your skin and wash
thoroughly after working with it.
Keep used oil out of the reach of children.
ILSAC certification symbol
BK0122500US.book 9 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-10 Vehicle care and maintenance
7

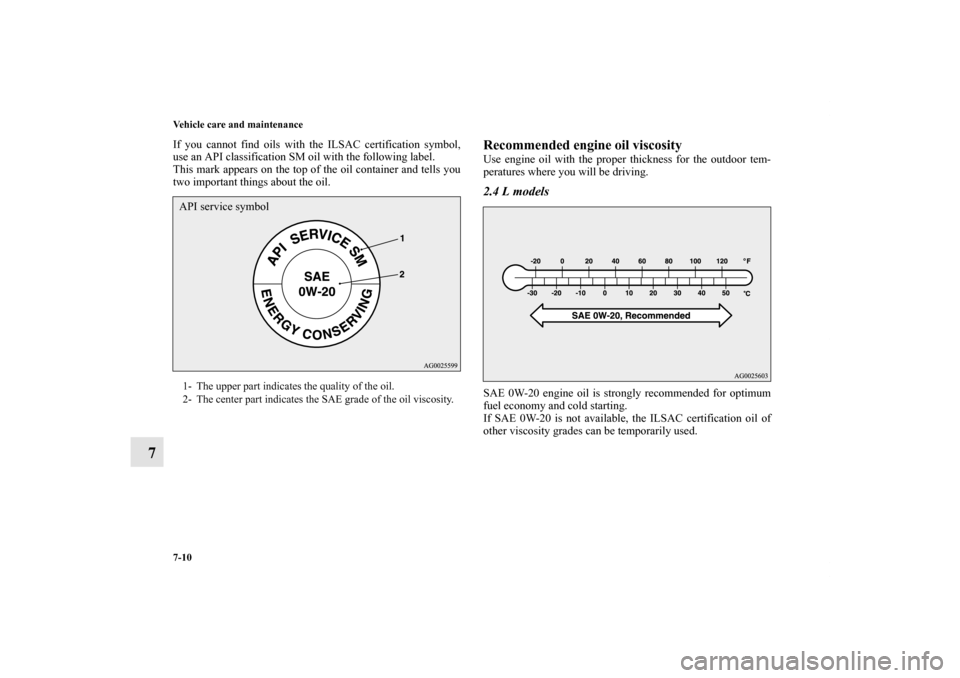

If you cannot find oils with the ILSAC certification symbol,
use an API classification SM oil with the following label.
This mark appears on the top of the oil container and tells you
two important things about the oil.
Recommended engine oil viscosityUse engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.2.4 L modelsSAE 0W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
If SAE 0W-20 is not available, the ILSAC certification oil of
other viscosity grades can be temporarily used.
1- The upper part indicates the quality of the oil.
2- The center part indicates the SAE grade of the oil viscosity.API service symbolBK0122500US.book 10 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-11
7

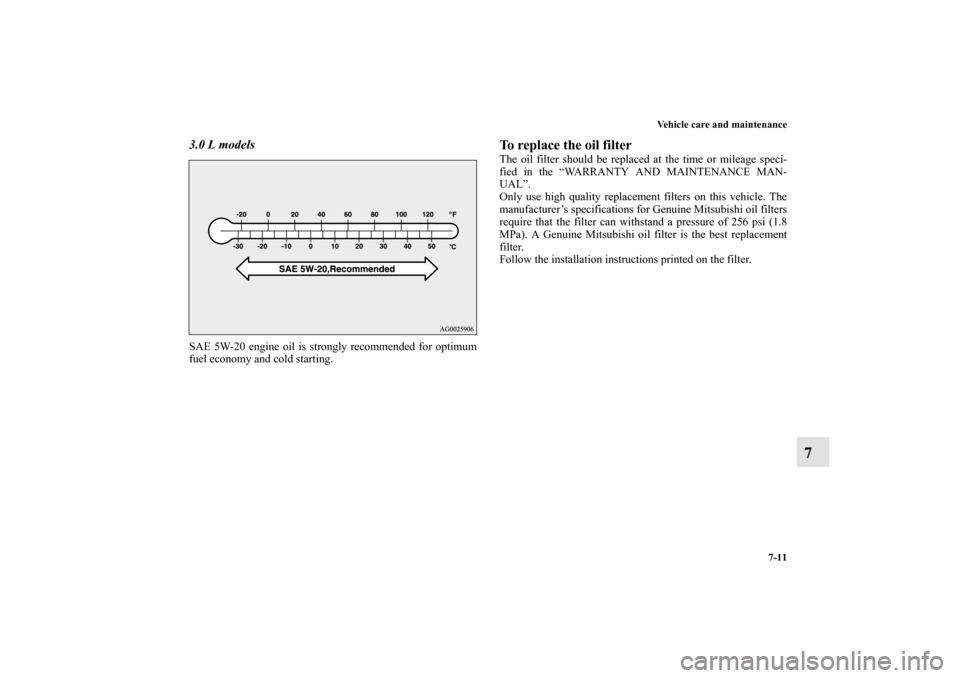

3.0 L modelsSAE 5W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
To replace the oil filterThe oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi (1.8
MPa). A Genuine Mitsubishi oil filter is the best replacement
filter.
Follow the installation instructions printed on the filter.
