Rear combination lights
N00943700432

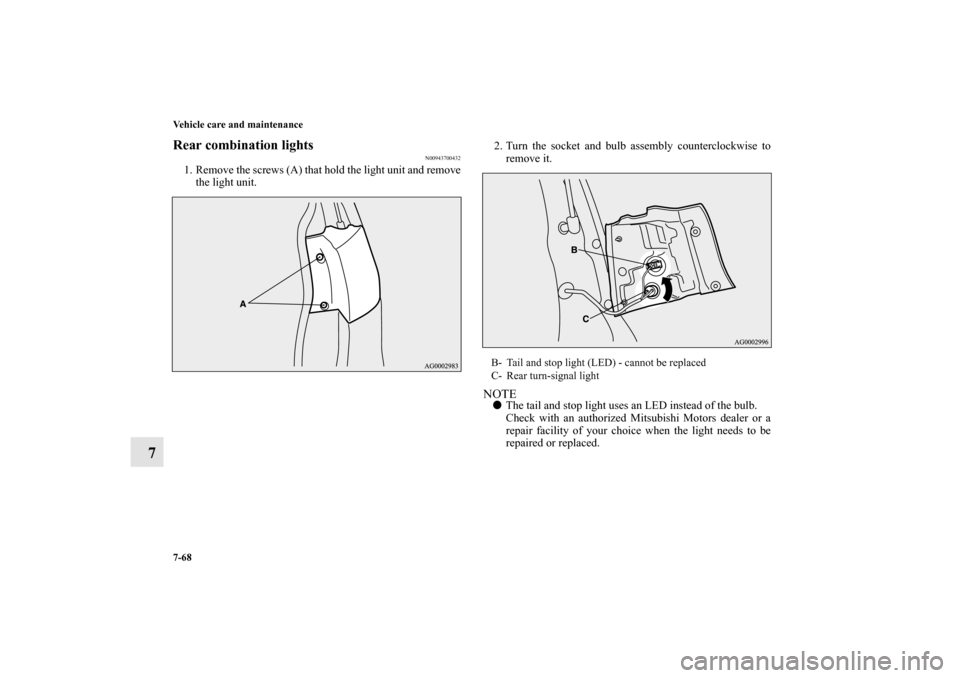

1. Remove the screws (A) that hold the light unit and remove
the light unit.2. Turn the socket and bulb assembly counterclockwise to
remove it.
NOTE
The tail and stop light uses an LED instead of the bulb.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.B- Tail and stop light (LED) - cannot be replaced
C- Rear turn-signal light
BK0122500US.book 68 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-69
7
3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the light unit, align the clips (D) on the
light unit with the hole in the body.
BK0122500US.book 69 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-70 Vehicle care and maintenance
7
Back-up lights
N00929100041

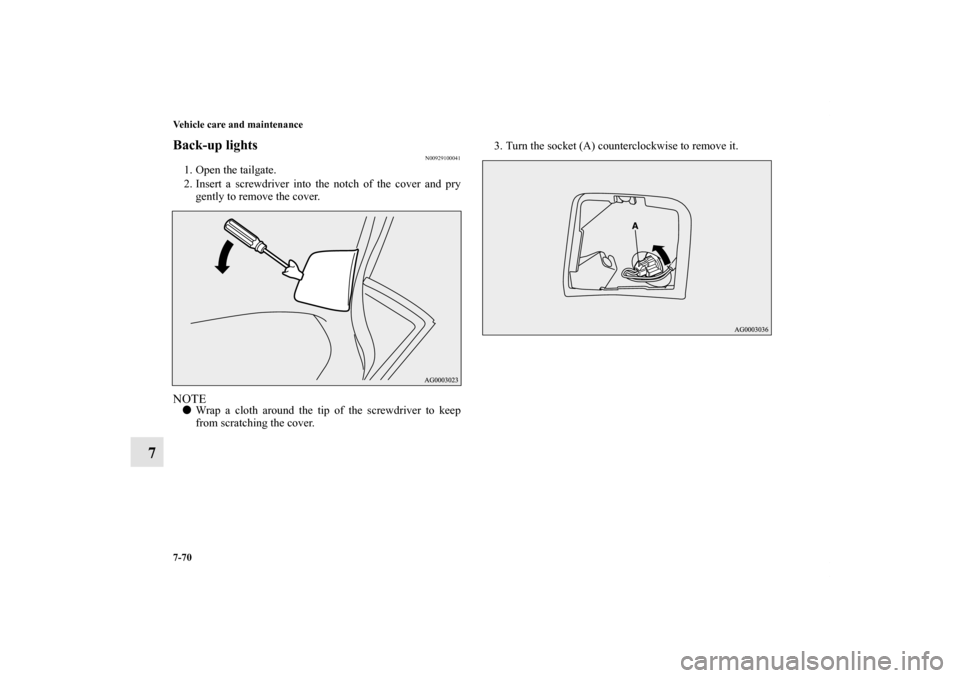

1. Open the tailgate.
2. Insert a screwdriver into the notch of the cover and pry
gently to remove the cover.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.3. Turn the socket (A) counterclockwise to remove it.
BK0122500US.book 70 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-71
7
4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
Rear side-marker lights
N00935400094

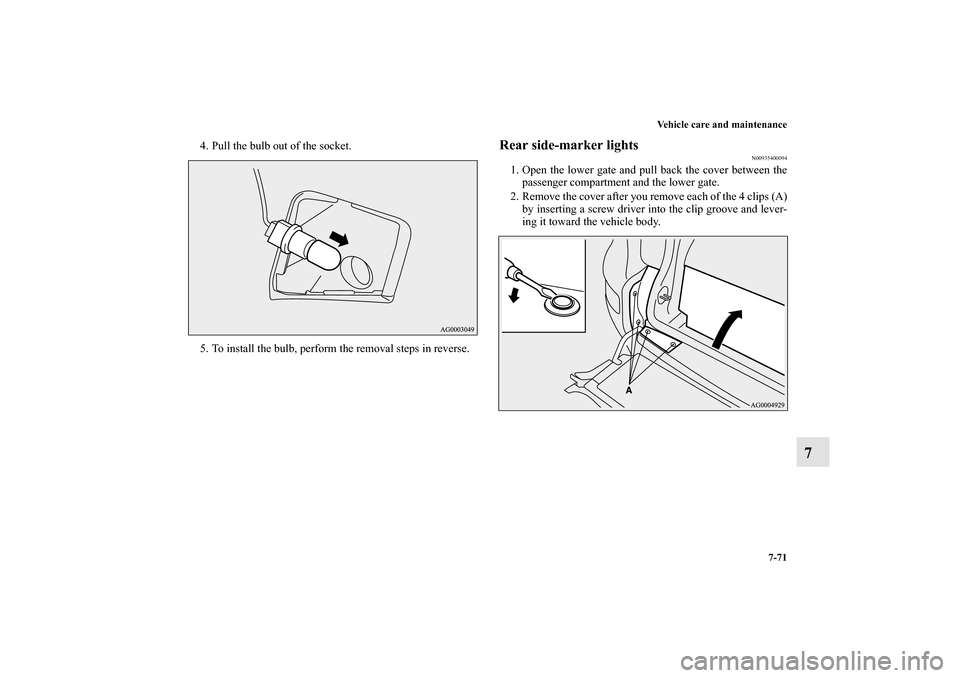

1. Open the lower gate and pull back the cover between the
passenger compartment and the lower gate.
2. Remove the cover after you remove each of the 4 clips (A)
by inserting a screw driver into the clip groove and lever-
ing it toward the vehicle body.
BK0122500US.book 71 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-72 Vehicle care and maintenance
7

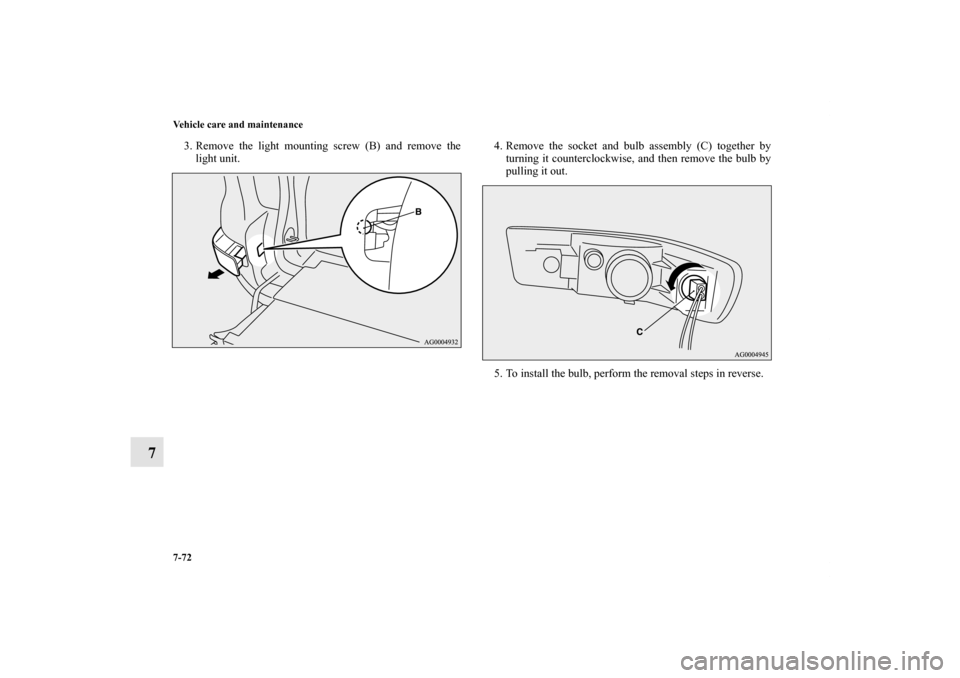

3. Remove the light mounting screw (B) and remove the
light unit.4. Remove the socket and bulb assembly (C) together by
turning it counterclockwise, and then remove the bulb by
pulling it out.
5. To install the bulb, perform the removal steps in reverse.
BK0122500US.book 72 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-73
7
NOTE
When mounting the light unit, align the pins (D) on the
light unit with the hole in the body.
License plate lights
N00944000360
1. When removing the light unit (A), push it toward the left
side of the vehicle body.
BK0122500US.book 73 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-74 Vehicle care and maintenance
7

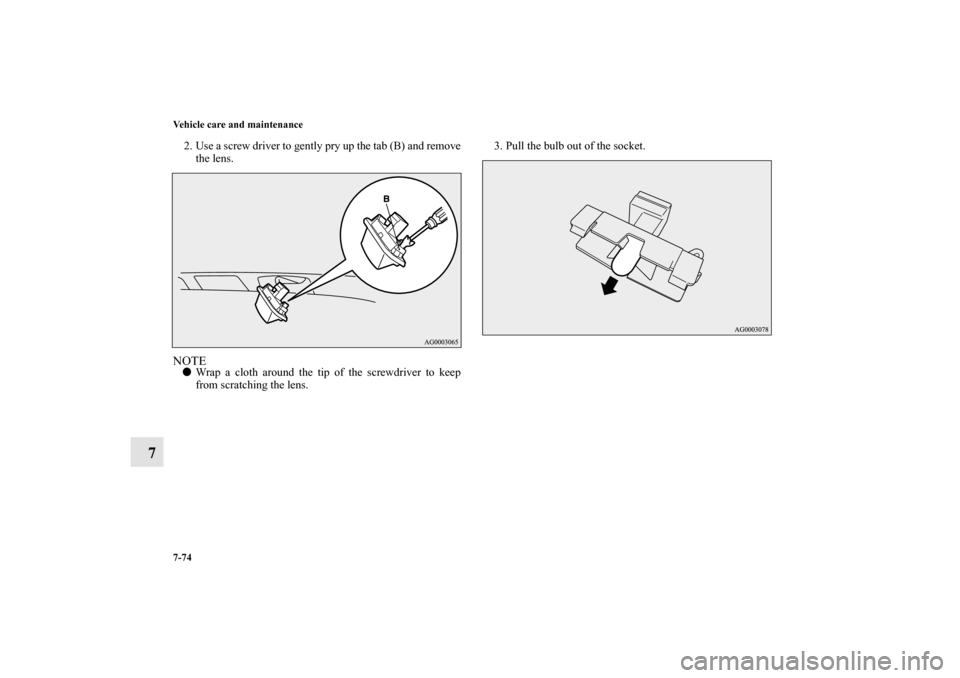

2. Use a screw driver to gently pry up the tab (B) and remove
the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.3. Pull the bulb out of the socket.
BK0122500US.book 74 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-75
7

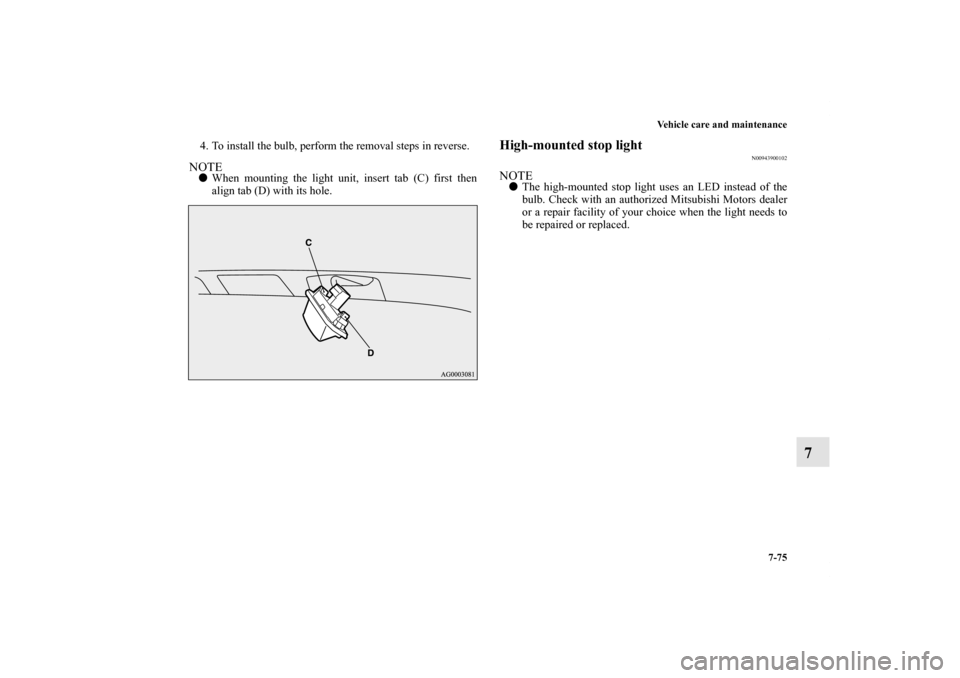

4. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, insert tab (C) first then
align tab (D) with its hole.
High-mounted stop light
N00943900102
NOTE
The high-mounted stop light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
