4-22 Driving safety
4

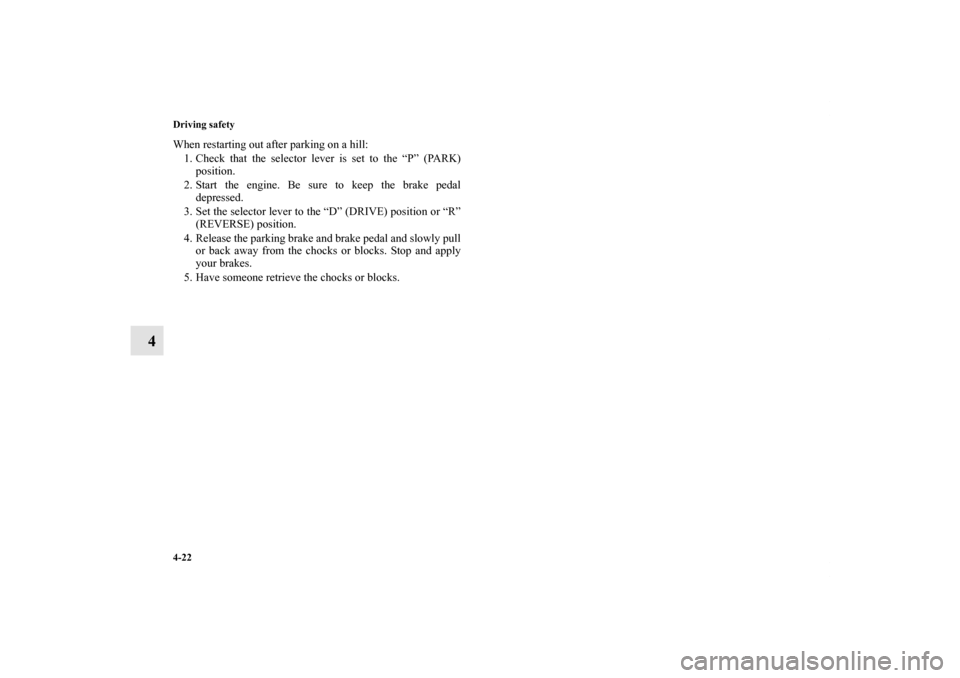

When restarting out after parking on a hill:
1. Check that the selector lever is set to the “P” (PARK)
position.
2. Start the engine. Be sure to keep the brake pedal
depressed.
3. Set the selector lever to the “D” (DRIVE) position or “R”
(REVERSE) position.
4. Release the parking brake and brake pedal and slowly pull
or back away from the chocks or blocks. Stop and apply
your brakes.
5. Have someone retrieve the chocks or blocks.BK0122500US.book 22 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

BK0122500US.book 23 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

BK0122500US.book 24 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

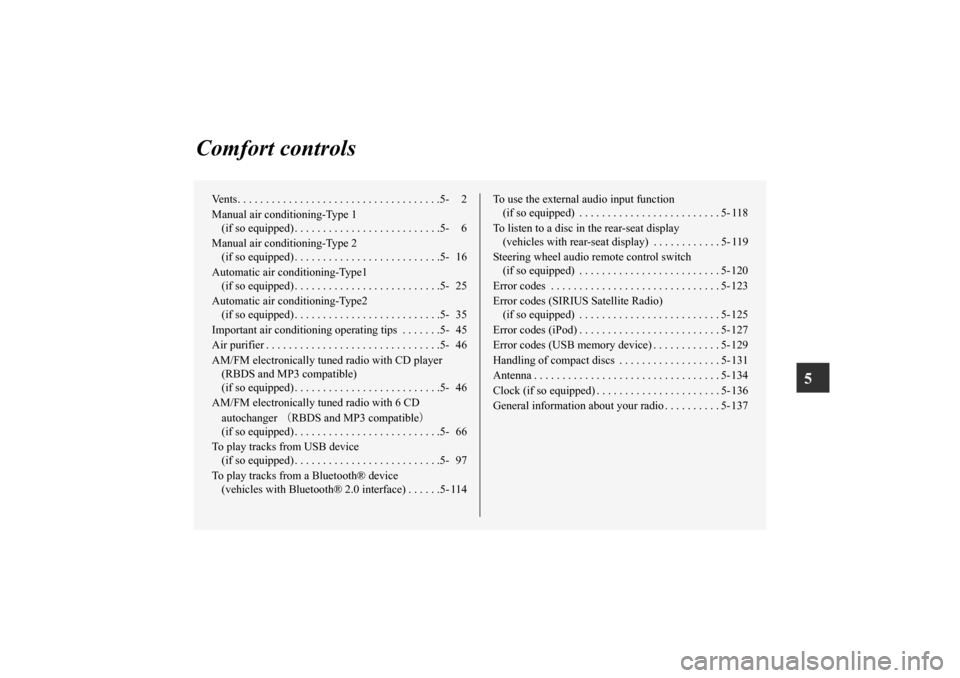

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Manual air conditioning-Type 1
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Manual air conditioning-Type 2
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 16
Automatic air conditioning-Type1
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 25
Automatic air conditioning-Type2
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 35
Important air conditioning operating tips . . . . . . .5- 45
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 46
AM/FM electronically tuned radio with CD player
(RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 46
AM/FM electronically tuned radio with 6 CD
autochanger （RBDS and MP3 compatible）
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 66
To play tracks from USB device
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 97
To play tracks from a Bluetooth® device
(vehicles with Bluetooth® 2.0 interface) . . . . . .5- 114To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 118
To listen to a disc in the rear-seat display
(vehicles with rear-seat display) . . . . . . . . . . . . 5- 119
Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 120
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 123
Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 125
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 127
Error codes (USB memory device) . . . . . . . . . . . . 5- 129
Handling of compact discs . . . . . . . . . . . . . . . . . . 5- 131
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 134
Clock (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 5- 136
General information about your radio . . . . . . . . . . 5- 137
BK0122500US.book 1 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

5-2 Comfort controls

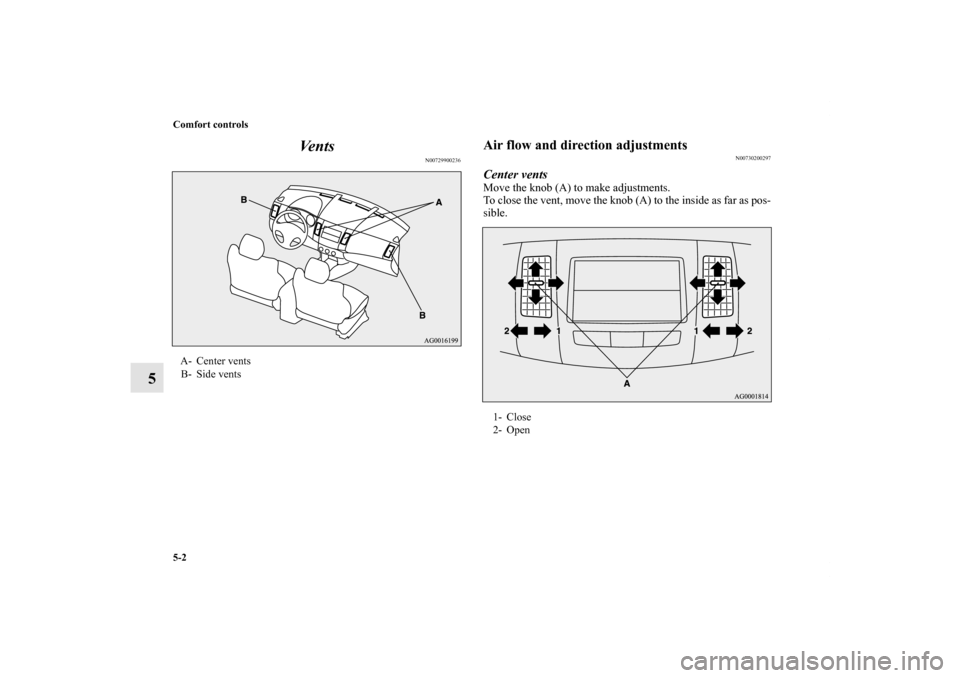

5Ve n t s
N00729900236
Air flow and direction adjustments
N00730200297
Center ventsMove the knob (A) to make adjustments.
To close the vent, move the knob (A) to the inside as far as pos-
sible.
A- Center vents
B- Side vents
1- Close
2- Open
BK0122500US.book 2 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Comfort controls
5-3
5

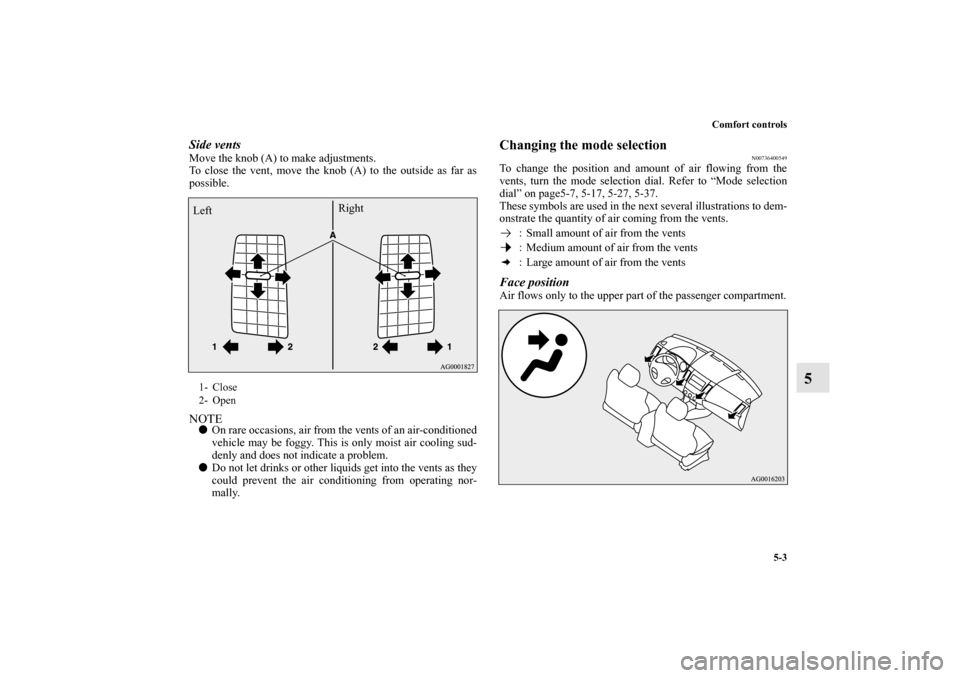

Side ventsMove the knob (A) to make adjustments.
To close the vent, move the knob (A) to the outside as far as
possible.NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.

Do not let drinks or other liquids get into the vents as they
could prevent the air conditioning from operating nor-
mally.
Changing the mode selection
N00736400549
To change the position and amount of air flowing from the
vents, turn the mode selection dial. Refer to “Mode selection
dial” on page5-7, 5-17, 5-27, 5-37.
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
： Small amount of air from the vents
： Medium amount of air from the vents
： Large amount of air from the ventsFace positionAir flows only to the upper part of the passenger compartment.
1- Close
2- OpenLeftRight
BK0122500US.book 3 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

5-4 Comfort controls
5

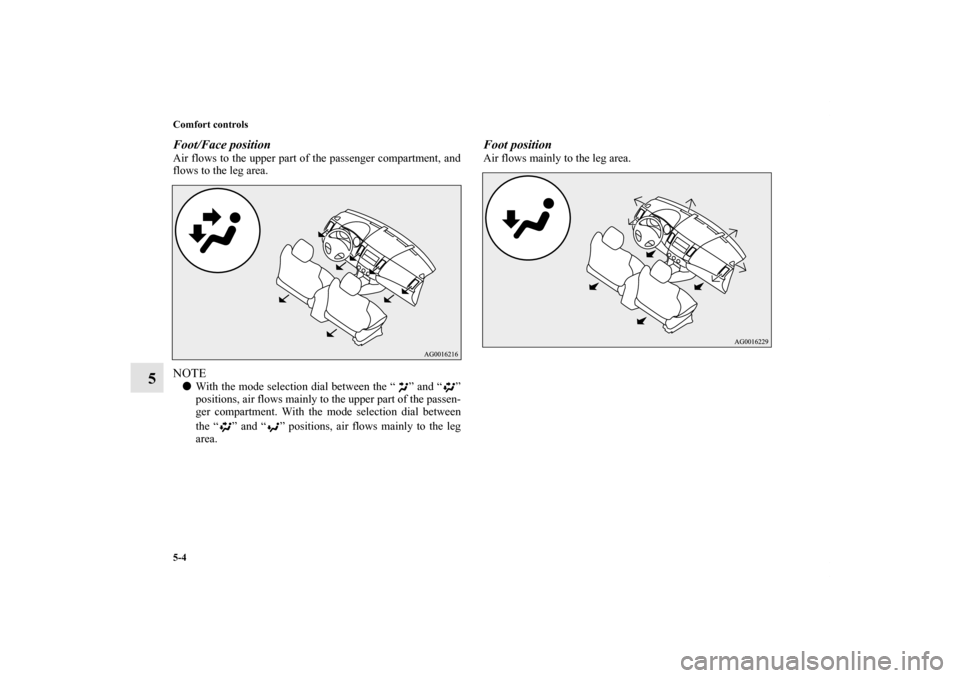

Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot positionAir flows mainly to the leg area.
BK0122500US.book 4 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Comfort controls
5-5
5

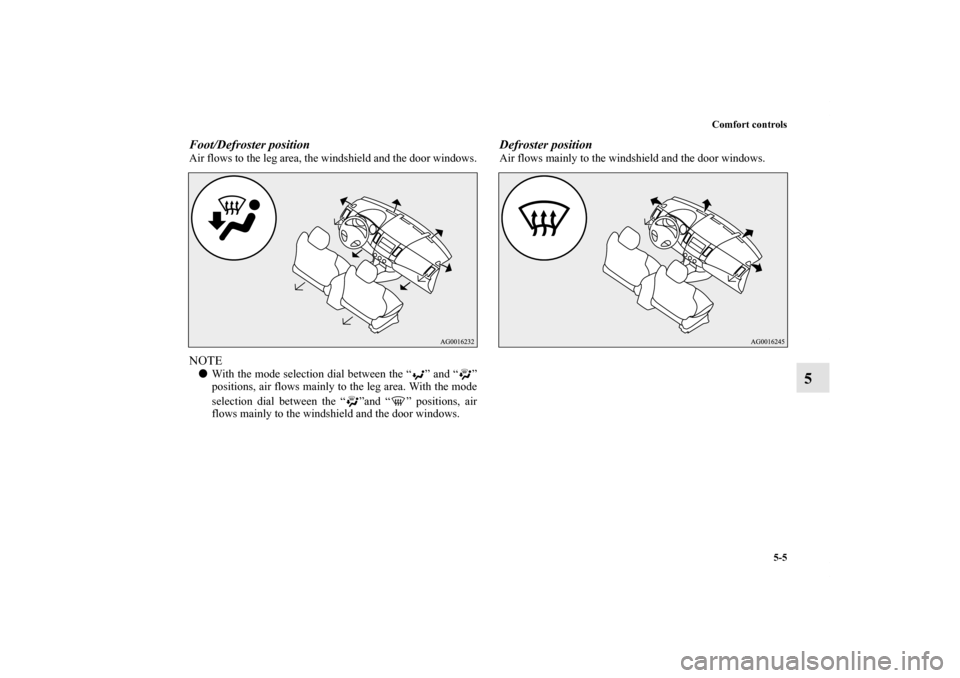

Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
