2011 MITSUBISHI OUTLANDER Owners Manual

3-142 Features and controls
3

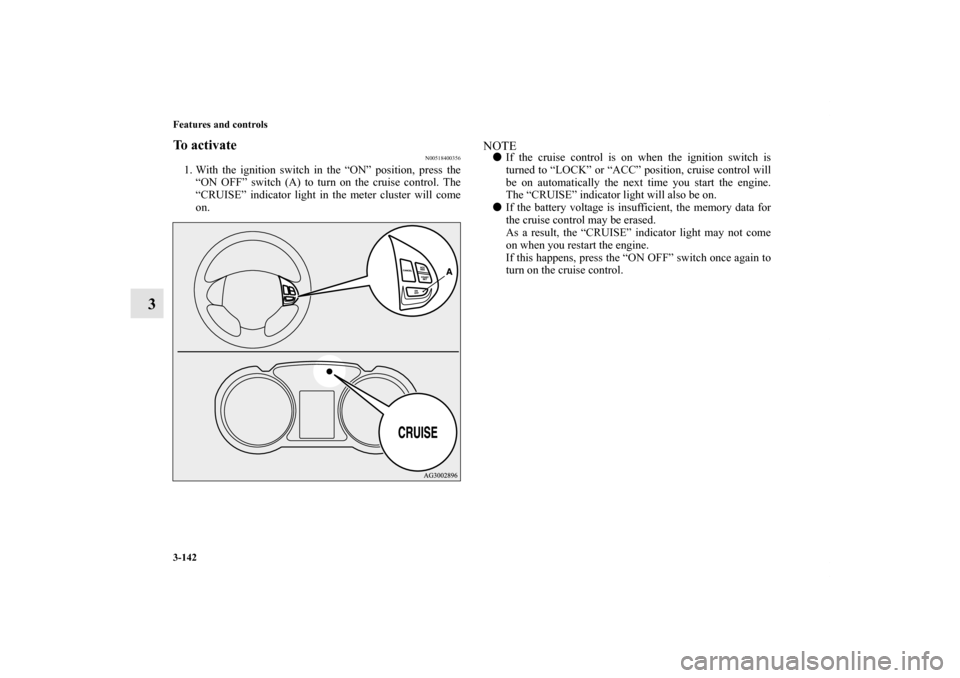

To activate
N00518400356
1. With the ignition switch in the “ON” position, press the
“ON OFF” switch (A) to turn on the cruise control. The
“CRUISE” indicator light in the meter cluster will come
on.
NOTE
If the cruise control is on when the ignition switch is
turned to “LOCK” or “ACC” position, cruise control will
be on automatically the next time you start the engine.
The “CRUISE” indicator light will also be on.

If the battery voltage is insufficient, the memory data for
the cruise control may be erased.
As a result, the “CRUISE” indicator light may not come
on when you restart the engine.
If this happens, press the “ON OFF” switch once again to
turn on the cruise control.
BK0122500US.book 142 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-143
3

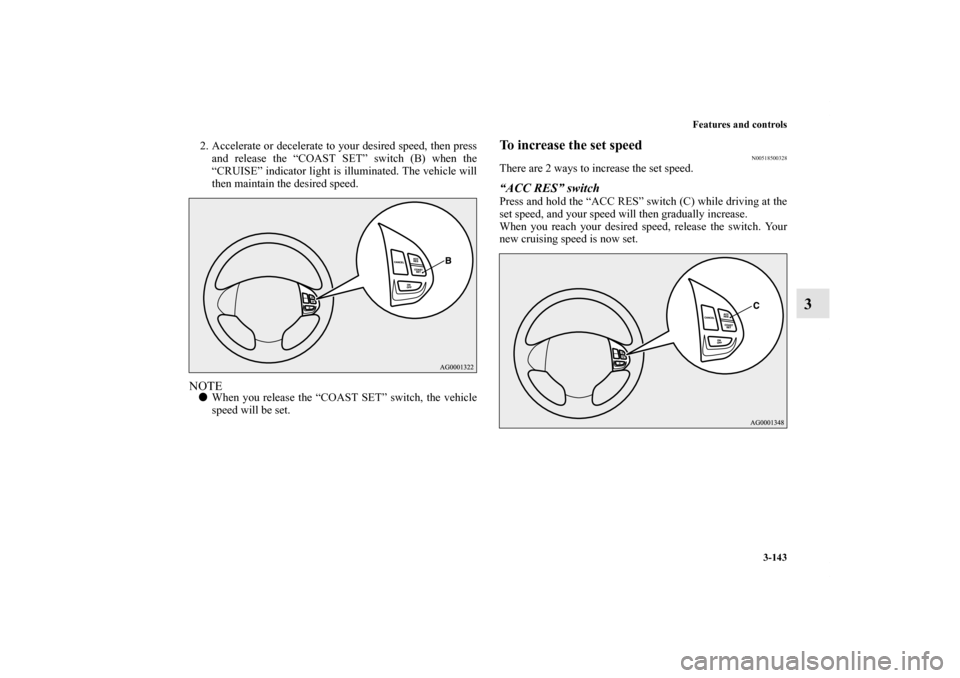

2. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.NOTE
When you release the “COAST SET” switch, the vehicle
speed will be set.
To increase the set speed
N00518500328
There are 2 ways to increase the set speed.“ACC RES” switchPress and hold the “ACC RES” switch (C) while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
BK0122500US.book 143 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-144 Features and controls
3

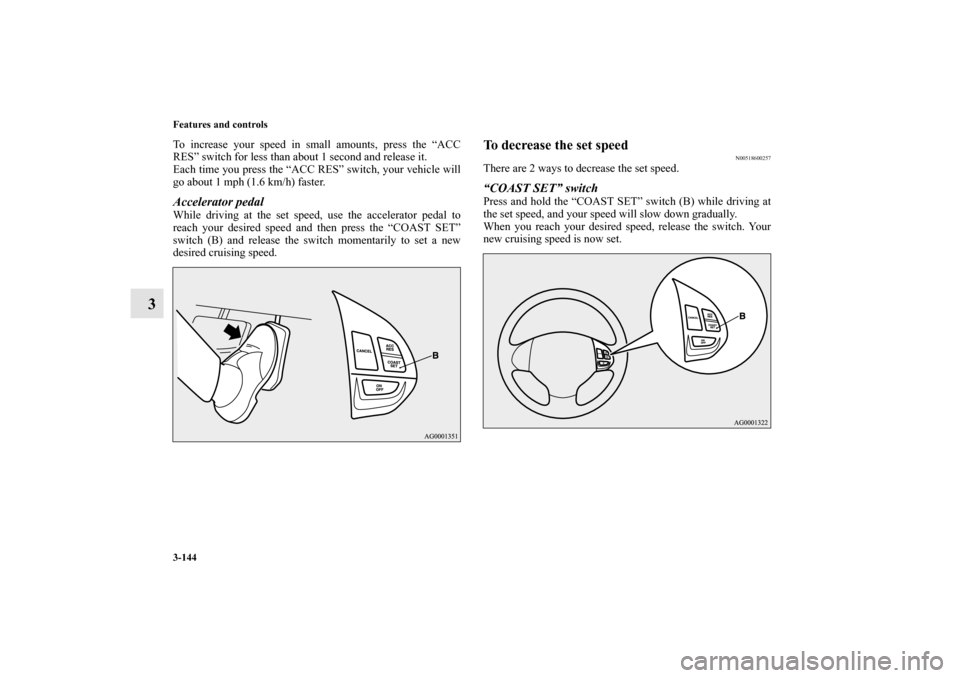

To increase your speed in small amounts, press the “ACC
RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch, your vehicle will
go about 1 mph (1.6 km/h) faster.Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To decrease the set speed
N00518600257
There are 2 ways to decrease the set speed.“COAST SET” switchPress and hold the “COAST SET” switch (B) while driving at
the set speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
BK0122500US.book 144 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-145
3

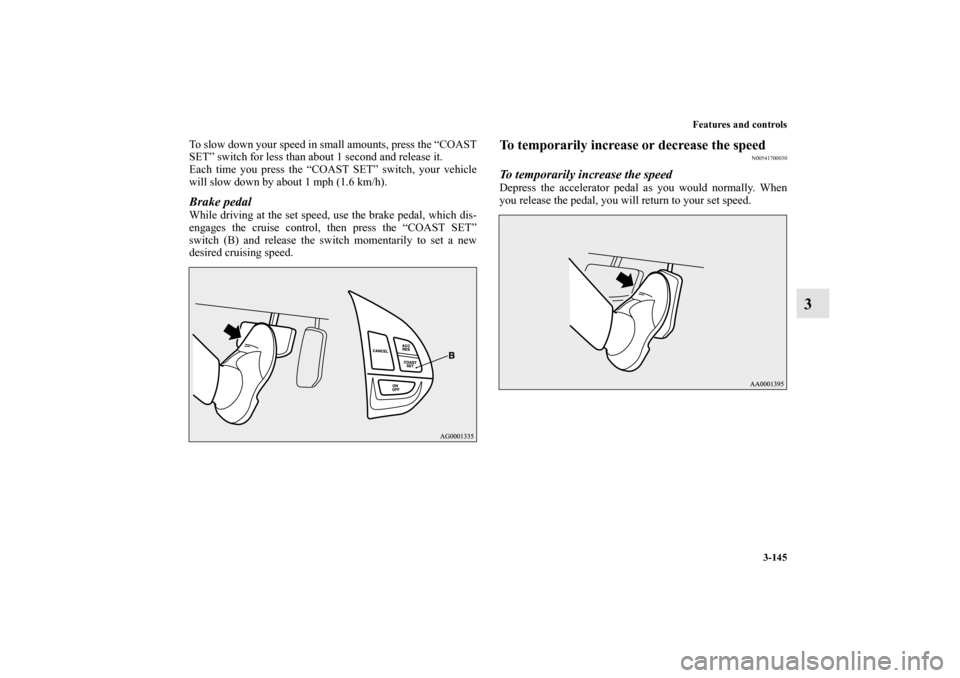

To slow down your speed in small amounts, press the “COAST
SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle
will slow down by about 1 mph (1.6 km/h).Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To temporarily increase or decrease the speed
N00541700030
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
BK0122500US.book 145 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-146 Features and controls
3
To temporarily decrease the speedDepress the brake pedal to decrease the speed. To return to the
previously set speed, press the “ACC RES” switch (C).
Refer to “To resume the set speed” on page 3-148.
To deactivate
N00518800480
The set speed driving can be deactivated as follows:

Press the “ON OFF” switch (A). (Cruise control will be
turned off.)

Press the “CANCEL” switch (D).

Depress the brake pedal.
BK0122500US.book 146 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-147
3

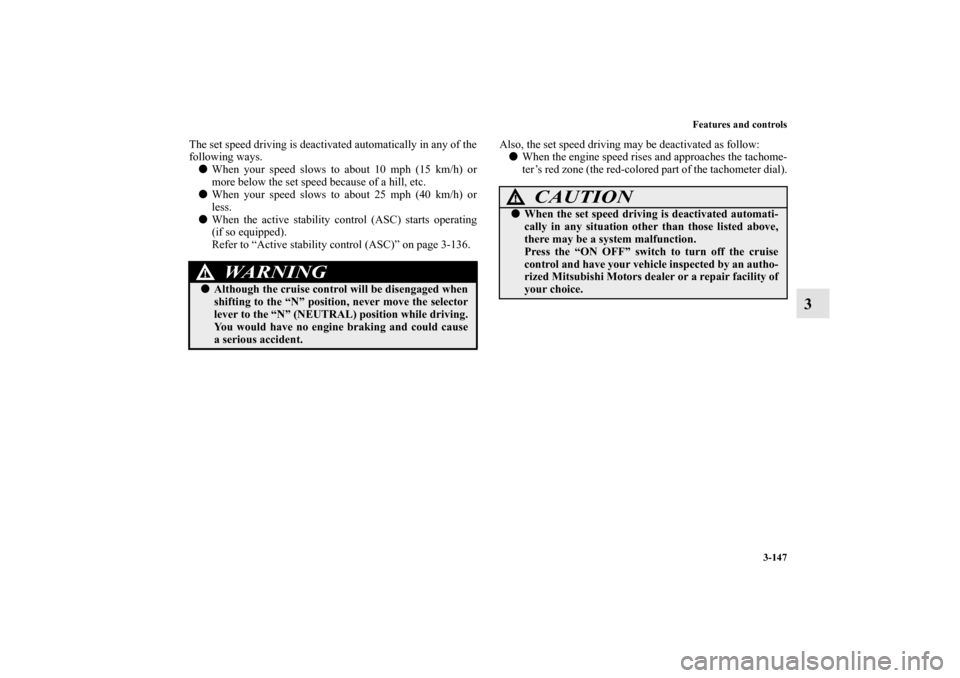

The set speed driving is deactivated automatically in any of the
following ways.

When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.

When your speed slows to about 25 mph (40 km/h) or
less.

When the active stability control (ASC) starts operating
(if so equipped).
Refer to “Active stability control (ASC)” on page 3-136.Also, the set speed driving may be deactivated as follow:

When the engine speed rises and approaches the tachome-
ter’s red zone (the red-colored part of the tachometer dial).
WA R N I N G
!
Although the cruise control will be disengaged when
shifting to the “N” position, never move the selector
lever to the “N” (NEUTRAL) position while driving.
You would have no engine braking and could cause
a serious accident.
CAUTION
!
When the set speed driving is deactivated automati-
cally in any situation other than those listed above,
there may be a system malfunction.
Press the “ON OFF” switch to turn off the cruise
control and have your vehicle inspected by an autho-
rized Mitsubishi Motors dealer or a repair facility of
your choice.
BK0122500US.book 147 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-148 Features and controls
3

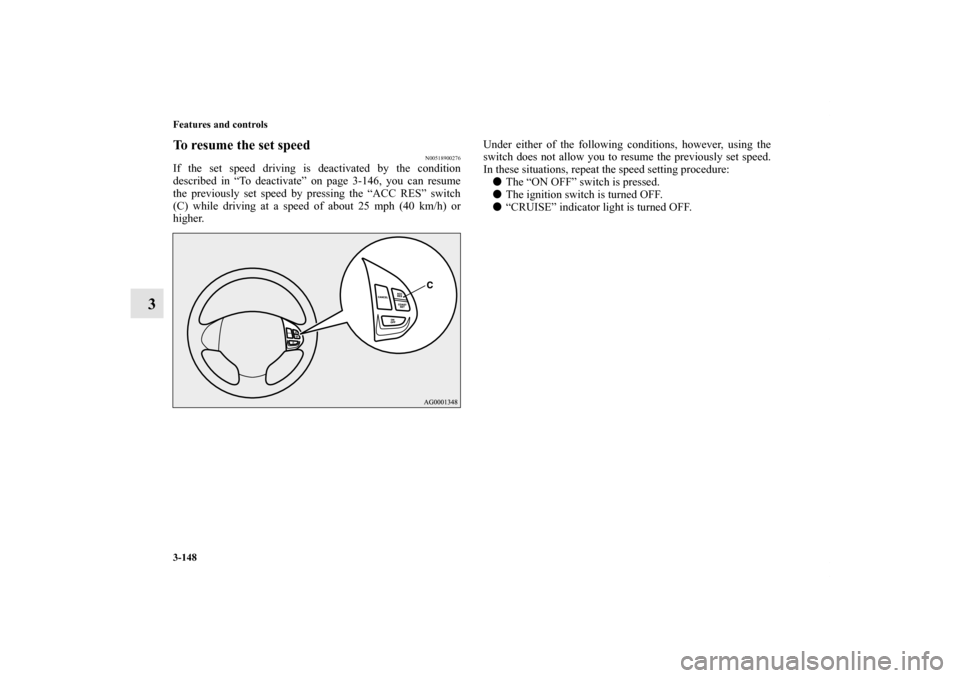

To resume the set speed
N00518900276
If the set speed driving is deactivated by the condition
described in “To deactivate” on page 3-146, you can resume
the previously set speed by pressing the “ACC RES” switch
(C) while driving at a speed of about 25 mph (40 km/h) or
higher.Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The “ON OFF” switch is pressed.

The ignition switch is turned OFF.

“CRUISE” indicator light is turned OFF.BK0122500US.book 148 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-149
3 Tire pressure monitoring system
N00530200312
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
NOTE
The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-24.

Each of the grommets and washers where the tire inflation
pressure sensors are mounted should be replaced with new
ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors
dealer.
WA R N I N G
!
The compact spare wheel does not have a tire infla-
tion pressure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
Grommet
Tire inflation
pressure sensorWa s h e r
BK0122500US.book 149 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
